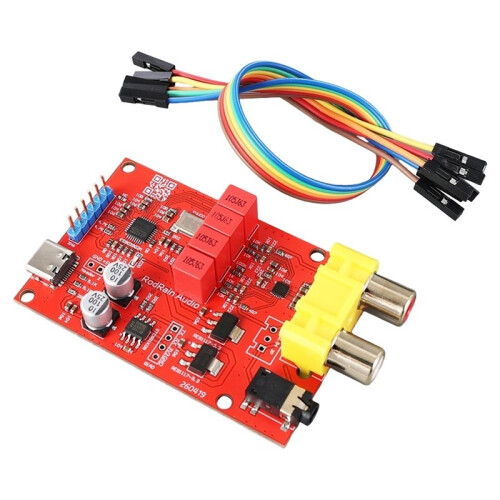

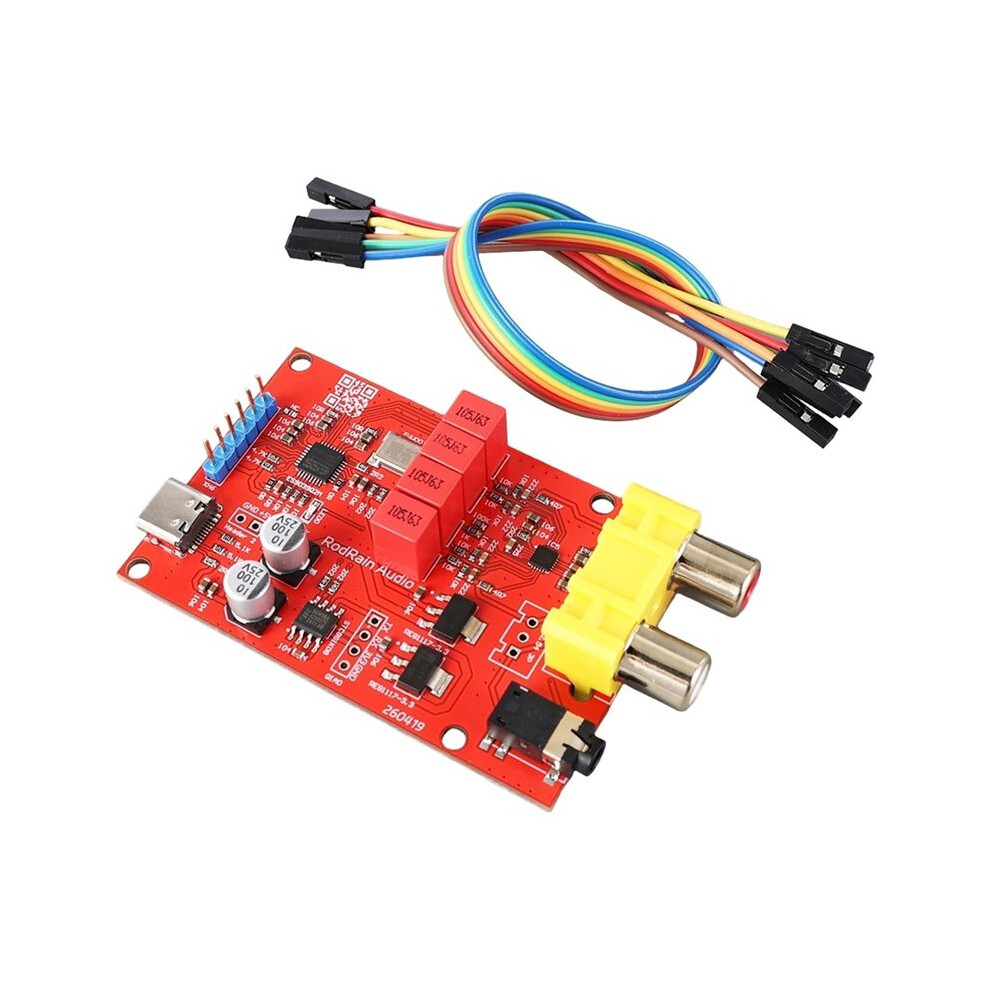

ES9039Q2M Decoder I2S DSD Digital Audio Input for DAC Decoder Board ES9601K Module

ES9039Q2M Decoder I2S DSD Digital Audio Input for DAC Decoder Board ES9601K Module leírása

[Input Support] 1.I2S/DSD: 32bit/768k, DSD64, DSD128, DSD256, DSD512 2.125 Mode, Standard 12S Format

[Foot Position Explanation] MCK: I2S MCK Input (NC, default not connected) DATA: 12S DATA Input BCK: I2S BCK Input LRCK: I2S LRCK Input 3V3_OUT: 3.3v output, reserved for external power supply GND: Ground [Product Features]
1.Using the original es9039q2m chip and optimized by software control
2. The use of high-precision active crystal oscillator ensures excellent signal-to-noise ratio for the entire machine.
3. Built-in power supply and audio signal indicator lights
4. Utilize the ES9601K professional headphone amplifier, featuring 3.5 analog audio output, which is more convenient.
5. Type-C power supply, linear voltage reduction, tantalum capacitor filtering, resulting in cleaner power supply
6. Supports 12S/DSD digital audio input
7. Reserved external power supply, supporting a wide voltage range of 5-12V for power supply.
8. The pin connector has a standard 2.54 pitch spacing. [Note: MCK is generated by PLL. No external MCK is required! ] [Note: The USB port is solely for power supply and does not have data transmission capabilities! ]
Color: As Shown
Material: PC+Metal

Package Contents:
1*ES9039Q2M Decoder
1 x Cable
