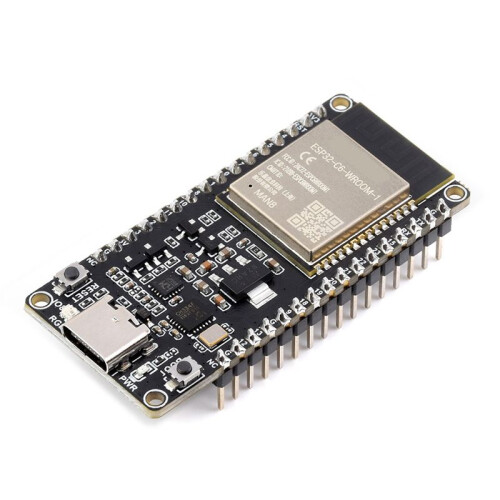

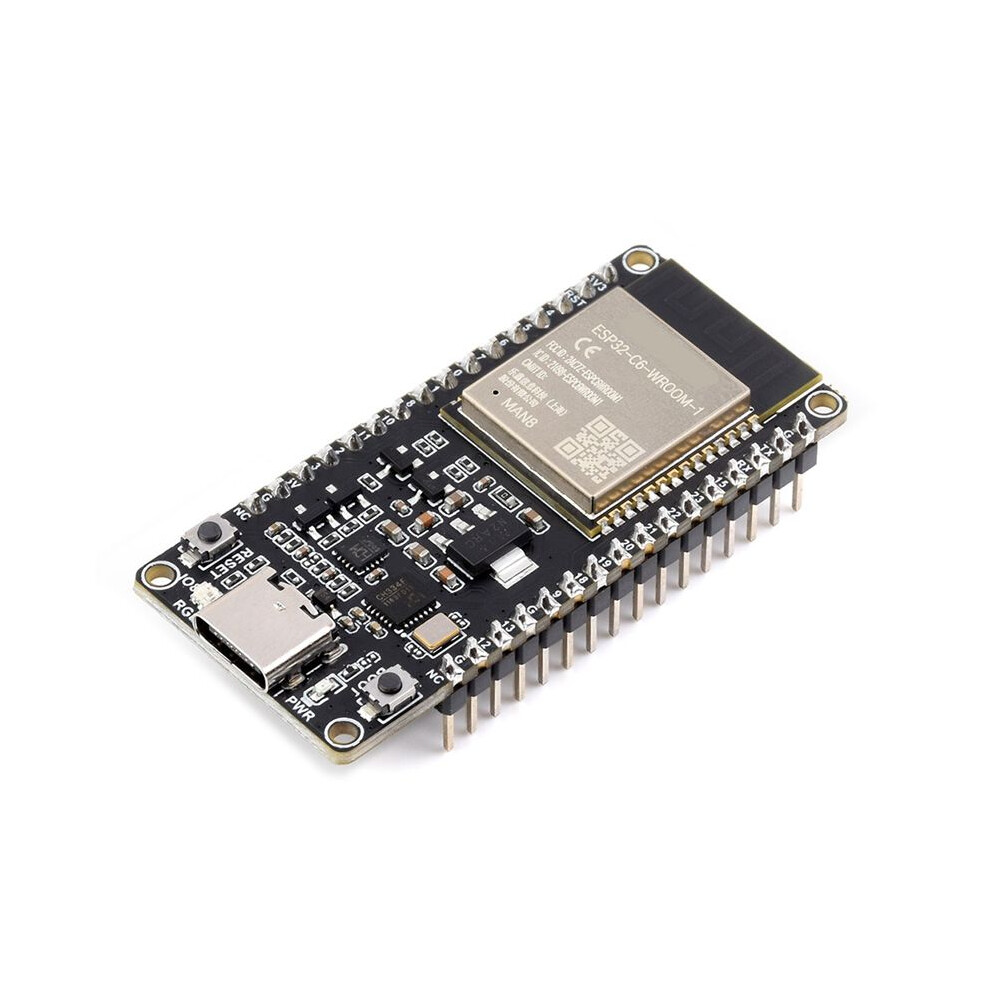

ESP32-C6 Development Board WiFi6 5 Zigbee Thread 160MHz Single Core Processor ESP32-C6-WROOM-1-N8 Module(B)

ESP32-C6 Development Board WiFi6 5 Zigbee Thread 160MHz Single Core Processor ESP32-C6-WROOM-1-N8 Module(B) leírása

ESP32-C6-WROOM-1 modules with RISC-V 32-bit single-core processor supporting to 160 MHz clock frequency.
Integrated 320KB ROM, 512KB , 16KB LP , and 8MB Flash memory. Integrated 2.4GHz Wi-Fi 6 and LE dual-mode wireless communication for superior RF performance.
USB Type-C interface eliminates the need for forward and reverse plugging. With CH343 and CH334 chips board, one Type-C interface can fulfill the requirements of USB and UART development.
Rich peripheral interfaces, pin-compatible with the ESP32-C6-DevKitC-1 development board, strong compatibility and expandability. Stamp hole design, can be directly soldered and integrated into the user's own design of the backplane.
Supports a variety of low-power operating states, adjustable communication distance, data rate and power consumption balance to meet the power requirements of various application scenarios.

The ESP32-C6-DEV-KIT-N8 is a compact microcontroller development board with multiple digital interfaces.
In hardware, it adopts ESP32-C6-WROOM-1 module, which is equipped with RISC-V 32-bit single-core processor, supporting to 160 MHz clock frequency, built-in 320KB ROM, 512KB and 16KB LP ; the onboard CH343 Serial port and CH334 USB HUB dual chip can be used and developed through a USB-C interface for USB and UART, and the pin interface is compatible with ESP32-C6-DEV-KIT-N8. The CH343 serial interface and CH334 USB HUB dual chip board can be used and developed through a USB-C interface for USB and UART, and the pin interface is compatible with the ESP32-C6-DevKitC-1 development board, which is compatible with the expansion of a variety of peripheral devices, and is more convenient to use.
In terms of software, the ESP-IDF development environment can be selected for development, so that you can easily and quickly get started
