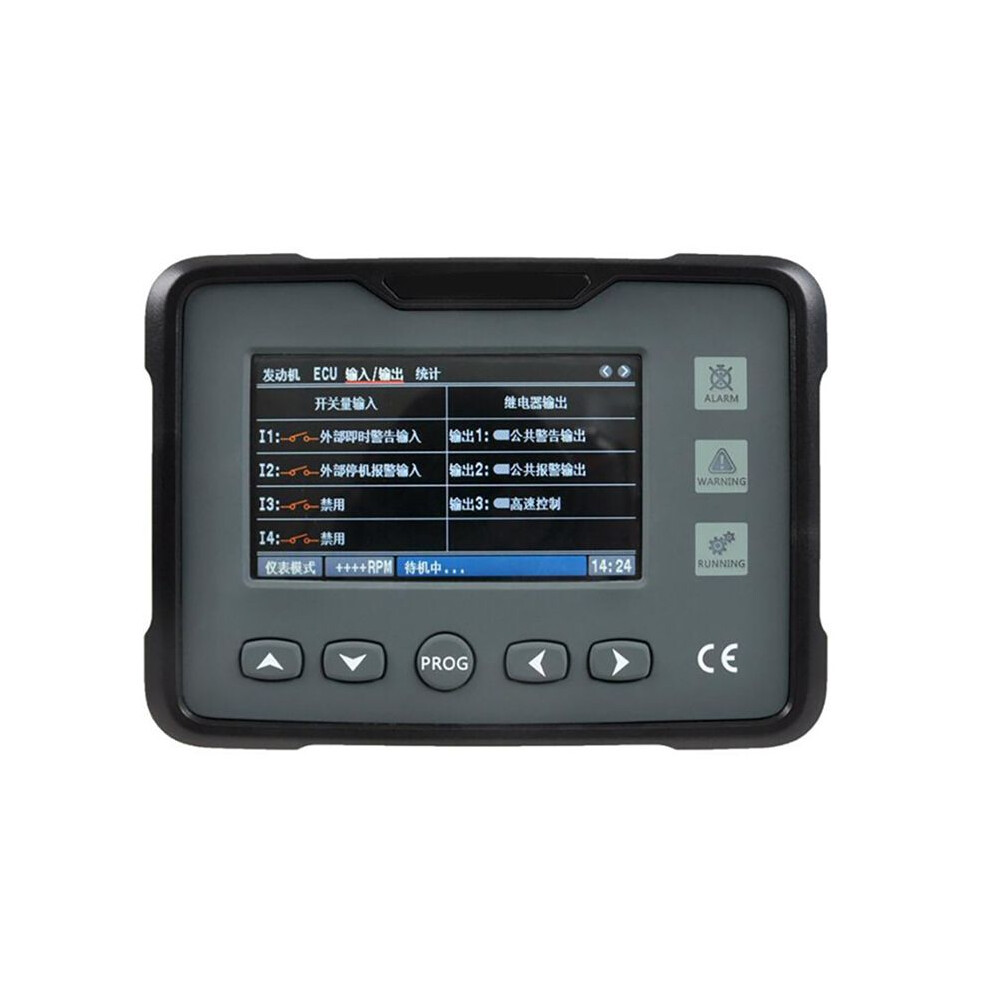

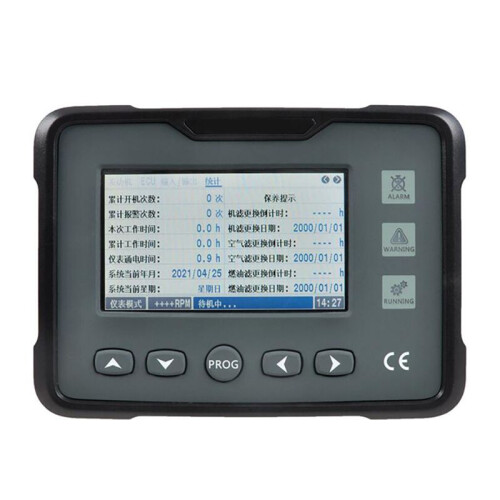

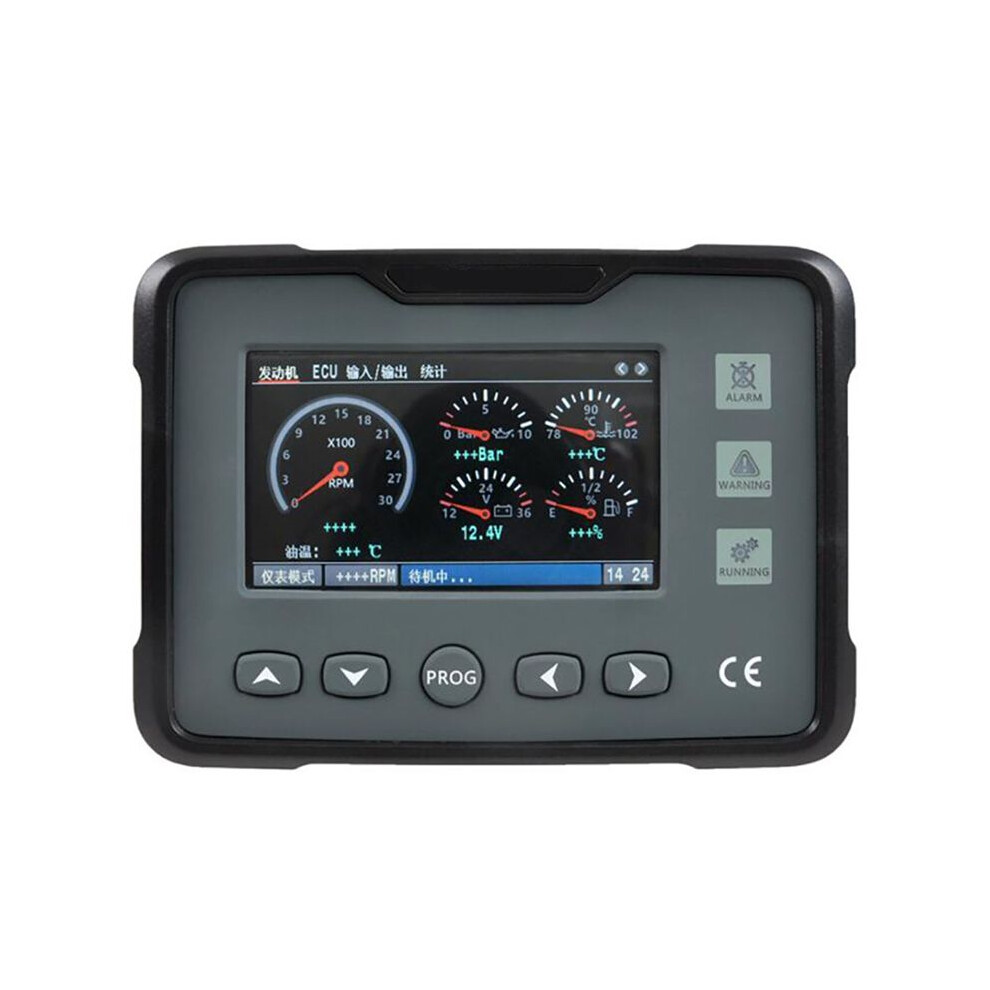

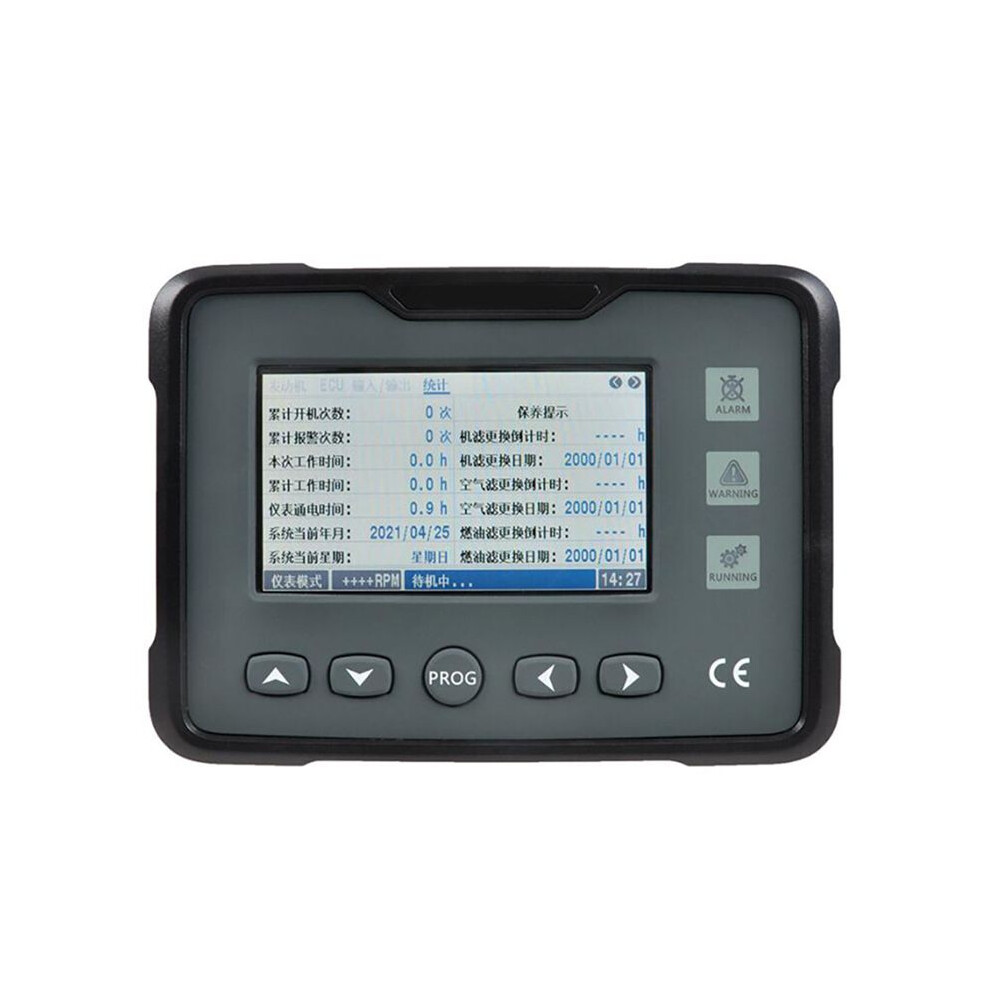

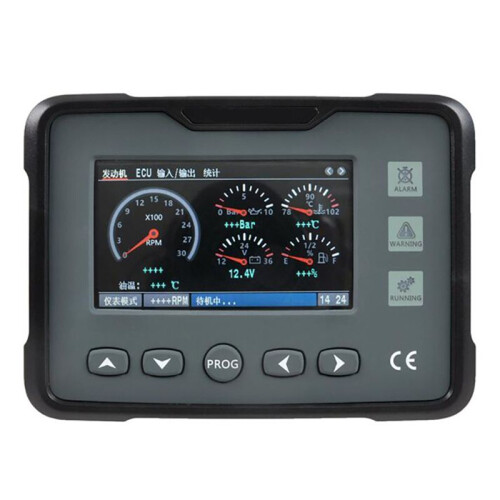

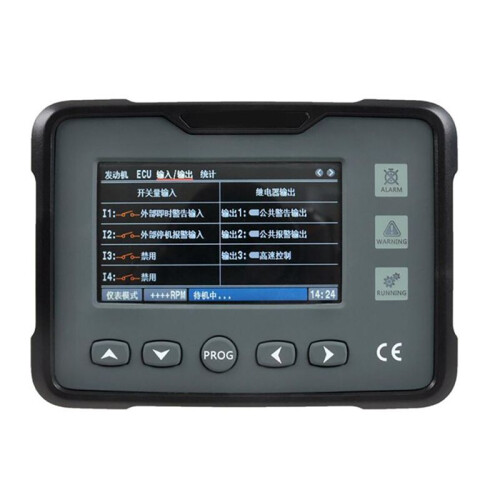

For MEBAY GM70C Automatic Start Controller Gas Engine Instruments Engine Monitoring Device

For MEBAY GM70C Automatic Start Controller Gas Engine Instruments Engine Monitoring Device leírása

GM70C has CAN interface, built-in J1939 protocol, alarm protection function, USB communication port; RS485 communication port, compatible with MODBUS communication protocol.
GM70C: engine instrument, 4.3-inch color LCD screen, CAN interface, RS485 interface, USB interface, can set the main engine or auxiliary engine working mode, alarm protection output, fuel level input.
32-bit imported high-performance single-chip control;
u4.3-inch TFT color large-screen LCD display, with 3 language switches, can be customized according to needs;
Pointer instrument digital display UI interface, -new design, integrating dynamic and precise;

The screen protector adopts hard screen acrylic material, which is wear-resistant and scratch-resistant;
Silicone panel is used, which is effectively waterproof, oil-proof and UV-proof, with good operation feel and long service life;
With USB interface, parameters can be set and real- monitored through the USB interface, and parameters can be set without power supply;
With RS485 interface, compatible with MODBUS protocol;
Standard CAN communication interface, built-in J1939 protocol;
Collect and display a variety of engine parameters;
The setting interface adopts a multi-level menu classification design, which is convenient and fast;
Maintenance to timing function, built-in real- clock, maintenance timing or date can be set;
It has an alarm recording function, which can save 50 sets of engine-related parameters when a fault alarm occurs, making it easy to find the cause of the engine fault;
It has 3 configurable relay outputs with multiple functions to choose from;
It comes with a waterproof ring as standard, and the panel protection performance reaches IP54 level after installation;
Colour:Photo Color
Material:plastic
The prod
