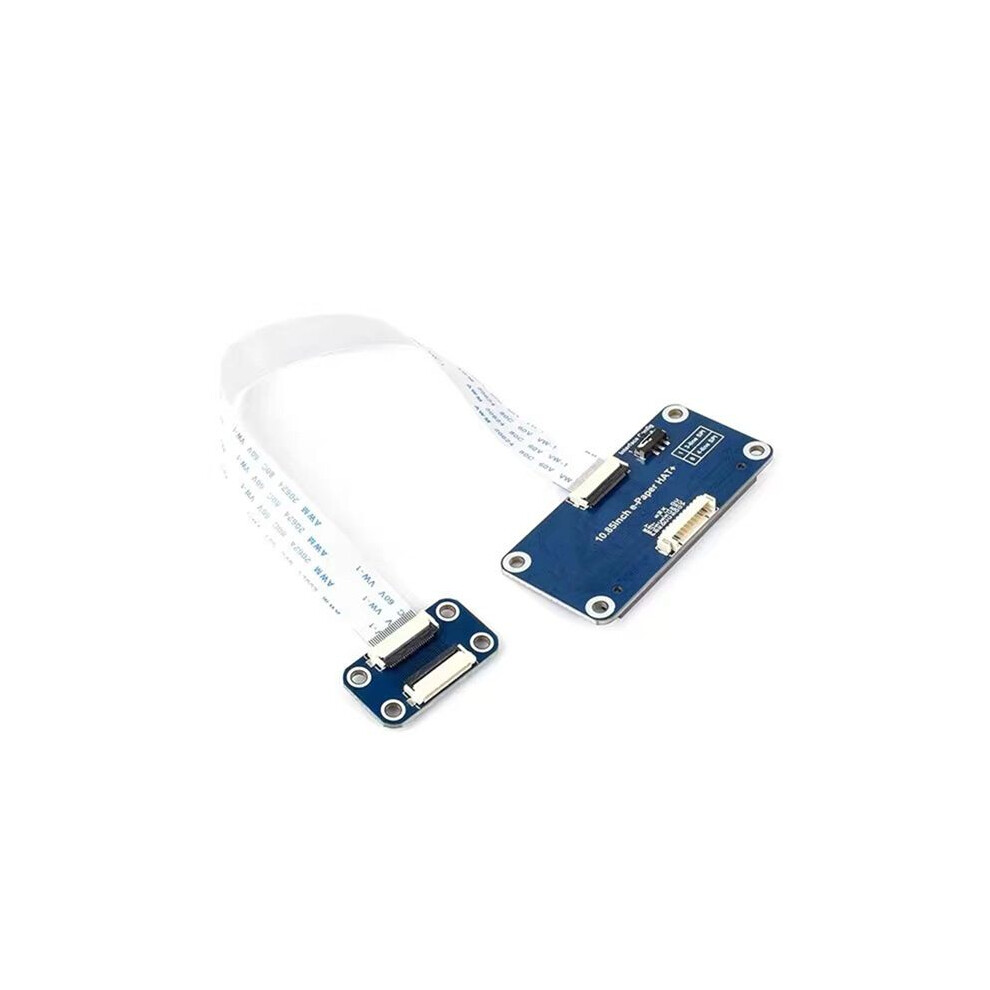

For Raspberry Pi 10.85inch E-Paper Display HAT SPI Interface High-Resolution 1360x480 &Low Power Consumption

For Raspberry Pi 10.85inch E-Paper Display HAT SPI Interface High-Resolution 1360x480 &Low Power Consumption leírása

No backlight is required, and the last screen display content can be kept for a long when the power is turned off.
The power consumption is very low, and basically only consumes power when refreshing.
Based the for Raspberry Pi 40PIN GPIO interface design, it is suitable for Raspberry Pi and other series motherboards.
Adopting the for Raspberry Pi HAT+ standard, it improves the interoperability of the expansion board, helps developers design and develop faster, and more easily use various external devices and expand the functions and performance of the for Raspberry Pi.
Reserve the SPI communication interface for easy access to the main control board such as for / ESP32 / STM32 / Raspberry Pi series.

Onboard level conversion chip, compatible with 3.3V and 5V level interfaces.
Working voltage: Module version: 3.3V/5V
Display colors: red, yellow, black, white
Communication interface: 3-wire SPI, 4-wire SPI
Grayscale level: 2
Global refresh: 21 seconds
Display size: 259.76x91.68 (mm)
Dot pitch: 0.191 x 0.191 (mm)
Resolution: 1360 x 480 pixels
Refresh power consumption:Less than 70 mW
Sleep current:Less than 0.01uA (close to 0)
Viewing angle:Greater than 170
Due to different batches, there may be differences in product appearance and printed text, which will not affect use.
Colour:As Shown
Material:PCB+LCD

Package Contents:
1 * E-Paper Screen Module
