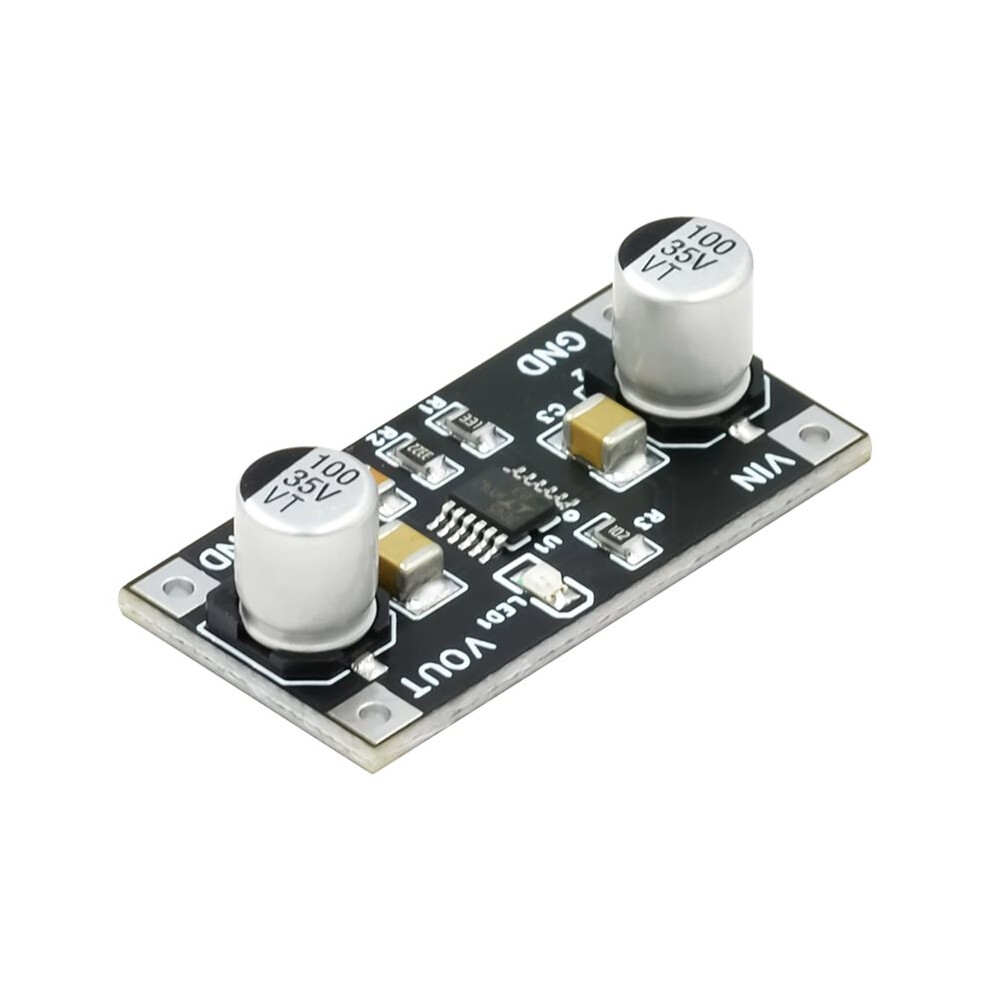

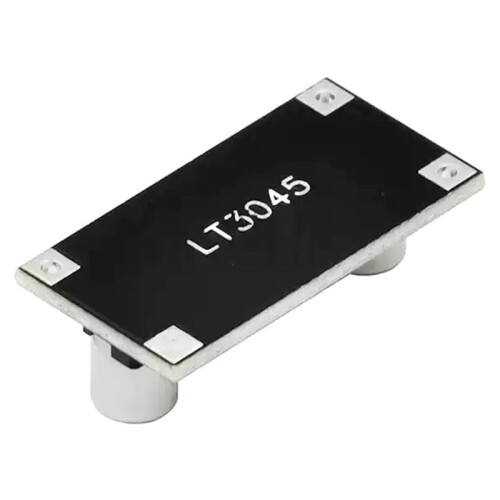

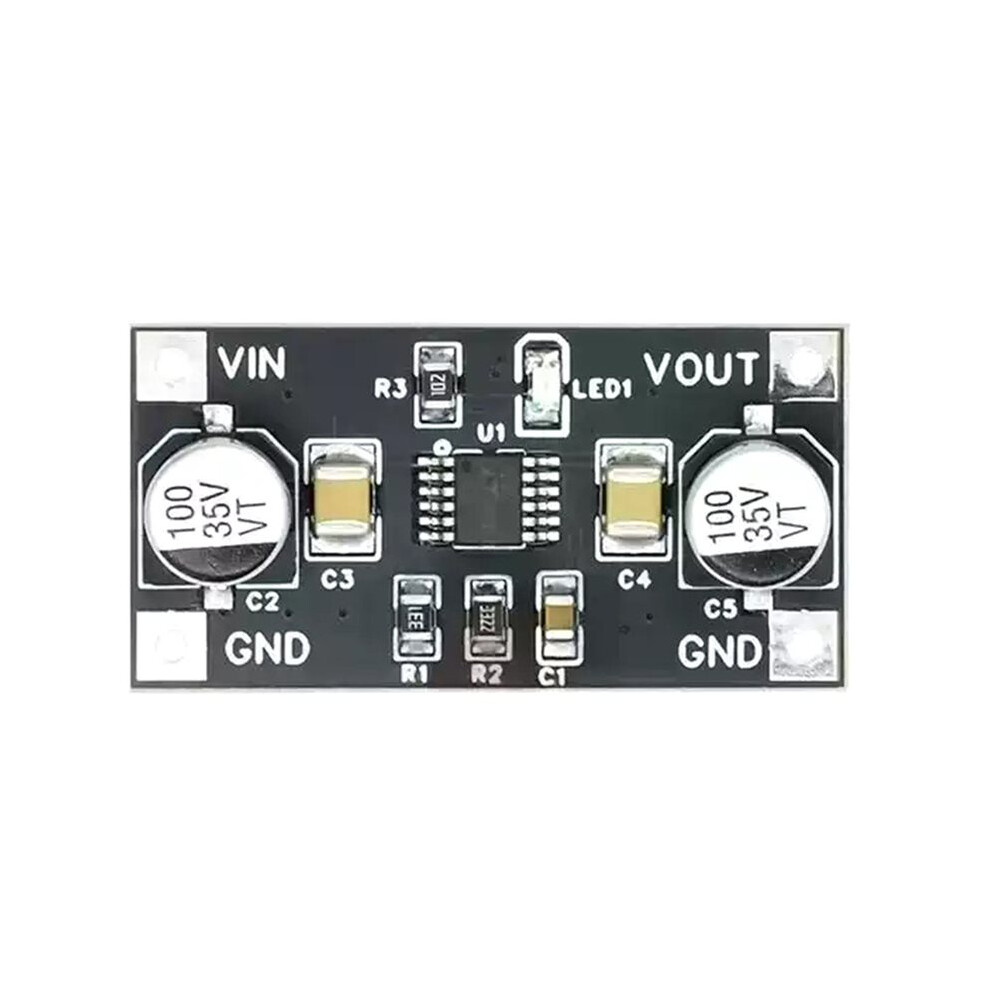

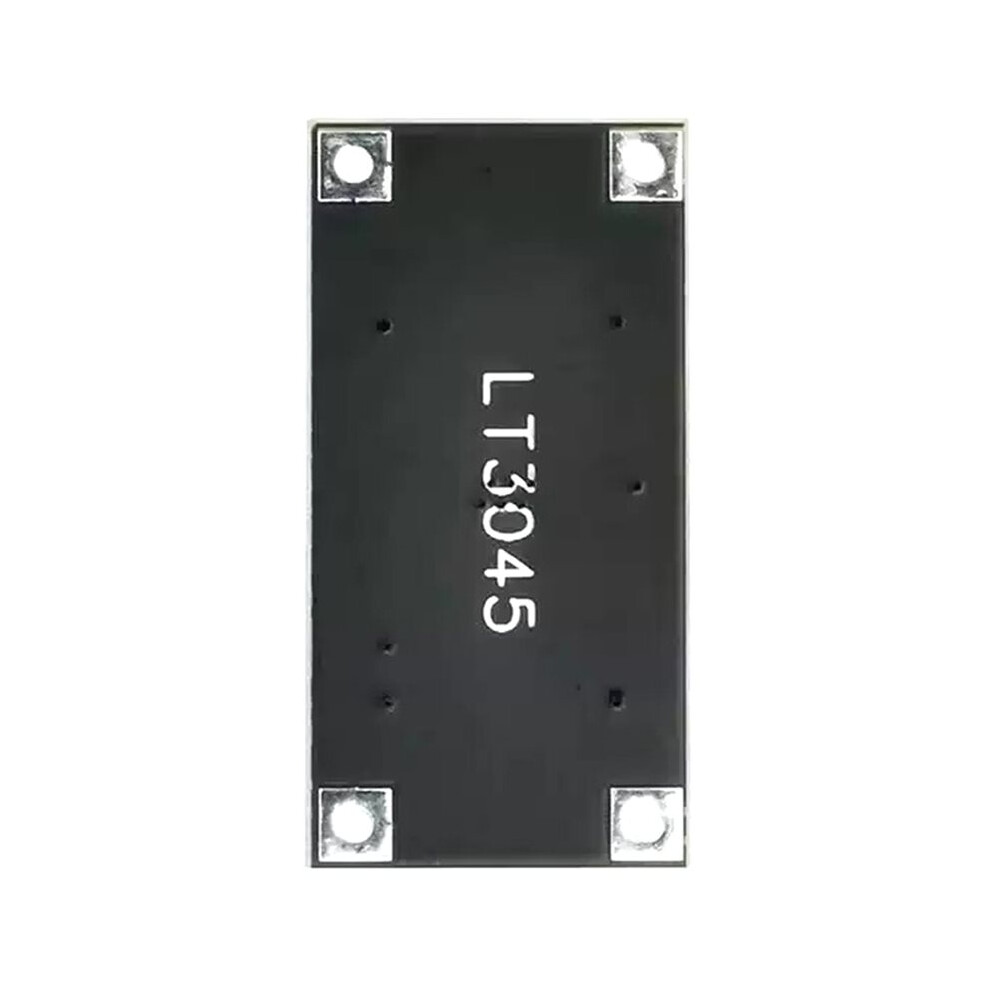

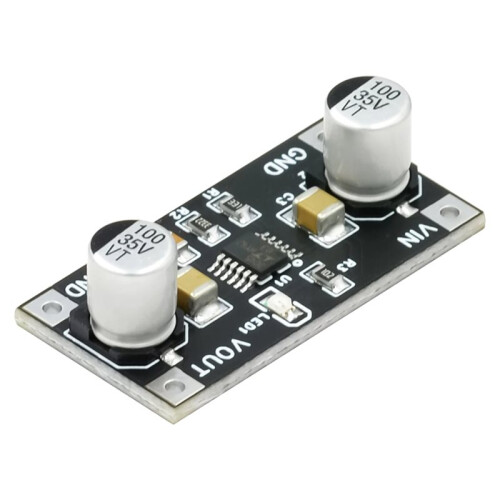

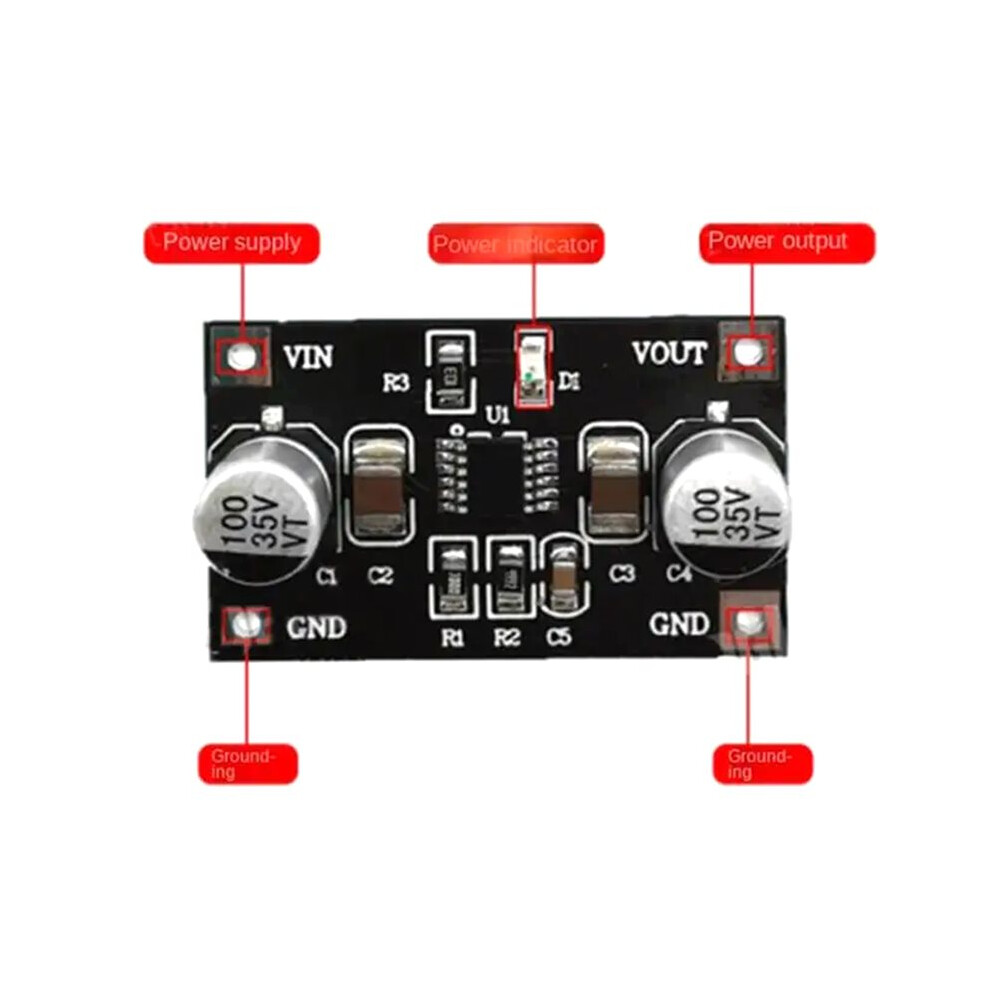

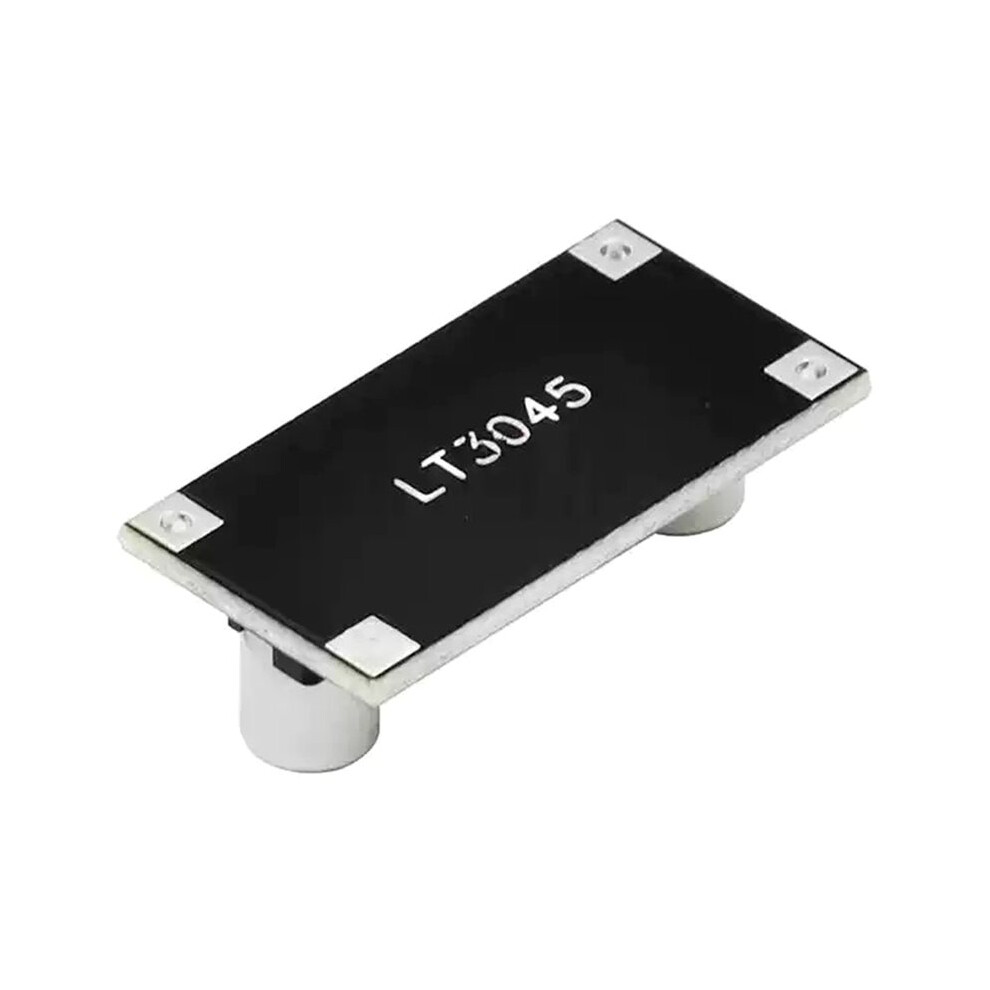

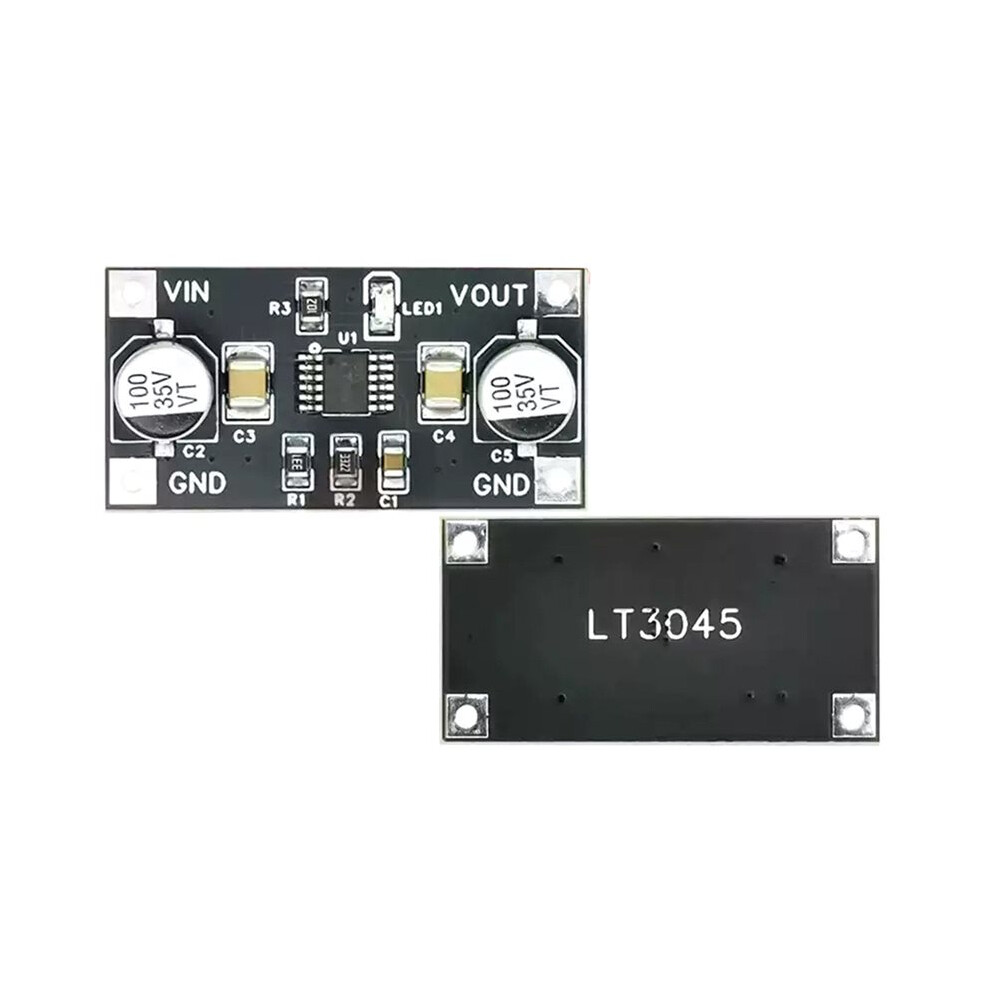

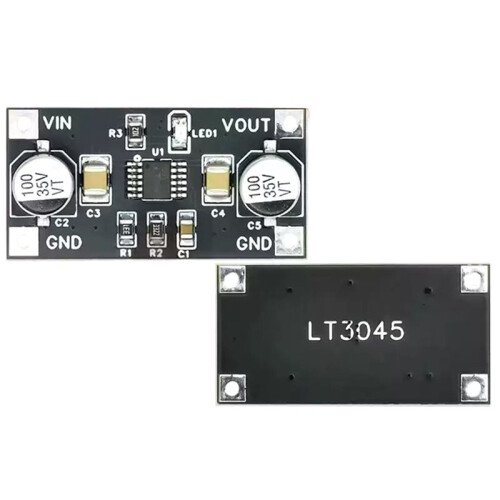

LT3045 Linear Regulator Module - Single Supply, Low-Noise Linear RF Power Supply Module 3.3V Buck Step-Down Board - RF

LT3045 Linear Regulator Module - Single Supply, Low-Noise Linear RF Power Supply Module 3.3V Buck Step-Down Board - RF leírása

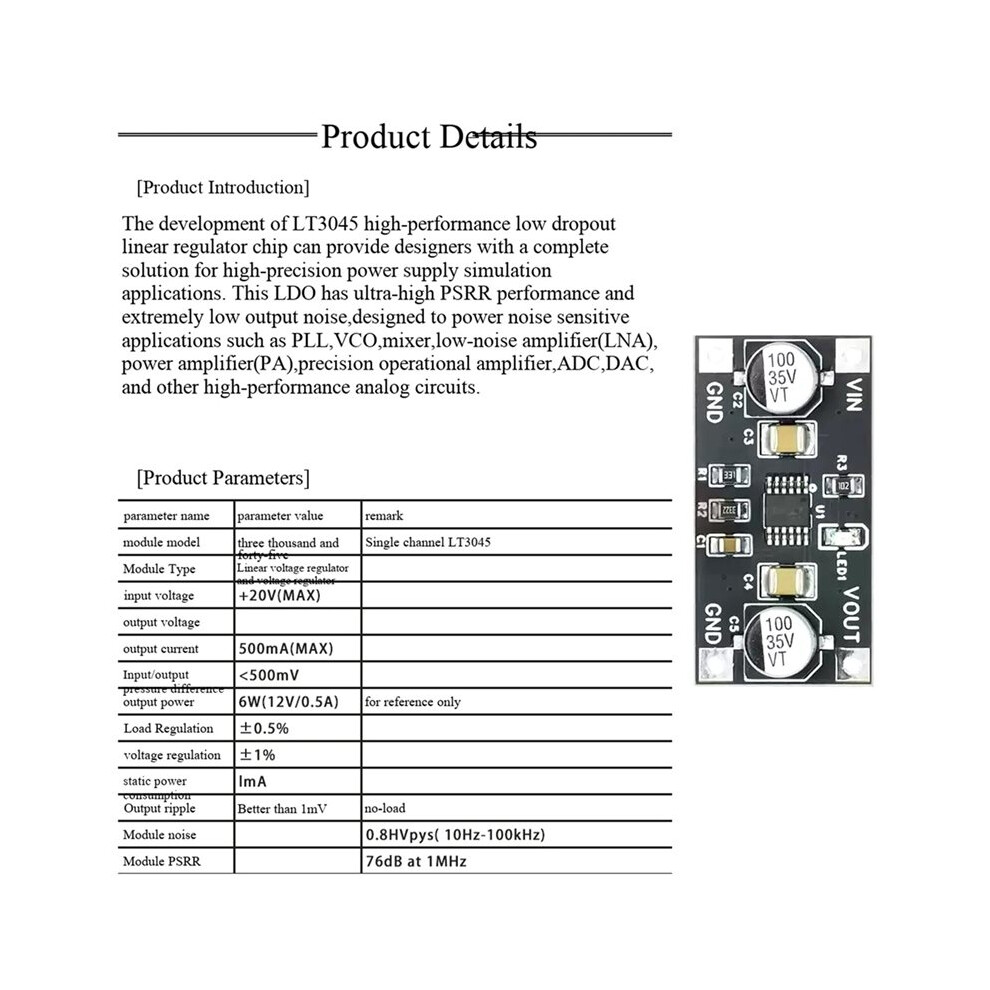

The LT3045 high-performance low-dropout (LDO) linear regulator IC provides designers with a complete solution for powering high-precision analog applications.
Featuring ultra-high PSRR performance and extremely low output noise, this LDO is designed to power noise-sensitive applications such as PLLs, VCOs, mixers, low-noise amplifiers (LNAs), power amplifiers (PAs), precision operational amplifiers, ADCs, DACs, and other high-performance analog circuits.
Q: do my measurements not match the specified ripple parameters? There appears to be a discrepancy in the ripple readings.
A: First, it is essential to employ the correct measurement technique; you can search online (e.g., via Baidu) for standard methods measuring power supply ripple. Second, while a linear power supply can suppress ripple and noise present in the input signal, this capability is not unlimited.
If the input source is a switching power supply-which typically generates significant noise-the linear power supply will be unable to effectively mitigate it. Therefore, linear power supplies are typically powered via a transformer followed by rectification and filtering stages.

[Usage Precautions]
It is recommended to operate with an input voltage of less than +20V.
When driving heavy loads or operating with a significant voltage differential, please implement appropriate heat dissipation measures; otherwise, the chip may trigger its thermal shutdown protection or sustain damage.
This module lacks reverse-polarity and over-voltage protection. Buyers are advised to carefully verify and -check the power supply connections to ensure they are correct befo
