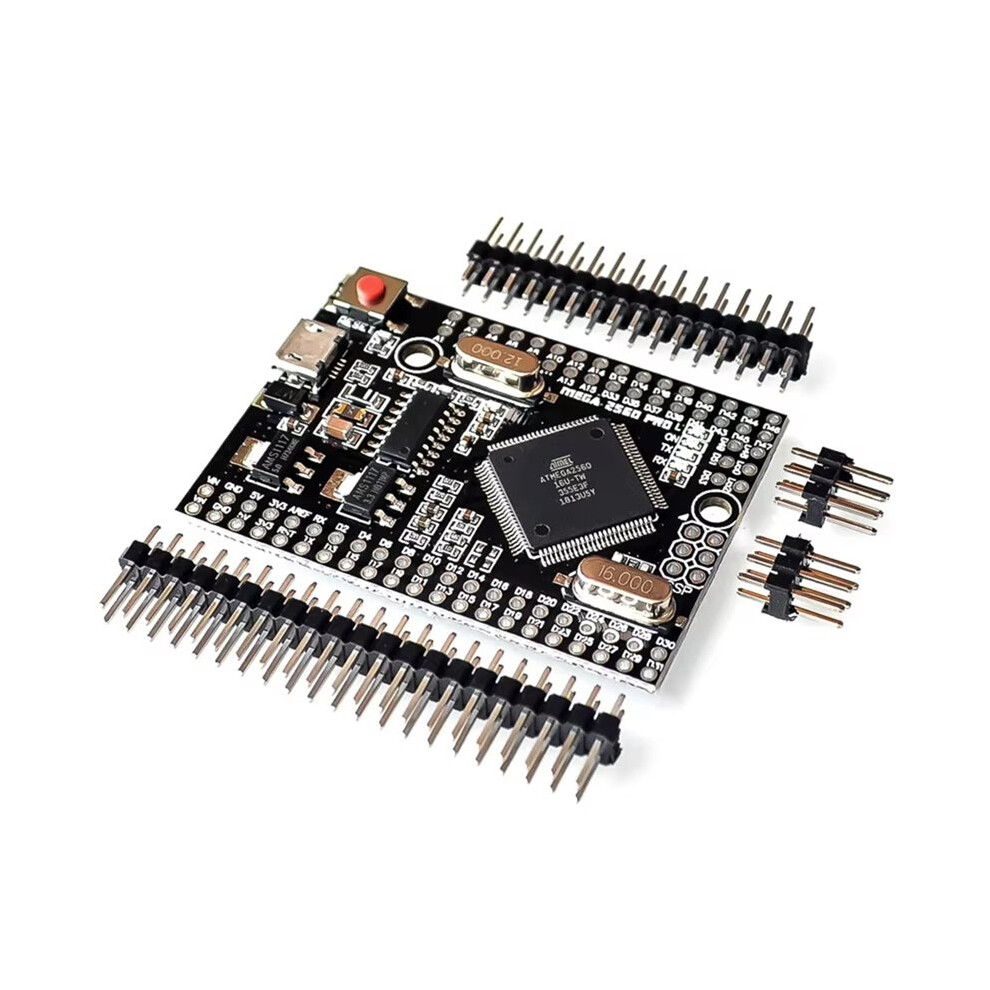

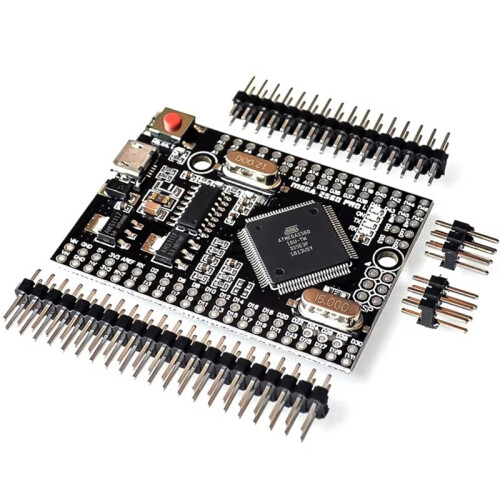

Mega2560 Pro ATmega2560-16AU USB CH340G Intelligent Electronic Development Board MICRO-Interface

Mega2560 Pro ATmega2560-16AU USB CH340G Intelligent Electronic Development Board MICRO-Interface leírása

Embedded version of for Mega 2560 CH340G / ATmega2560, compatible with for Mega 2560 motherboards.
Compact size of 38x55mm, ideal for soldered prototype boards.
Utilizes the ATmega2560 chip operating at 16 MHz for stability.
CH340G chip as a UART-USB converter, ensuring stable data exchange at 12 MHz.
Voltage regulator supports input voltages from 6V to 9V, providing reliable power for projects.

Built for Atmel ATmega2560 microcontroller and USB-UART interface chip CH340G. The motherboard functions similarly to the for Mega 2560. The board uses the chip CH340G as a converter UART-USB. Provides stable results of data exchange when you work at a frequency of 12 Mhz (requires installation of drivers to the computer).
for Mega PRO (Embedded) 2560 CH340G / for ATmega2560 - connects to the computer via micro-USB cable (works with almost all Android smartphones). You can power the board or power the pins via the micro-USB connector. Output currents are 5V - approx. 800mA and 3.3V - approx. 800mA (note that the higher the input voltage, the lower the output current). This will provide reliable power for most of your initial projects.
Color:As Shown
Material:POB+Electronic Components
Specification:A:MICRO-interface

Package Contents:
1 * Intelligent Electronic Development Board
