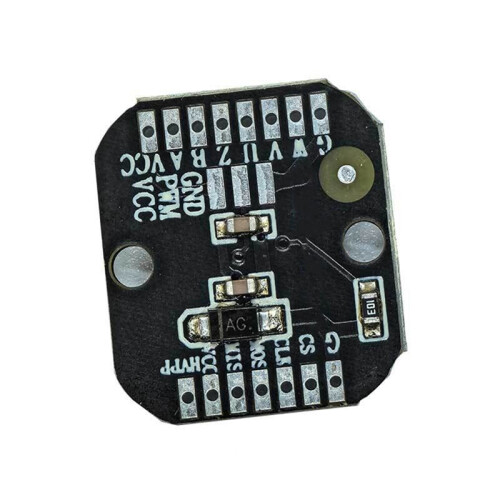

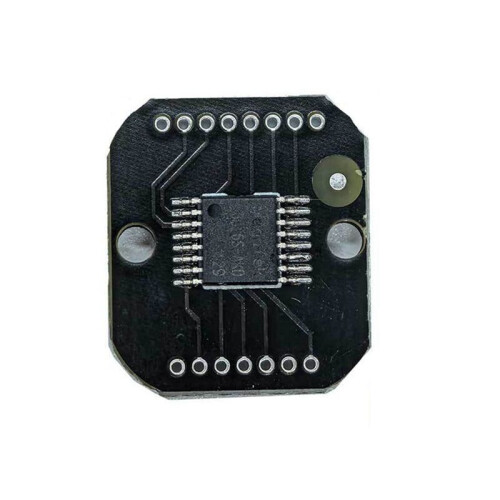

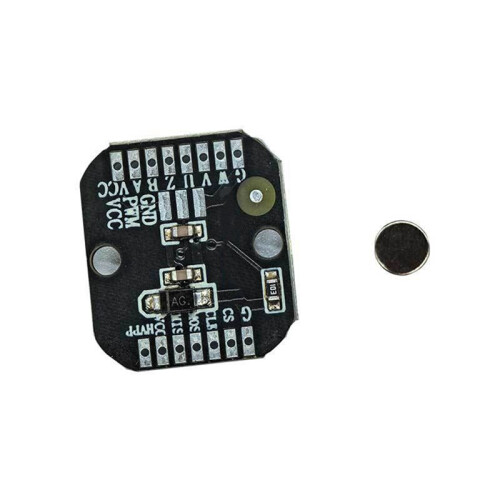

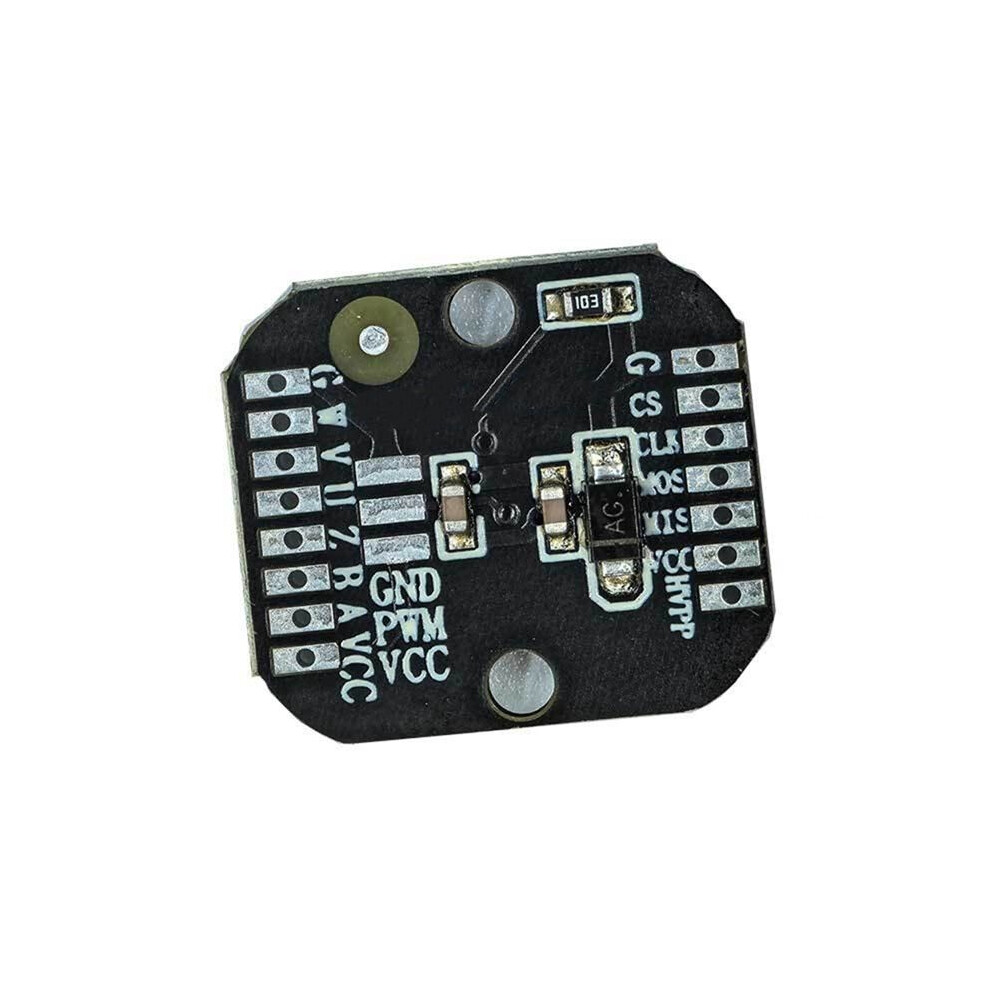

MT6835 Magnetic Encoder Module PWM/SPI Brushless Motor 21BIT Magnetic Encoder Replace AS5048

MT6835 Magnetic Encoder Module PWM/SPI Brushless Motor 21BIT Magnetic Encoder Replace AS5048 leírása

Based advanced AMR technology, this sensor provides precise absolute angle measurement from 0 to 360, ensuring high accuracy for various applications.
Operating within a voltage range of 3.3V to 5.0V, this device is versatile and can be integrated into a wide range of systems.
With a robust operating temperature range of -40C to 125C, it is suitable for use in extreme environments, making it ideal for industrial applications.
The system boasts a low delay of 2µs to 10µs, allowing for high-speed performance with a maximum supported speed of to 120,000 rpm.
Equipped with a standard 4-wire SPI interface, it facilitates easy communication and data retrieval, supporting 21-bit angle data and programmable incremental outputs.

This high-performance angle sensor is designed for precision and reliability in demanding conditions. It features a typical linearity deviation of less than 0.5, with options for self-calibration that can reduce this to as low as 0.02. The incremental output options (ABZ and UVW) allow for customizable resolutions and pole pairs, making it adaptable to various applications. With the ability to perform online zero programming to five times, this sensor ensures consistent accuracy and performance.
Color: Black
Material: PCB

Package Contents:

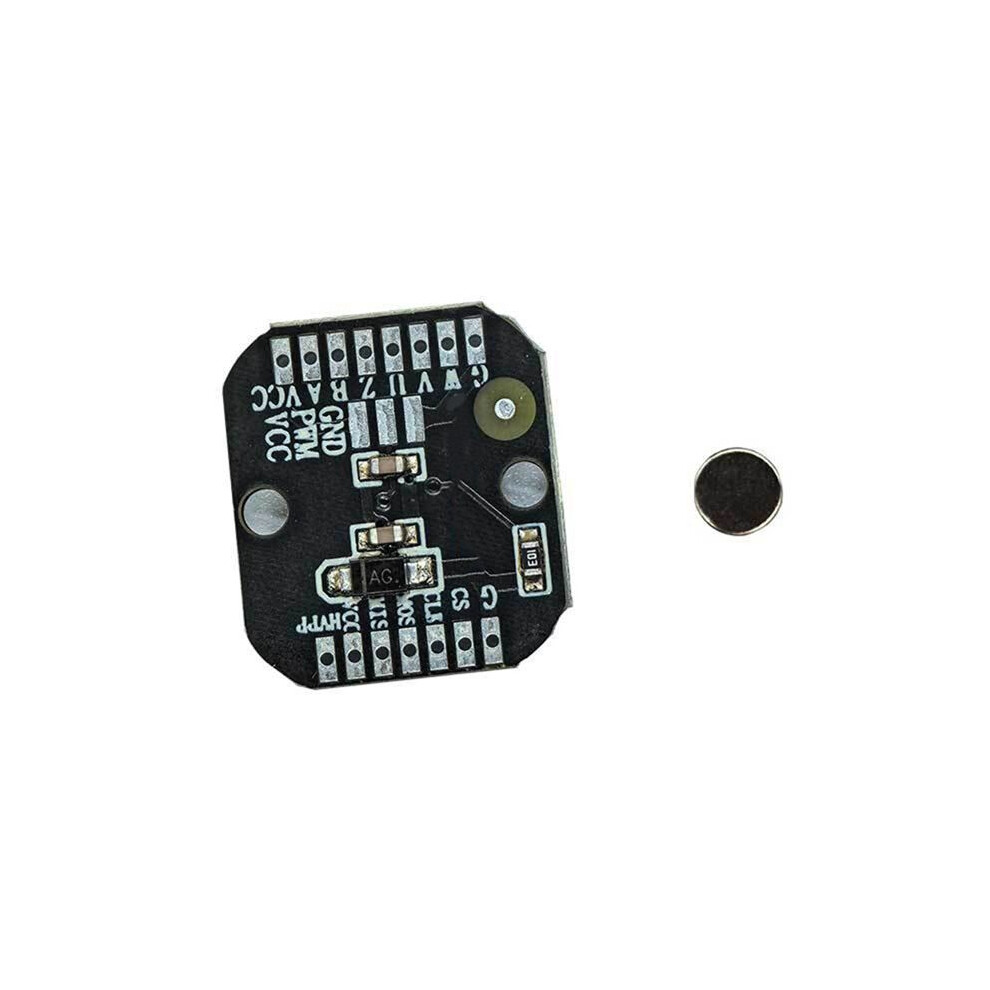

1 x Magnetic encoder
1 x Magnet
