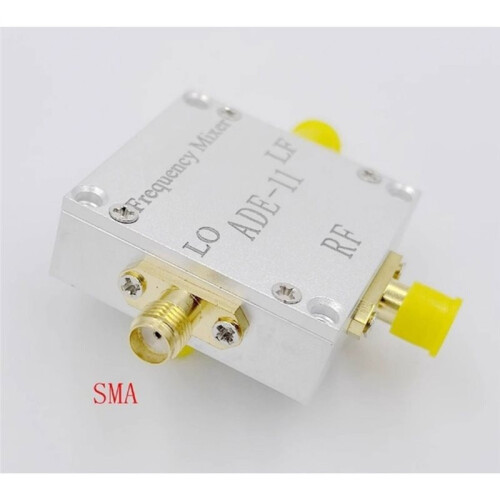

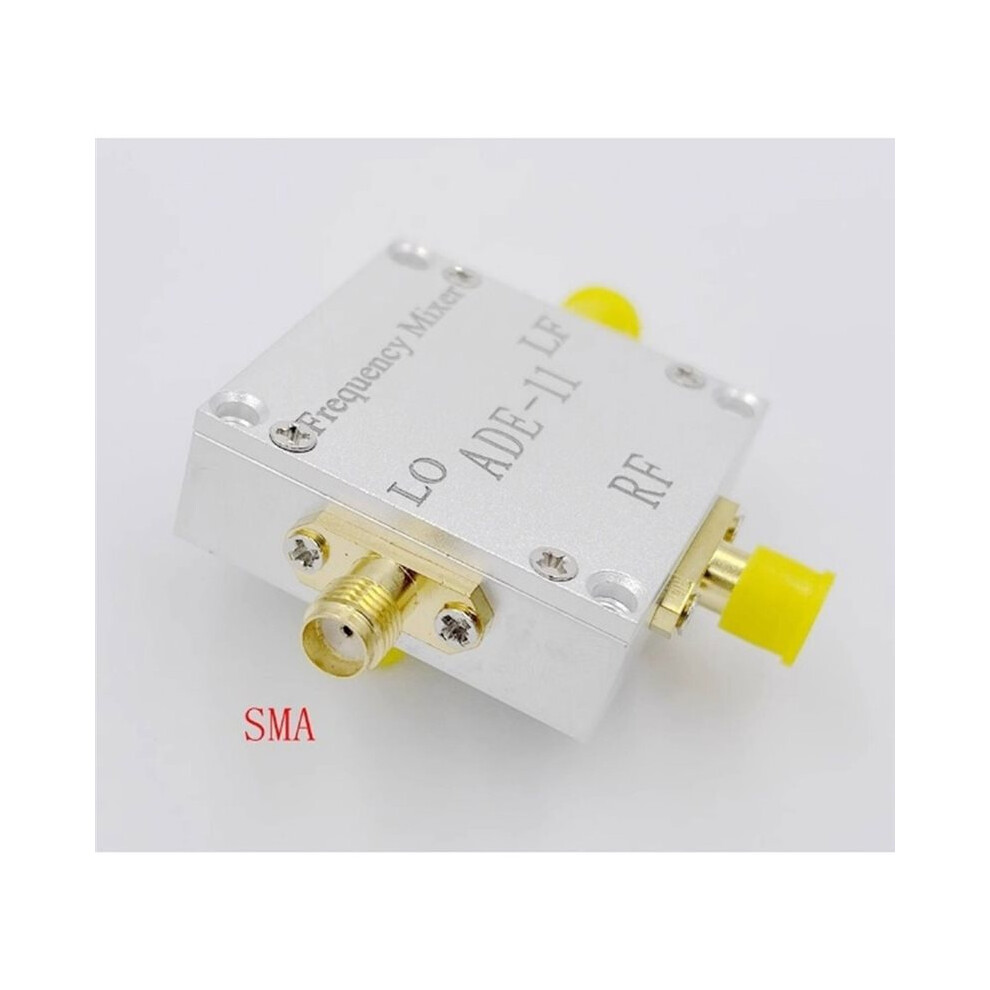

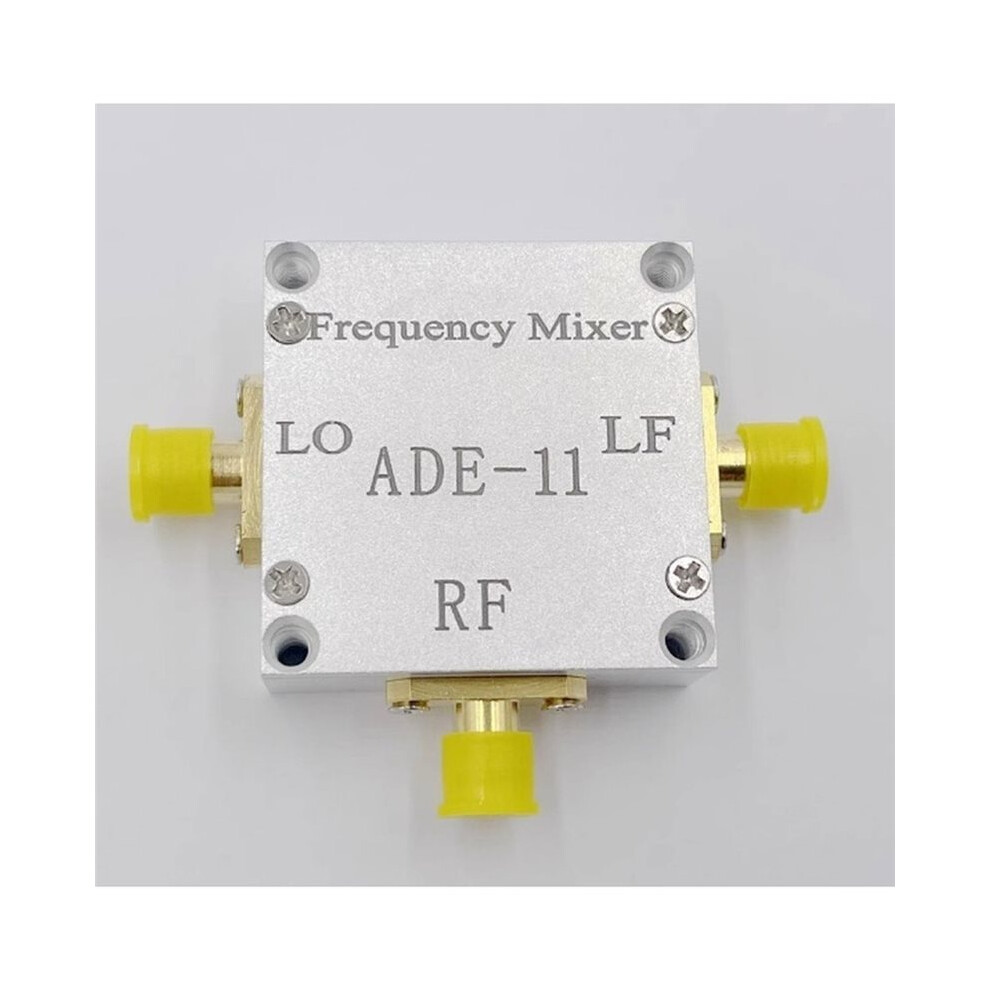

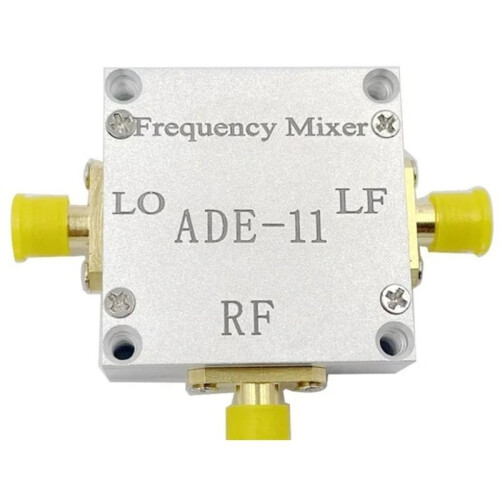

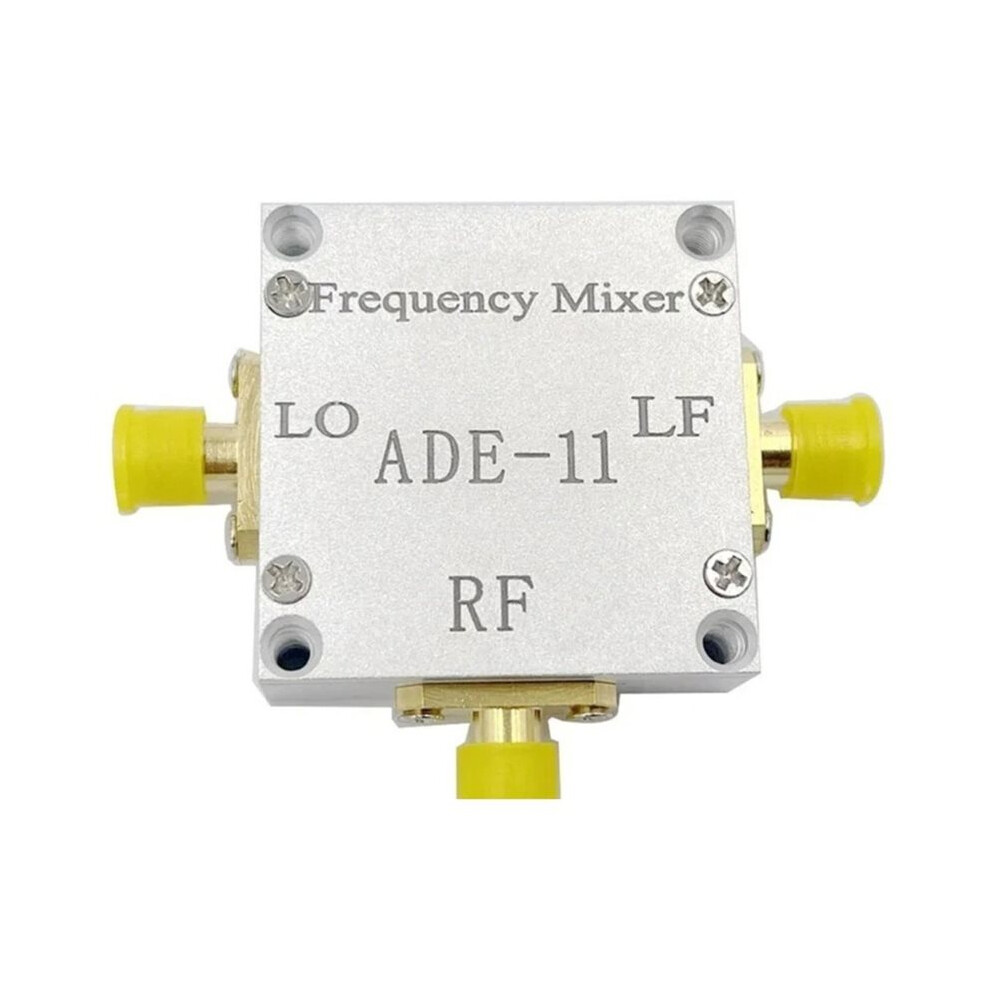

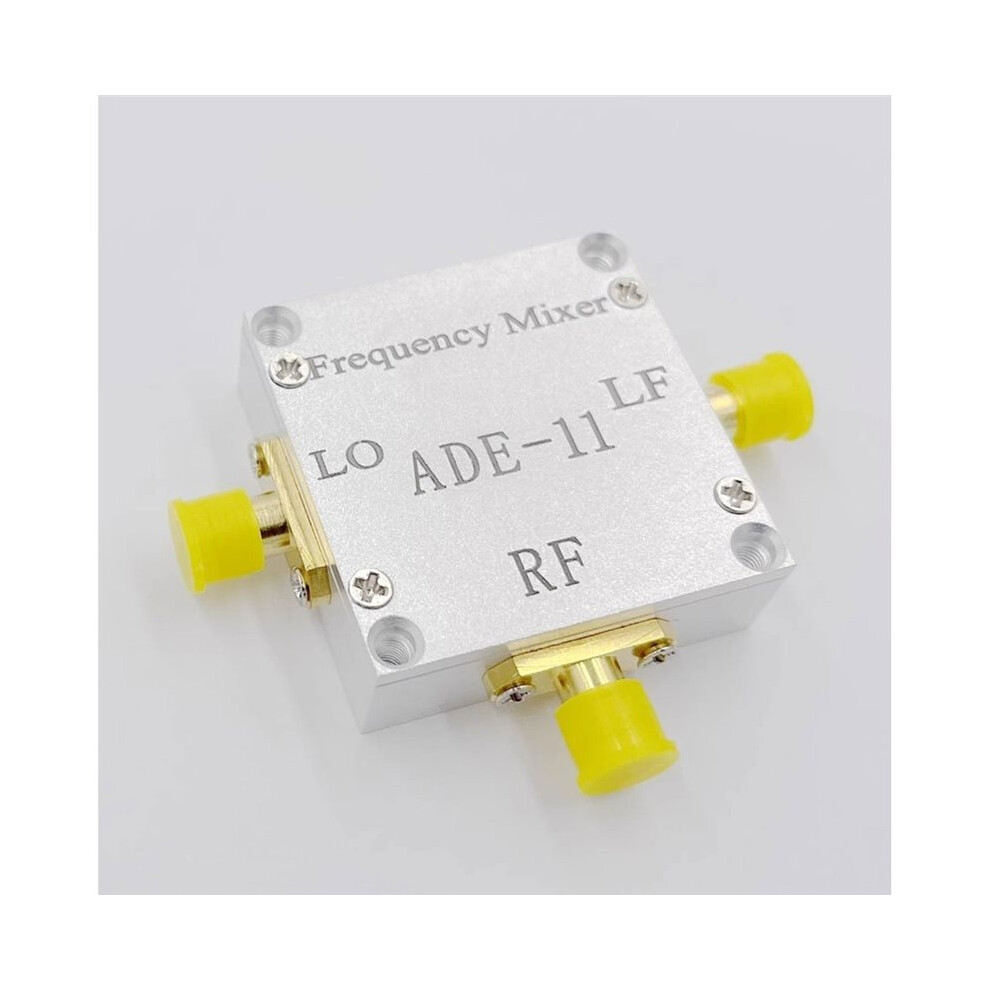

Passive RF Mixer / Frequency Conversion Module (Supports ADE-11).ADE-11 Frequency Conversion Module

Passive RF Mixer / Frequency Conversion Module (Supports ADE-11).ADE-11 Frequency Conversion Module leírása

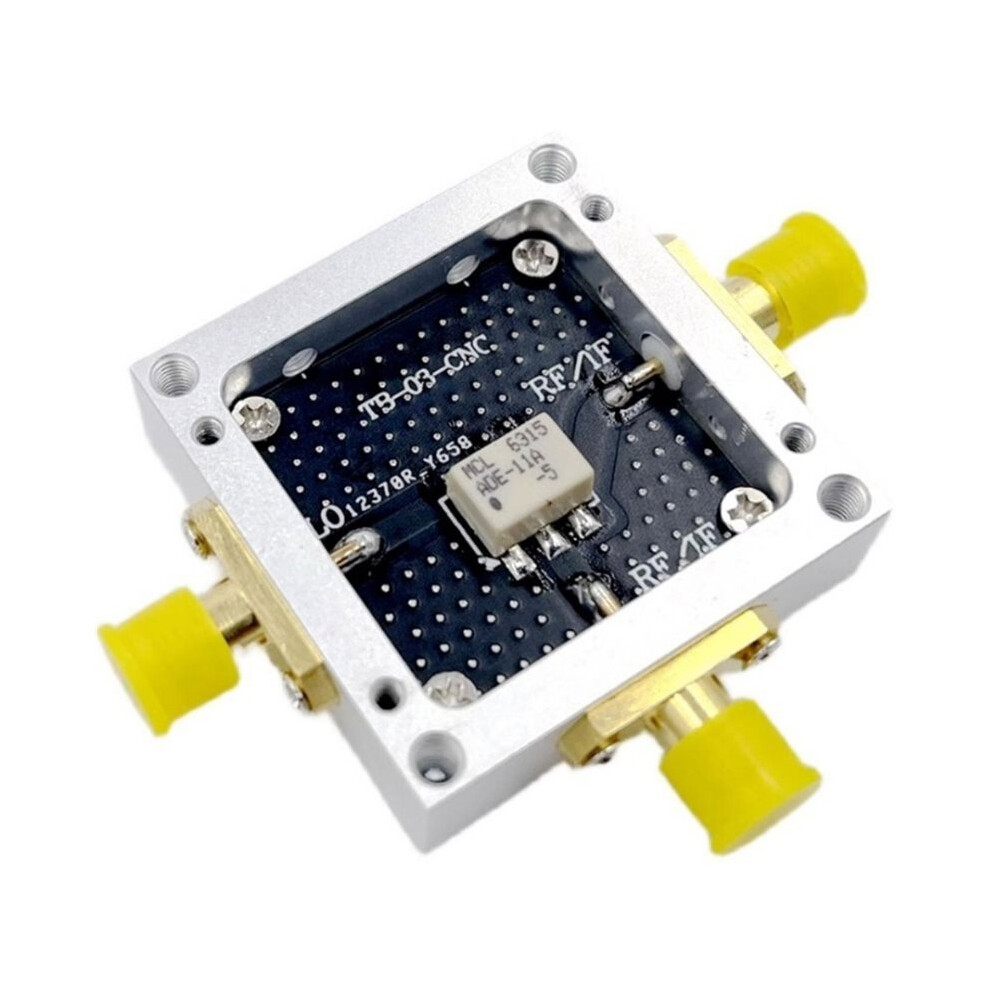

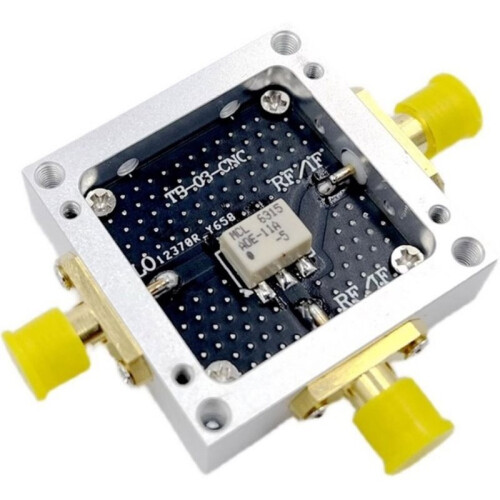

Designed for a wide range of signal processing applications, this module utilizes a double-balanced mixer architecture to deliver excellent isolation, low distortion, and stable performance across , VHF, and UHF frequency bands.
It is suitable for applications such as communication equipment, amateur radio, RF front-end development, spread-spectrum systems, and signal source conversion. Its broad operating frequency range makes it an ideal choice for laboratory research, educational demonstrations, and engineering prototype development.
As a passive device, it requires no external power supply, thereby simplifying system design and enhancing reliability. It is compatible with a variety of standard RF test instruments and modules, allowing for easy integration into signal generation chains, receiver front-ends, and frequency conversion circuits.
Typical applications include Local Oscillator (LO) mixing, modulation and demodulation experiments, SDR (Software Defined Radio) frequency conversion, and the development of communication transceiver circuits. This mixer is suitable for both professional RF engineers and hobbyists working radio and wireless technology projects.

Color: As Shown

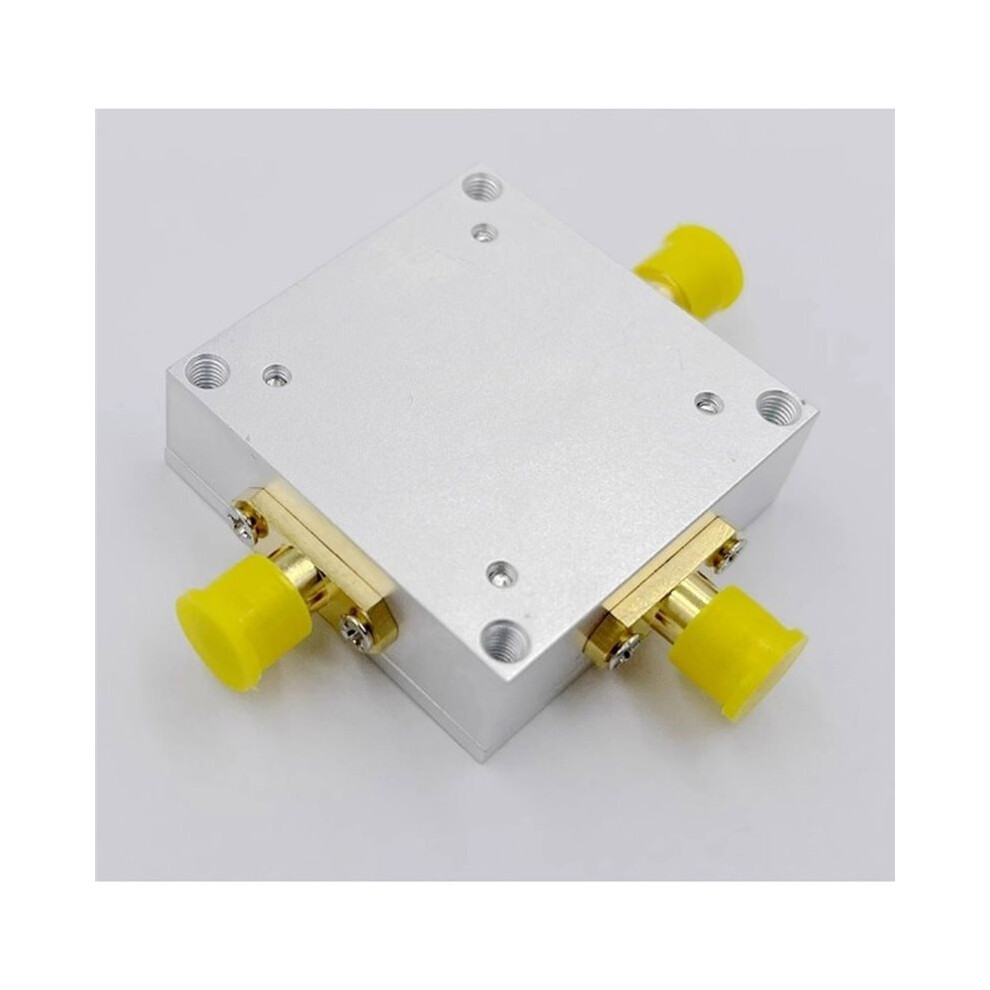

Material: Metal

Package Contents:
1*ADE-11 Frequency Conversion Module
