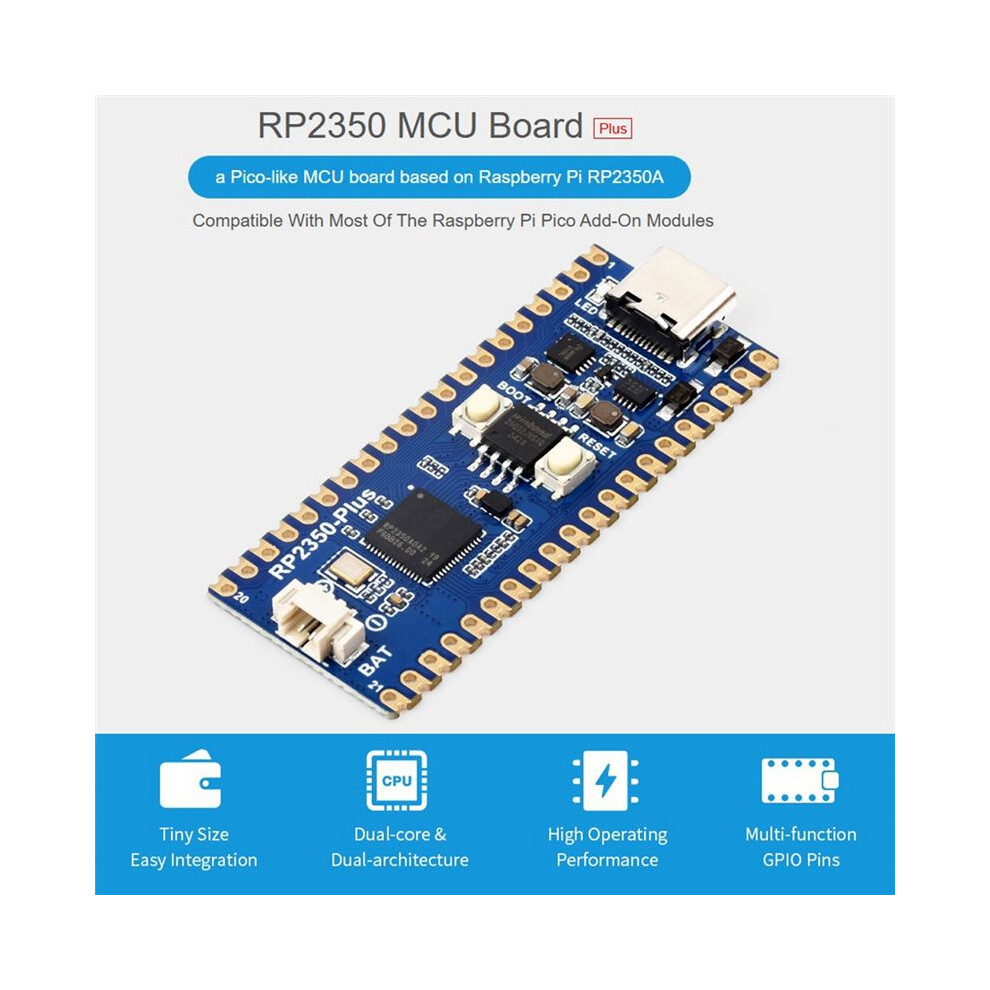

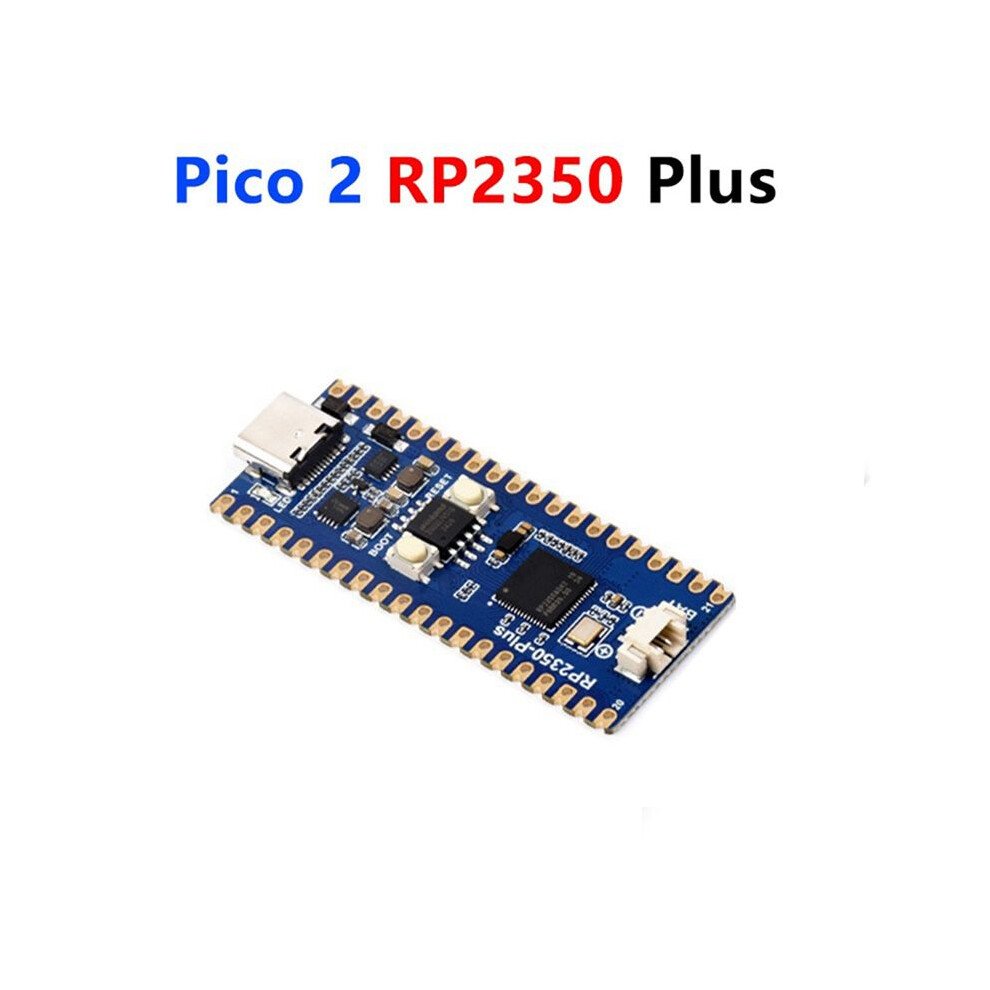

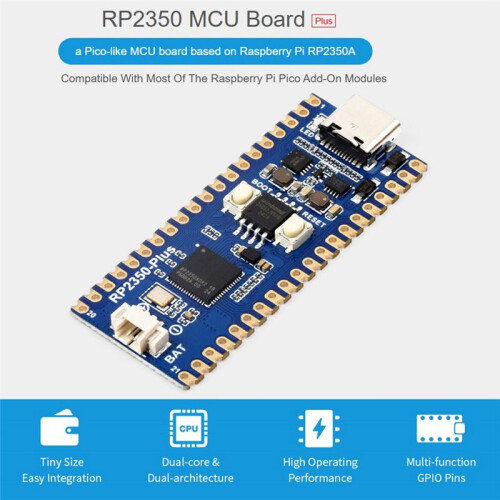

RP2350- Development Board RP2350 Microcontroller MCU Board Based for Raspberry Pi No Soldered

RP2350- Development Board RP2350 Microcontroller MCU Board Based for Raspberry Pi No Soldered leírása

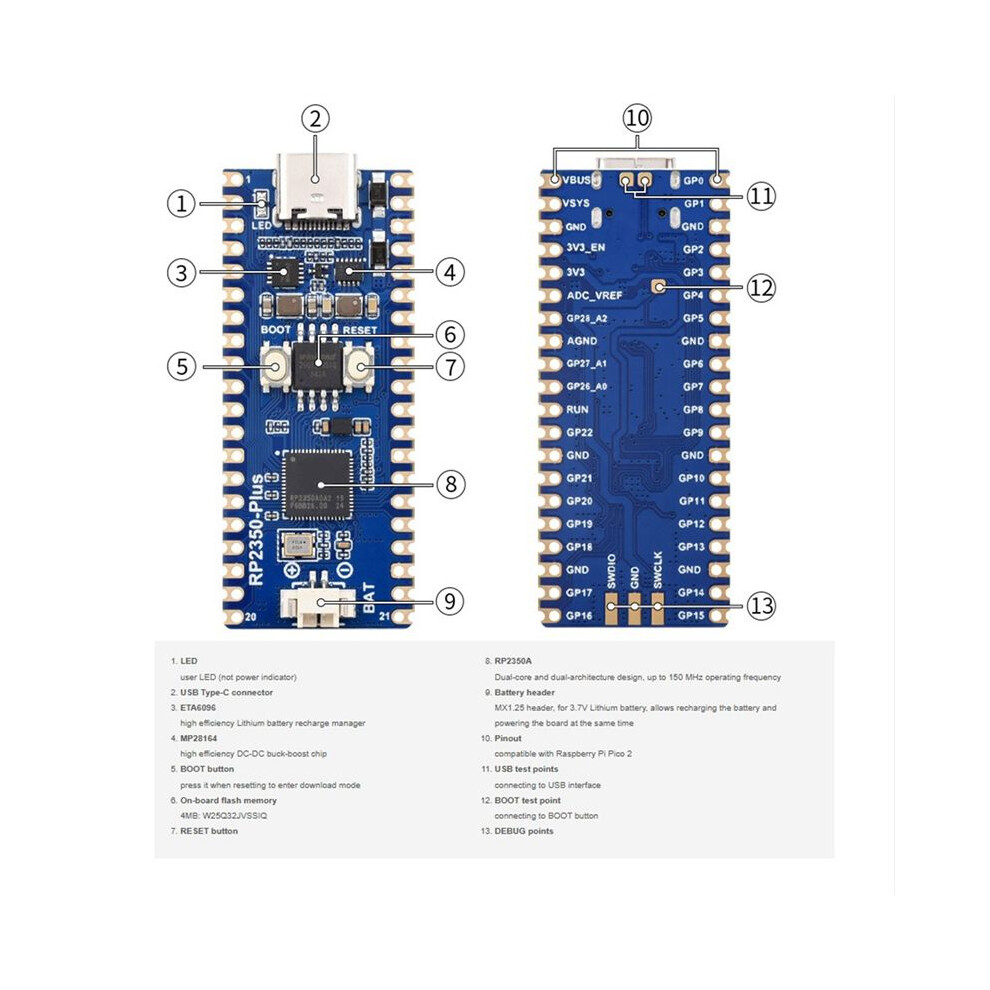

RP2350A Microcontroller chip designed by Raspberry Pi.
Adopts unique dual-core and dual-architecture design: dual-core Arm Cortex-M33 processor and dual-core Hazard 3 RISC-V processor, flexible clock running to 150 MHz.
520KB of , and 4MB of -board Flash memory.
Type-C connector, keeps it to date, easier to use.
Lithium battery recharge/discharge header, suitable for mobile devices.

Onboard - chip MP28164, high efficiency - buck-boost chip, maximum 2A load current.
Castellated module allows soldering directly to carrier boards.
USB 1.1 with device and host support.
Low-power sleep and dormant modes.
Drag-and-drop programming using mass storage over USB.

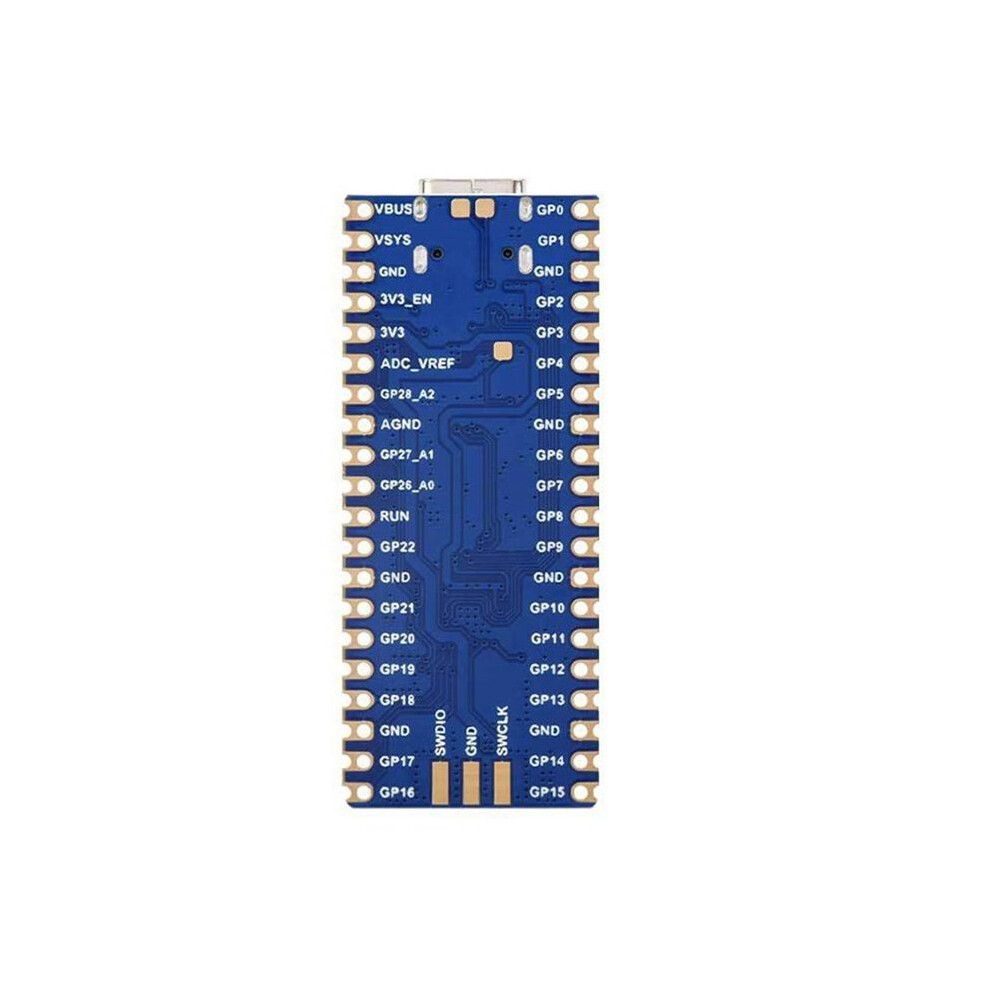

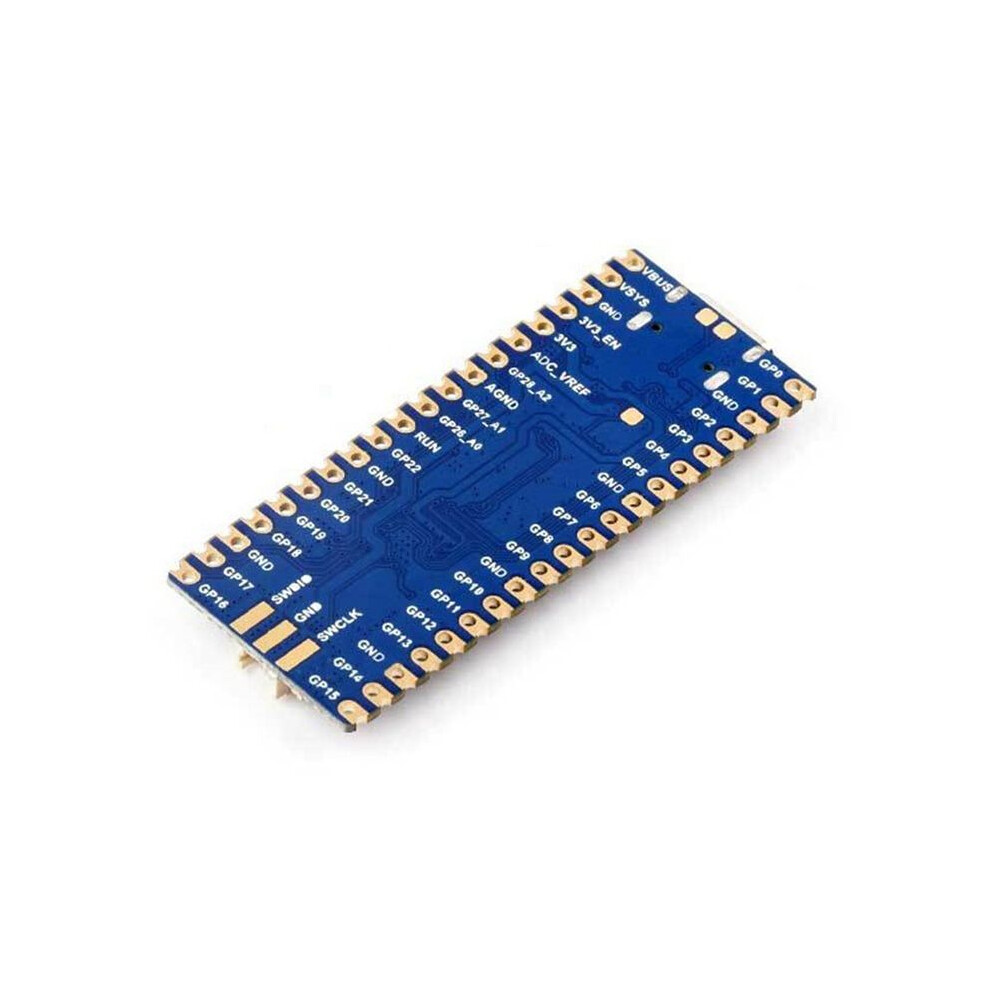

26 x multi-function GPIO pins.
2 x SPI, 2 x I2C, 2 x UART, 4 x 12-bit ADC, 16 x controllable PWM channels.
Accurate clock and timer -chip.
Temperature sensor.
Accelerated floating-point libraries -chip.
12 x Programmable I/O (PIO) state machines for custom peripheral support.
Colour:
Material:PCB
style:No Soldered
The actual product may have slight color difference or difference, which will not affect the use

Package Contents:
1 * Developmend Board
