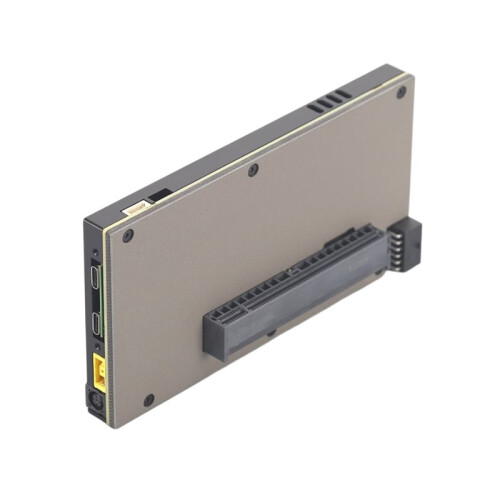

TH3P4GaN Thunderbolt3 Card GPU Dock External Card Docking Station with Chassis for Laptop PC

TH3P4GaN Thunderbolt3 Card GPU Dock External Card Docking Station with Chassis for Laptop PC leírása

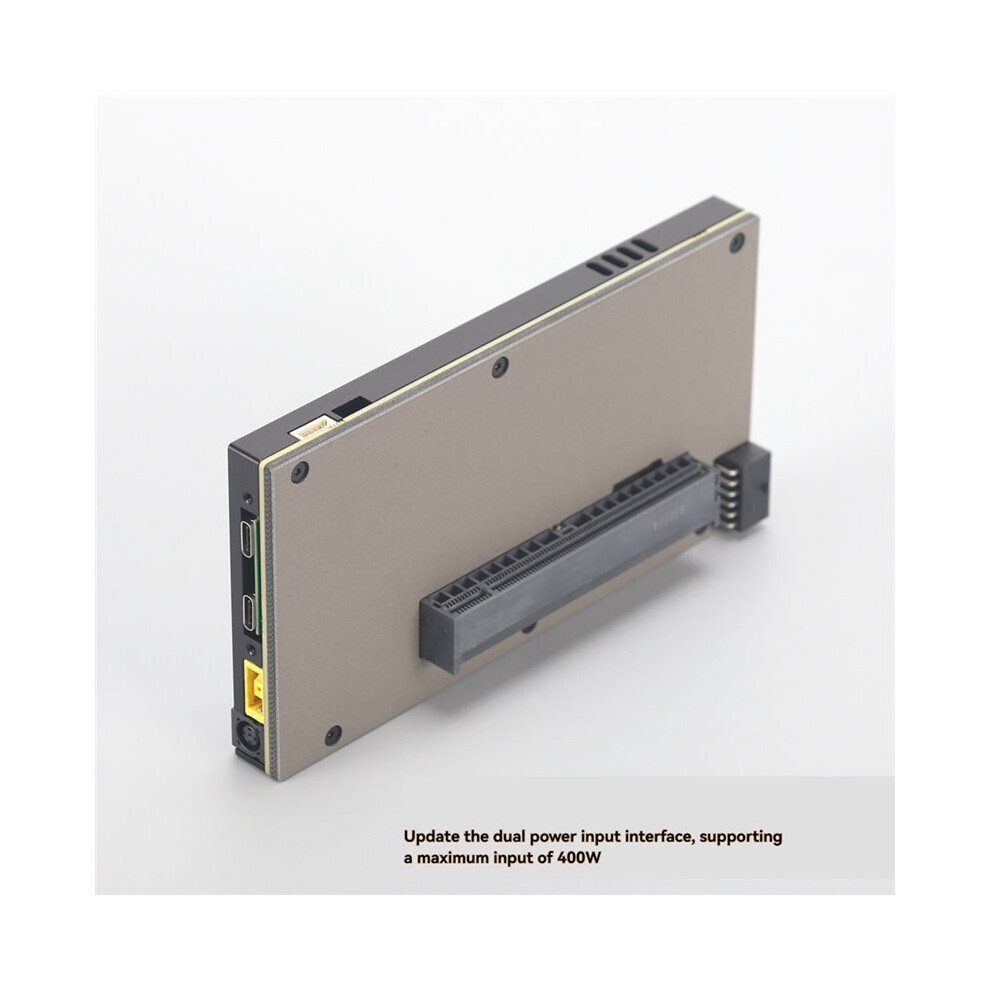

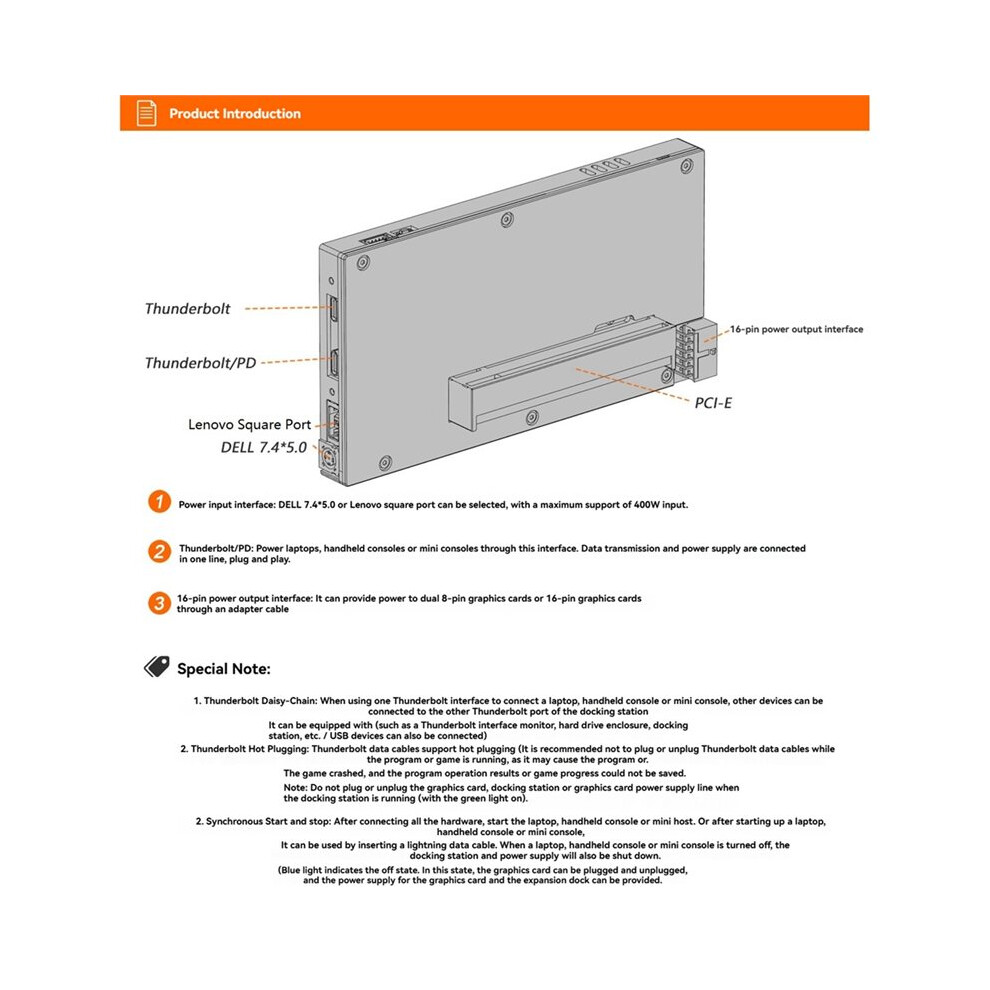

This upgraded docking station features dual power input interfaces, supporting a maximum input of 400W. Dual Power Interface: for Square Port or for 7.4*5.0.

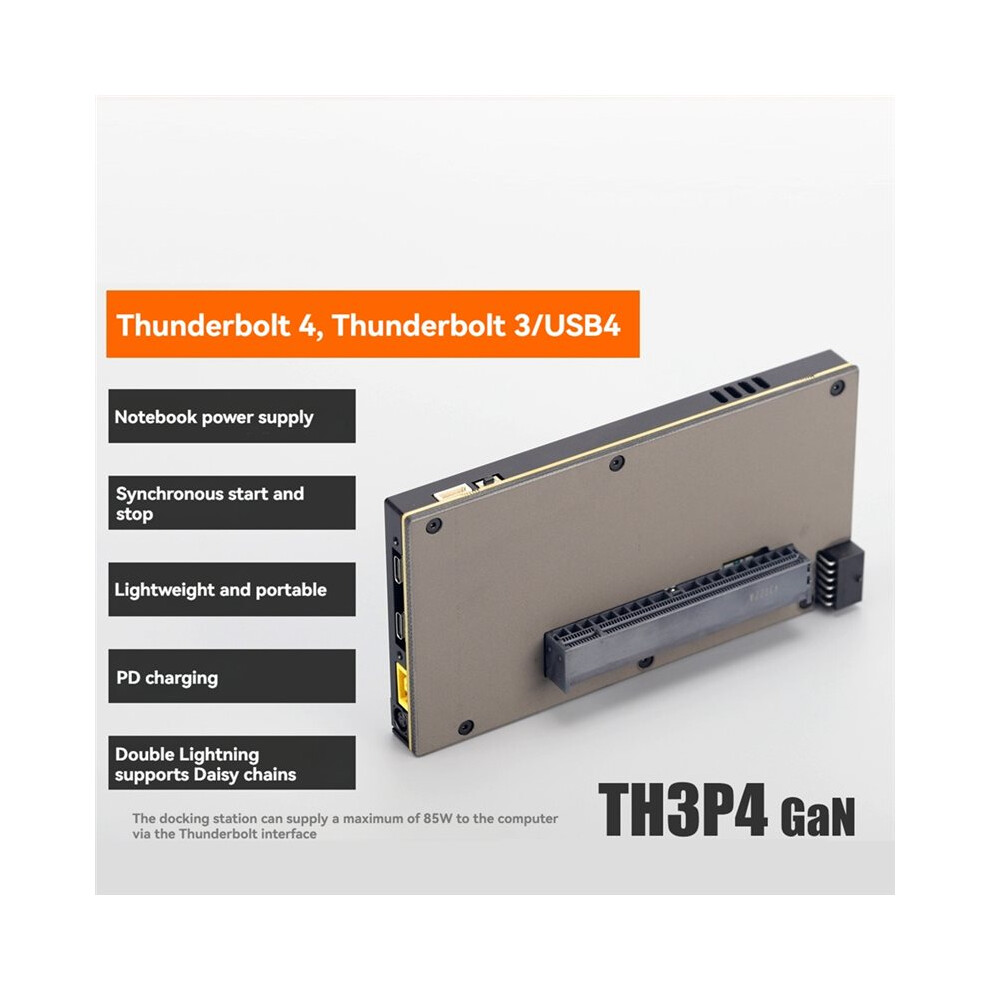

The docking station provides to 85W of power to the computer via the interface.

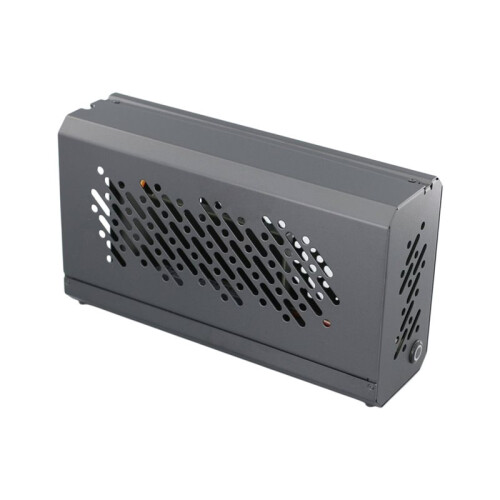

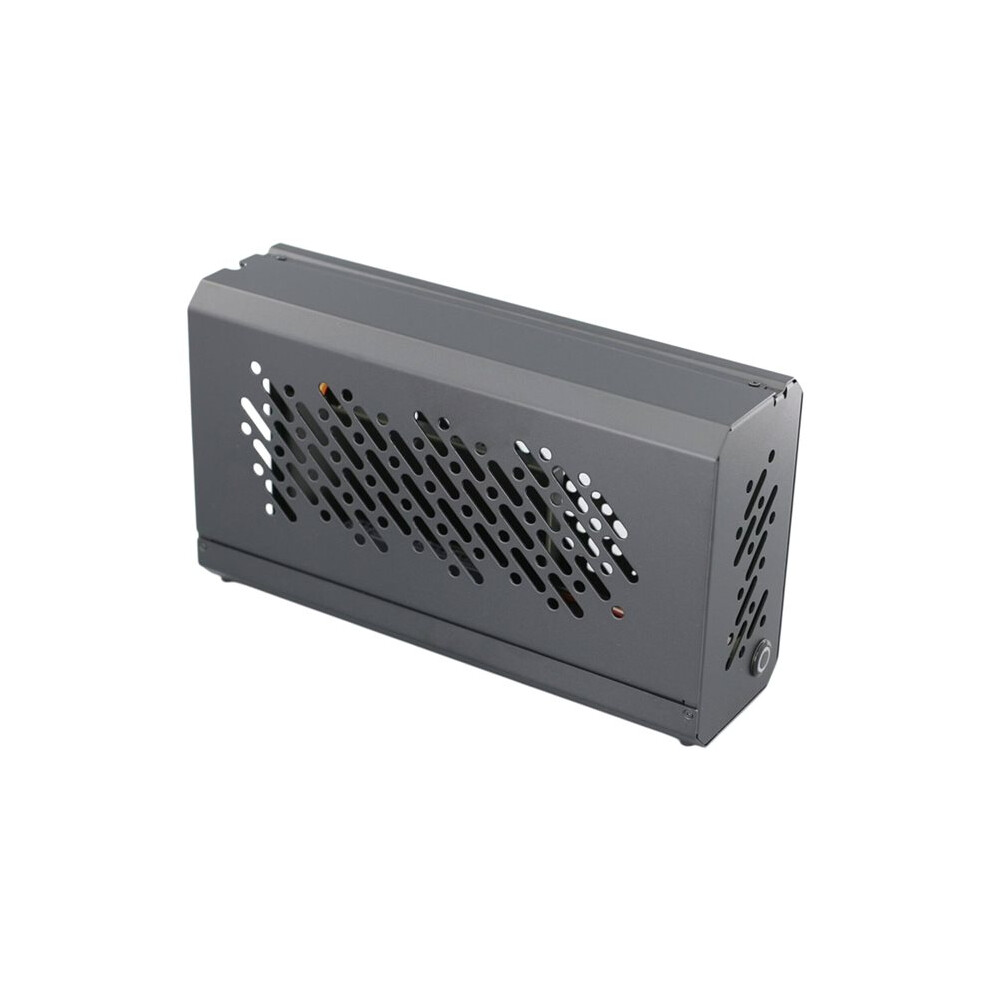

The docking station Equipped with a chassis, the maximum supported size of the card supported by this chassis is 268mm long, 133mm high, and 52m wide. If the card length exceeds 262mm, it may be necessary to remove the front panel of the chassis for installation.
For /PD: Powers laptops, handheld consoles, or PCs via this interface. Data transfer and power supply are handled in a single cable; plug and .
16PIN power output interface: Provides to dual 8PIN card power or 16PIN card power via an adapter cable.

Parameters:
Model: TH3P4 GaN
Interface: For Thunderbolt3 *2
Chipset: JHL7440
Daisy chain: Support
Supported power supply: Support GaN power supply/Laptop power supply
Applicable scenarios: Portable/Desktop use
PD charging: Max 85W
Power interface: for Square Port or for 7.4*5.0
card power consumption: 400W (20V)
Other functions: Synchronous start and stop (synchronous start and stop means that the docking station, card and power supply start and shut down with the computer.)

Special note:
1. Daisy Chaining: When using one port to connect a laptop, handheld console, or console, you can connect other devices (such as -enabled monitors, hard drive enclosures, docking stations, etc. / USB devices can also be connected) to the other port the docking station.
2. Hot-Swapping: data cables support hot-swapping. Note: Do not plug or unplug the graph
