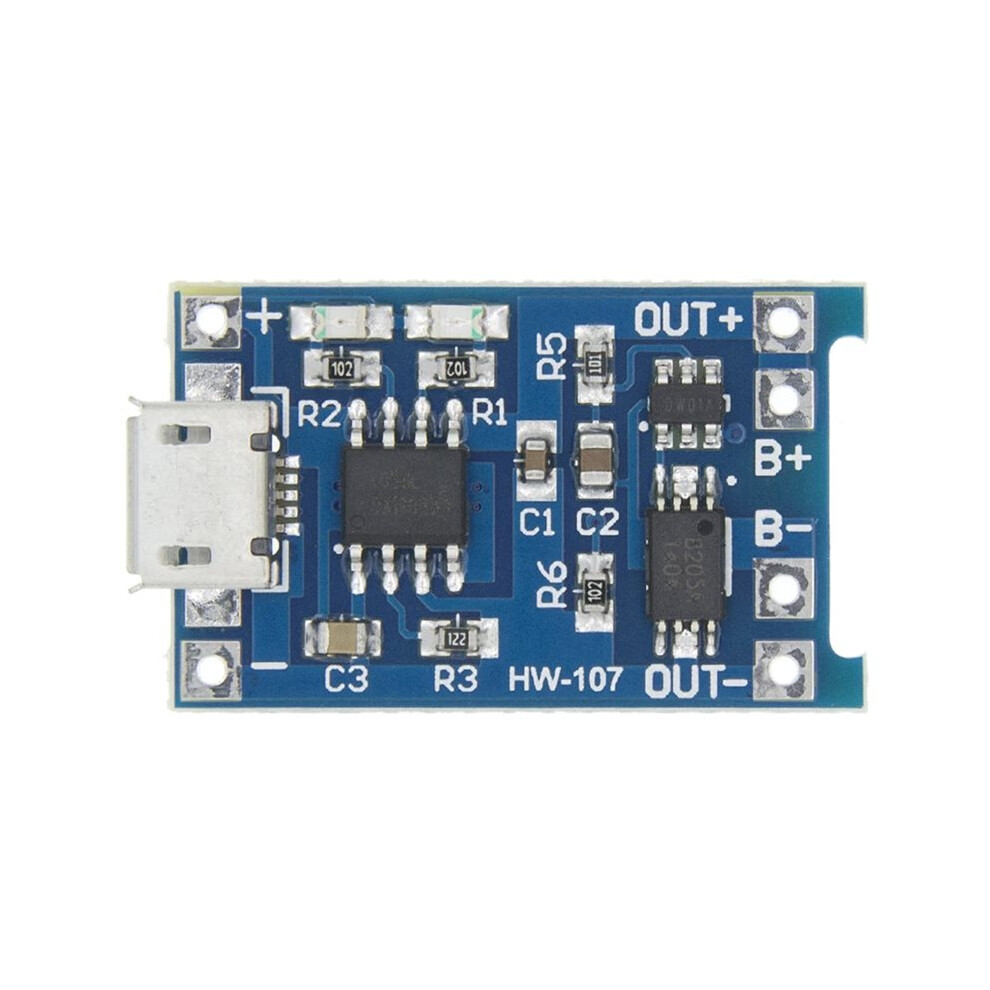

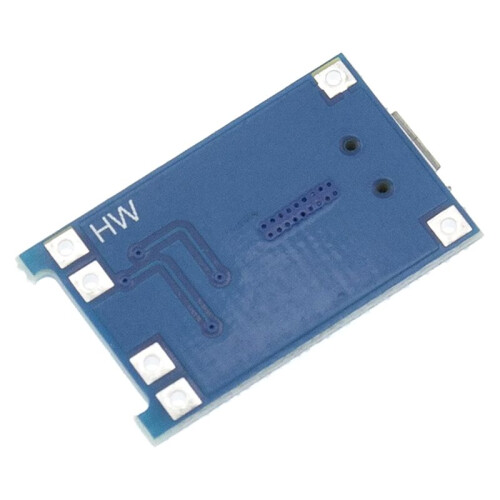

TP4056 +Protection Dual Functions 5V 1A Micro/Type-C USB 18650 Lithium Battery Charging Board Charger Module Micro USB

TP4056 +Protection Dual Functions 5V 1A Micro/Type-C USB 18650 Lithium Battery Charging Board Charger Module Micro USB leírása

The charge should disconnect the load OUT terminal the positive and negative can not be wrong, please according to specifications, otherwise it will damage directly.

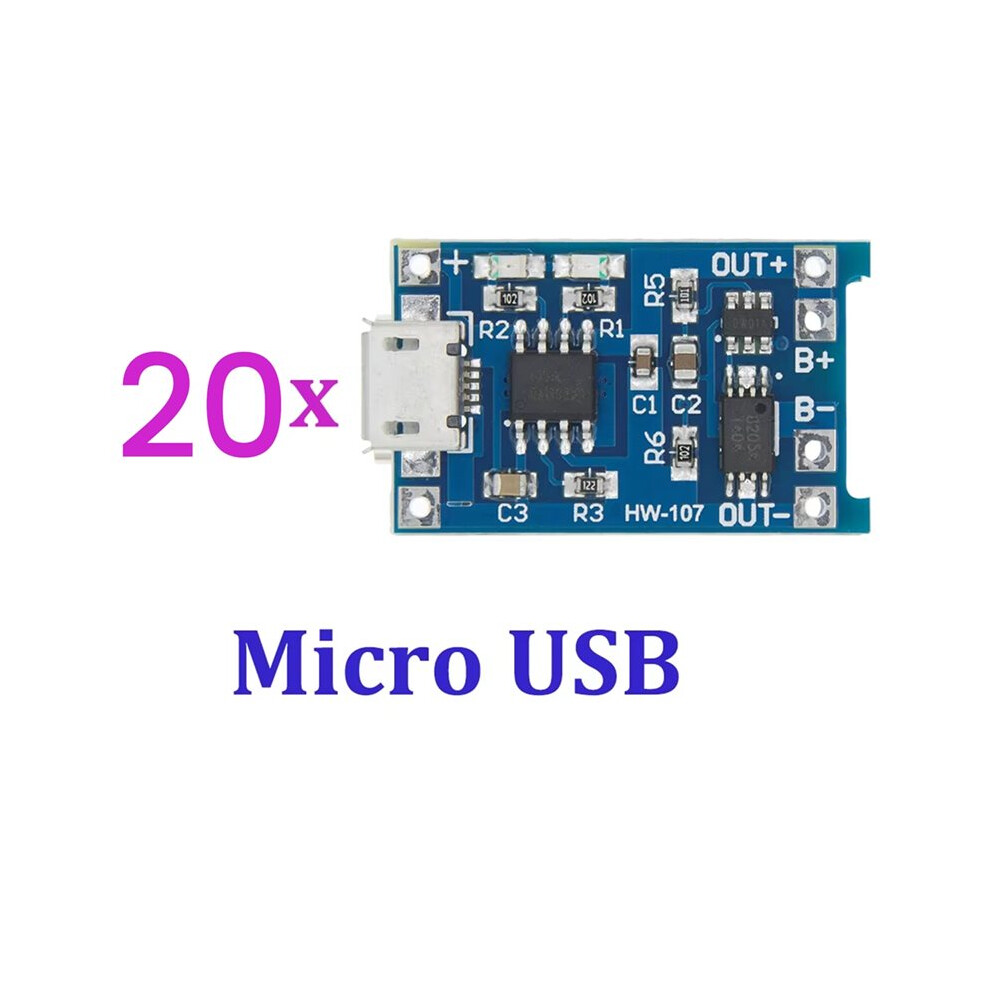

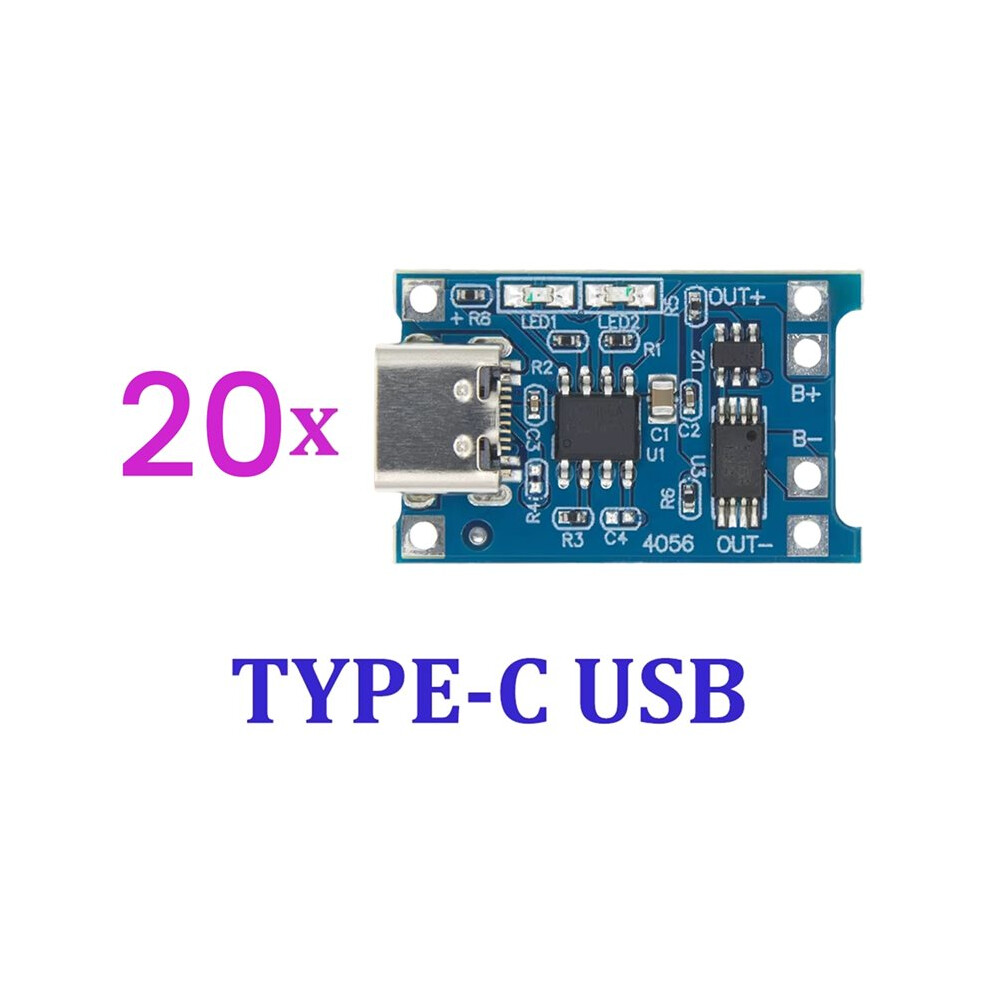

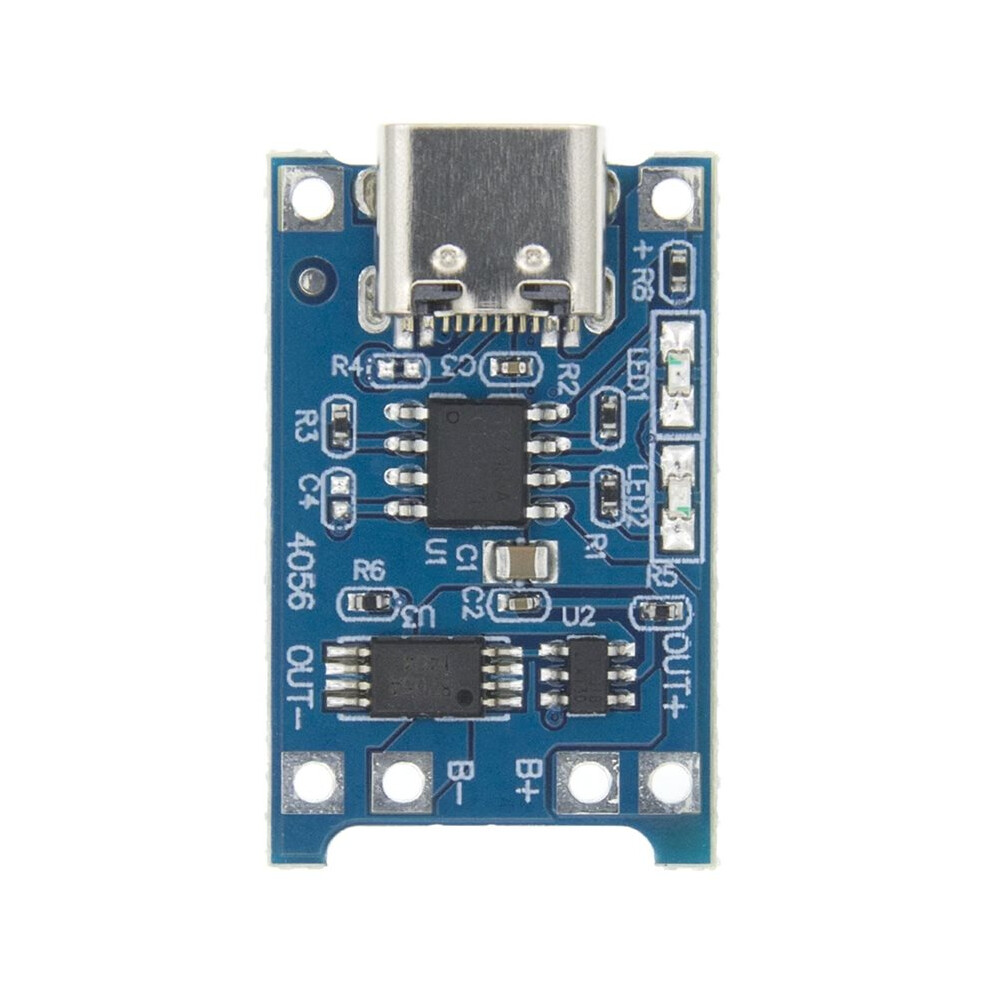

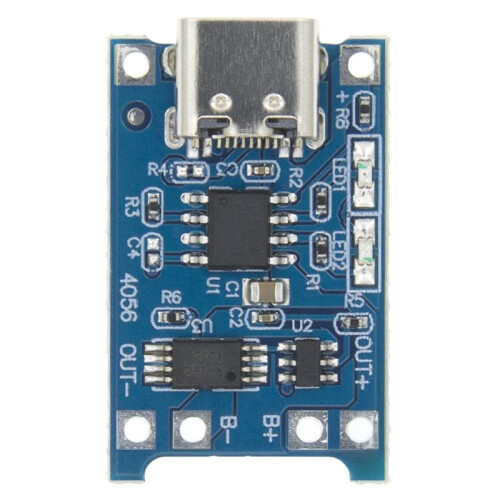

Module Features and parameters:Inputs with MICRO USB/TYPE-C USB female, can be directly input to do with the phone charger rechargeable lithium battery,And still retains the input voltage wiring pads, can be very convenient DIY

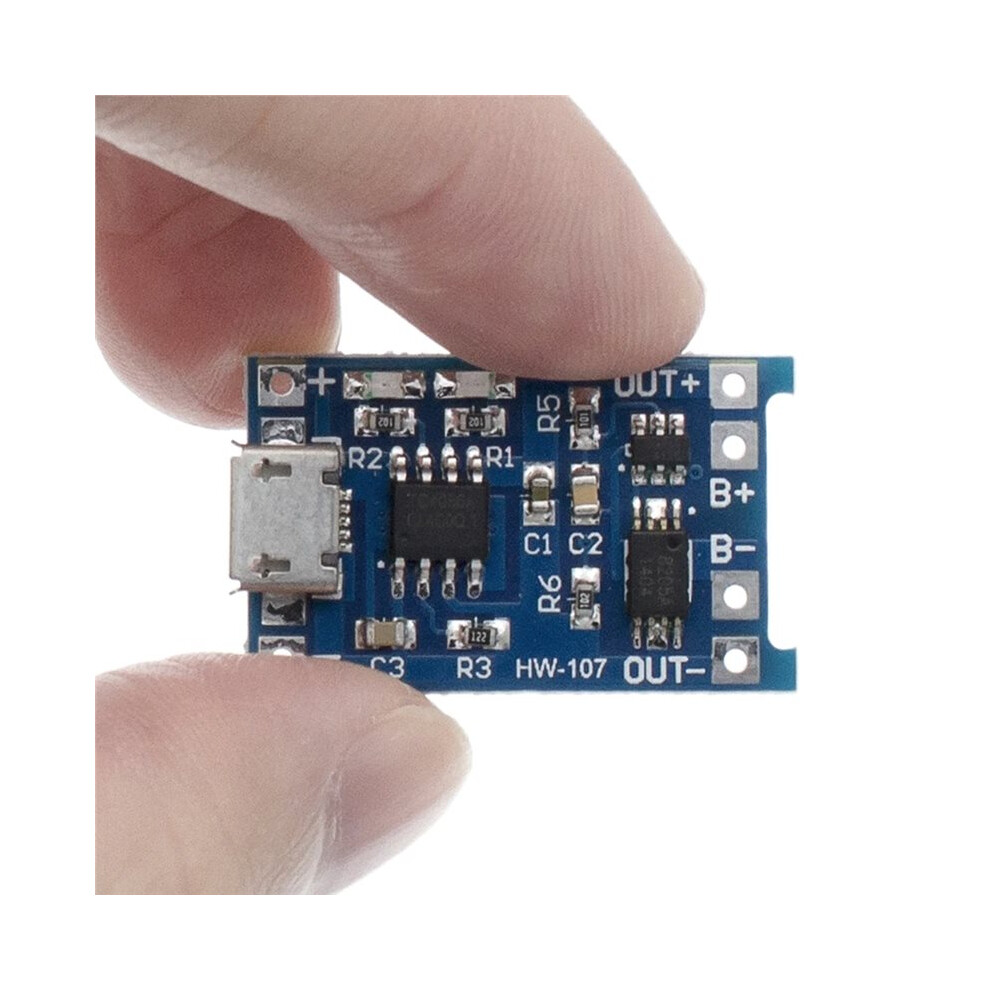

Input voltage: 5V;Charging cut-off voltage: 4.2V 1%;Maximum charge current: 1000mA;Battery over-discharge protection voltage: 2.5V;Battery overcurrent protection current: 3A;Board size: 2.6 * 1.7CM
Note: The first you access the battery, it may no voltage between the output OUT + and OUT-, then access 5V voltage charge your can activate the protection circuit, and the battery from the B + B-, then draw a the short open also need recharged to activate the protection circuit.
Note that the charger must be able to output 1A or more to do when using a mobile phone charger input, or may not charge
Color:
Material: Plastic+Metal
Specification: Micro

Package Contents:

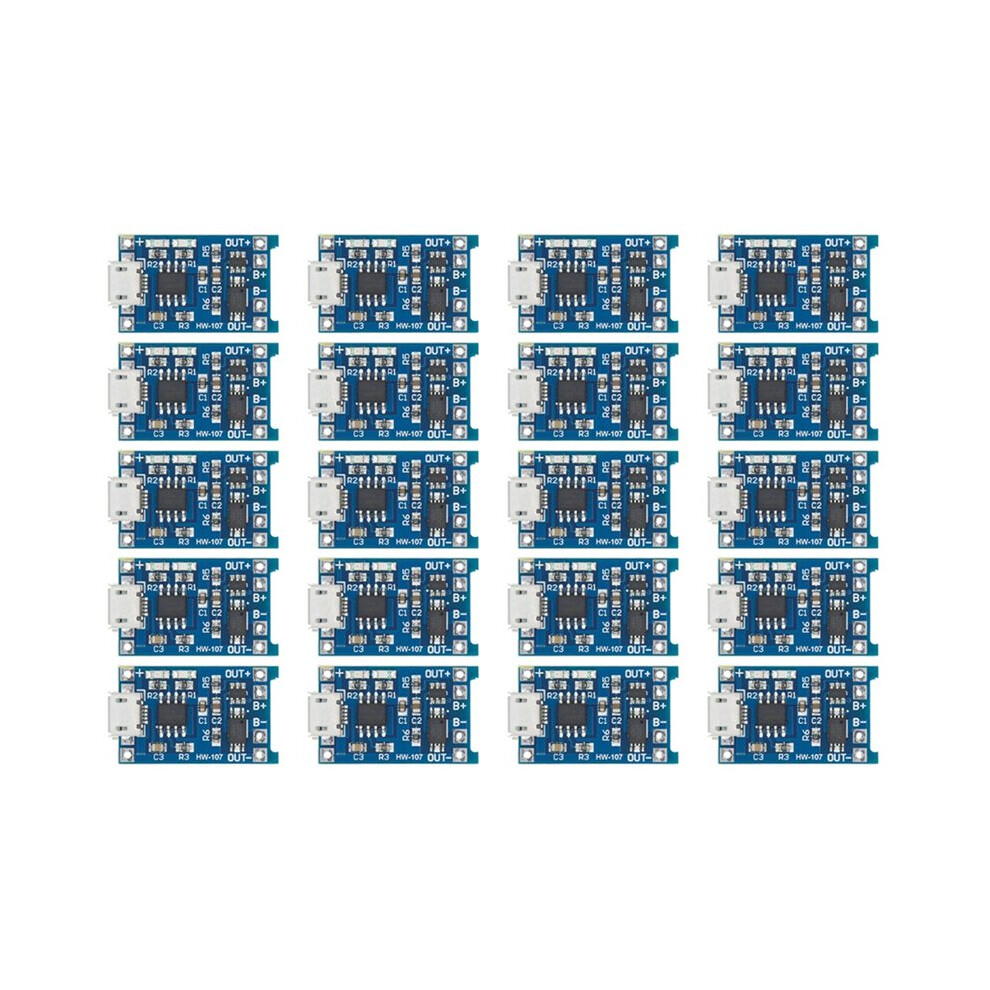

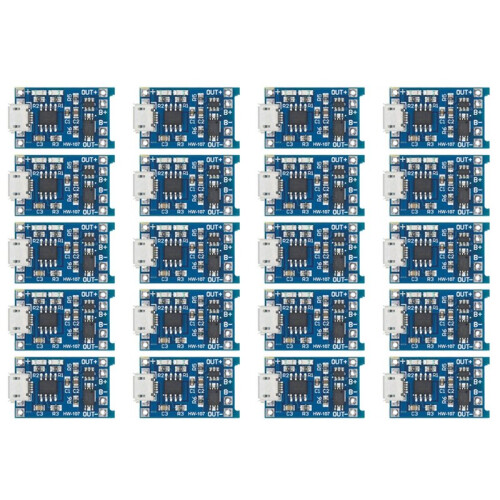

20 Pcs Charger Module
