15A in Diode WATERPROOF CONNECTOR SOLAR PANEL Ppo cable Connectors

15A in Diode WATERPROOF CONNECTOR SOLAR PANEL Ppo cable Connectors Description

15A Solar Panel Diode Connector Cable Connectors Online
Practical and easy connector used between the Solar panel and box to avoid the reversal of the current.
This connector is classified as IP67. IP Classification (income protection) the first numeral refers to the dust resistance level and the second numeral refers to the water resistance level.
Diode in the connector
COLOR: black
material: ABS
Degree of protection: IP67
Rated current: 15A
Flame class: UL94-V0
Rated voltage: 1000V (TUV) & 600V (UL)
Protection class: II
Test voltage: 6kV (50Hz, lmin)
Insertion, withdrawal strength force: Less than equal 50N / greater than equal 50N
Bolt dimensions: F 4.0 mm
: Connecting connection of pressing
Resistance of a contact connector: Less than equal 5mOhm
Temperature range: (-40 Celsius ~ 85 Celsius )
Contact material: copper, tin-plated
Maximum temperature: 110 Celsius
Package:
1 x PV diode connector
Only the above package content, other products are not included.

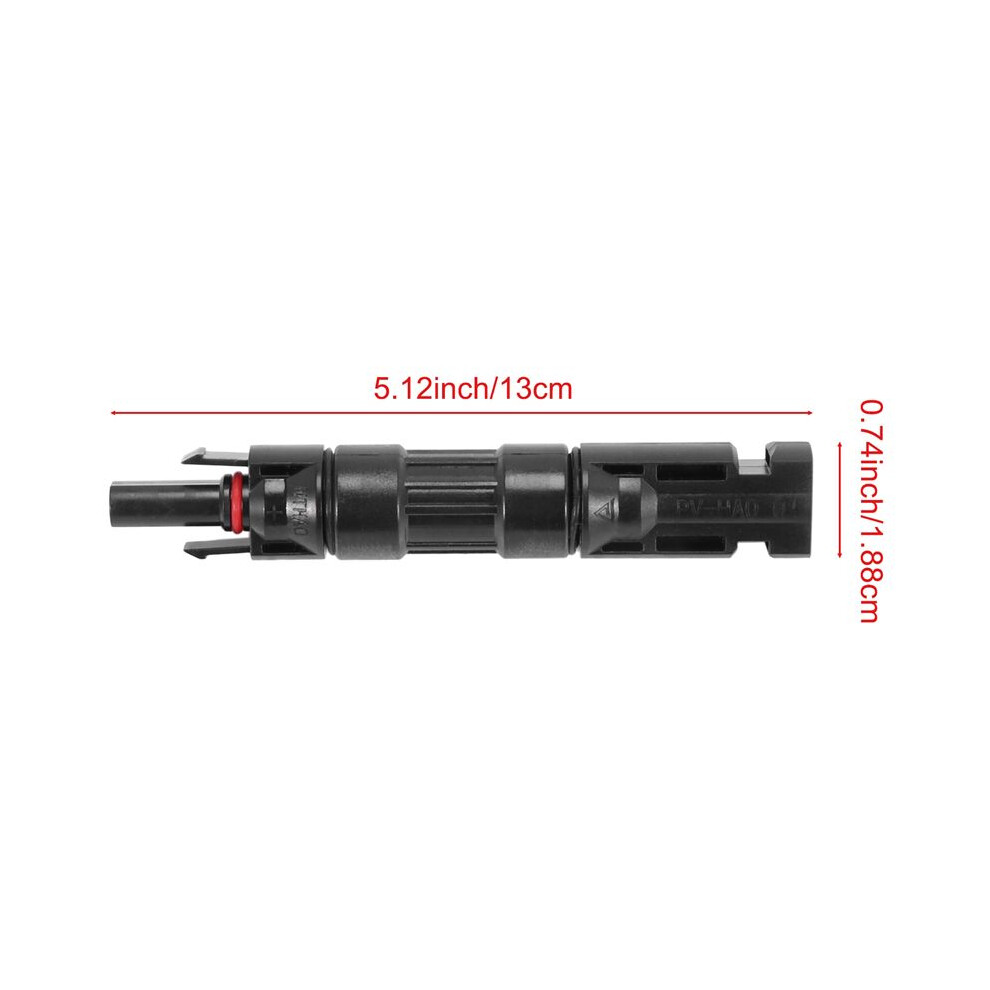

Note: Light shooting and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
