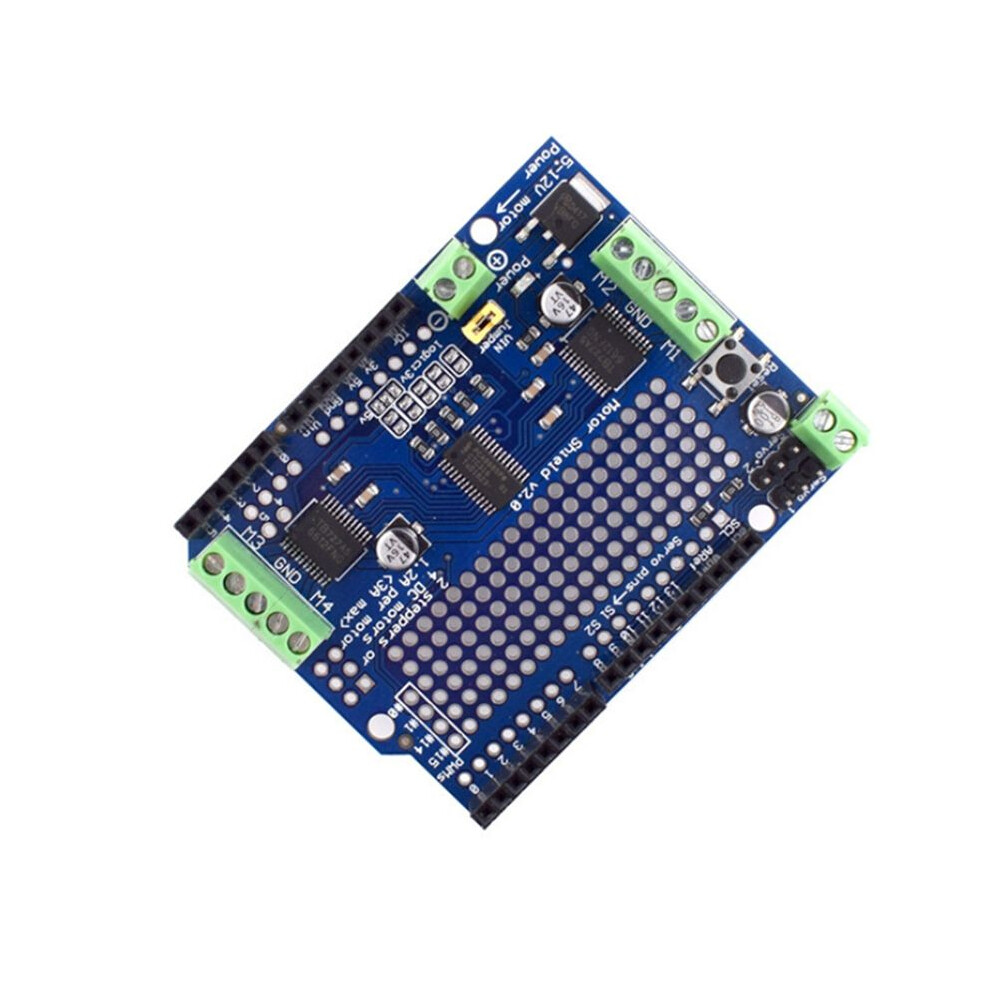

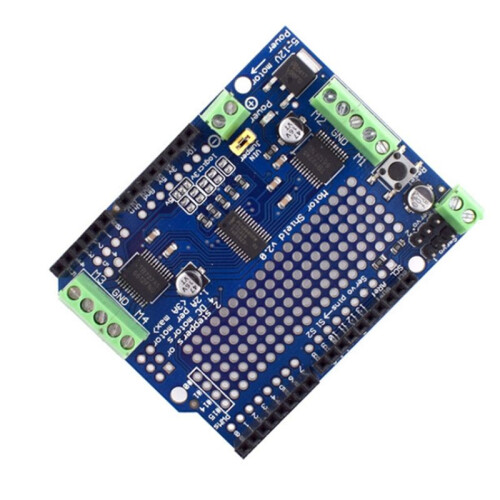

IIC I2C TB6612 Motor/Stepper/Servo Shield V2 Stepper Motor PWM Servo Driver Module for
Disponibile
Perché amerai fare acquisti su OnBuy:
- Ottieni Cashback su ogni acquisto – spendilo subito sul tuo prossimo ordine
- Consegna gratuita – su milioni di articoli in tutto il sito
- I clienti ci amano – 132,000 recensioni con valutazione « Eccellente »
I prezzi degli articoli in vendita su OnBuy includono l’IVA
Opzioni di pagamento a rate senza interessi disponibili
Vedi la descrizione completa e i dettagli del prodotto
Consegna: Priorità (3,50 €) | ven 28 ago - mer 2 set
Venduto da: BALURE
Resi: 30 giorni
Protezione dei pagamenti per 180 giorni
Potrebbe interessarti anche
Riepilogo
- for The Arduino interface is fully compatible with extensions. for Arduino communication via 12C and addresses can be modified. It can take two motors with direct PWM drive output. Up to four DC brush motors or two four-wire stepper motors can be connected.
- Using TB6612FNG motor driver chip, 1.2A drive capability, 3.2A peak, peak L298N module.
- TB6612MOSFET driver: 1.2A and 3A peak current per channel. it also has a lower motor voltage drop, so more torque can be obtained from the battery. Instead of using latches and FOR Arduinos PWM pins, we have a fully dedicated PWM driver on the chip. This chip handles all the motor and speed control on the 12C. Only two pins (SDA and SCL) are needed to drive multiple motors. Stackable design.
- Servo Shield v2 Driver
- DC Stepper Motor Driver Module
Descrizione di IIC I2C TB6612 Motor/Stepper/Servo Shield V2 Stepper Motor PWM Servo Driver Module for
for The interface is fully compatible with extensions. for communication via 12C and addresses can be modified. It can take two motors with direct PWM drive output. to four brush motors or two four-wire stepper motors can be connected.
Using TB6612FNG motor driver chip, 1.2A drive capability, 3.2A , L298N module.
TB6612MOSFET driver: 1.2A and 3A current per channel. it also has a lower motor voltage drop, so more torque can be obtained from the battery. Instead of using latches and FOR Arduinos PWM pins, we have a fully dedicated PWM driver the chip. This chip handles all the motor and speed control the 12C. Only two pins (SDA and SCL) are needed to drive multiple motors. Stackable design.
Supply Voltage: 8-35V
Logic Voltage: 5~12V
Reference Voltage: 5.5V
Output -Resistance: 320-430m ohms per driver
Diode Forward Voltage: 1.2V per driver
Output Current of the Driver: 2A
for Compatible: Yes
Product Dimensions: 6.8x5.2cm
Color: As Shown
Material: PCB
Package Contents:
1 * TB6612 Stepper Motor Driver Module
Dettagli
| OPC | PXJJSM2 |
|---|---|
| Marchio | Jojomino |
| Codici | 6033366937592 (EAN) |
| Informazioni sul prodotto e sulla sicurezza |
Dati prodotto
| Height | 2cm |
|---|---|
| Width | 6cm |
| Length | 7cm |
| Weight | 0.0205kg |
| Colour | As Shown |
| Material | PCB |
