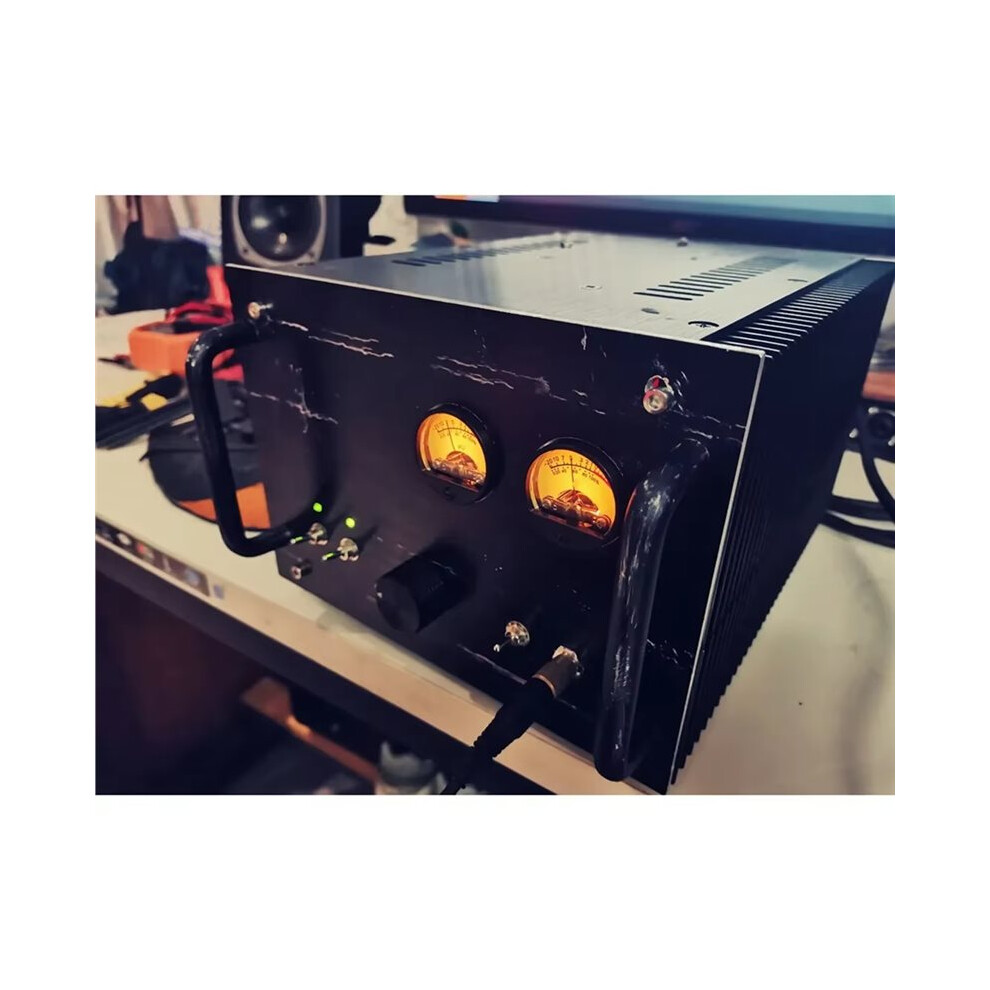

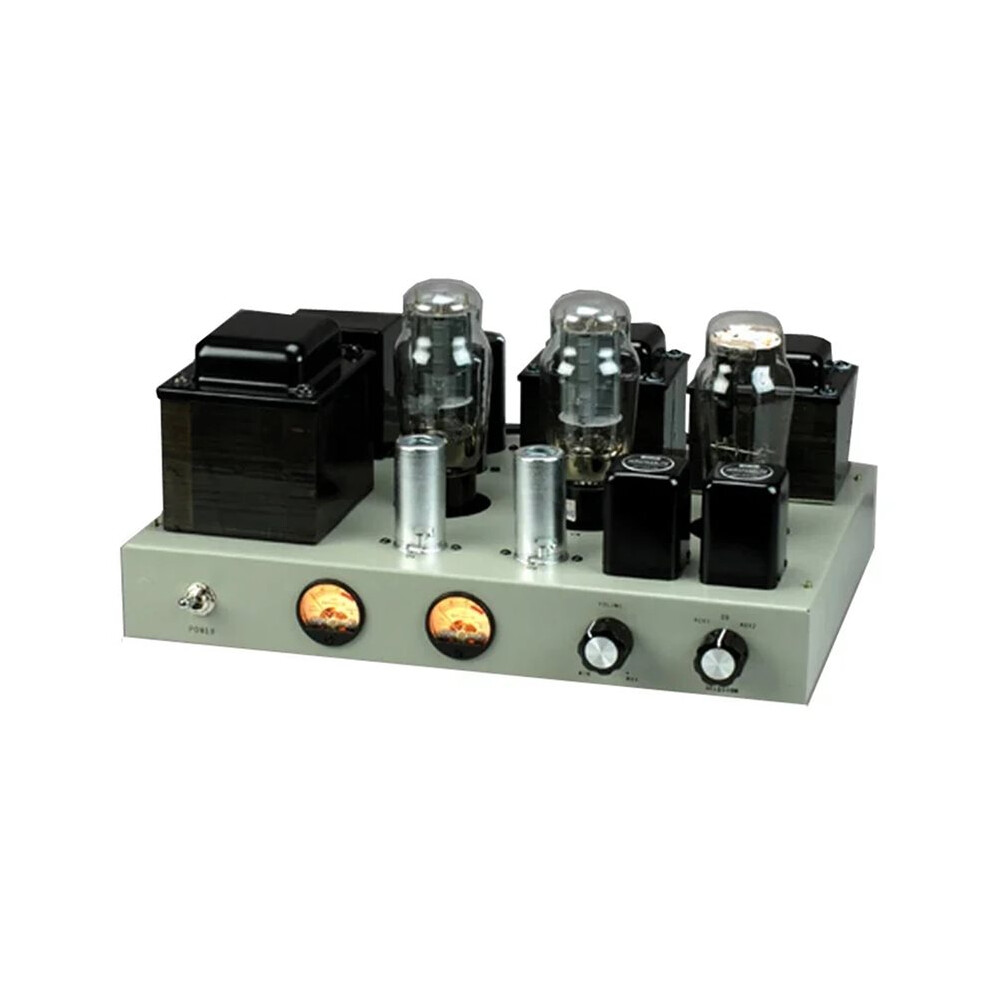

1 Set 35mm VU Meter Stereo Audio Amplifier Level Indicator Audio Meter Backlight Adjustable with Driver Board for AMP

1 Set 35mm VU Meter Stereo Audio Amplifier Level Indicator Audio Meter Backlight Adjustable with Driver Board for AMP Beskrivelse

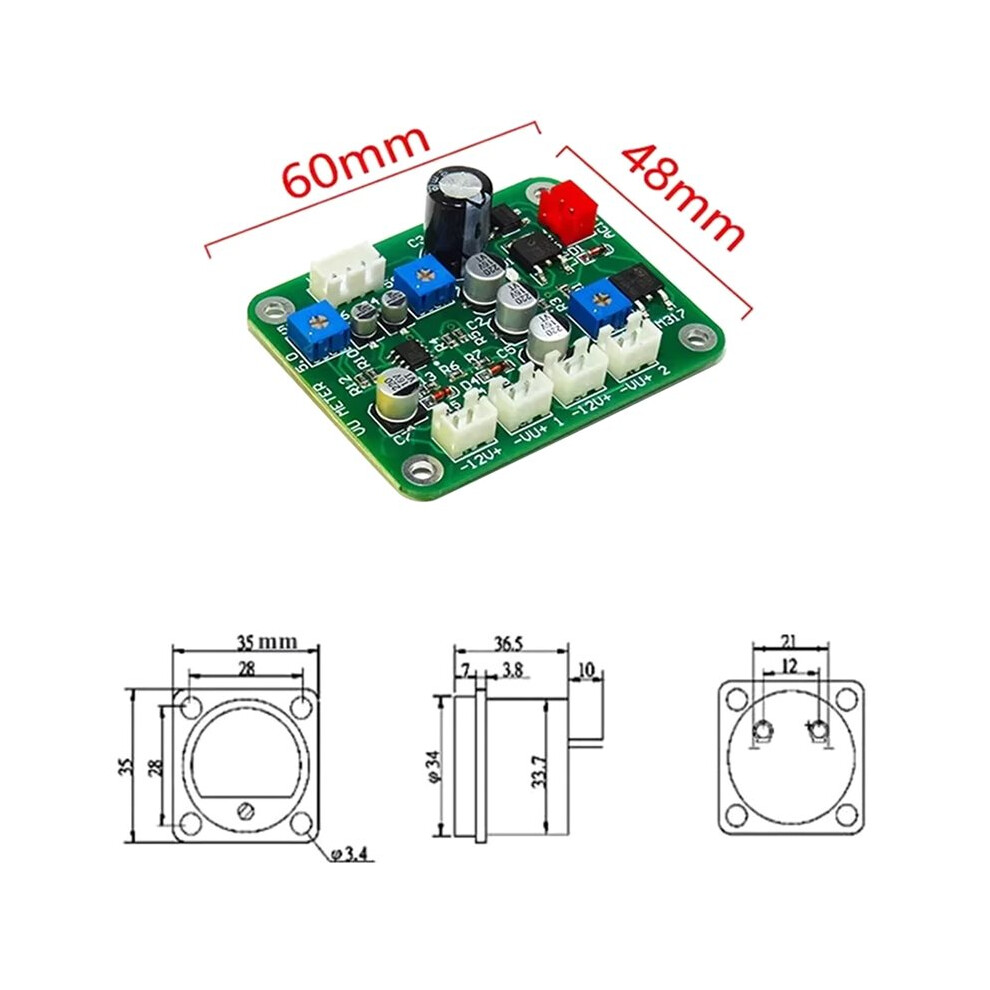

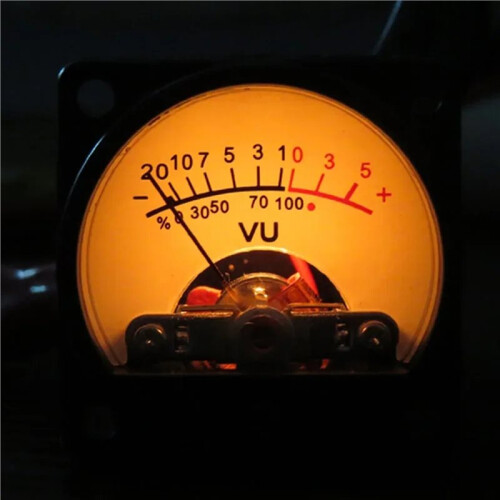

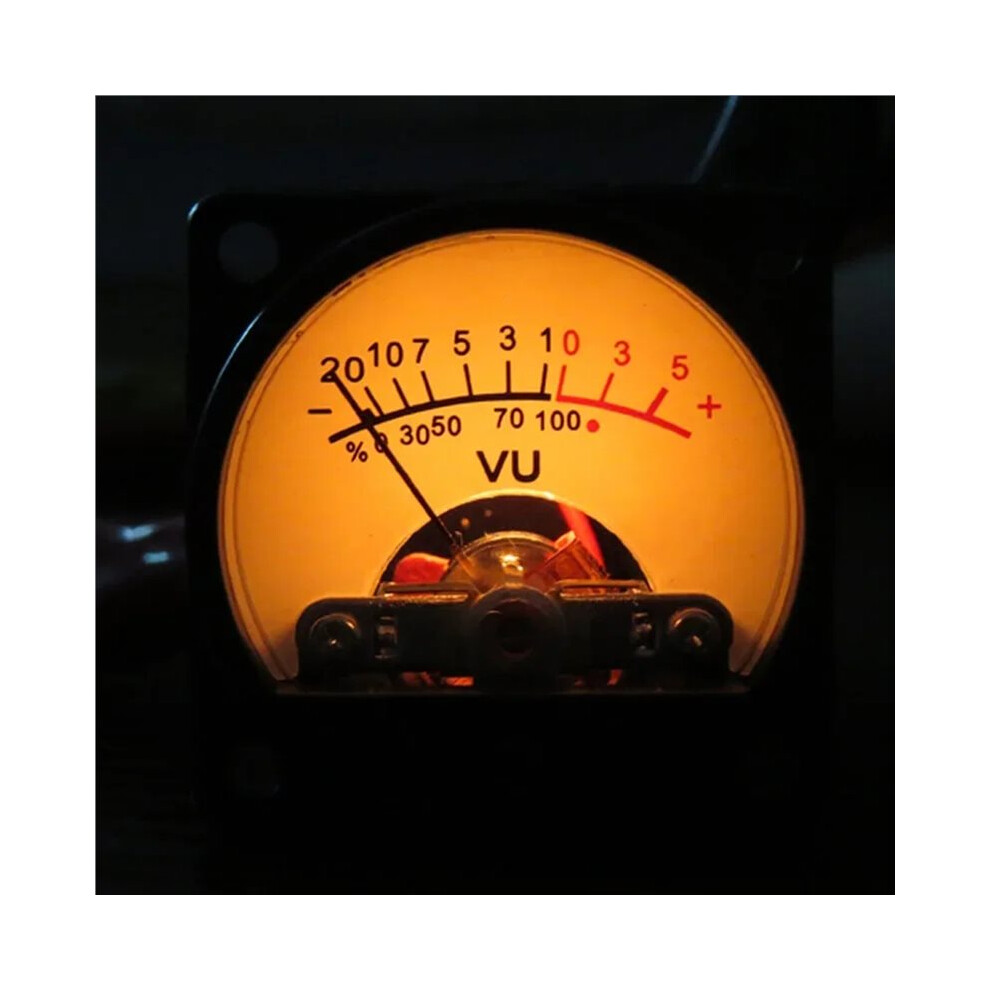

This is a 35mm VU meters with drive boards Work for Phone ,Computer,Pre-amp, Mp3;Can't Connect to Amplifier Output; internal resistance: 650 ohm + -15%;Calibration position: +5; Accuracy: Level 5; current; 500uA +-15%;Backlight: LED*3; Working temperature: -22%-55 degrees Celsius;VU Meter Backlight voltage: AC6V-12V ;
L, G, R: This is the two-channel input terminal for low-level signal of the driver board, which is used to connect the audio of mobile phones, computer sound card pre-stage, and other audio source devices (the signal is the signal that the earphone can hear). L, GND, and R correspond to the left, ground, and right channels respectively
AC12V is the power supply. (It is recommended to use an independent power transformer or independent winding power supply!)Note: Can't connect to the power amplifier output Can not connect to the output of the power amplifier. Can not connect to the output of the power amplifier. Including car CD player cannot be used
Level meter debugging Find a signal generator to adjust the output frequency of 1KHz, the effective value of the signal is 0.775V, and then connect the signal input of the drive board, and the pointer of the meter points to the 0DB of the instrument panel.
(If you don't have a signal generator, you can download an APP signal generator with your mobile phone, and you can adjust it according to the previous method)
The debugging of the VU meter, the adjustment of the VU meter is much simpler, the driver board is connected to the audio signal, and the driver board can be adjusted.
Adjust the resistance to synchronize the loudness and rhythm of the ear to the sound with the poin
