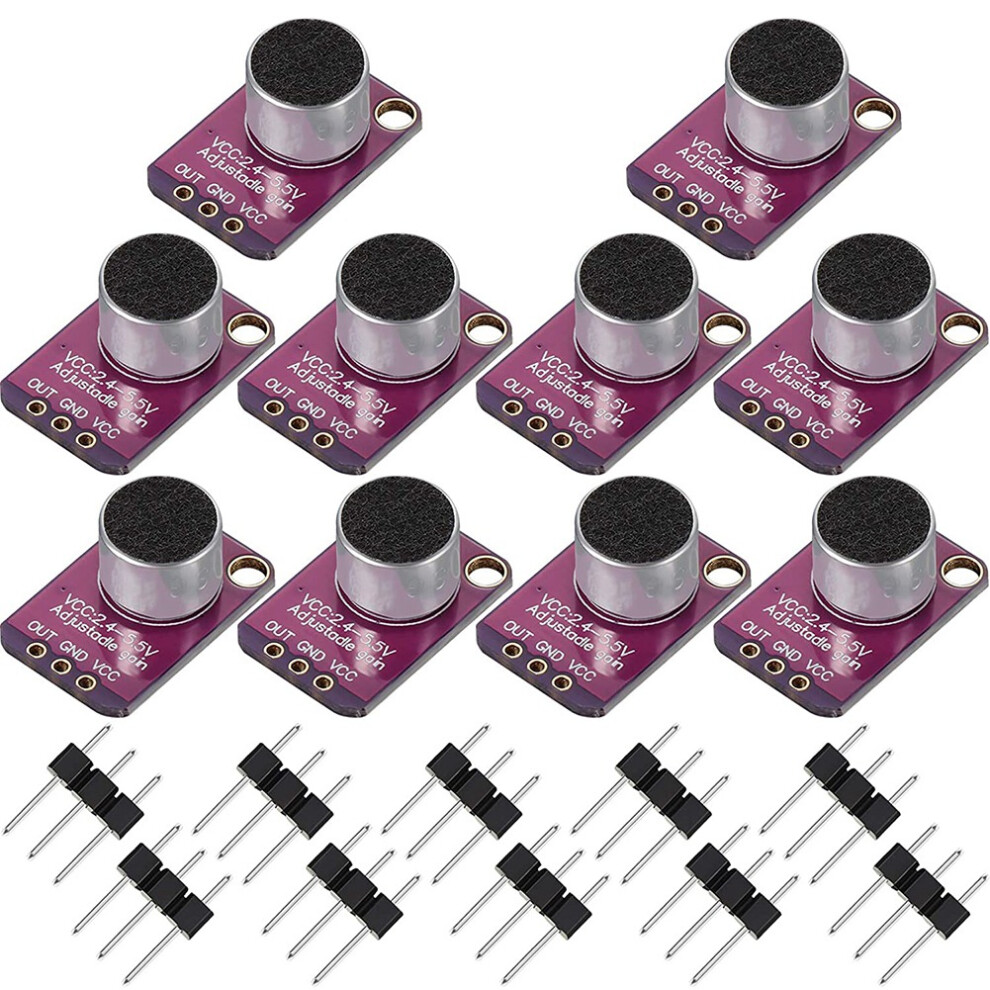

10 PCS Electret Microphone Amplifier Adjustable MAX4466 Module Microphone Preamplifier Breakout Board for
På lager
Derfor vil du elske å handle hos OnBuy:
- Tjen Cashback på hvert kjøp – bruk det umiddelbart på din neste bestilling
- Gratis levering – på millioner av varer på hele nettstedet
- Kunder elsker oss – 126,000 anmeldelser med vurderingen “Utmerket”
Prisene for varer solgt av OnBuy inkluderer mva.
Rente- og gebyrfri delbetaling tilgjengelig
Se full produktbeskrivelse og detaljer
Levering: Standard (Gratis) | fre 19. - ons 24. jun
Returer: 30 dager
180 dagers betalingsbeskyttelse
Sammendrag
- Application: the MAX4466 microphone breakout is suitable for voice converters, audio recording and sampling, and audio response projects using FFT; On the back, there is a small trimmer pot to adjust the gain; You can set the gain from 25x to 125x
- Parameters: power supply voltage: +2.4V to +5.5V (can be compatible with STM, Raspberry Pi and other development board motherboards); Power supply rejection ratio: 112dB; Common mode rejection ratio: 126dB; AVOL: 125dB (RL = 100 thousands of ohm meter) rail-to-rail output; Quiescent power supply current: less than 24 microamp; Gain bandwidth: 600kHz
- 20-20KHz electret microphone soldered on: comes with a 20-20KHz electret microphone soldered on the board for audio-reactive projects; It is recommended to use the FFT driver library, which can take audio input and 'translate' it into frequencies
- Easy to use: connect GND to ground, VCC to 2.4-5VDC; For the good performance, use the 'quietest' supply available (this would be the 3.3V supply)
- Power supply noise rejection function: the amplifier has good power supply noise rejection
10 PCS Electret Microphone Amplifier Adjustable MAX4466 Module Microphone Preamplifier Breakout Board for Beskrivelse
Application: the MAX4466 microphone breakout is suitable for voice converters, audio recording and sampling, and audio response projects using FFT; the back, there is a small trimmer pot to adjust the gain; You can set the gain from 25x to 125x
Parameters: power supply voltage: +2.4V to +5.5V (can be compatible with STM, Raspberry Pi and other development board motherboards); Power supply rejection ratio: 112dB; Common mode rejection ratio: 126dB; AVOL: 125dB (RL = 100 thousands of ohm meter) rail-to-rail output; Quiescent power supply current: less than 24 microamp; Gain bandwidth: 600kHz
20-20KHz electret microphone soldered : comes with a 20-20KHz electret microphone soldered the board for audio-reactive projects; It is recommended to use the FFT driver library, which can take audio input and 'translate' it into frequencies
Easy to use: connect GND to ground, VCC to 2.4-5VDC; For the good performance, use the 'quietest' supply available (this would be the 3.3V supply)
Power supply noise rejection function: the amplifier has good power supply noise rejection
colour:
Material: ABS
Package Contents:
10 x Amplifier for microphone
Detaljer
| OPC | PV88MCK |
|---|---|
| Merke | Torribaly |
| Koder | 6033948069055 (EAN) |
Produktdata
| Height | 3cm |
|---|---|
| Width | 13cm |
| Length | 17cm |
| Weight | 0.029kg |
| Colour | purple |
| Material | ABS |
