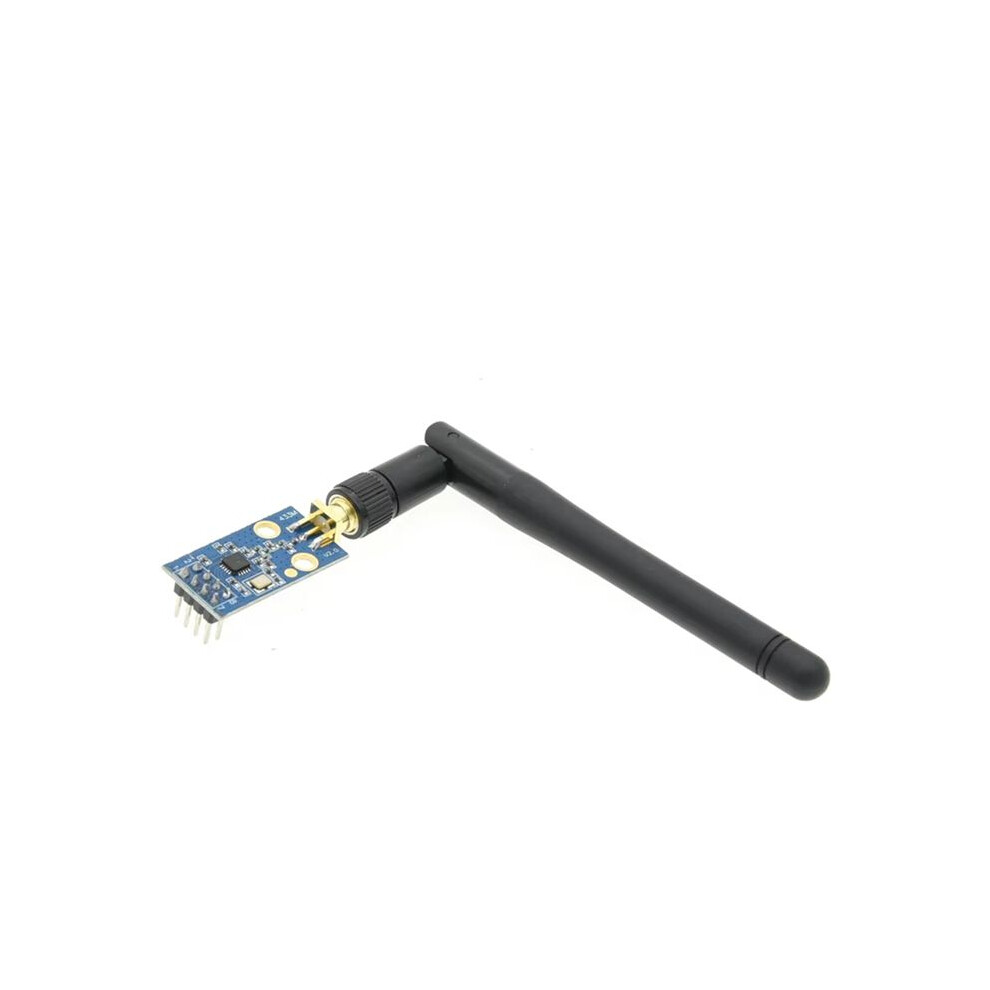

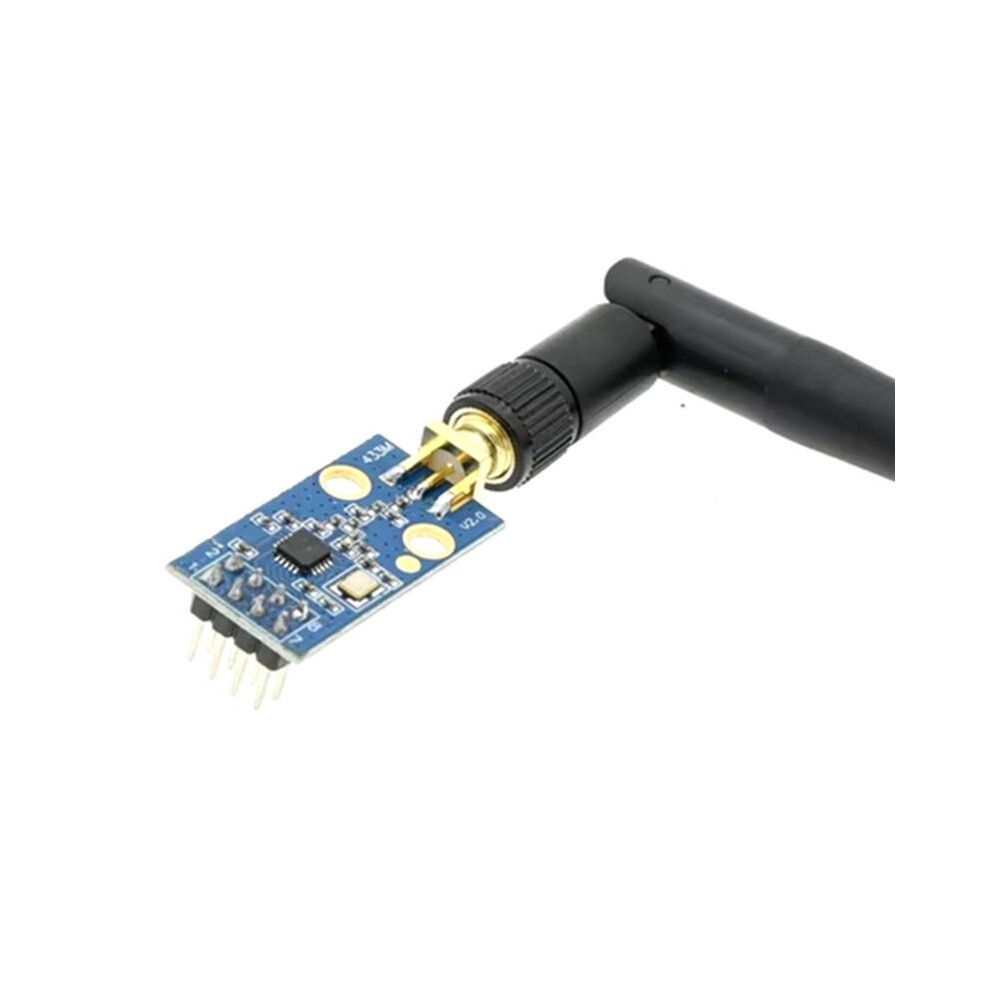

10pcs CC1101 433MHz Wireless Module with SMA Antenna Wireless Transceiver Module

10pcs CC1101 433MHz Wireless Module with SMA Antenna Wireless Transceiver Module Beskrivelse

433MHZ ISM band. Support 2-FSK, GFSK and MSK modulation. Receiver sensitivity -110dBm at 1200 baud
Minimum operating speed 1.2kbps, the highest 500kbps. Separate 64-byte RX and TX data FIFO buffer
Built-in hardware CRC error detection ensures reliable data transmission. Support RSSI signal strength detection and carrier sense function
Low power consumption. Mailing Address (256) Operating frequency can be programmed via SPI. Programmable output power, for all the support frequencies to +10 dBm
WOR feature can be set to standby, the proportion receiving state timer to reduce power consumption

Fast frequency synthesizer with proper frequency hopping system
Wireless Module
Condition: New
Operating frequency:(Module:387-464MHZ)
Working voltage :1.8-3.6V
Instantaneous maximum working current: 30ma
Maximum transmit power: 10mW (+10dBm)
Colour: +Black
Material: Metal + Plastic
Note: Different production batches may have different appearances but will not affect the use

Package Contents:
10 x CC1101 Wireless Module (with 10 pcs Long glue stick)
