12V 24V 36V 10A 433MHz 4 Channel Wireless Relay RF Remote Control Receiver+4CH Transmitter,1 Receiver 2 Remote

12V 24V 36V 10A 433MHz 4 Channel Wireless Relay RF Remote Control Receiver+4CH Transmitter,1 Receiver 2 Remote Beskrivelse

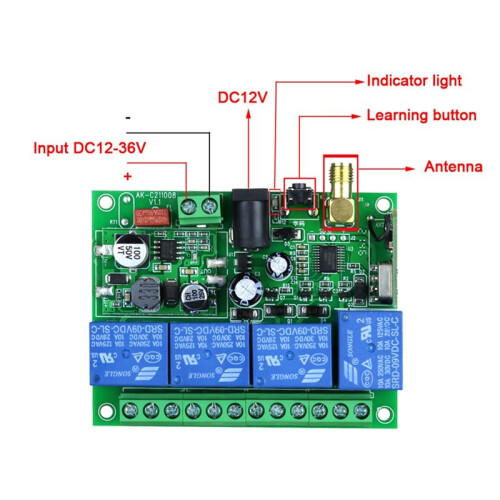

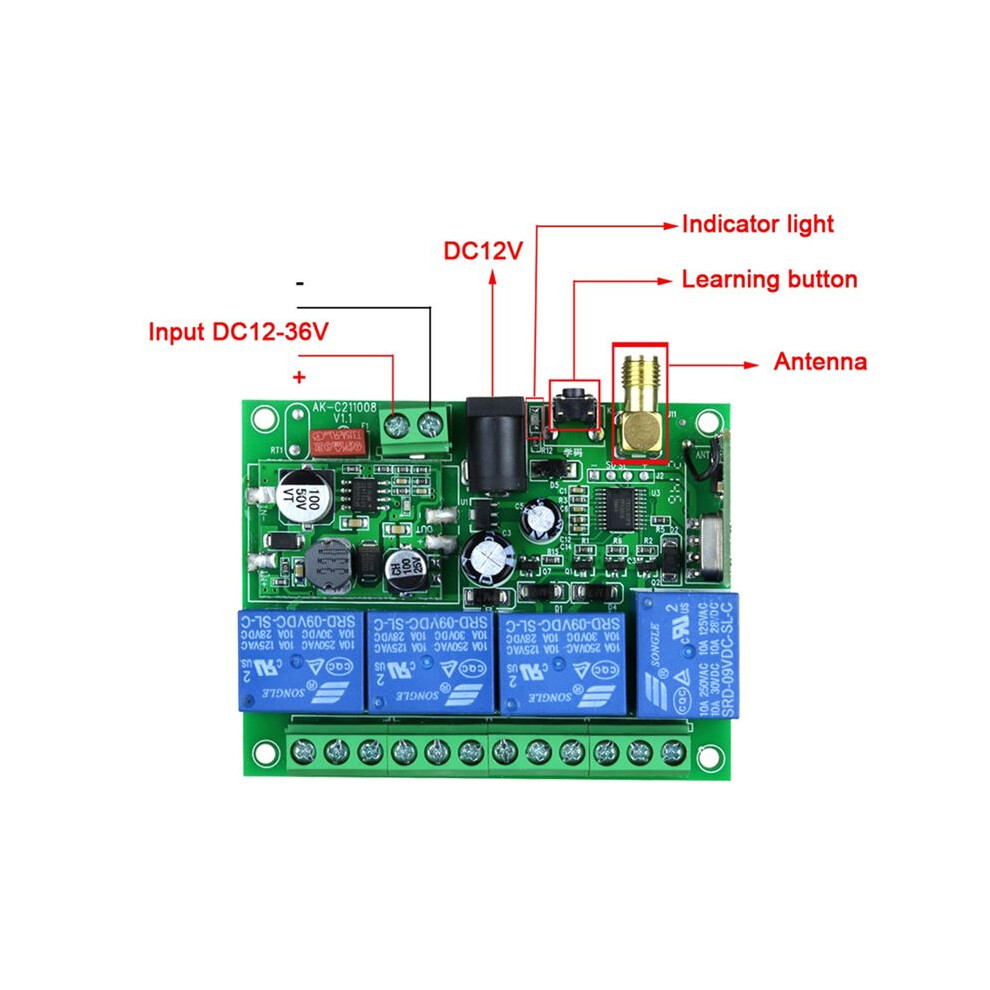

Learning: Press learning button, the indicator flashes and OFF, loosen finger, press any button of the remote transmitter, indicator flashes three times, meaning learning succeeds.(how many times press the learning button according to the working way you need)
Clearning: Hold press learning button about 8 seconds,indicator light flashes several times and off, then press remote ,Relay did not Respond, it means clearning code successful.

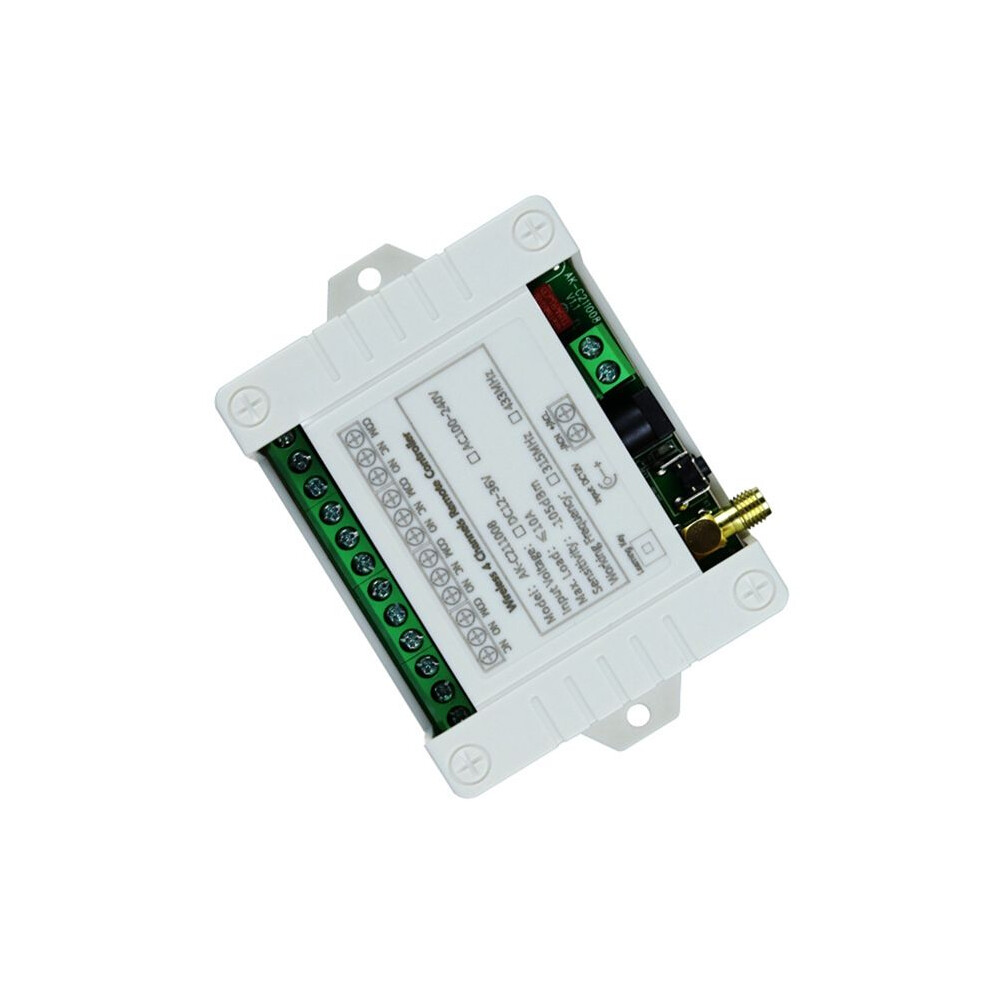

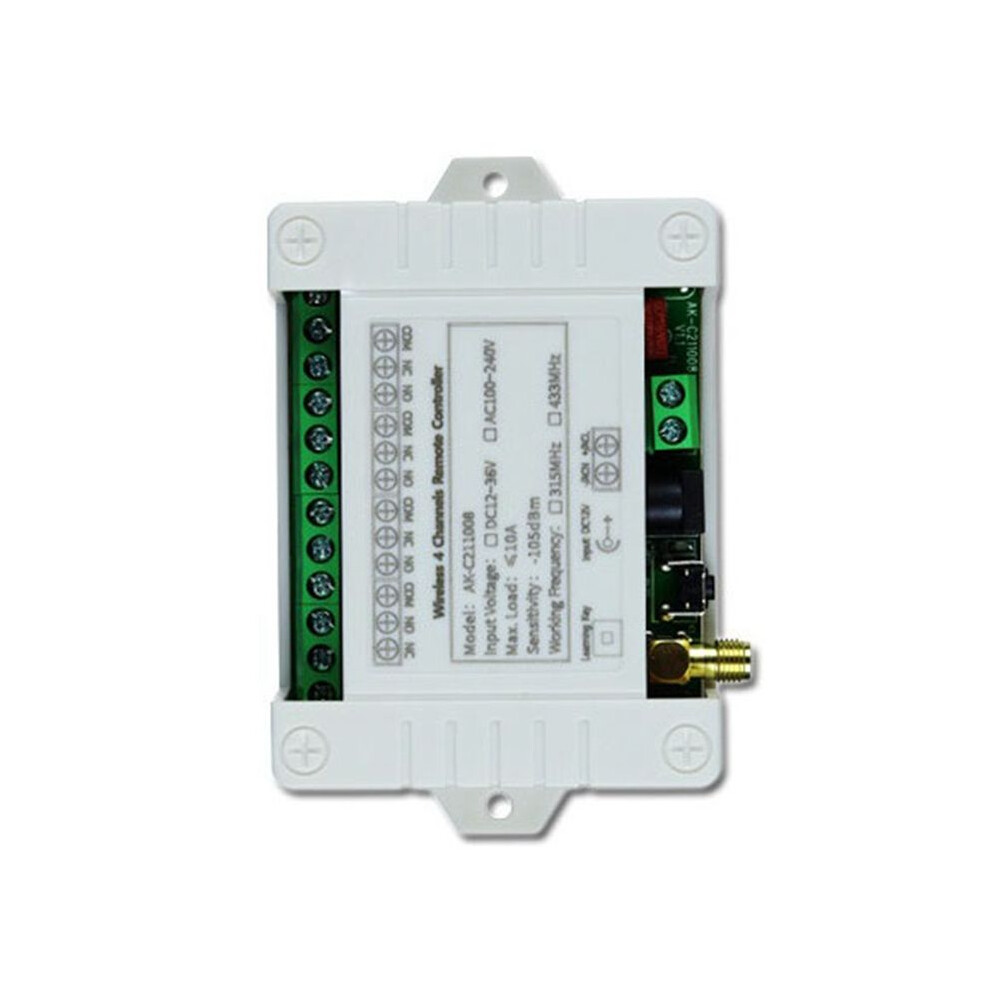

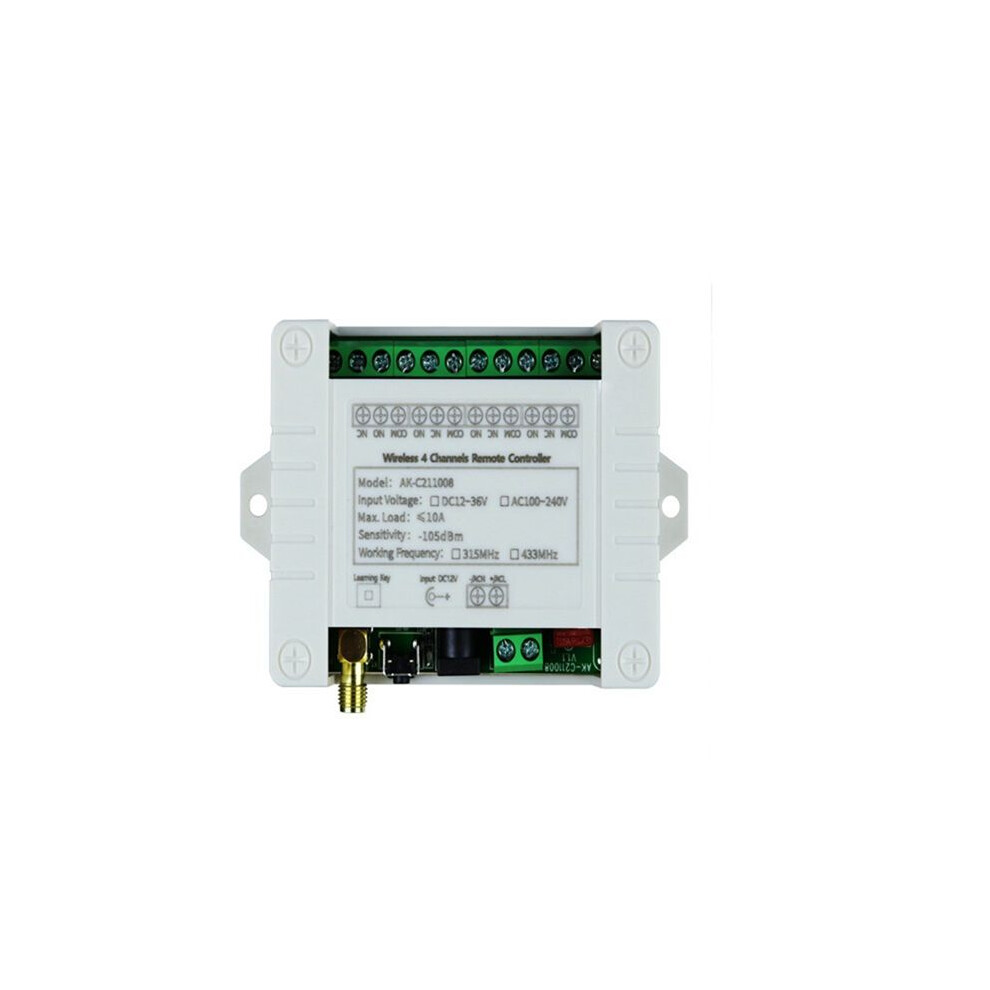

About Receiver:
Model No.: AK-C211008
1. Working voltage: DC12V-36V
2. Quiescent condition: Less than 6mA
3. Working temperature: -40 - + 80
4. Receiver sensitivity: more than -105dBm
5. Working frequency: 433mhz
6. Max load current: 10A

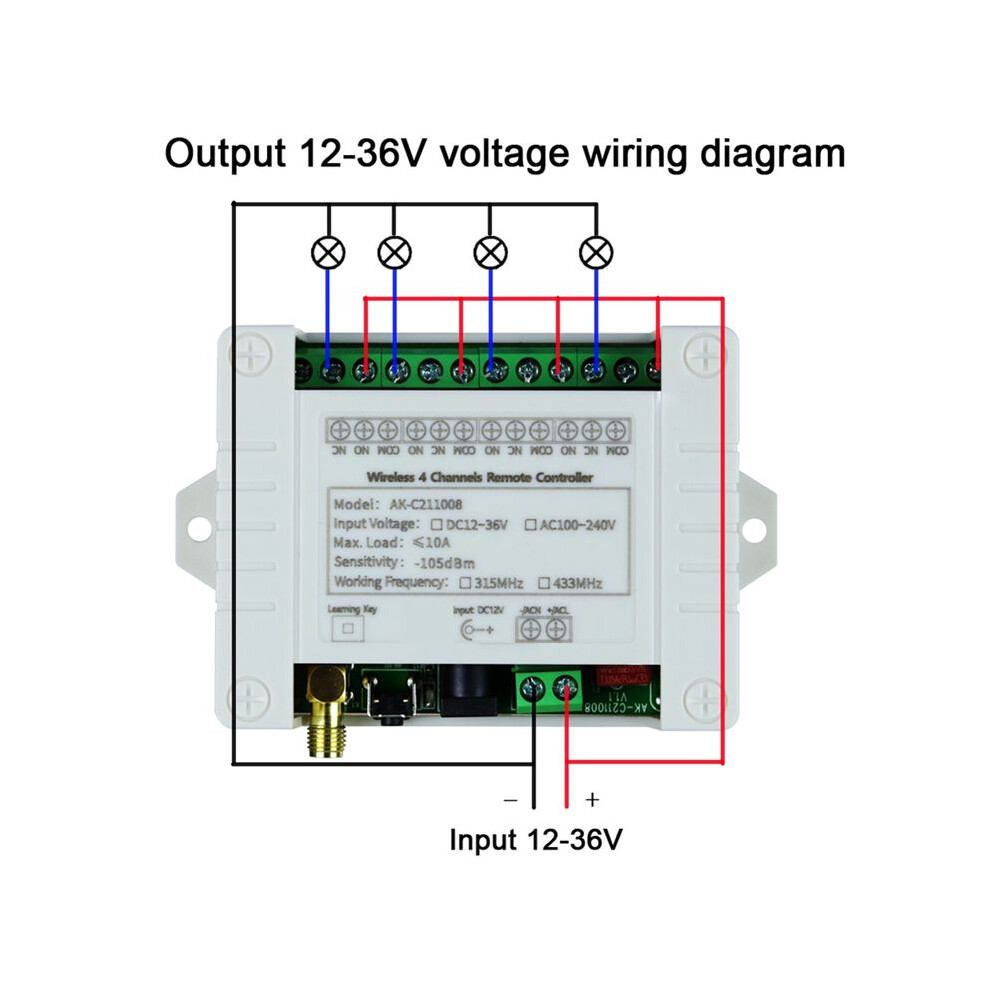

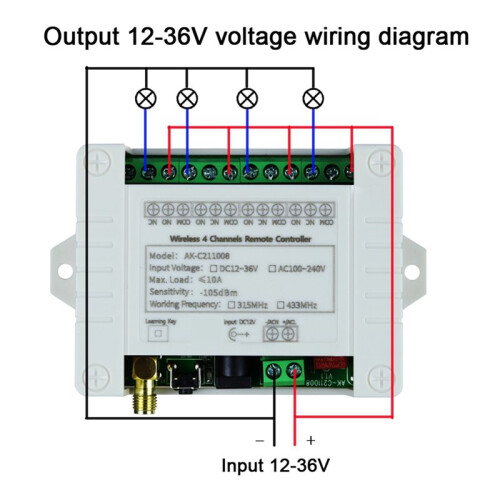

About Working way:
Working way changed by Learning button
Momentary: Press the Learning Button 1 times.
Relay: Press and hold ; Release Off.
Toggle: Press the Learning Button 2 times.
Relay: Press ; Press same button again Off.
Latched: Press the Learning Button 3 times.
Relay: Press ; Press other button Off.
2 channel Momentary + 2 channel Latched: Press the Learning Button 4 times.
2 channel Momentary + 2 channel Toggle: Press the Learning Button 5 times.
2 channel Toggle + 2 channel Latched: Press the Learning Button 6 times.

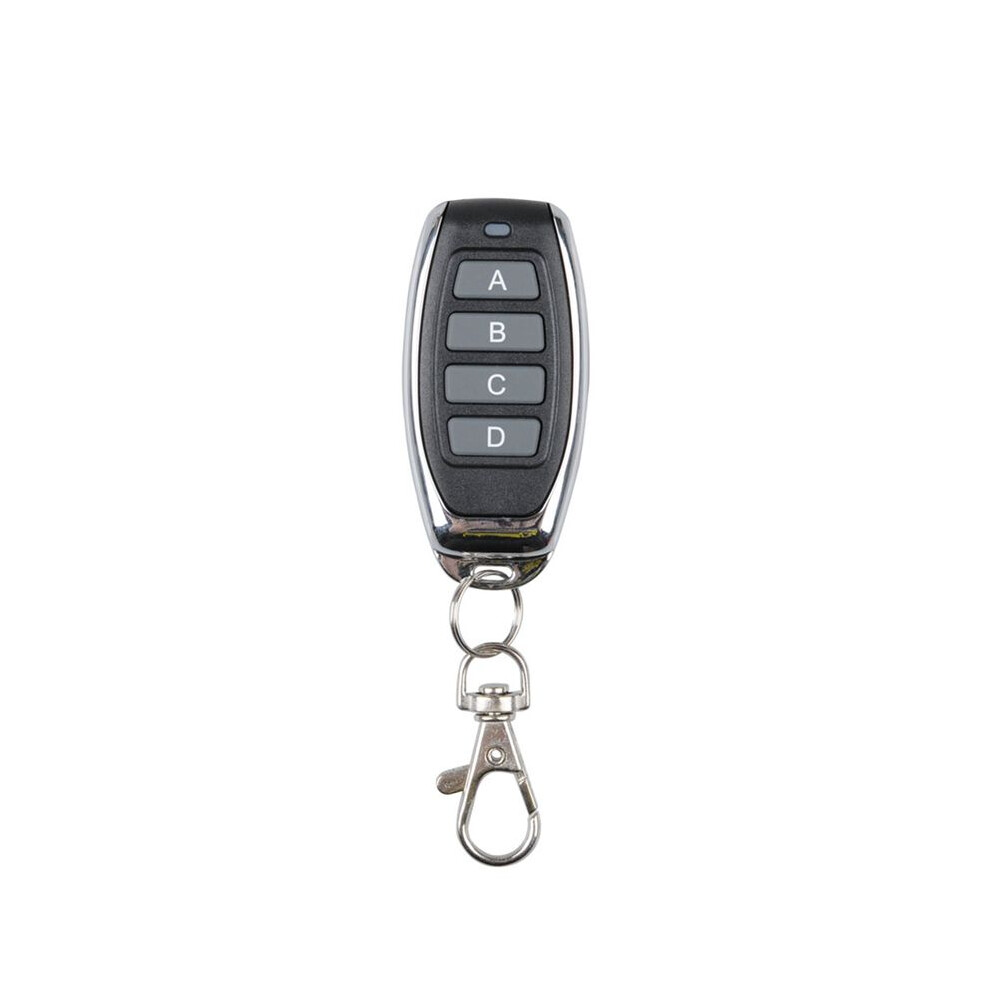

About Transmitter:
1. Buttons: 4 Buttons
2. Working Voltage:DC6V
3. Operating frequency :433MHz
4. Remote Distance: 50-100M
5. Operating Current: 12 mAh
6. Encode: EV1527 code
Remote Quantity:2PCS
Colour:White & Black
Material:Plastic+Metal

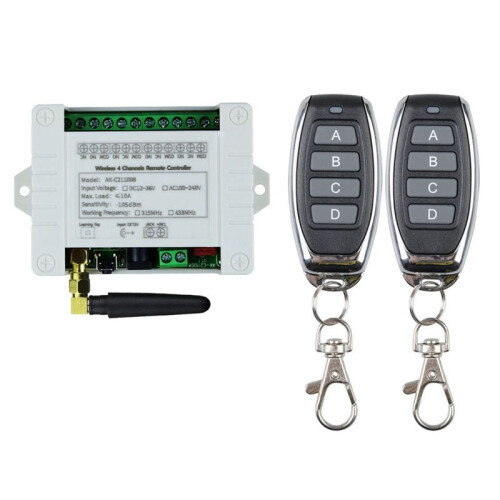

Package Contents:
1 * Remote Control Receiver
2 * Remote Control Transmitter

Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
