20pcs 1.8 Inch LCD Display Module Full Color 128x160 RGB SPI TFT LCD Display Module ST7735S 3.3V Replace OLED

20pcs 1.8 Inch LCD Display Module Full Color 128x160 RGB SPI TFT LCD Display Module ST7735S 3.3V Replace OLED Beskrivelse

Condition: New
Type: Voltage Regulator
Display mode -TFT
The input data SPI interface
Drive IC ST7735S

Resolution 128RGB x 160 points
Active area LCD 28.03 (W) x 35.04 (H)
Pixel size 0.219 (W) x 0.219 (H)
Display direction At 12 o'clock
Operating temperature -20 70 Celsius

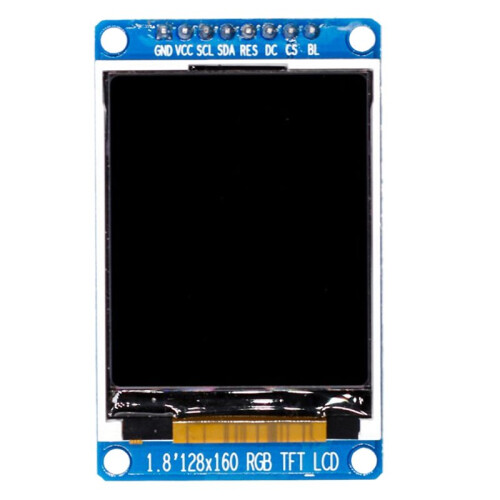

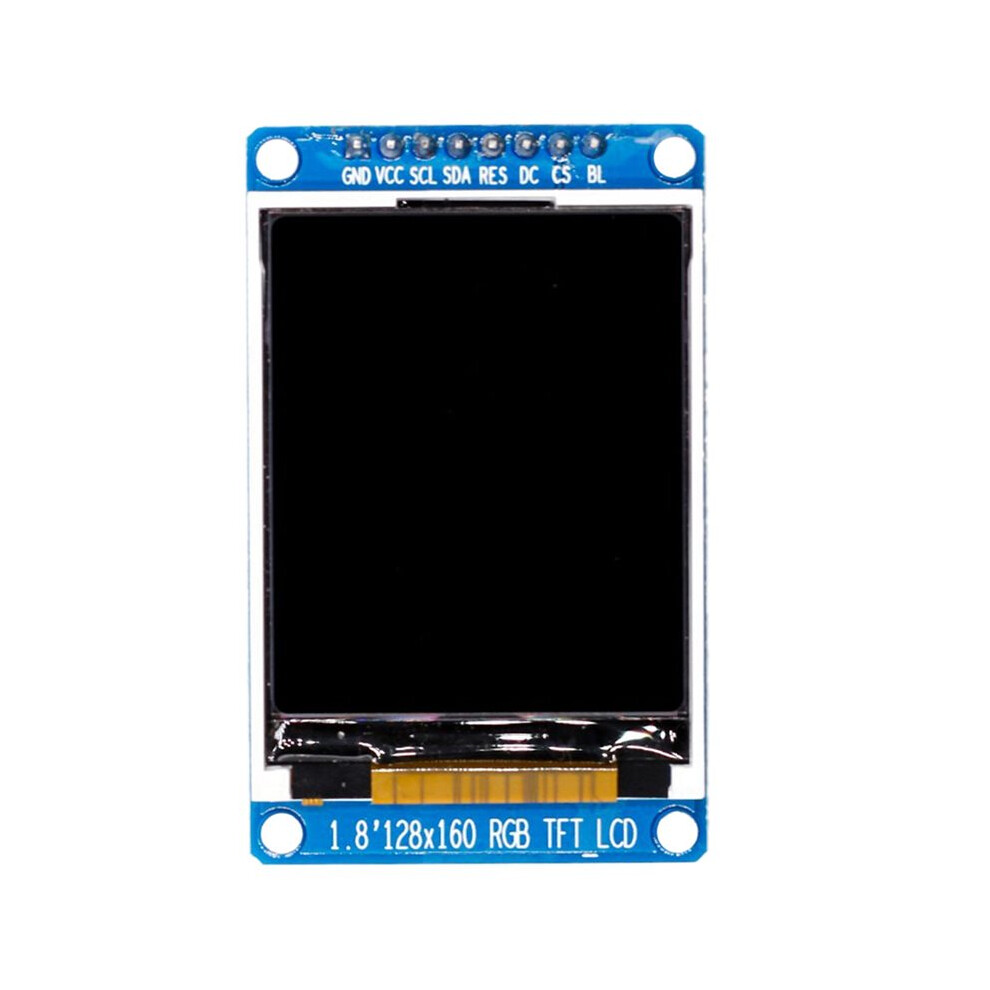

Pin descriptions:
PIN No Symbol Description
1 GND Soil
2 VDC Power 3.3 V
3 SCL Series watch pin
4 SDA Data Entry Series
5 RES LCM Reset pin
This pin is resetting the signal input. When the pin is low, the initialization of the chip is
Executed! Keep this bolt high during normal operation.
6 Data / Control
7 CS Chip, select
8 BLK Control pin background
colour:
Material:PCB

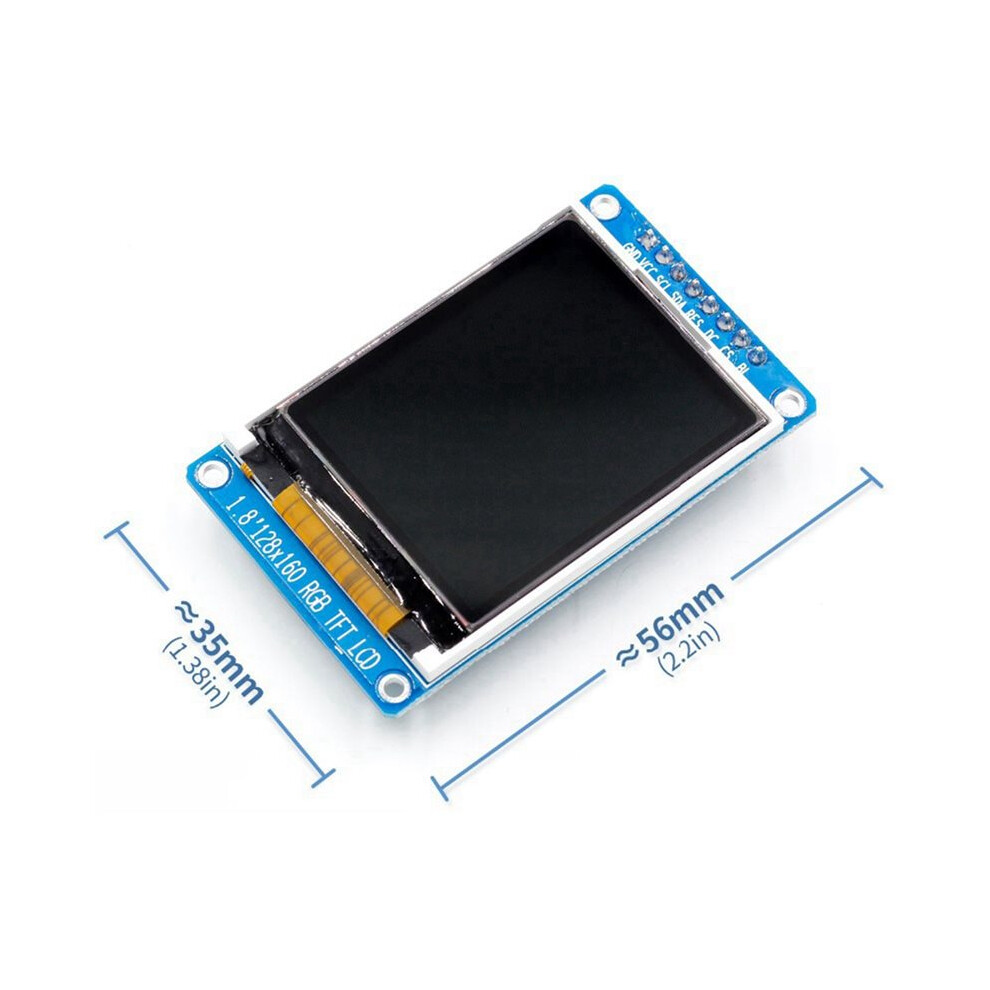

size:35 x 56MM
screen size:1.8 inch

Package Contents:

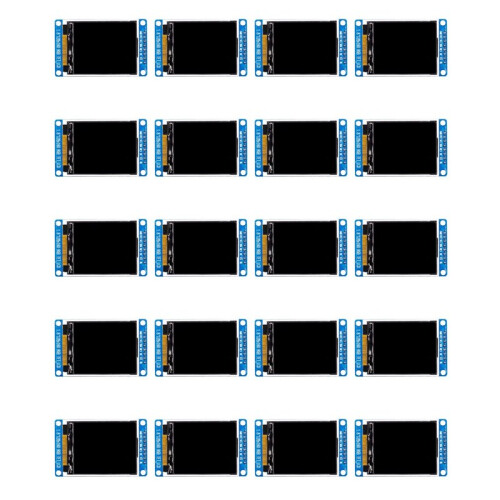

20 x LCD Display Module
