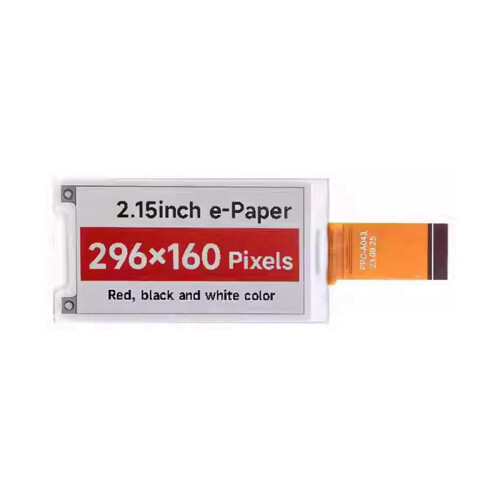

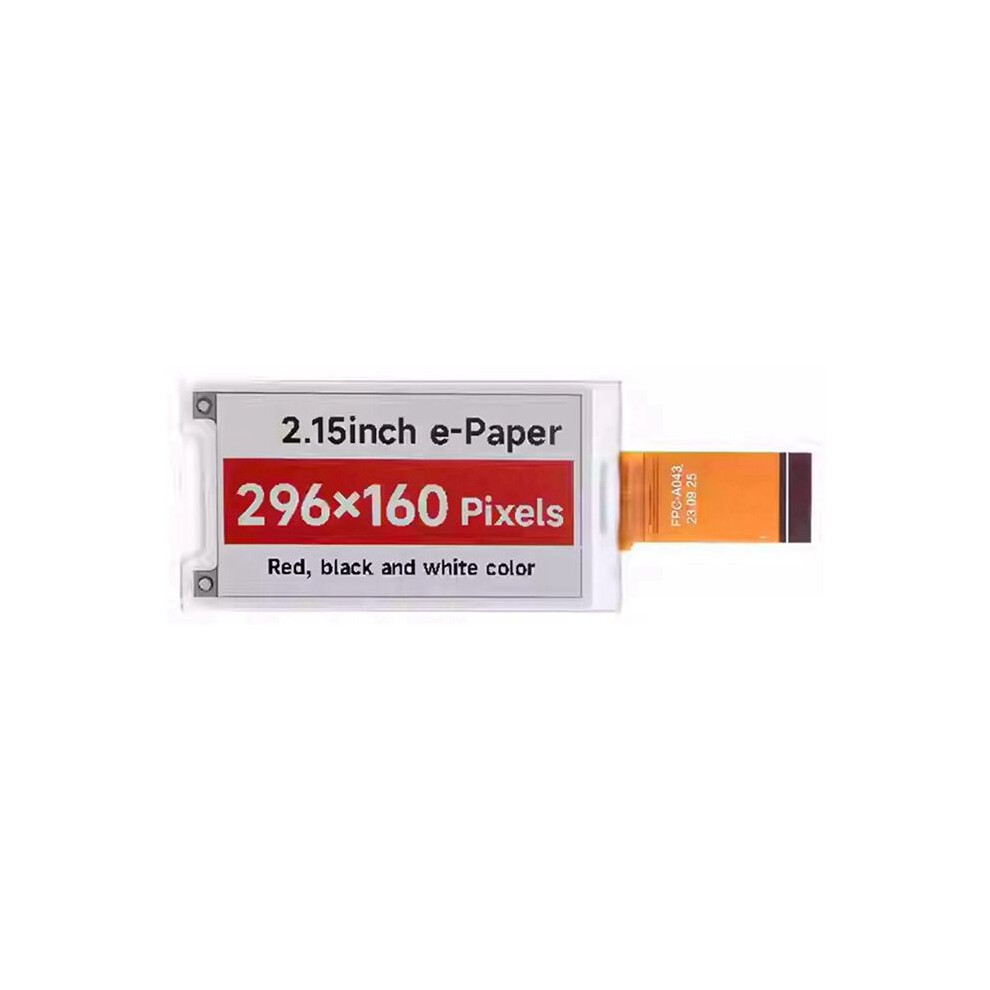

2.15-Inch E-Paper Electronic Module 296x160 Pixels SPI Communication HAT+ Standard for Raspberry Pi,B

2.15-Inch E-Paper Electronic Module 296x160 Pixels SPI Communication HAT+ Standard for Raspberry Pi,B Beskrivelse

1. No backlight is required, and the display content of the last screen can be maintained for a long when the power is turned off.
2. The power consumption is very low, and basically only consumes power when refreshing.
3. The following is only applicable to the module version; based the design of the for Raspberry Pi 40PIN GPIO interface, it is suitable for Raspberry Pi, for JetsonNano, and for RDK series motherboards.
4. The for Raspberry Pi HAT+ standard is adopted to improve the interoperability of the expansion board, help developers design and develop faster, and use various external devices more easily, expanding the functions and performance of the for Raspberry Pi.
5. The SPI communication interface is reserved for easy access to the main control board such as for Raspberry Pi / for / for STM32; the onboard level conversion chip is compatible with 3.3V and 5V level interfaces.

Communication interface:3-wire SPI, 4-wire SPI
Grayscale level:2
Global refresh:23s
Refresh power consumption:Less than 15mW
Dot pitch:0.1625 x 0.1625 (mm)
Sleep current:Less than 0.01uA (close to 0)
Resolution:296 x 160 pixels
Viewing angle:Greater than 170
Due to different batches, there may be differences in product appearance and printed text, which will not affect use.
Type:B:E-Ink Screen Bare Screen
Colour:Black
Material:Metal+LCD

Package Contents:
1 * E-ink screen bare screen
