2X AC 220V 5000W SCR Voltage Regulator Motor Speed Controller Light Dimming Dimmers Thermostat 5000W

2X AC 220V 5000W SCR Voltage Regulator Motor Speed Controller Light Dimming Dimmers Thermostat 5000W Beskrivelse

Product Name: 5000W AC Voltage Regulator
Dimensions: L84.8 x W70 x H40mm, excluding protruding knobs and joints.
Maximum power: 5000W (resistive instantaneous load limit power), the power should be reduced for a long , it is recommended to use within 2200W of resistive load at room temperature (key parameters, please pay attention).
Efficiency: more than 90%
Adjustment voltage: AC 0-220V (from high to low can be adjusted to 0, from low to high is about 20V)

Note that you must connect the load first and then adjust the voltage.
The thyristor is mainly used for resistive loads (electric heating wire incandescent lamps, etc.), most of the single-phase AC motors can also be used, but they are not guaranteed. For other types of loads, please confirm the buyer yourself.
Operating Voltage: AC 220V
Maximum Power: 5000W
High Temperature FR-4 PCB
Colour: silver
Material: Metal

Package Contents:

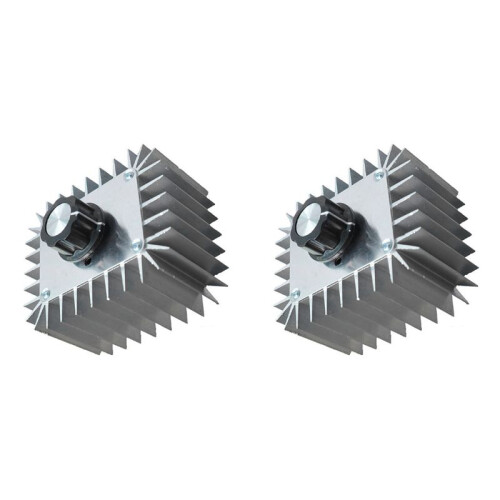

2 x SCR Voltage Regulator
