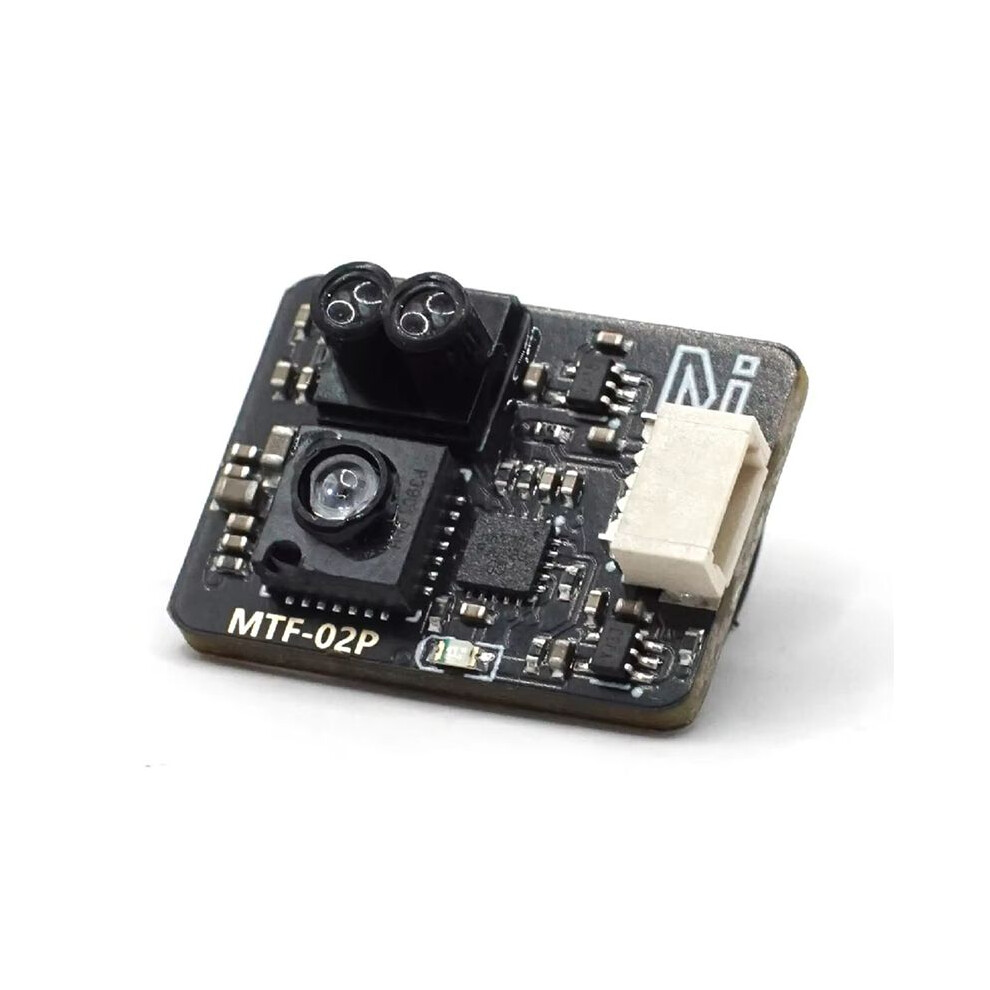

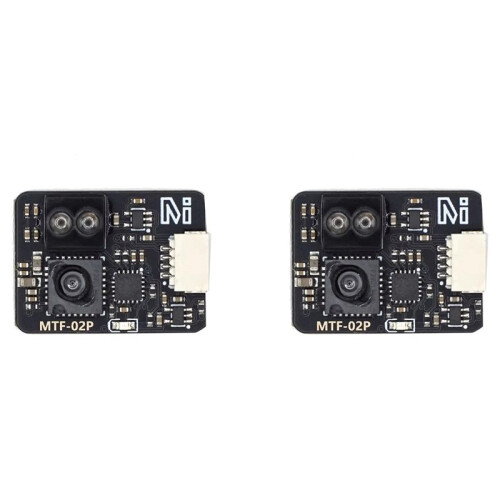

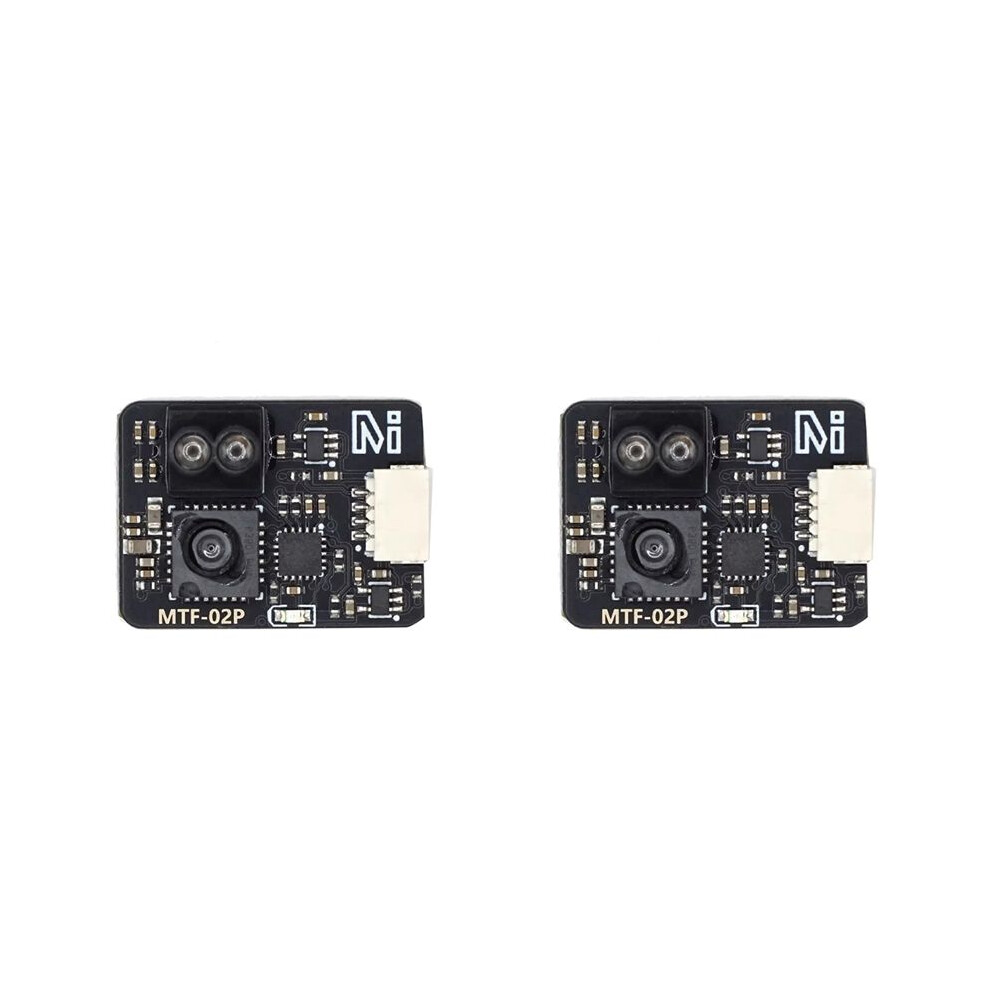

2X MicoAir Optical Flow & Range Sensor MTF-02P Compatible with PX4

2X MicoAir Optical Flow & Range Sensor MTF-02P Compatible with PX4 Beskrivelse

Multi-Protocol Compatibility for Mainstream Flight Control Systems The MTF-02P supports various communication protocols, including Mavlink and MSP, making it compatible with popular open-source flight control systems such as PX4. Users can easily protocols through a jumper the back of the module or by using the MicoAssistant software, allowing for flexible adaptation to different flight control needs.
High-Precision Optical Flow and Ranging for Stable Hovering Indoors and Outdoors This module features a 940nm laser-based ranging sensor with an optical lens, achieving a range of to 6 meters at 90% reflectivity with a measurement error of less than 2cm, enabling precise distance sensing. With a 42 optical flow field of view and a maximum speed measurement of 7m/s, it ensures accurate hovering even in low-light environments, making it particularly well-suited for indoor flight.

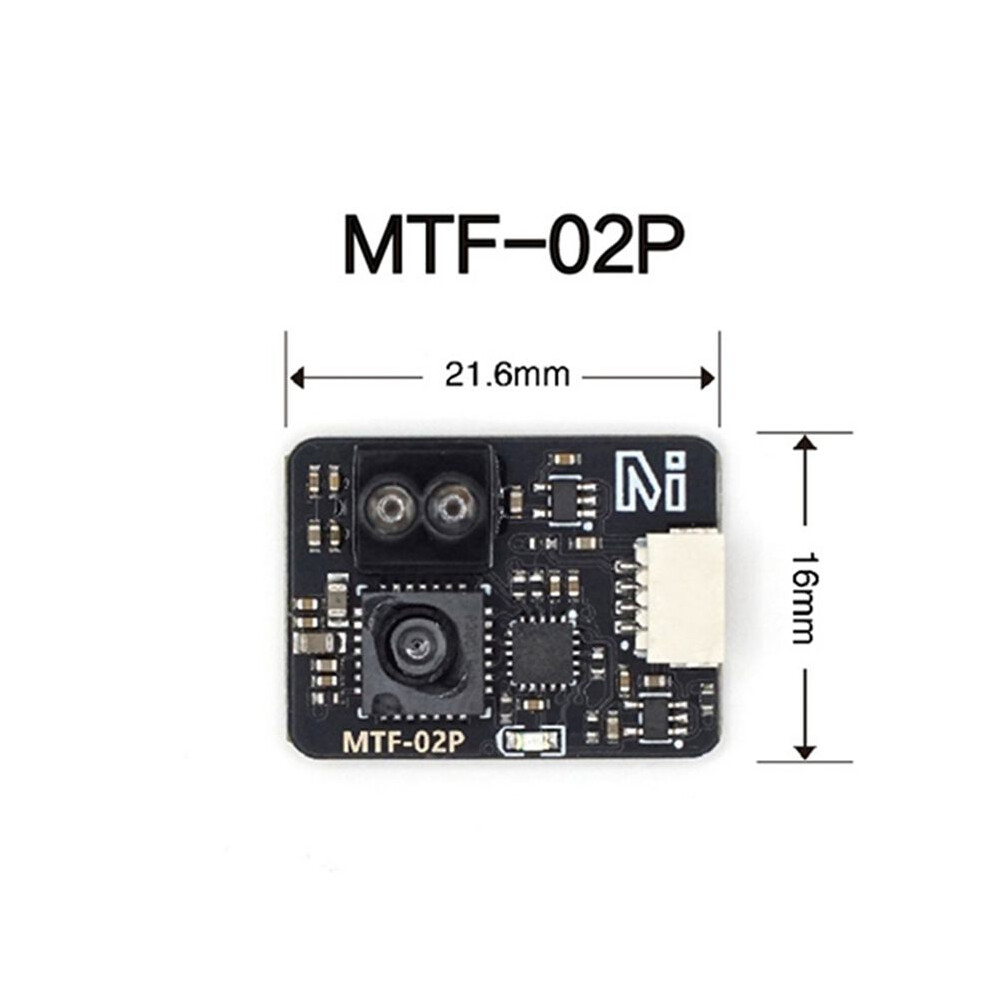

Ultra-Compact Size and Low Power Consumption for Drones Measuring just 21.6 x 16 x 6.5 mm and weighing only 1.8g, the MTF-02P has a low power consumption of 200mW (40mA@5V), making it ideal for integration into drones and significantly extending flight .
Flexible Power and Interface Options for Easy Integration The MTF-02P supports 5V power and includes multiple interface cables for compatibility with popular controllers such as Pixhawk 2.4.8, Pixhawk 4/5/6, and the full range of MicoAir flight controllers, allowing for quick and easy setup.
Comprehensive Mounting Support and Open-Source Resources The MTF-02P comes with a detailed user manual and MicoAssistant configuration software, along with 3D design files for a sensor housing, enabling users to modify or print the housing as needed.

Colour:black
Material:plastic

Package Contents:
2 x Optical Flow & Range Sensor
6 x Connection
