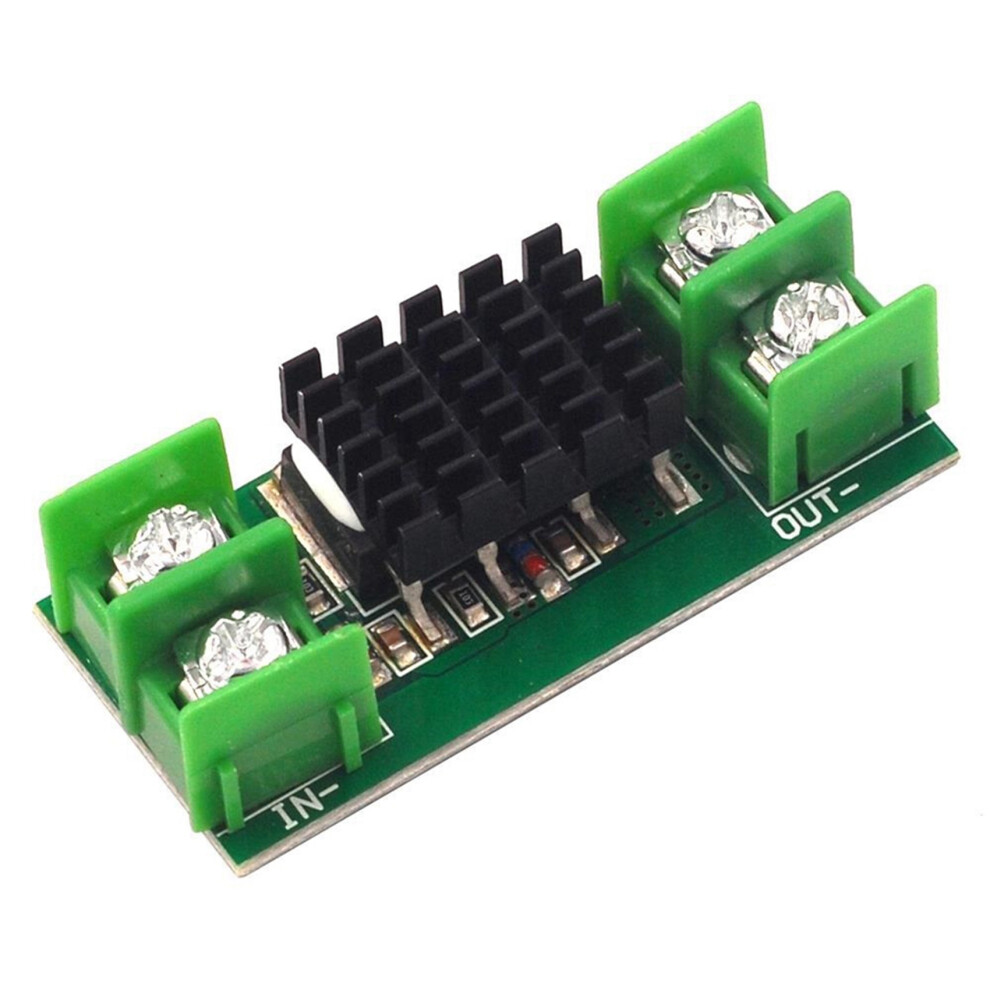

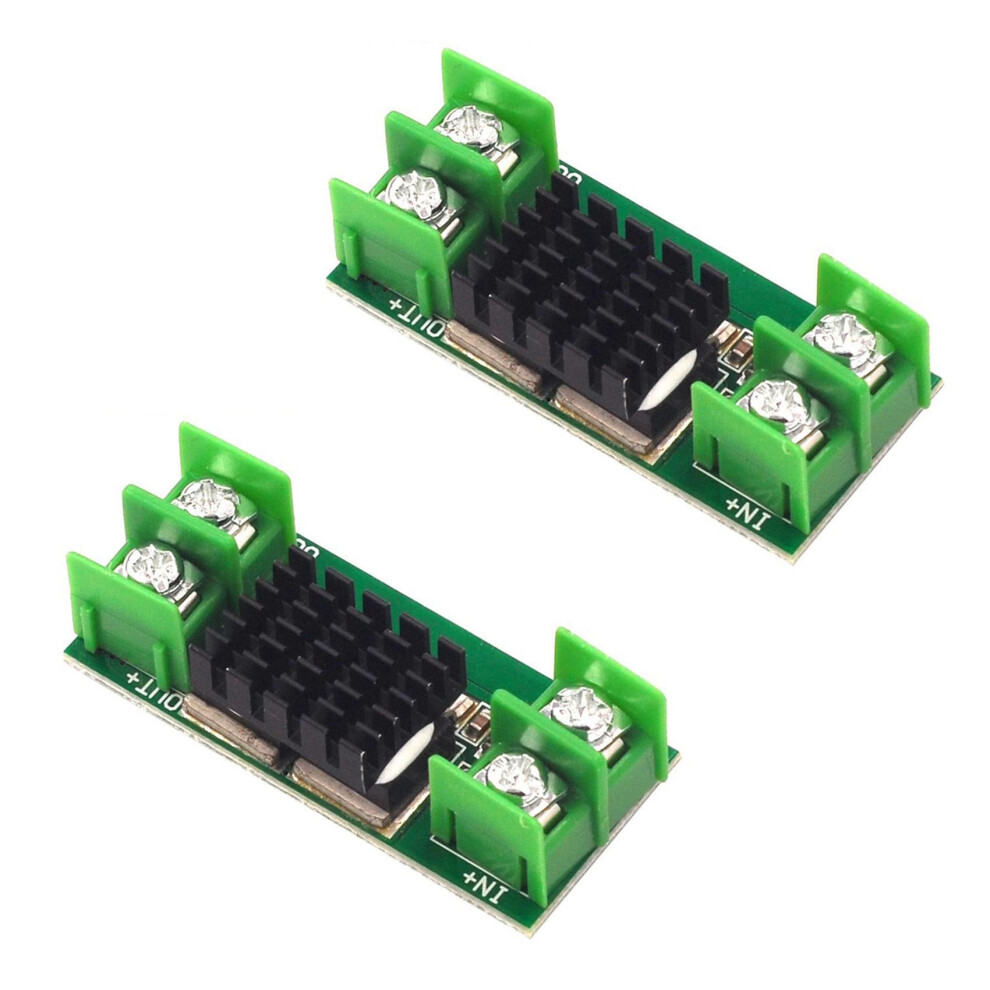

2X Solar Anti-Backflow Perfect Diode Constant Current Power Supply Module

2X Solar Anti-Backflow Perfect Diode Constant Current Power Supply Module Beskrivelse

The voltage drop of a common diode is between 0.2V and 0.7V. Can you imagine how much power is consumed by 10A? 10A x 0.2V=2W, 2W acts the diode to generate heat enough to make the diode scrap.
New force, perfect anti-backfill diode, 8 milliohm internal resistance, two parallel, ultra low voltage drop, instead of ordinary diode,
Used for anti-backflow of solar panels, battery charging and anti-reverse irrigation. Effectively reduce heat generation and improve efficiency.

Module parameters:
Module name: 15A perfect anti-backfill diode
Working voltage: DC5-60V
Working current: 15A (MAX) 18A (without heat sink 10A working for a long , can be used in parallel to increase the working current)
Static working current: 0.2mA (12V, there will be errors when the working voltage is different)
Working temperature: -40~+85 degrees
Application range:
1. Solar panel anti-reverse irrigation.
2. Various battery charging anti-reverse irrigation.
3. - constant voltage constant current module output anti-reverse irrigation.
4. More applications are free to .
Colour: green
Material: plastic

Package Contents:
2 x Anti-reverse Irrigation Module
