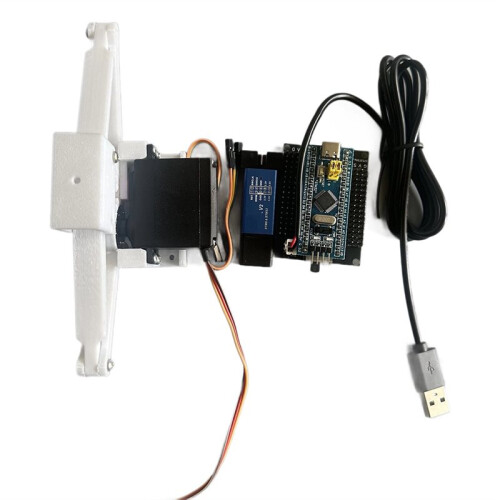

3D Printed Linear Actuator Lifter with for MG996R Servo, 9cm Stroke Electric Linear Push Rod

3D Printed Linear Actuator Lifter with for MG996R Servo, 9cm Stroke Electric Linear Push Rod Beskrivelse

3D printed bracket


180-degree for MG996R metal gear servo motor. Voltage: 4.8-7.2V. Current: 1A-2A. The servo motor is controlled by PWM and can be used with for ESP8266 ESP32 STM32 etc. Two-wire control is not possible.

Not waterproof.

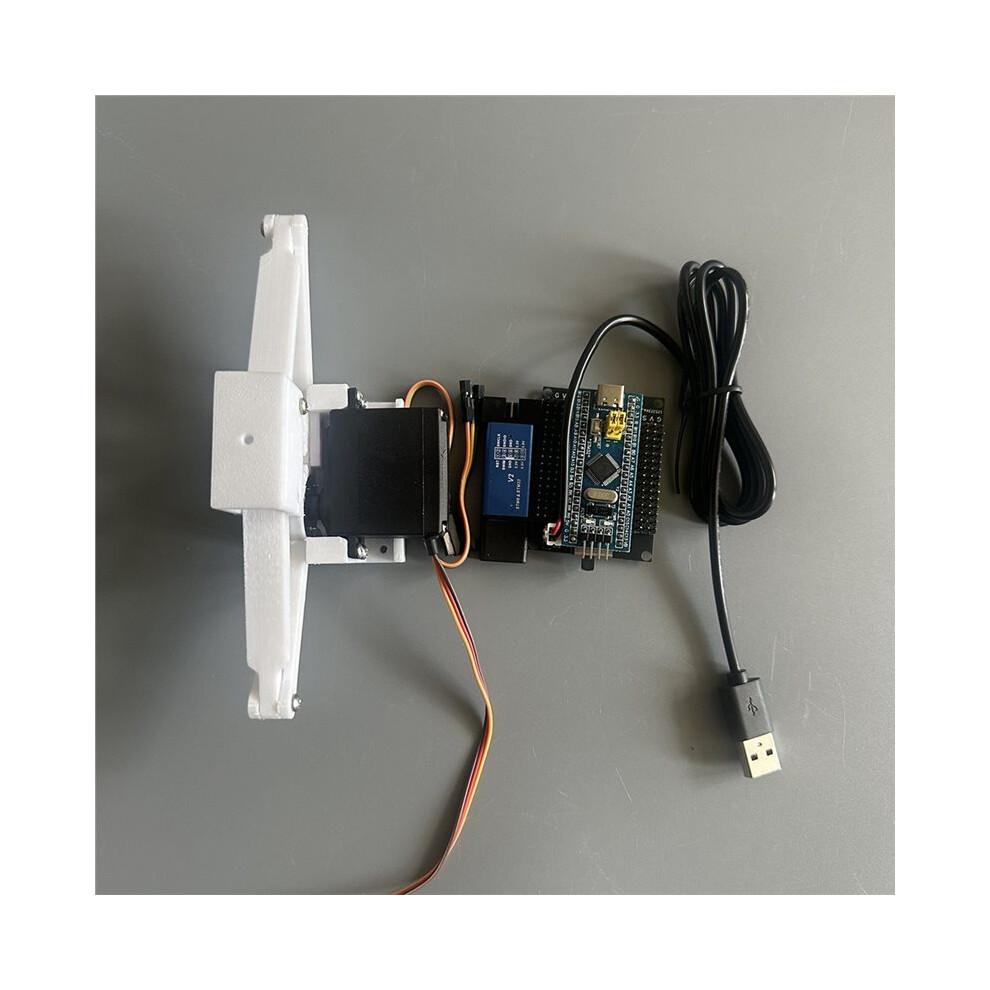

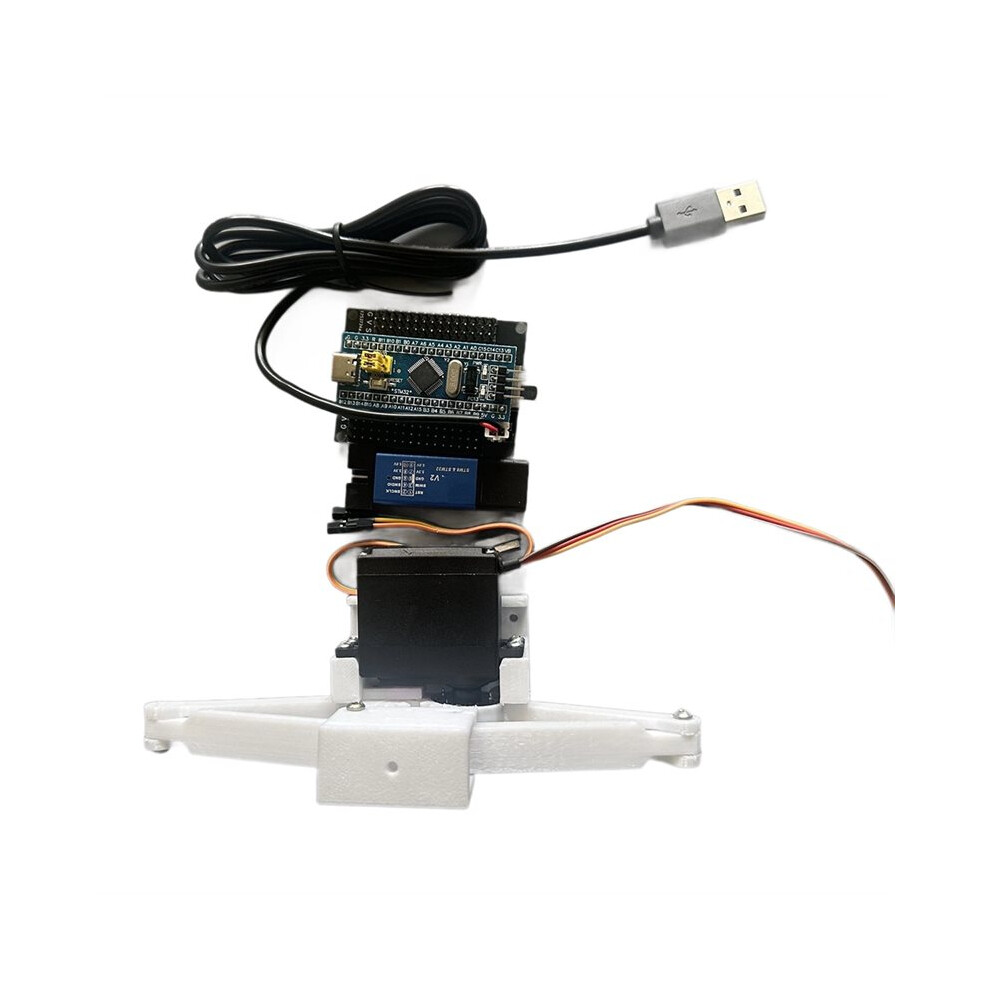

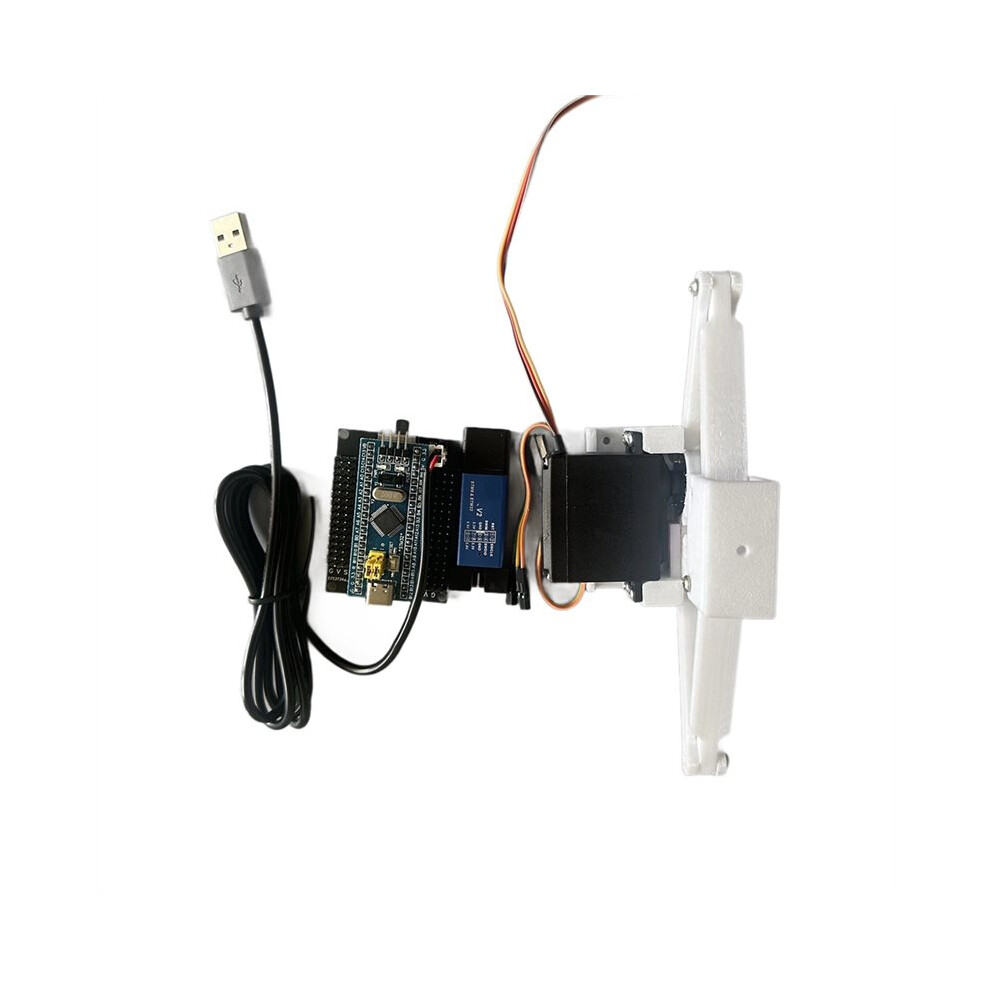

External power supply: Red wire connects to 4.8-7.2V 1A-2A; Orange wire connects to the development board's GPIO; Brown negative wire connects to GND and is also connected to the development board's GND.

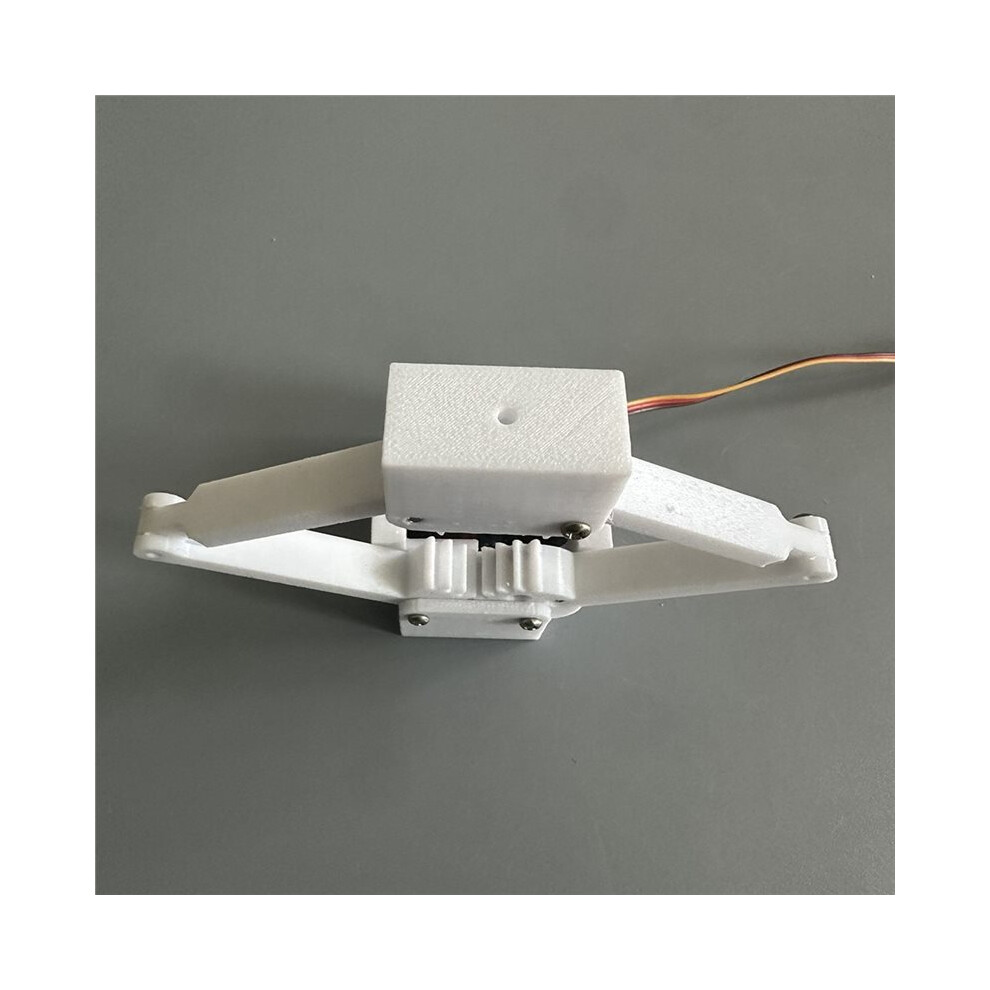

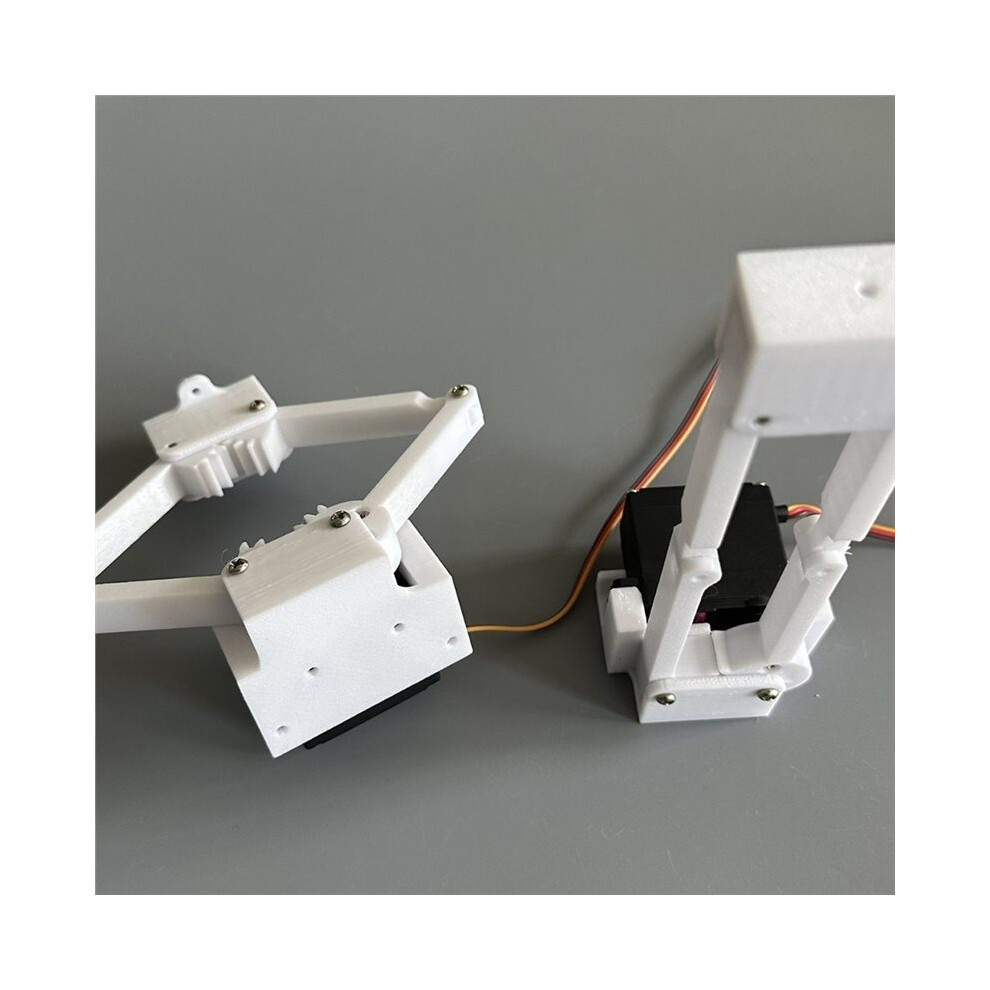

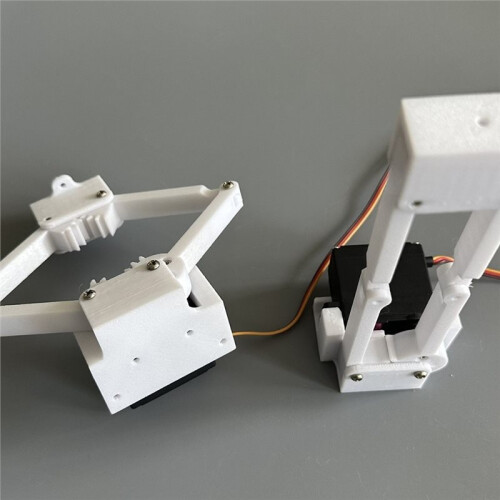

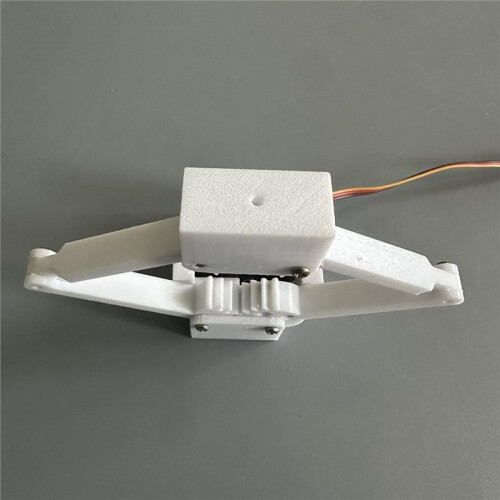

Bracket extension: 16cm; retraction: 7cm; travel: 9cm; 80-degree range.

For smooth servo rotation, initially set the servo to 70-90 degrees and check for stalling or jamming before adjusting.
Color: White
Material: plastic

Package Contents:
1*set of Push Rod
