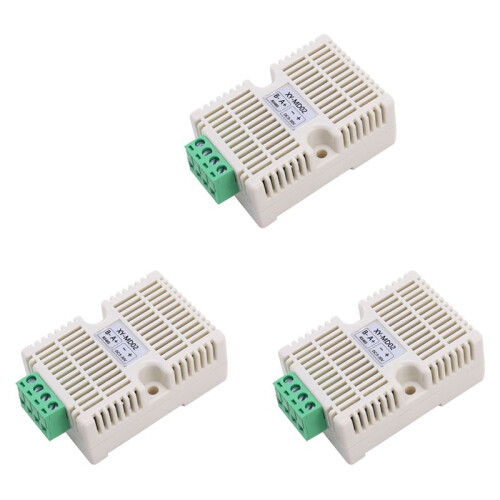

3X Temperature Humidity Transmitter RS485 SHT20 Sensor Modbus RTU Acquisition Module Transducer High Precision
Ny
På lager
Derfor vil du elske å handle hos OnBuy:
- Tjen Cashback på hvert kjøp – bruk det umiddelbart på din neste bestilling
- Gratis levering – på millioner av varer på hele nettstedet
- Kunder elsker oss – 128,000 anmeldelser med vurderingen “Utmerket”
426,35 kr
GRATIS levering
1%
Tjen 4,26 kr med én gang
Les mer
Prisene for varer solgt av OnBuy inkluderer mva.
Rente- og gebyrfri delbetaling tilgjengelig
Se full produktbeskrivelse og detaljer
Levering: Standard (Gratis) | tor 16. - lør 18. jul
Solgt av: Dopipoo
Returer: 30 dager
180 dagers betalingsbeskyttelse
Mest populære i Diverse adaptere
Beskrivelse og detaljer
Sammendrag
- Description: Product adopts industrial-grade chip, high-precision SHT20 temperature and humidity sensors, ensure the products with good reliability, high precision and interchangeability. Adopt RS485 hardware interface (with the protection design), the protocol layer compatible with standard industrial Modbus RTU protocol.
- This product integrating MODBUS protocol and ordinary UART communication protocol, users can choose communication protocols, UART communication support automatic report function (Connect the RS485 serial interface mode tool by automatically output temperature and humidity).
- Using Steps: 1.Connect signal receiver such as for Arduino to RS485 terminal.2.Input power supply at power terminal. 3.According to the acquired data, the data is processed differently according to actual needs. Note: 1.Users need to prepare their own ModBus debugging tool and RS485 debugger. 2.Users needs to complete write code according to the communication protocol and commands if using the controller to receive data.
- Features: 1.Support MODBUS RTU protocol. 2.RS485 supports 1000 meters communication. 3.Standard DIN35 mounting rails. 4.High precision. 5.Industrial products, high progress SHT20 temperature and humidity sensor, the RS485 communication. 6.Standard MODBUS protocol and ordinary protocol, the user can choose communication protocol. 7.Baud rate can decide for themselves. 8.General agreement with automatic upload function, upload speed can decide for themselves
- Temperature and humidity sensor
3X Temperature Humidity Transmitter RS485 SHT20 Sensor Modbus RTU Acquisition Module Transducer High Precision Beskrivelse
Description: Product adopts industrial-grade chip, high-precision SHT20 temperature and humidity sensors, ensure the products with good reliability, high precision and interchangeability. Adopt RS485 hardware interface (with the protection design), the protocol layer compatible with standard industrial Modbus RTU protocol.
This product integrating MODBUS protocol and ordinary UART communication protocol, users can choose communication protocols, UART communication support automatic report function (Connect the RS485 serial interface mode tool by automatically output temperature and humidity).
Using Steps: 1.Connect signal receiver such as for to RS485 terminal.2.Input power supply at power terminal. 3.According to the acquired data, the data is processed differently according to actual needs. Note: 1.Users need to prepare their own ModBus debugging tool and RS485 debugger. 2.Users needs to complete write code according to the communication protocol and commands if using the controller to receive data.
Features: 1.Support MODBUS RTU protocol. 2.RS485 supports 1000 meters communication. 3.Standard DIN35 mounting rails. 4.High precision. 5.Industrial products, high progress SHT20 temperature and humidity sensor, the RS485 communication. 6.Standard MODBUS protocol and ordinary protocol, the user can choose communication protocol. 7.Baud rate can decide for themselves. 8.General agreement with automatic upload function, upload speed can decide for themselves
Parameters:
1.Product Name:Modbus RTU RS485 SHT20 Temperature Humidity Transmitter
2.Working Voltage: 5V~30V
3.Output signal:RS485 signal
4.Communication protocol:Modbus RTU and ordinary protocol
5.Communication address:1~247(default 1)
6.Temperature Range:-40~60
7.Temperature Precision:+/-0.5
8.Temperature Resolution:0.1
9.Humidity Ra
Detaljer
| OPC | PVHKSW9 |
|---|---|
| Koder | 4712635878539 (EAN) |
| Produkt- og sikkerhetsinformasjon |
Produktdata
| Height | 9cm |
|---|---|
| Width | 5cm |
| Length | 8cm |
| Weight | 0.123kg |
| Colour | white |
| Material | plastic |
