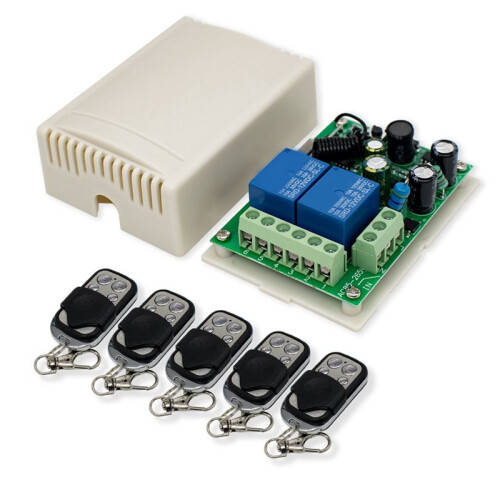

433MHz Universal Wireless Remote Control AC220V 2CH RF Relay Receiver and Transmitter for Garage Door Gate

433MHz Universal Wireless Remote Control AC220V 2CH RF Relay Receiver and Transmitter for Garage Door Gate Beskrivelse

Receiver

Working Voltage : AC 85V~256V
Input vlotage : 1~220V
Output vlotage : 1~220V
Quiescent Current : 97dbm
Amount of storage remote controls : 25 pieces
Support encoding : 1527 Leaning code
RF Operating mode : ASK superheterodyne wireless reception
Receiving range : Open space is more than 30 meters
Remote operating mode : Momentary Mode /Toggle Mode /Latched Mode
Output Terminal : NO / COM / NC

1.KC1 Normal Closed of relay (NC)
2.KC1 Common of relay (COM)
3.KC1 Normal Open of relay (NO)
4.KC3 Normal Closed of relay (NC)
5.KC3 Common of relay (COM)
6.KC3 Normal Open of relay (NO)
7.KC2 Normal Closed of relay (NC)
8.KC2 Common of relay (COM)
9.KC2 Normal Open of relay (NO)
10.KC4 Normal Closed of relay (NC)
11.KC4 Common of relay (COM)
12.KC4 Normal Open of relay (NO)
(When the relay is energized, NO and COM connected).
Color: As Shown
Material: plastic

Package Contents:
1*receiver 5*remote
