- 5-35V to 5-28V Adjustable Constant Voltage Current Step- Step-Down Converter Module 100W Solar Controller Module
Merke Tlily
Ny
183,04 kr
Lignende produkter vi tror du vil like
Vil du at vi skal gi deg beskjed når den er tilbake?
Beskrivelse og detaljer
Sammendrag

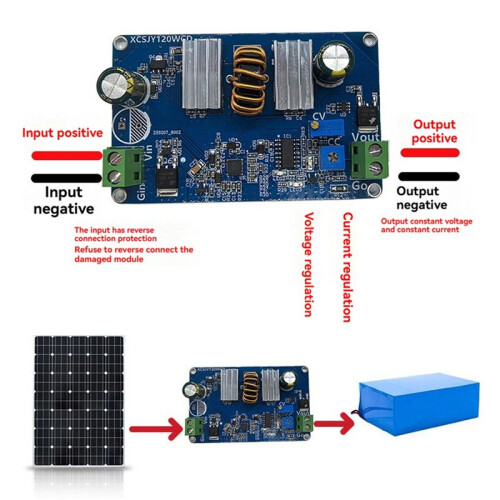

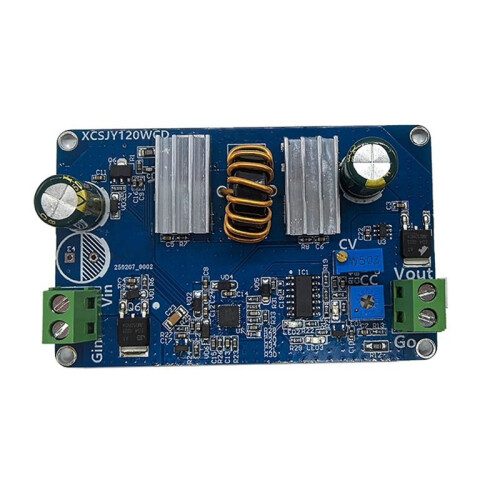

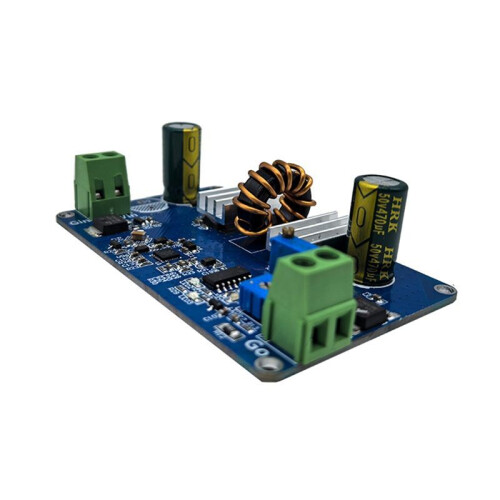

- This module is a DC-DC step-up/step-down Converter Module.
- The module's output can be directly connected to batteries, power supplies, etc.
- Adjust the module's output voltage to the charging voltage according to the battery's voltage.
- Note: Before using this module, DO NOT connect any load and power it on. Use a multimeter to measure the output voltage, adjust the voltage potentiometer to the appropriate voltage value, and then connect the load!
- Solar Charge Controller
- 5-35V to 5-28V Adjustable Constant Voltage Current Step- Step-Down Converter Module 100W Solar Controller Module Beskrivelse
This module is a - step-/step-down Converter Module.
The module's output can be directly connected to batteries, power supplies, etc.
Adjust the module's output voltage to the charging voltage according to the battery's voltage.
Note: Before using this module, DO NOT connect any load and power it . Use a multimeter to measure the output voltage, adjust the voltage potentiometer to the appropriate voltage value, and then connect the load!
Input Voltage: 5V-35V ()
Output Voltage: 5-28V (adjustable)
Output Power: 150W (MAX)
Output Current: Maximum 10A (depending maximum power)
Reverse Input Protection: Yes
Reverse Output Protection: Yes (Ideal Diode)
Color:
Material: PCB+Components
Package Contents:
1 x - Converter Module
Detaljer
| OPC | PYFBZX7 |
|---|---|
| Merke | Tlily |
| Koder | 6031707438166 (EAN) |
| Produkt- og sikkerhetsinformasjon |
Produktdata
| Height | 3cm |
|---|---|
| Width | 6cm |
| Length | 10cm |
| Weight | 0.0385kg |
| Colour | Blue |
| Material | PCB+Components |
