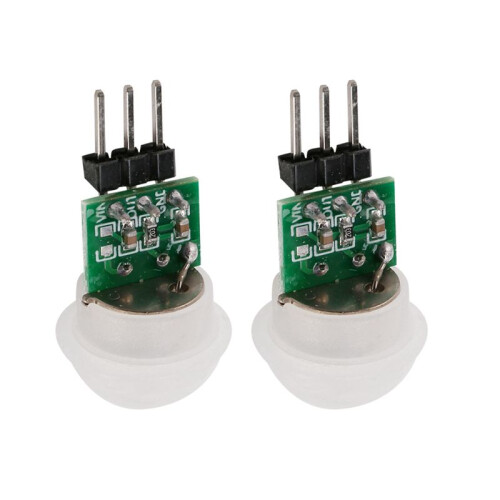

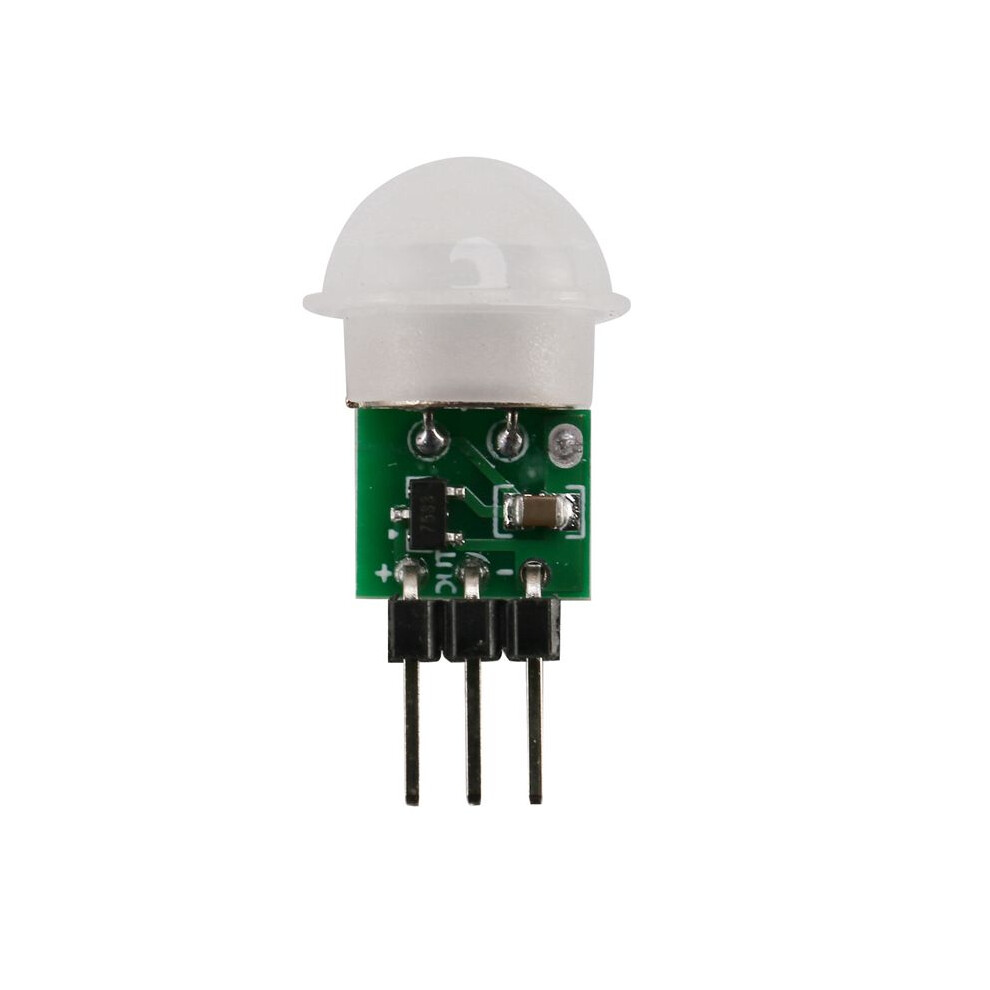

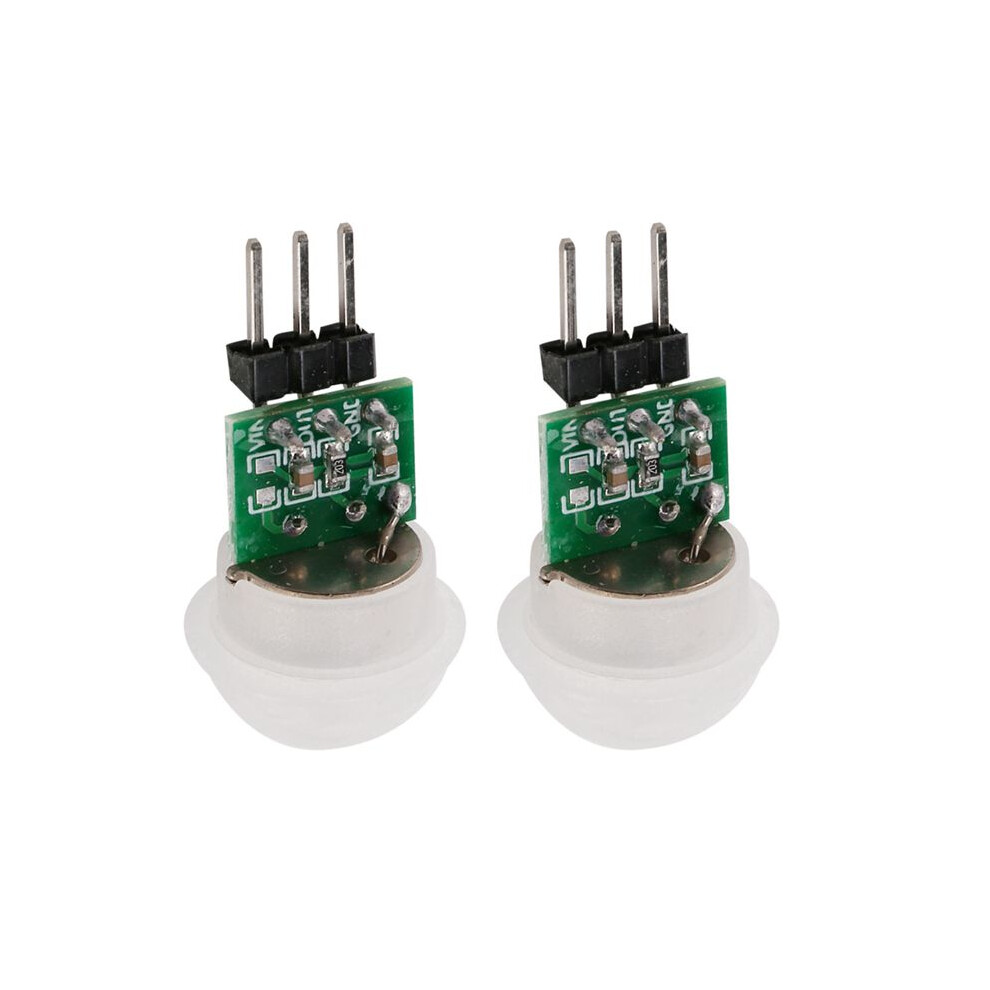

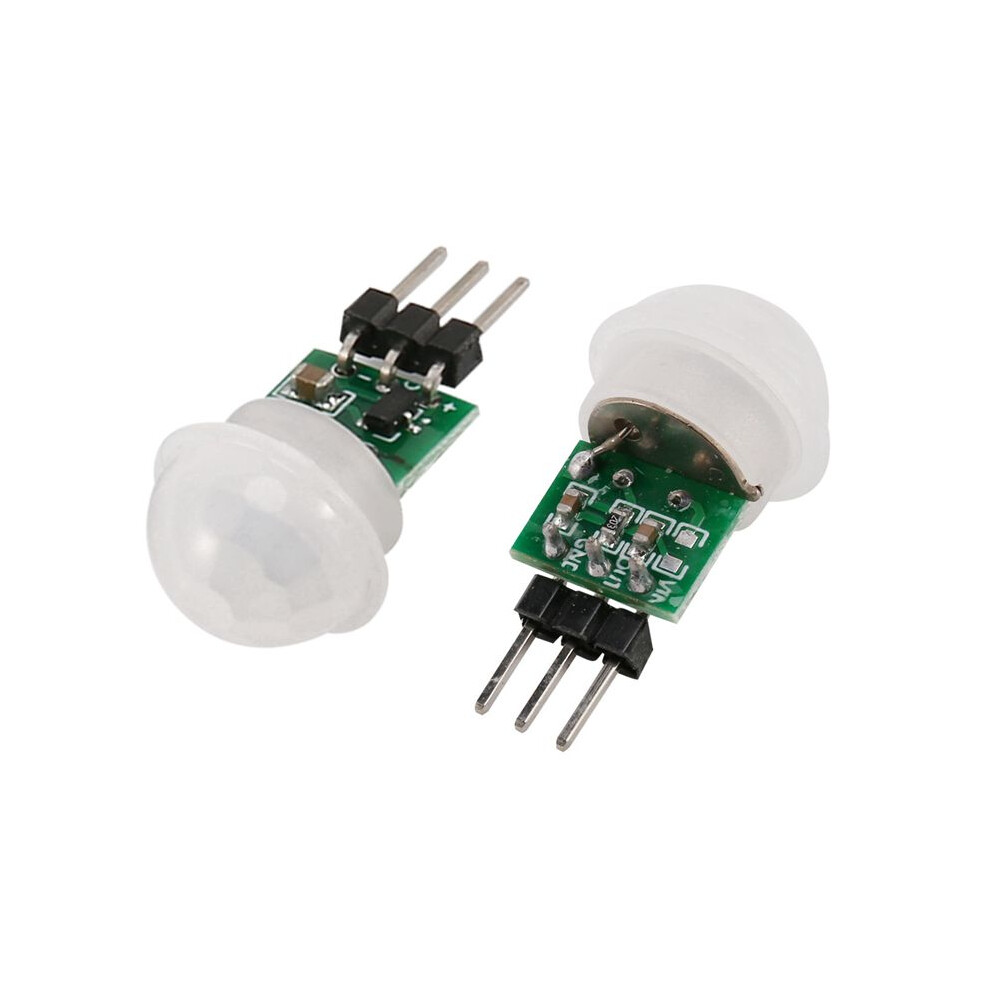

50Pcs AM312 Human Sensor Module IR Pyroelectric Infrared PIR Motion Sensor Detector Modules 2.7V to 12V
Ny
På lager
Derfor vil du elske å handle hos OnBuy:
- Tjen Cashback på hvert kjøp – bruk det umiddelbart på din neste bestilling
- Gratis levering – på millioner av varer på hele nettstedet
- Kunder elsker oss – 129,000 anmeldelser med vurderingen “Utmerket”
462,71 kr
763,47 kr
39 % rabatt!
GRATIS levering
1%
Tjen 4,63 kr med én gang
Les mer
Prisene for varer solgt av OnBuy inkluderer mva.
Rente- og gebyrfri delbetaling tilgjengelig
Se full produktbeskrivelse og detaljer
Levering: Standard (Gratis) | lør 18. - tir 21. jul
Solgt av: Dopipoo
Returer: 30 dager
180 dagers betalingsbeskyttelse
Mest populære i Diverse adaptere
Beskrivelse og detaljer
Sammendrag
- The AM312 human sensor module is a digital intelligent automatic control product that is based on passive body infrared technology, which is highly sensitive and reliable to use.
- They are widely applied for all kinds of automatic induction electrical equipment.
- These human sensor modules are small in size, and feature low power consumption and nicely anti-interference, with internal digital signal processing and direct high and low level output.
- After high sensing output, during the delay time, if a human body is active within its sensing range, its output will keep high until the delay after the people leaves, then it will become low
- Human body sensing module
50Pcs AM312 Human Sensor Module IR Pyroelectric Infrared PIR Motion Sensor Detector Modules 2.7V to 12V Beskrivelse
The AM312 human sensor module is a digital intelligent automatic control product that is based passive body infrared technology, which is highly sensitive and reliable to use.
They are widely applied for all kinds of automatic induction electrical equipment.
These human sensor modules are small in size, and feature low power consumption and nicely anti-interference, with internal digital signal processing and direct high and low level output.
After high sensing output, during the delay , if a human body is active within its sensing range, its output will keep high until the delay after the people leaves, then it will become low
Product model: AM312
Working voltage: 2.7V - 12V
Static power consumption: less than 0.1mA
Delay : 2 seconds
Blocking : 2 seconds
Trigger mode: repeatable
Sensing range: less than or equal to 100 degrees cone angle, 3 - 5 m (depend the specific lens)
Working temperature: -20 Celsius to +60 Celsius
PCB size: approx. 10 x 8mm
Model: Miniature human body sensor module PIR
Power: 5W
colour:Green
Material:PCB
size:25 x 12 x 12 mm
Package Contents:
50 x PIR module
Detaljer
| OPC | PVHKTQQ |
|---|---|
| Koder | 6032475693689 (EAN) |
| Produkt- og sikkerhetsinformasjon |
Produktdata
| Height | 15cm |
|---|---|
| Width | 10cm |
| Length | 10cm |
| Weight | 0.1425kg |
| Colour | Green |
| Material | PCB |
