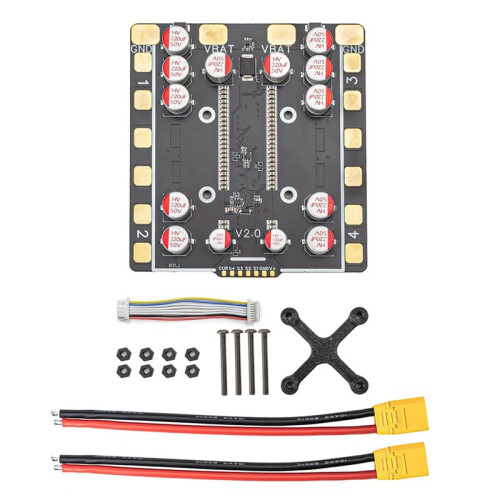

8S 100A 4-in-1 ESC BLS with Bluebird Firmware High-Performance Brushless Electronic Speed Controller

8S 100A 4-in-1 ESC BLS with Bluebird Firmware High-Performance Brushless Electronic Speed Controller Beskrivelse

Specially Designed Compatibility: Suitable for use with Tracker platforms, supporting high-voltage 8S power systems for powerful and efficient flight.

High Current Capacity: 100A continuous current rating per ESC unit (4-in-1 design) to handle aggressive maneuvers, rapid acceleration, and high-thrust setups.
4-in-1 Integrated Layout: Combines four ESCs a single board to simplify wiring, reduce overall weight, and improve internal space utilization in compact frames.
Bluebird Firmware: Preloaded Bluebird firmware provides stable performance, quick response, and optimized control algorithms for smooth throttle management.
Brushless Motor Support: Designed for brushless (BLS) motors, offering high efficiency, lower heat generation, and longer service life for demanding RC applications.
Specifications
Mounting hole positions: 30.5*30.5mm / 75*70mm
Operating temperature: -40 to 60C
ESC firmware: BLS/Bluejay
Input voltage: 3-8S
Continuous current: 100A
Instantaneous current: 120A
Galvanometer:Yes
Control signals: DShot, DShot150/300/600/MultiShot/OneShot, etc.
Due to different batches, there may be differences in product appearance and printed text, which will not affect use
Color: As Shown
Material: PCB

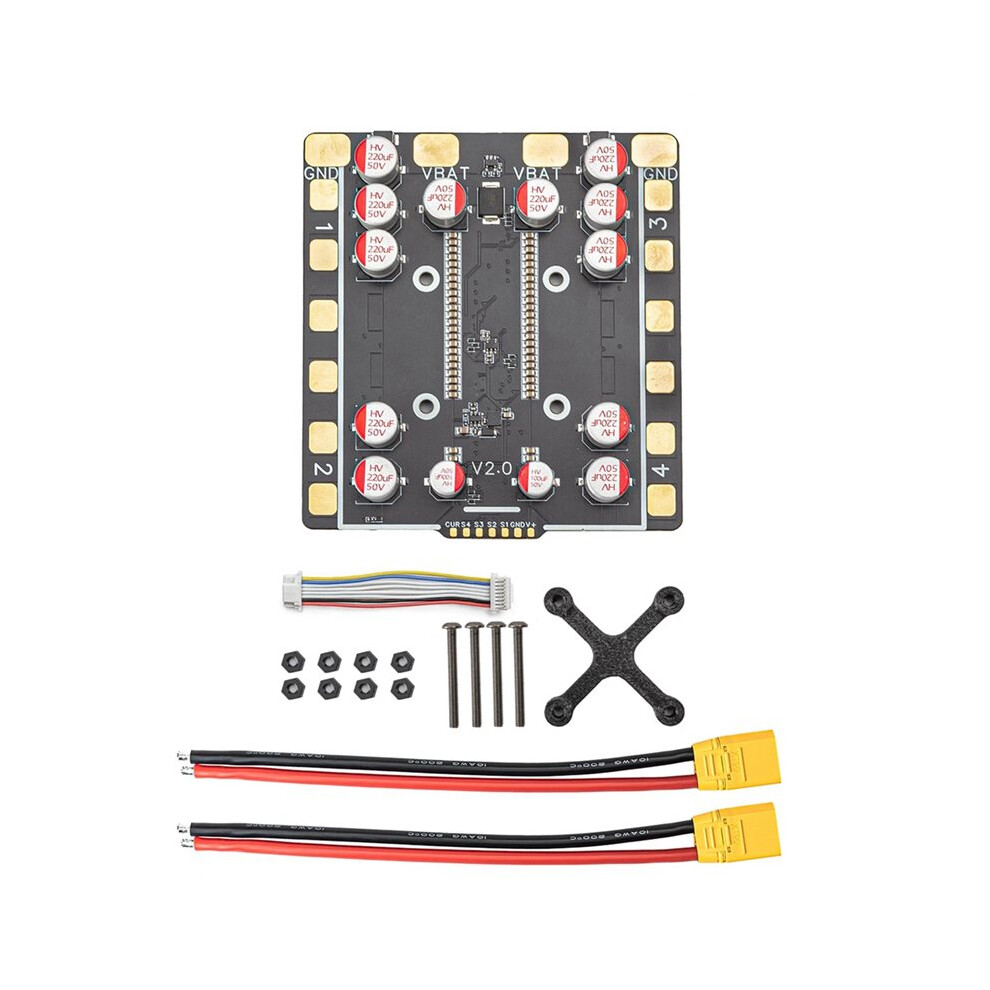

Package Contents:
1*8S 100A 4-in-1 ESC
