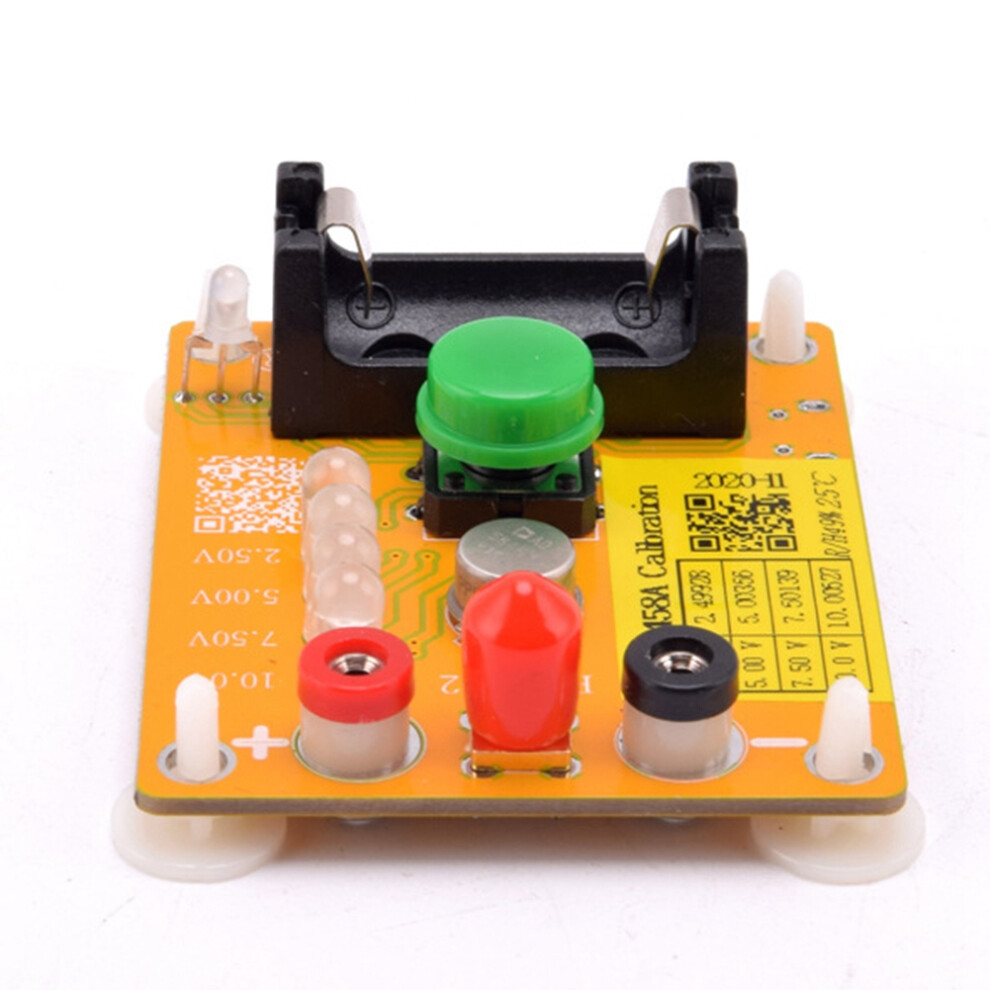

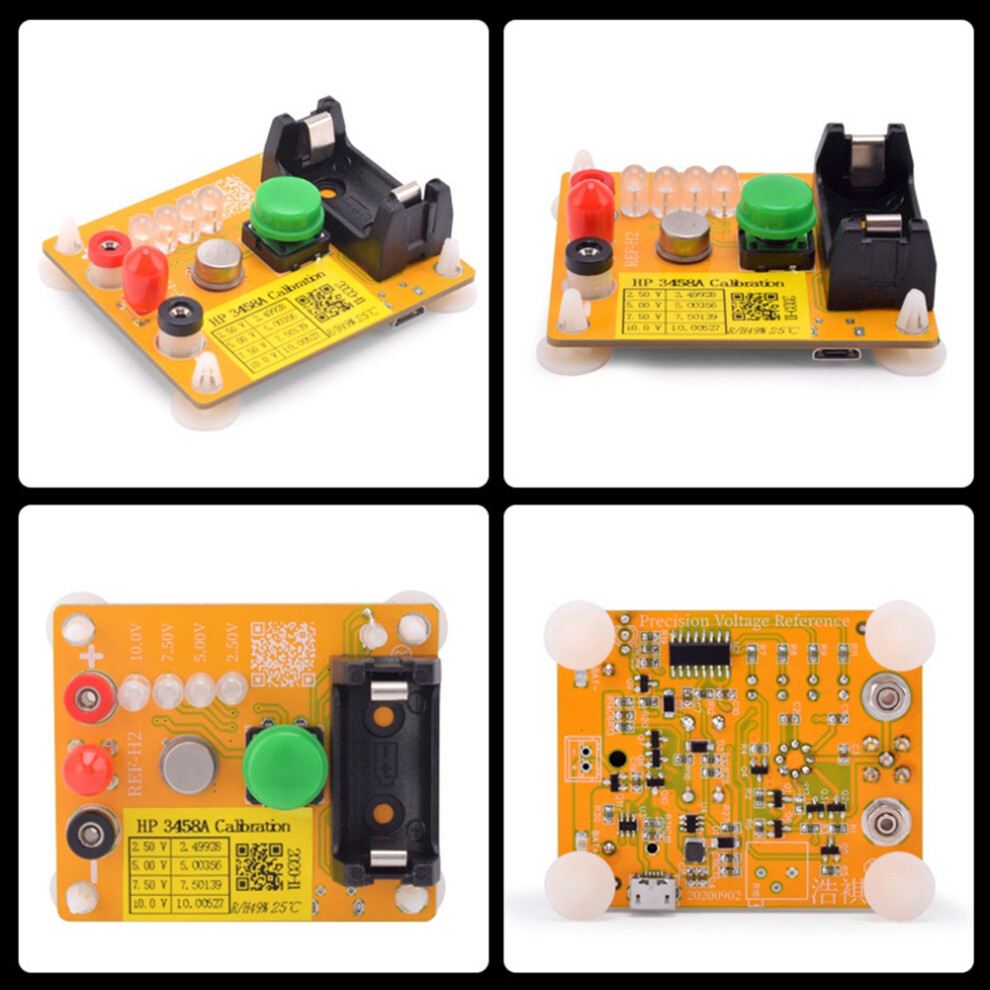

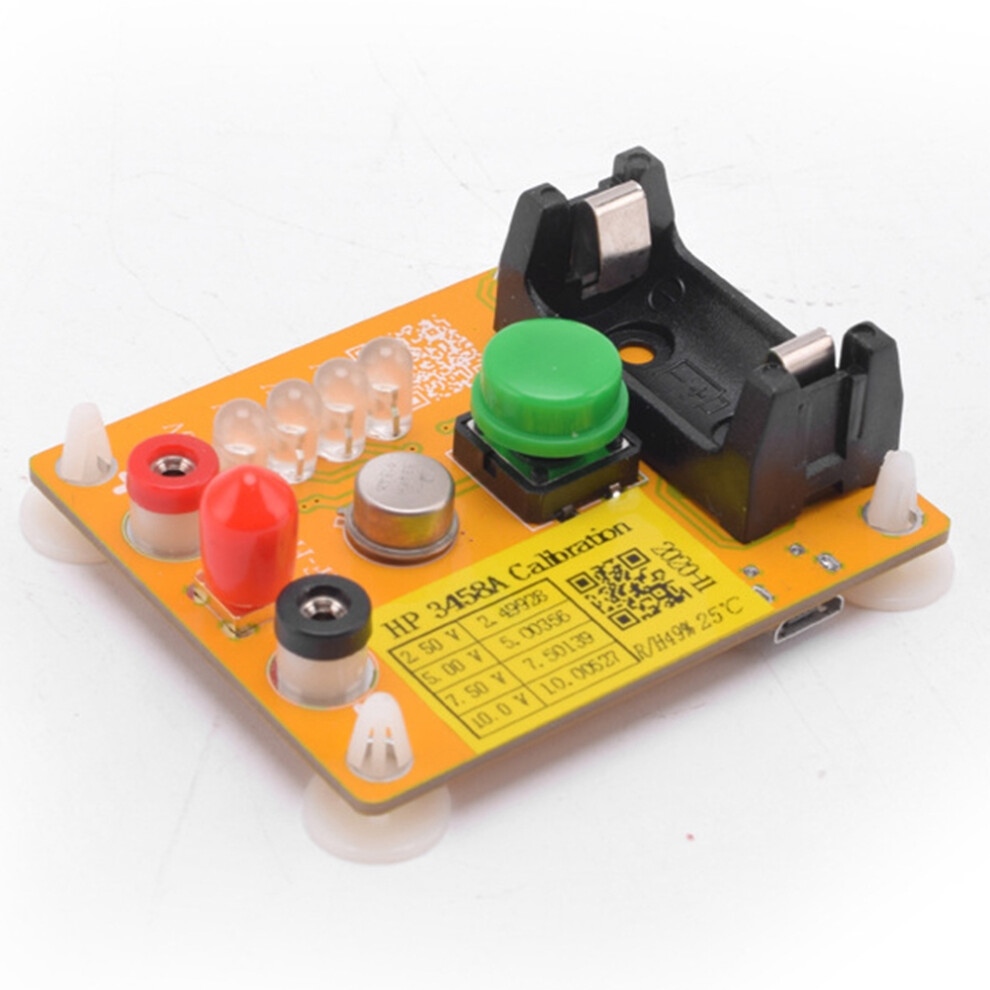

AD584K High Precision Voltage Reference Module Programmable 4CH DAC ADC Replace Voltage Reference Board Calibration

AD584K High Precision Voltage Reference Module Programmable 4CH DAC ADC Replace Voltage Reference Board Calibration Beskrivelse

1. The battery is a 300mAH standard special battery, the voltage is 3.7V and the model is 14250
2. The charging and discharging interface is micro-USB; the voltage is DC5V
3. The benchmark is not in use. Fully charge in sequence every two months. The board has built-in charge management and charge and discharge protection. Note that the battery polarity must not be reversed.

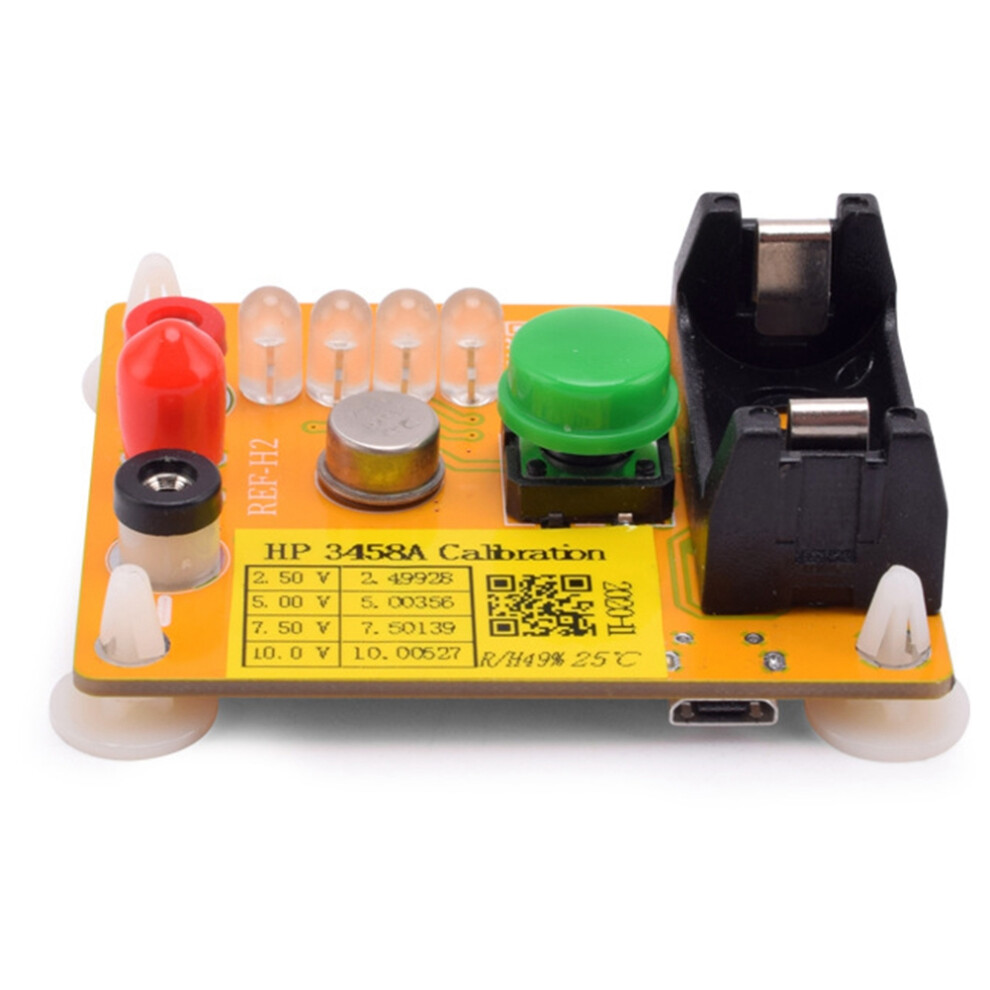

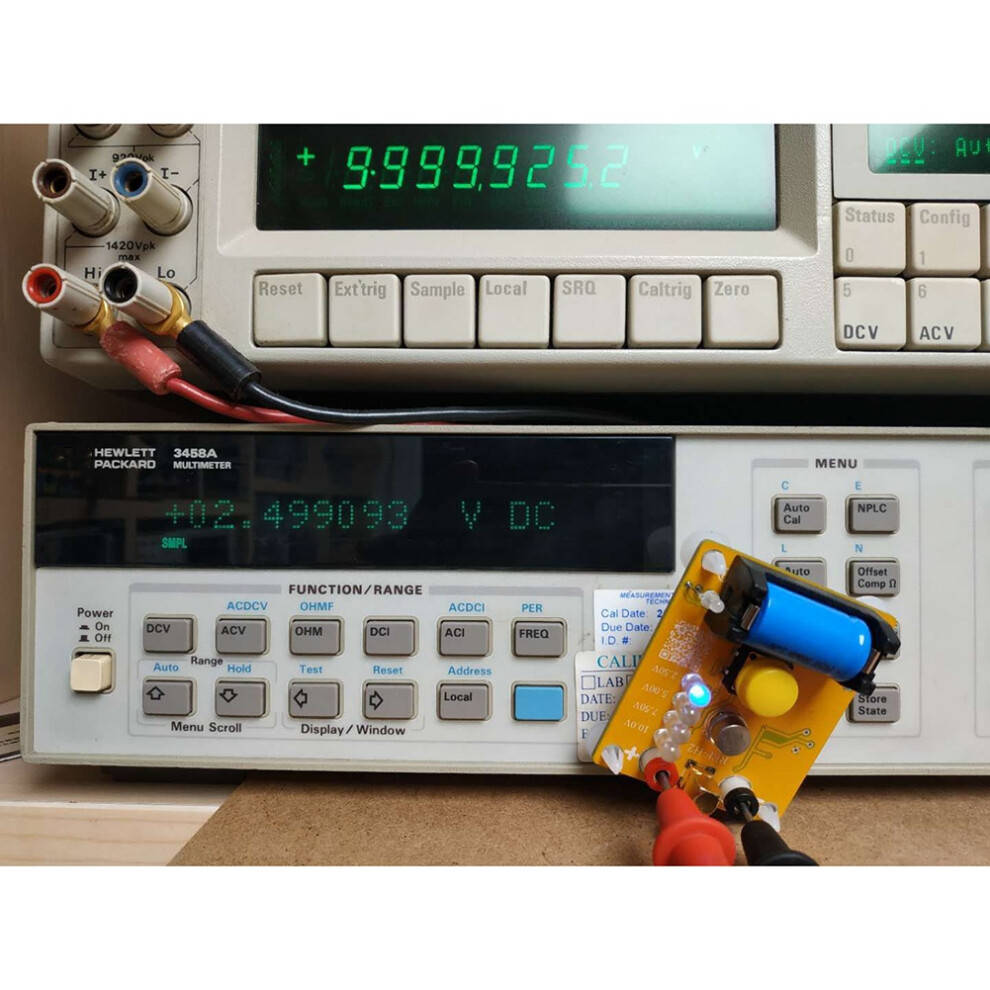

4. The output interface is a 2mm banana socket, and there is an SMA output interface for calibration. Use HP3458A eight-and-a-half digits multimeter to calibrate (use after full preheating). Re-calibration calibration conditions, and calibration value record card will be pasted the benchmark, please keep it properly
5. Press and hold for 2 seconds to turn the machine. When turning , the four indicator lights will light at the same , and then output the 2.5V reference voltage. After turning , short press the button to the gears, followed by 2.5V-5V-7.5V-10V and long press for three seconds To shut down, the voltage indicator will go out immediately after shutting down

Material:plastic
colour:yellow

Package Contents:
1 * Reference Module
