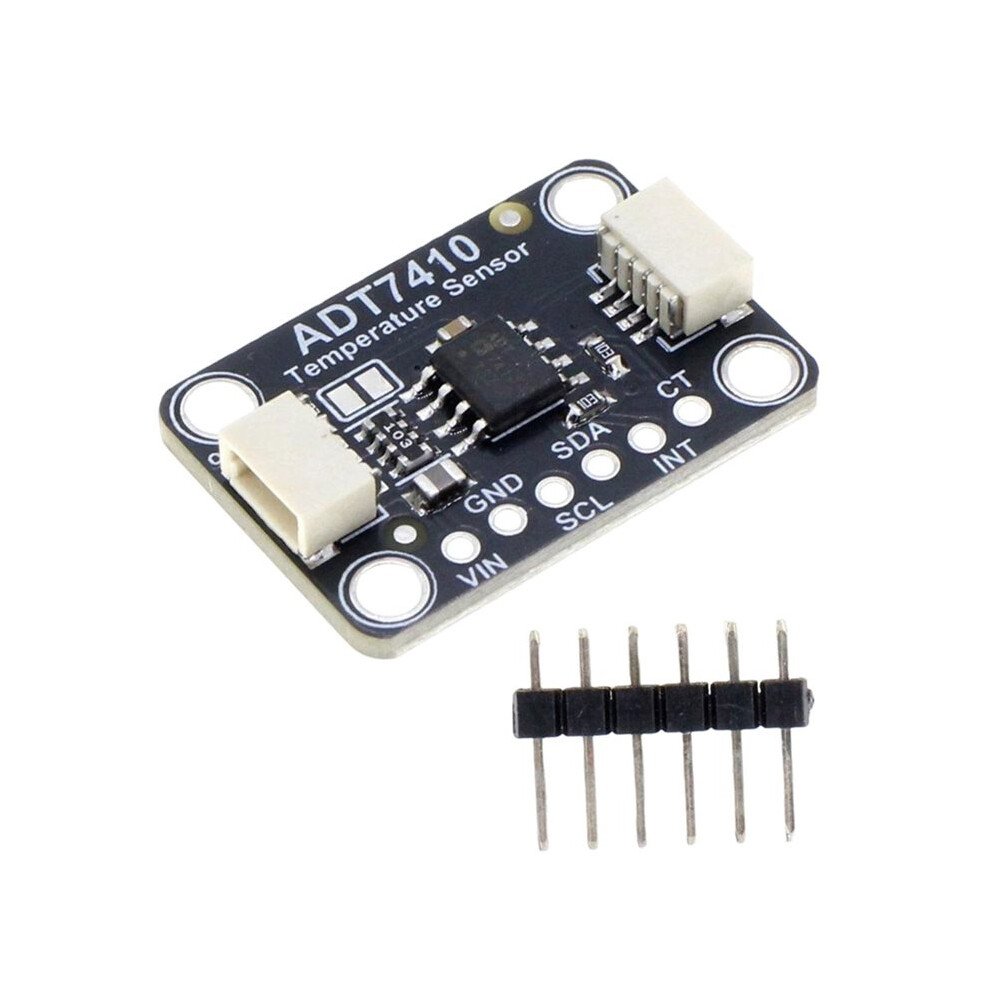

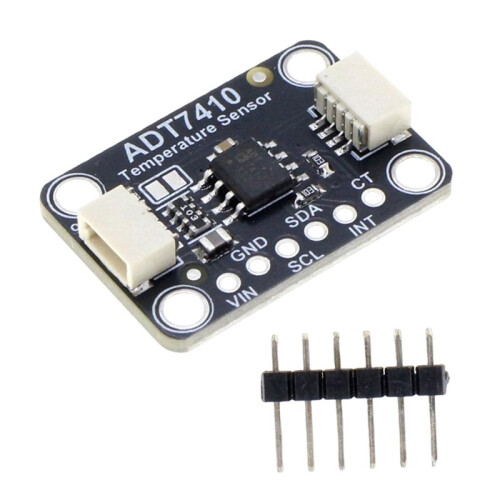

ADT7410 Temperature Sensor Module -55C to +150C High-Precision I2C Temperature Sensor for /CircuitPython
På lager
Derfor vil du elske å handle hos OnBuy:
- Tjen Cashback på hvert kjøp – bruk det umiddelbart på din neste bestilling
- Gratis levering – på millioner av varer på hele nettstedet
- Kunder elsker oss – 136,000 anmeldelser med vurderingen “Utmerket”
Prisene for varer solgt av OnBuy inkluderer mva.
Rente- og gebyrfri delbetaling tilgjengelig
Se full produktbeskrivelse og detaljer
Levering: Standard (9,00 kr) | man 2. - lør 7. nov
Returer: 30 dager
180 dagers betalingsbeskyttelse
Sammendrag
- Ultra-high precision measurement: Achieves accuracy of up to ±0.5°C within the -40°C to +105°C range, making it ideal for demanding temperature monitoring applications.
- High-resolution output: Supports 16-bit temperature resolution (0.0078°C), capable of capturing subtle temperature changes.
- Broad compatibility: Operates within a supply voltage range of 2.7V to 5.5V; compatible with both 3.3V and 5V systems without the need for level shifting.
- Plug-and-play connectivity: Features standard STEMMA QT / Qwiic interfaces for quick connection without soldering.
- No calibration required: Factory-calibrated; requires no user temperature calibration or linearity correction.
ADT7410 Temperature Sensor Module -55C to +150C High-Precision I2C Temperature Sensor for /CircuitPython Beskrivelse
Ultra-high precision measurement: Achieves accuracy of to 0.5C within the -40C to +105C range, making it ideal for demanding temperature monitoring applications.
High-resolution output: Supports 16-bit temperature resolution (0.0078C), capable of capturing subtle temperature changes.
Broad compatibility: Operates within a supply voltage range of 2.7V to 5.5V; compatible with both 3.3V and 5V systems without the need for level shifting.
Plug-and- connectivity: Features standard STEMMA QT / Qwiic interfaces for quick connection without soldering.
No calibration required: Factory-calibrated; requires no user temperature calibration or linearity correction.
Core Chip: Analog Devices ADT7410
Temperature Range: -55C to +150C
Temperature Accuracy: 0.5C (-40C to +105C, 2.7V to 3.6V)
Temperature Resolution: to 16-bit (0.0078C)
Communication Interface: I²C (address configurable via pins A0 and A1; supports to 4 sensors)
Module Dimensions: 23.3mm x 16.5mm x 3.2mm
Programming Environment: Supports and CircuitPython
Color: Black
Material: PCB
Package Contents:
1* Temperature Sensor Module
1* Pin Header
Detaljer
| OPC | PYH58WZ |
|---|---|
| Koder | 6031931871579 (EAN) |
| Produkt- og sikkerhetsinformasjon |
Produktdata
| Height | 1cm |
|---|---|
| Width | 5cm |
| Length | 5cm |
| Weight | 0.005kg |
| Colour | Black |
| Material | PCB |
