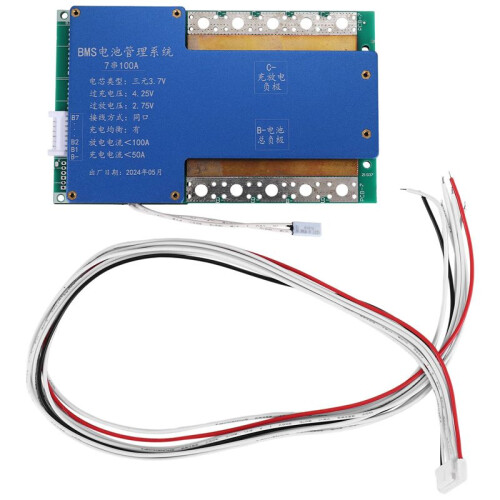

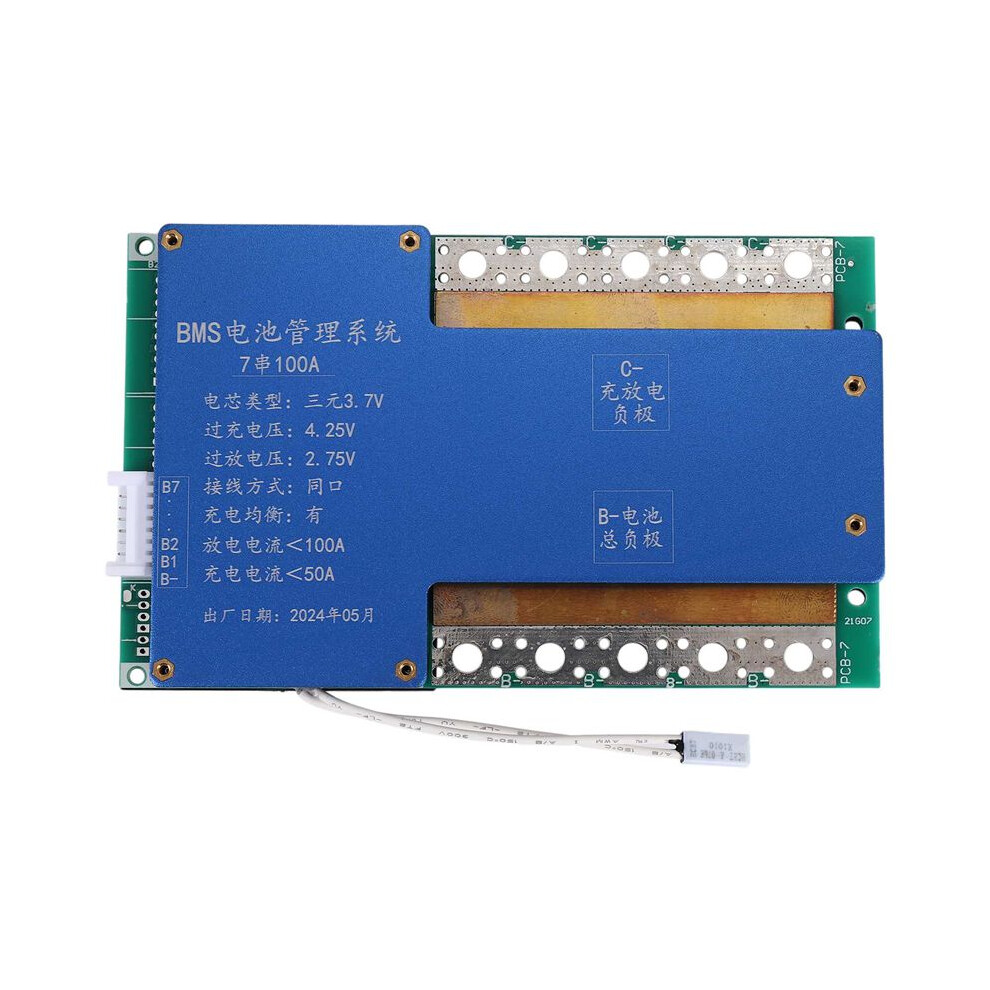

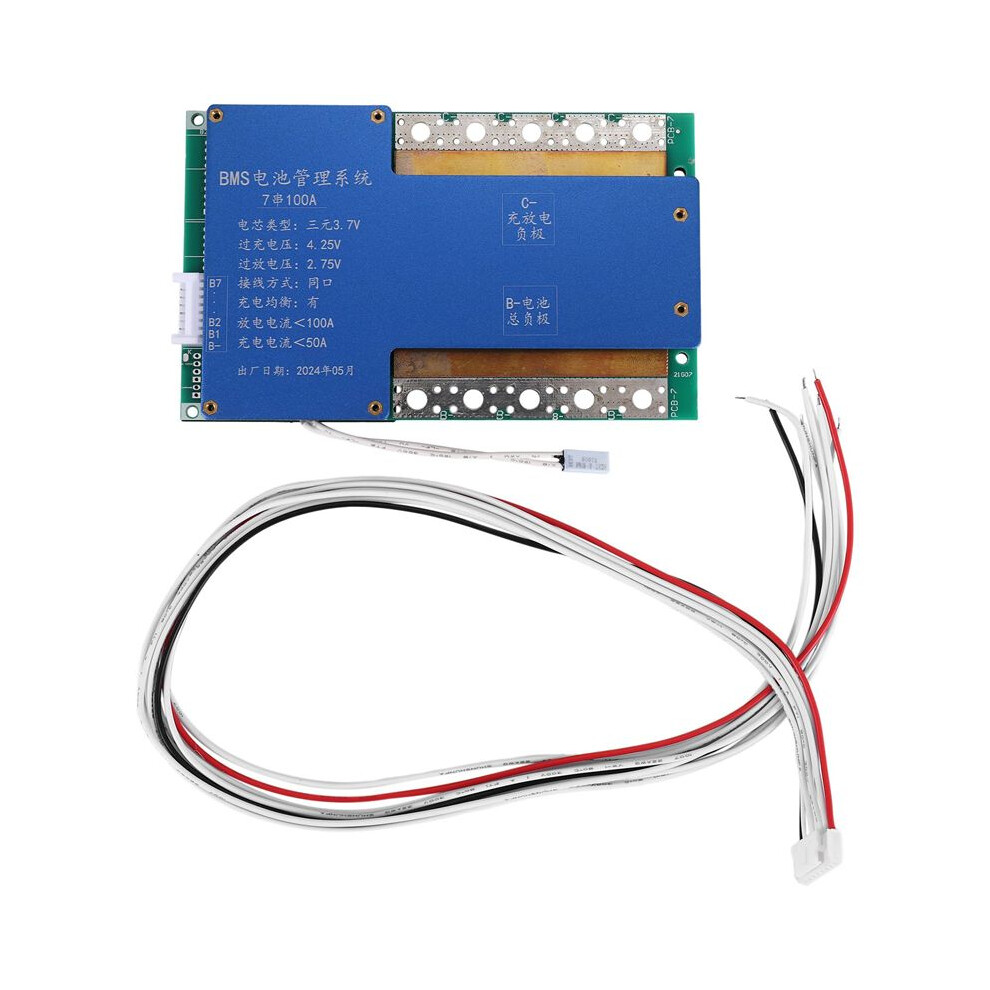

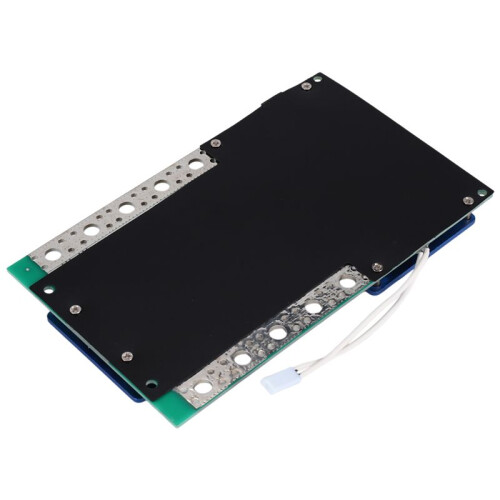

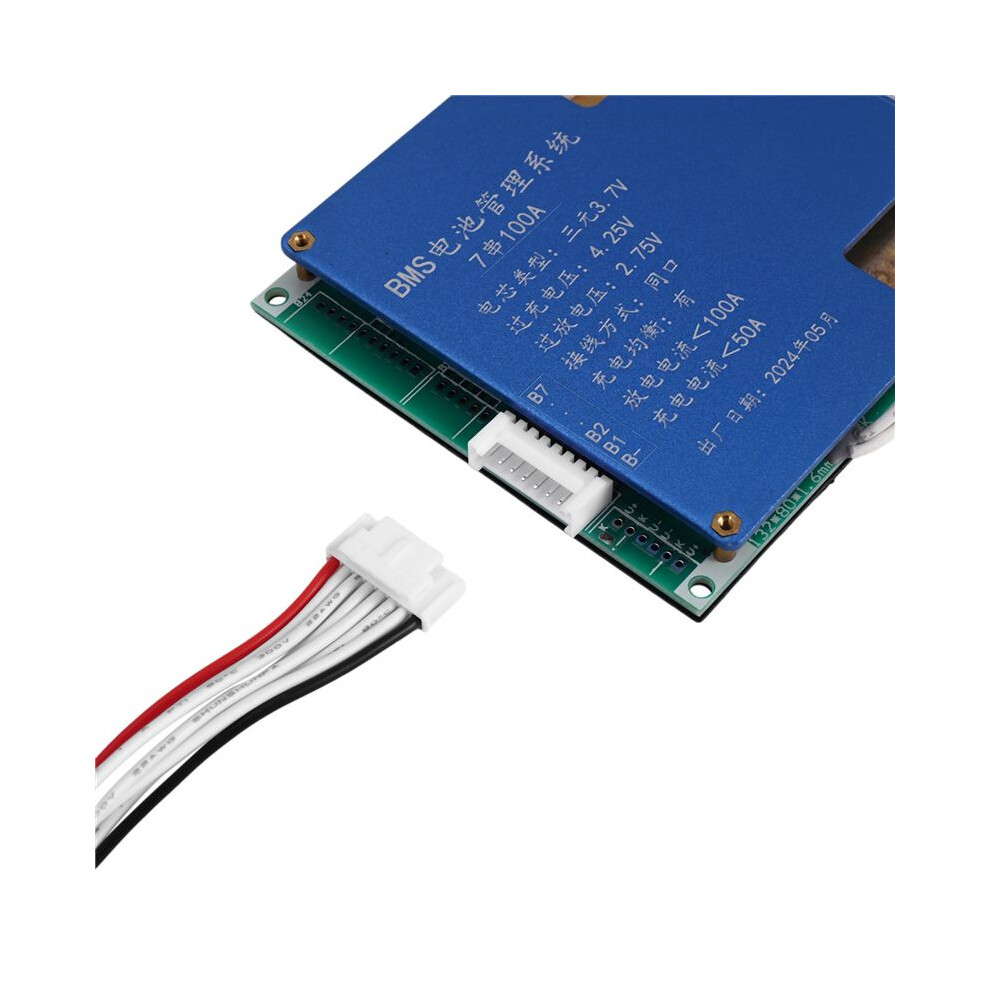

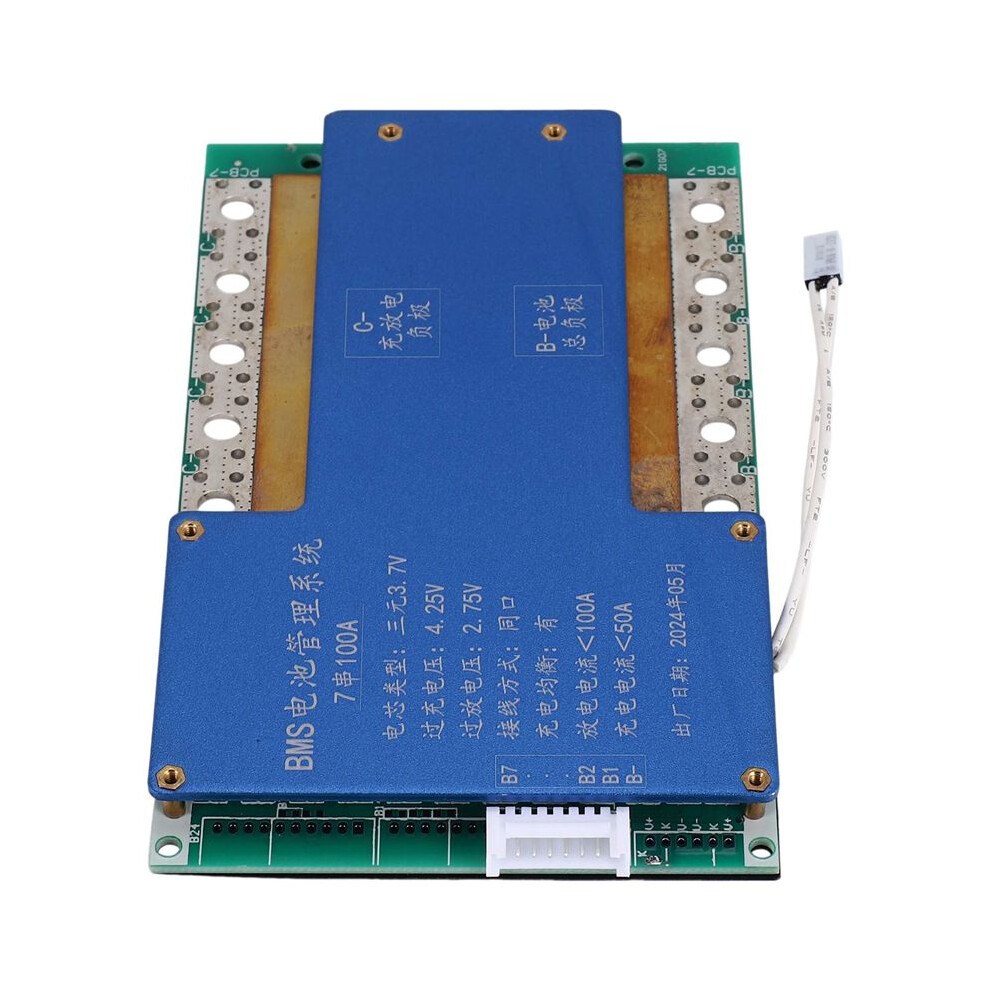

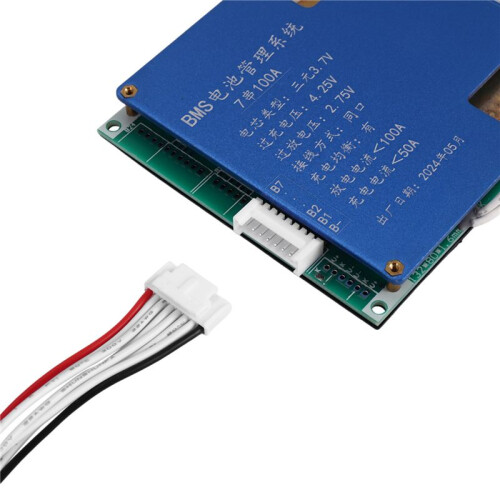

Bms 7S 24V 100A 18650 Lithium Battery Pack Board Bms Equalizer Pcb Temperature Protection Belt

Bms 7S 24V 100A 18650 Lithium Battery Pack Board Bms Equalizer Pcb Temperature Protection Belt Beskrivelse

ADOPTS WITH LITHIUM CELL MANAGEMENT OFFERS FAST AND SAFE CHARGING-Adopt intelligent lithium cell management IC for fast and safe charging
BALANCING CHARGING EXTENDS BATTERY LIFE-With balance charging to balance the characteristic of each battery in battery pack and prolong battery life
MULTI-OVER PROTECTION ENSURES SAFETY USE-Provide a variety of protection functions including overcharge, over-discharge, short circuit, and temperature protection

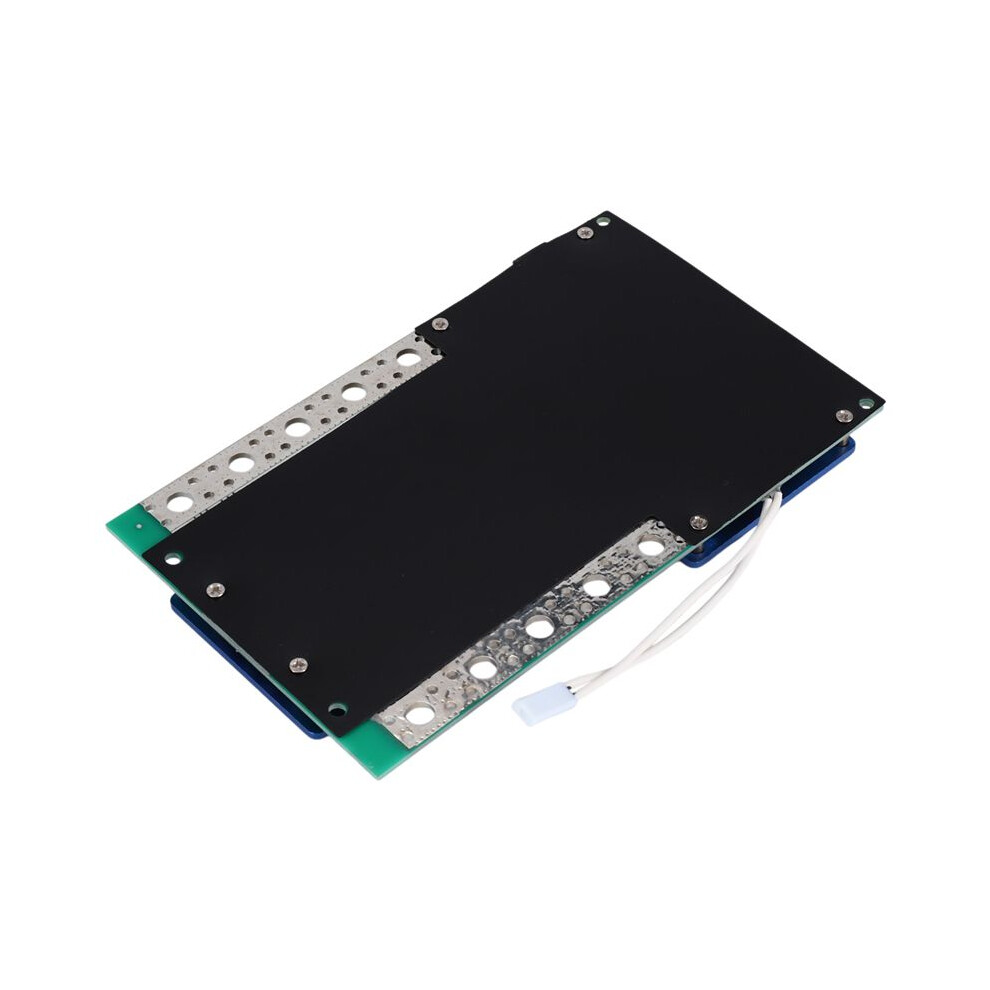

EQUIPPED WITH ALUMINUM FIN ENSURES QUICK HEAT DISSIPATION-Equipped with thickened aluminum fin to achieve quick heat dissipation
MANY TIMES TESTING ENSURES HIGH QUALITY-This product has gone through load and aging test for quality assurance

Discharge current: 100A
Overload protection
Detection voltage: 4.250.025v
Detection delay: 1000ms 500ms
Release voltage: 4.150.05v
Overvoltage discharge protection
Detection voltage: 2.750.1v
Detection delay: 1000ms 500ms
Release voltage: 3.00.1v
balanced tension
Detection voltage: 4.150.025v
Detection delay: 100 50 50ms
Balance current: 42 55ma
Overcurrent protection discharge
Detection voltage: 50 1515mv
Detection delay: 1000ms 500ms
Overload protection: 30050A/45050A/60060A
Short circuit protection
Trigger condition: external short circuit
Detection delay: 300US
Release condition: disconnect the load
Temperature control protection
Charging working temperature: 55
Discharge working temperature: 75
Release Conditions: Recover within operating temperature
self-consumption
Working power consumption: 3535ua
Dormant overdischarge power consumption: 1010ua
Operating temperature range: -30/+80C

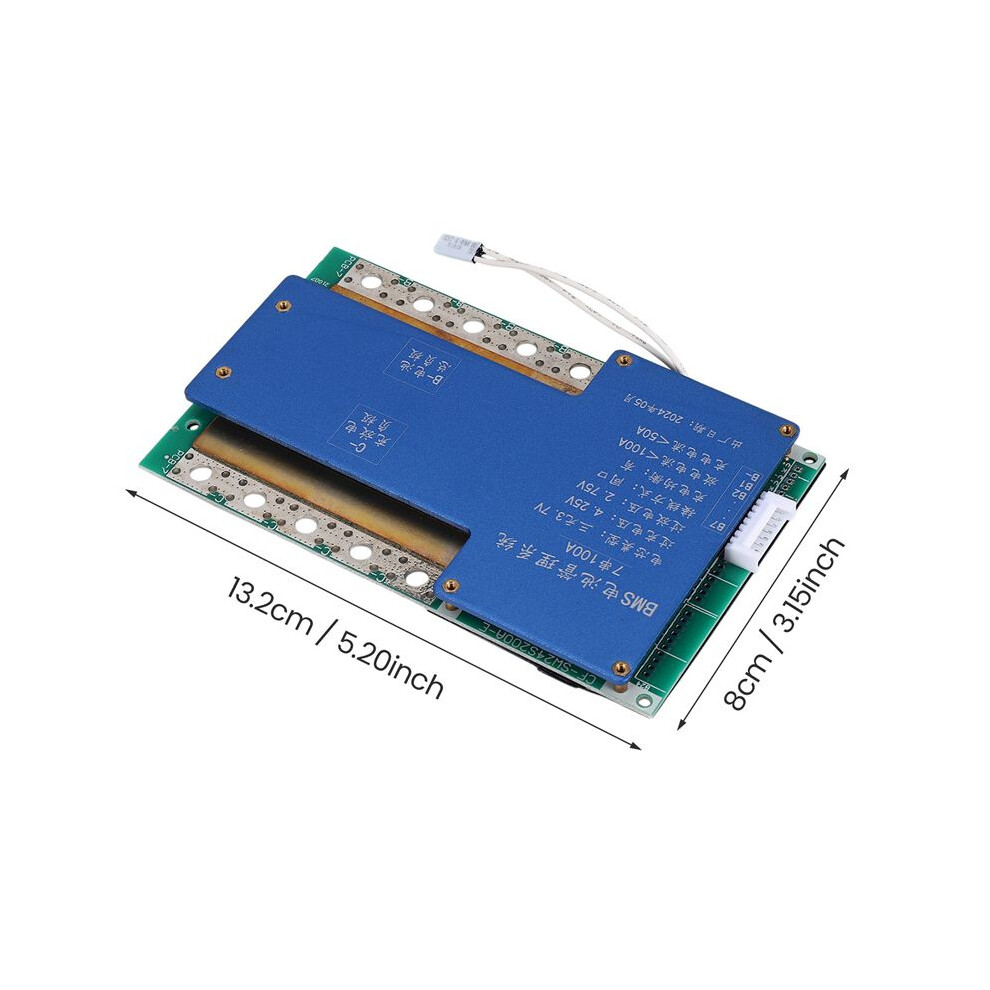

size:132x80x10mm
Material:ABS+Metal
colour:

Package Contents:
1 * bms battery charging pr
