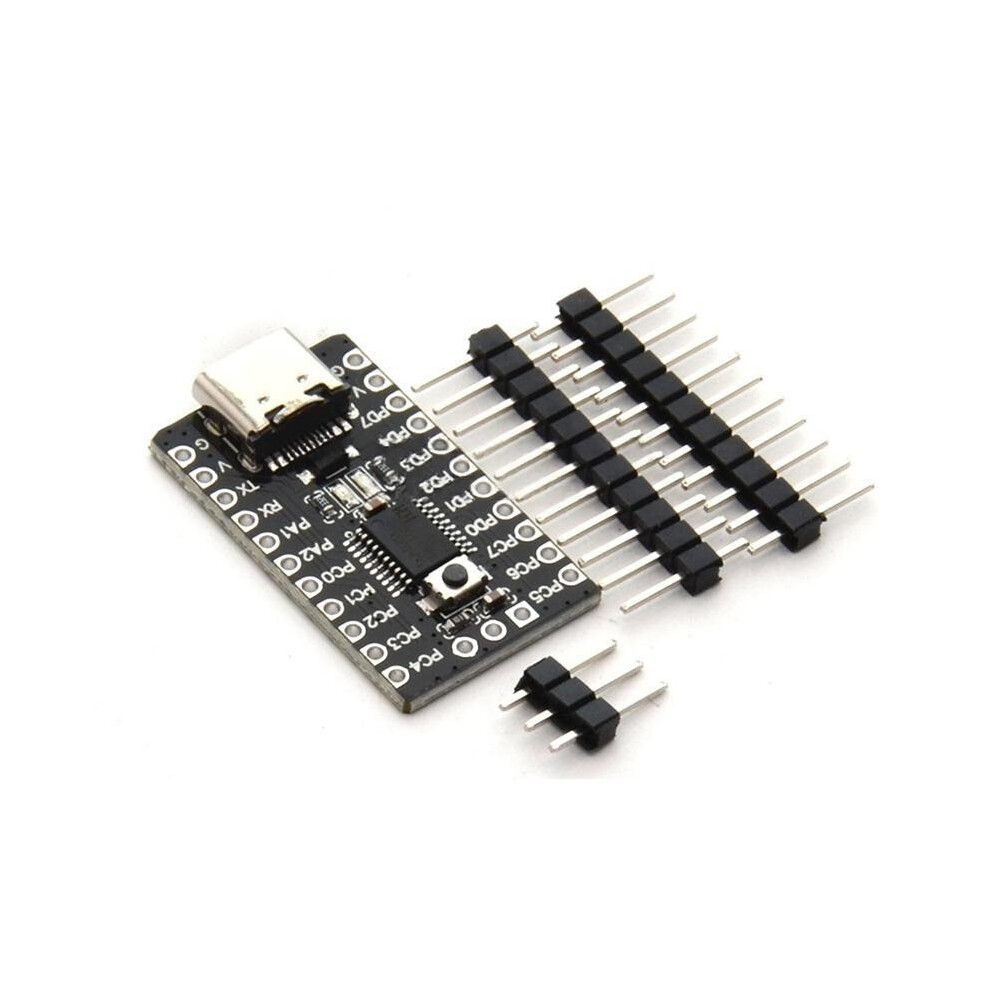

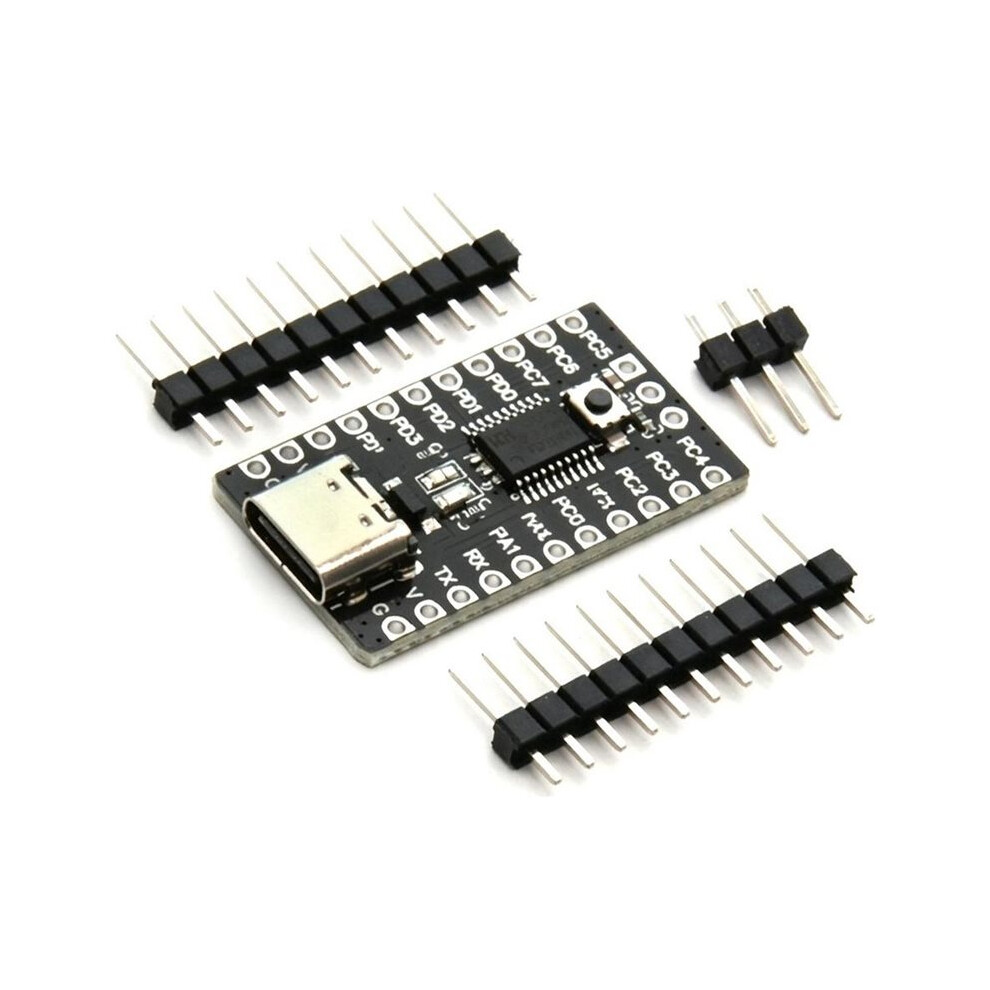

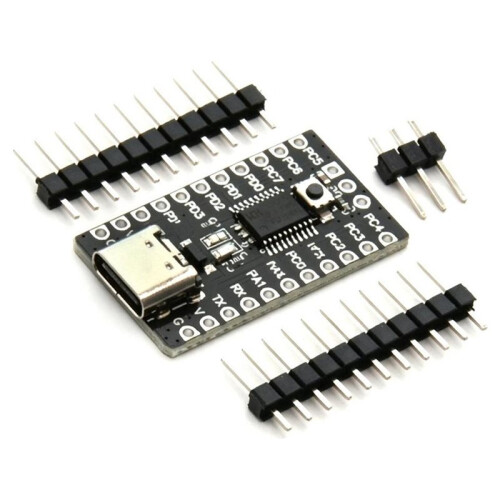

CH32V003 Development Board Minimum System Board Core Board RISC-V CH32V003F4P6 Microcontroller Module

CH32V003 Development Board Minimum System Board Core Board RISC-V CH32V003F4P6 Microcontroller Module Beskrivelse

CH32V003 series is an industrial-grade general-purpose microcontroller designed based the RISC-V2A core, supporting a 48MHz system frequency.
It features a wide voltage range, single-wire debugging, low power consumption, and ultra-small packaging.
The CH32V003 series integrates one set of DMA controller, one 10-bit analog-to-digital converter ADC, one operational amplifier comparator, multiple timers, as well as standard communication interfaces such as USART, IIC, SPI, etc.

Product Features:
Qingke 32-bit RISC-V2A processor, supporting 2-level interrupt nesting
to 48MHz system frequency
2KB , 16KB Flash
Supply voltage: 3.3/5V
Multiple low-power modes: sleep, standby
Power-/power-off reset, programmable voltage detector
One group of 1-channel general DMA controller
One operational amplifier comparator
One 10-bit ADC
One 16-bit advanced timer and one 16-bit general-purpose timer
Two watchdog timers and one 32-bit system -base timer
One USART interface, one group IIC interface, one group SPI interface
18 I/O , mapped to one external interrupt
64-bit unique chip ID
Serial single-wire debug interface
Color: Black
Material: PCB

Package Contents:
1 * CH32V003 Development Board
