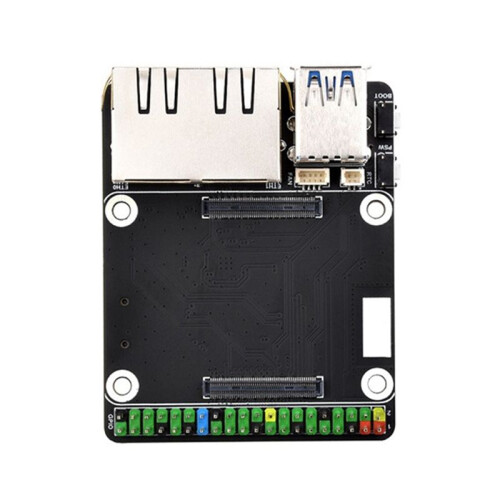

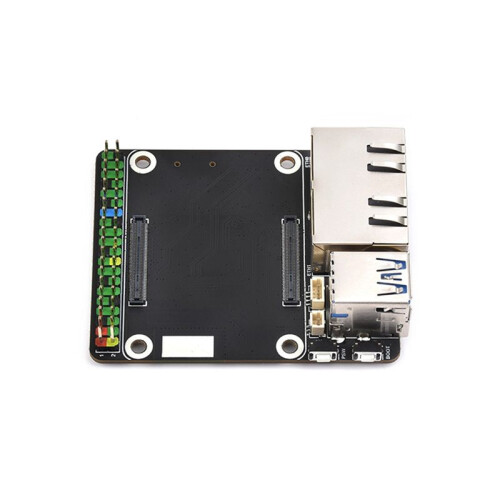

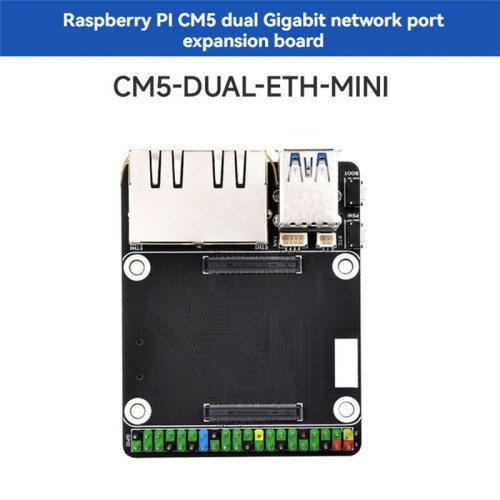

CM5-DUAL-ETH- Expansion Board CM5 Expansion Board with 40 GPIO for Raspberry Pi Compute Module 5

CM5-DUAL-ETH- Expansion Board CM5 Expansion Board with 40 GPIO for Raspberry Pi Compute Module 5 Beskrivelse

This product is a board for Raspberry Pi Compute Module 5. CM5-DUAL-ETH- is a baseboard that can be used with for Raspberry Pi Compute Module 5
Supports dual network and Type C 5V 5A power supply
Onboard 1-way USB3.2 Gen1, convenient for users to use
Type C is used as a USB SLAVE interface to burn images, cannot be used as an OTG interface, and cannot supply power to the outside
Onboard button connects to BOOT. You can press and hold the BOOT button before powering , connect the computer via Type C, and put the device into burning mode

CM5 card holder: for all versions of Compute Module 5
Ethernet: Dual Gigabit Ethernet RJ45 interface
USB: USB 3.0 interface
Connector: for Raspberry Pi 40PIN GPIO interface
Storage: Onboard Micro- card slot (only for versions without eMMC)
Fan interface: Four-wire SH1.0 interface, adjustable speed, measurable speed, 5V
Power input: 5V, Type-C interface
(The product appearance and printed words may vary depending the batch, but this does not affect use)
Colour: Black
Material: PCB

Package Contents:
1 x Expansion Board
