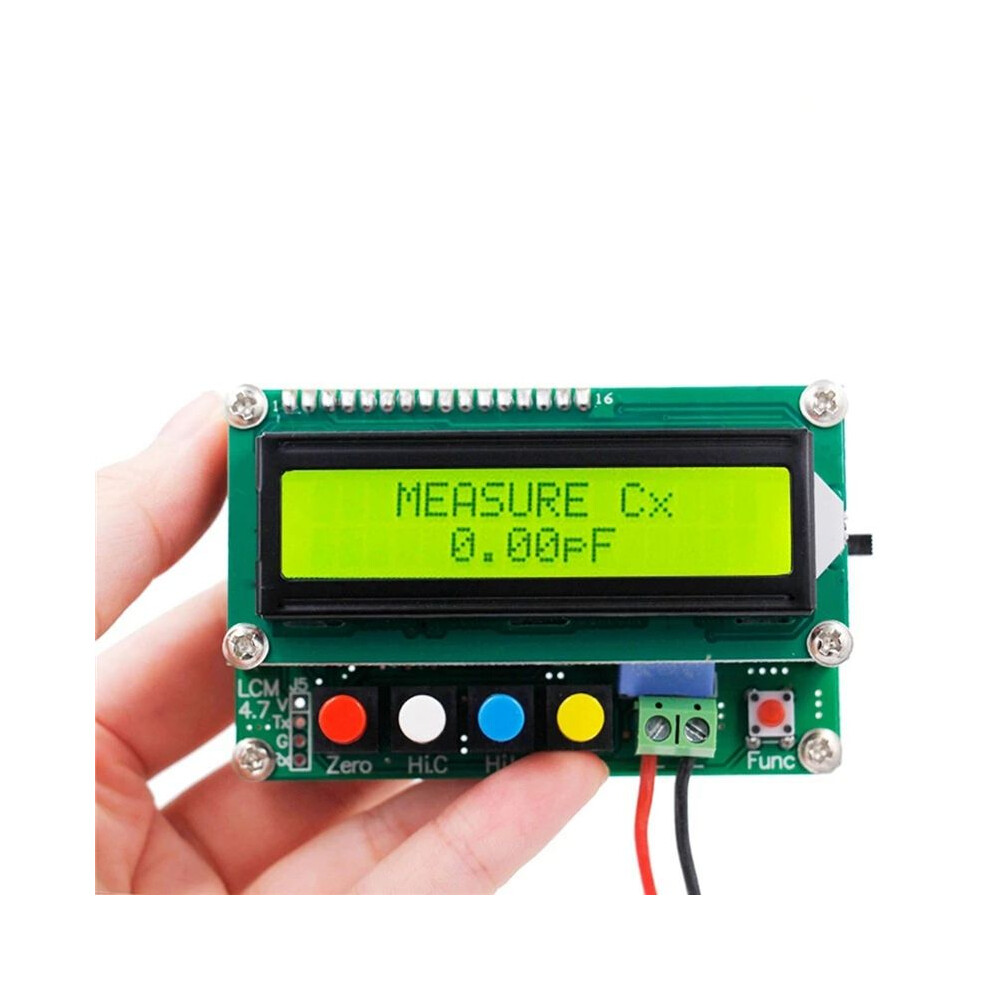

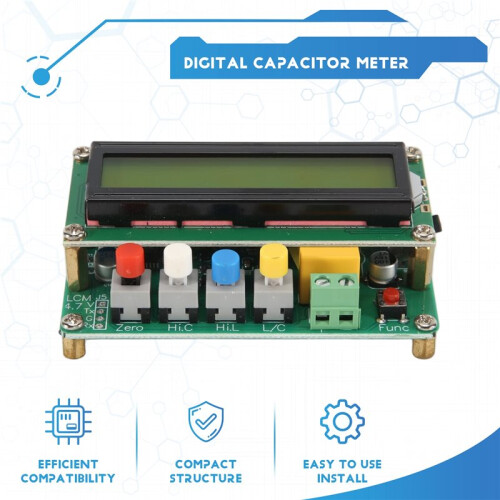

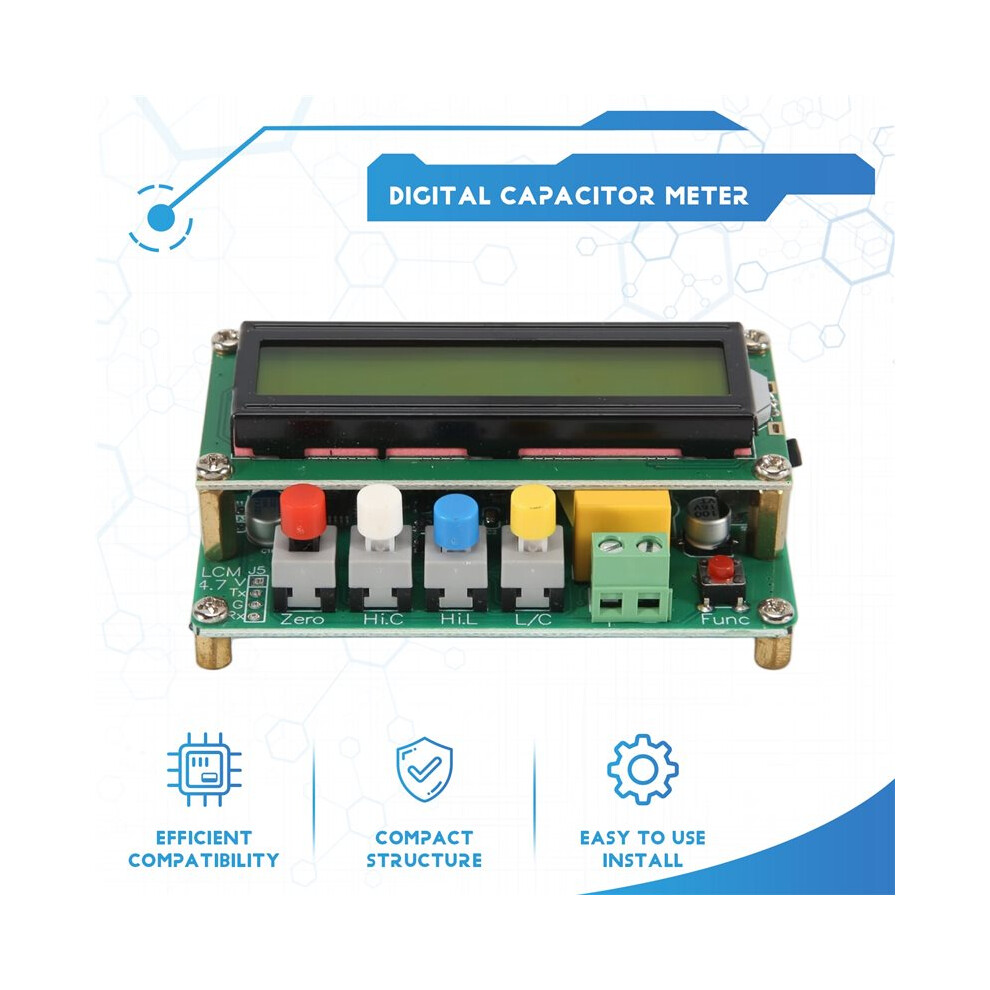

Digital Capacitor Meter Inductance Capacitance L/C Meter LCD Capacitance Meter Tester USB Interface with USB Cable

Digital Capacitor Meter Inductance Capacitance L/C Meter LCD Capacitance Meter Tester USB Interface with USB Cable Beskrivelse

This meter, the base of LC resonance principle, adds precise measurement of high-speed micro-controller so that it can measure small inductance and small capacitance precisely

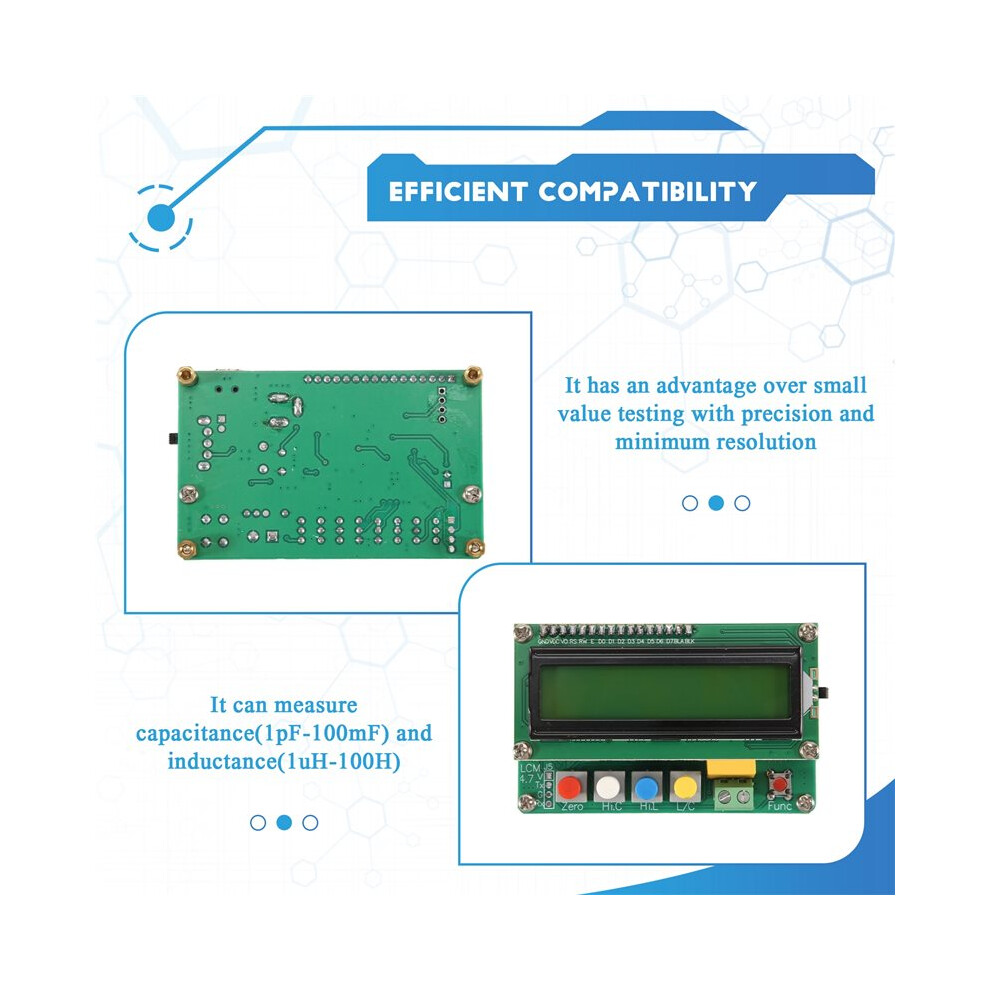

It can measure capacitance(1pF-100mF) and inductance(1uH-100H)
It has an advantage over small value testing with precision and minimum resolution
Flexible online calibration can always maintain measurement accuracy
The calibrated parameters are completely stored in the FLASH inside of micro-controller, wouldn't lost when power-off

Capacitance Measurement(C): Accuracy: 1pF~1uF 1%; 1uF~10uF 5%.
Resolution: 0.01pF.
Inductance Measurement(L): Accuracy: 1uH~100mH 1%.
Resolution: 0.001uH.
Large Inductance Measurement(Hi.L): Accuracy: 100mH~1H 1%; 1H~100H 5%.
Resolution: 0.001mH.
Large Capacitance Measurement(Hi.C): Accuracy: 1uF~100mF 5%.
Resolution: 0.01uF.
Test Frequency: L/C: 500KHz; Hi.L: 500Hz~50KHz.
Measurement Mode of Inductance/Capacitance/Large Inductance: LC Resonance.
Measurement Mode of Large Capacitance: Charging and Discharging.

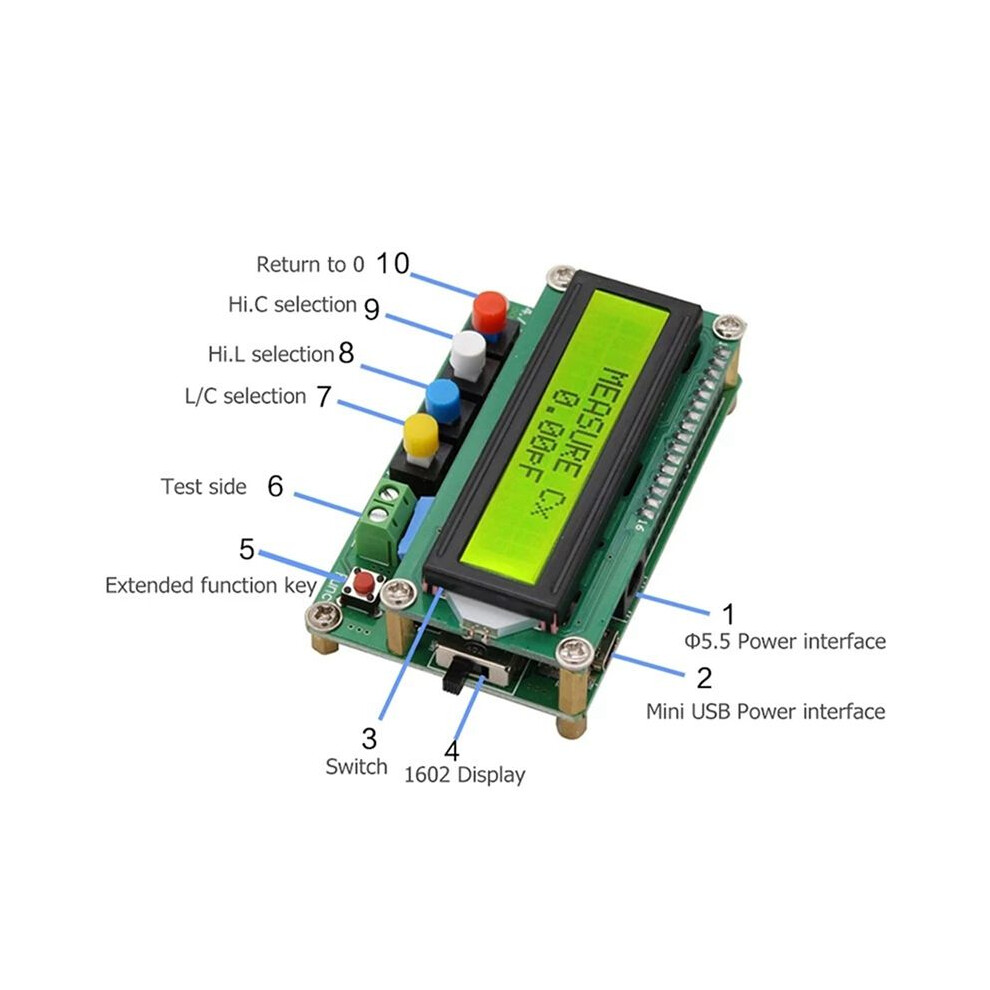

Display: 1602 LCD.
Effective Display Digits: 4.
Power Supply: USB Interface and Dia. 5.5 Plug.
Power Voltage: 5V.
color:Photo color
Material:PCB

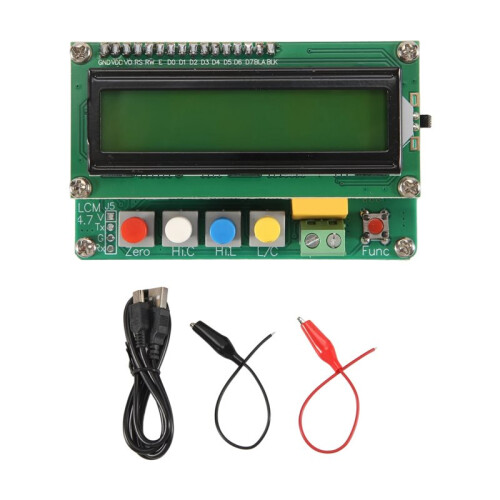

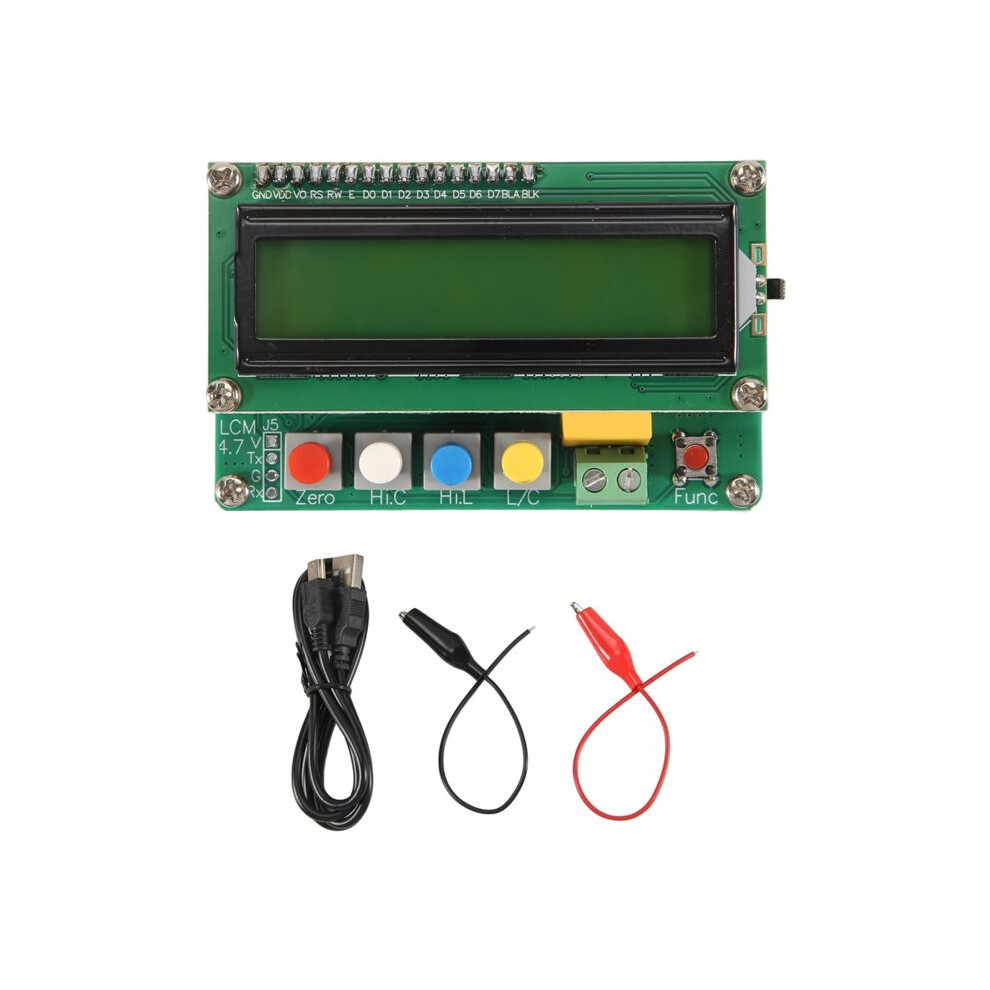

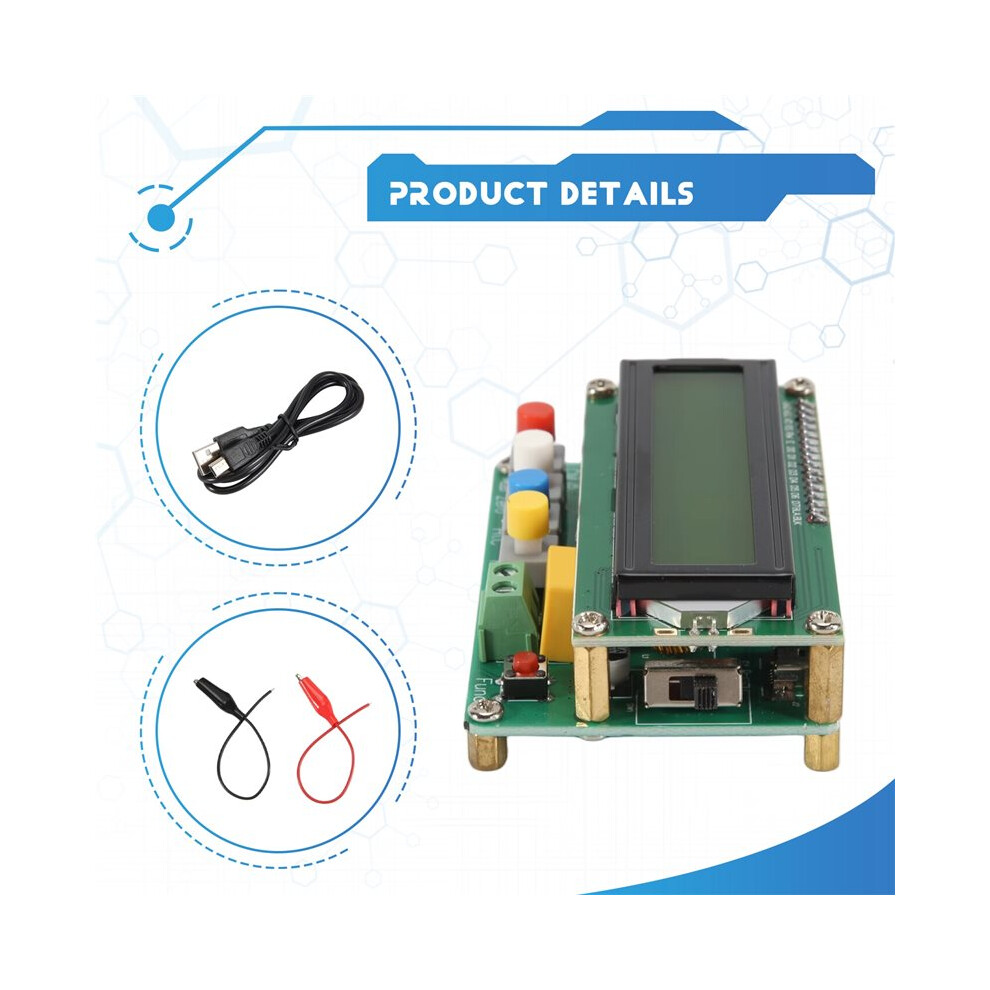

Package Contents:
1 x High Precision L/C Meter
1 x USB Cable
