Ebike Electric Bicycle Common Controller Conversion Waterproof Wire Cable DIY 1T5 Throttle Brake Display Headlight

Ebike Electric Bicycle Common Controller Conversion Waterproof Wire Cable DIY 1T5 Throttle Brake Display Headlight Beskrivelse

Use: It can be used for ordinary wire controller DIY modified waterproof wire version, suitable for customers with strong hands- ability.

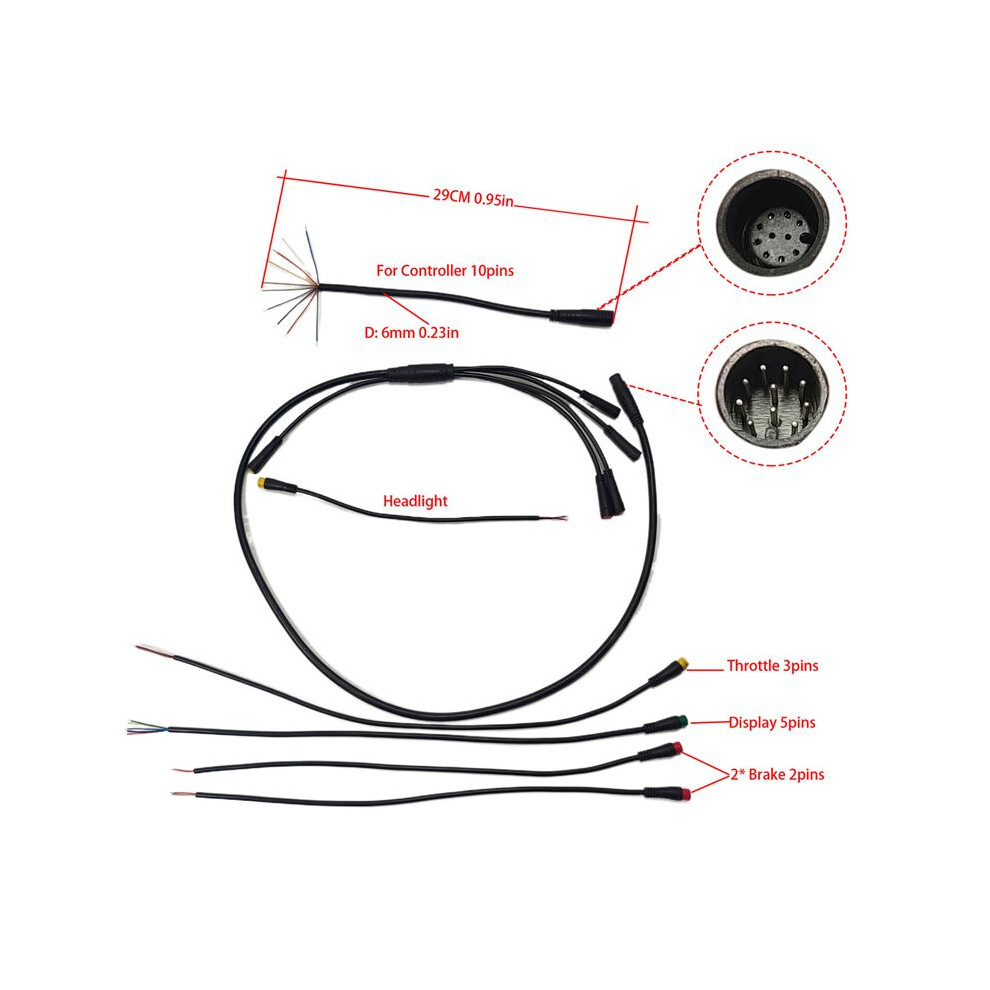

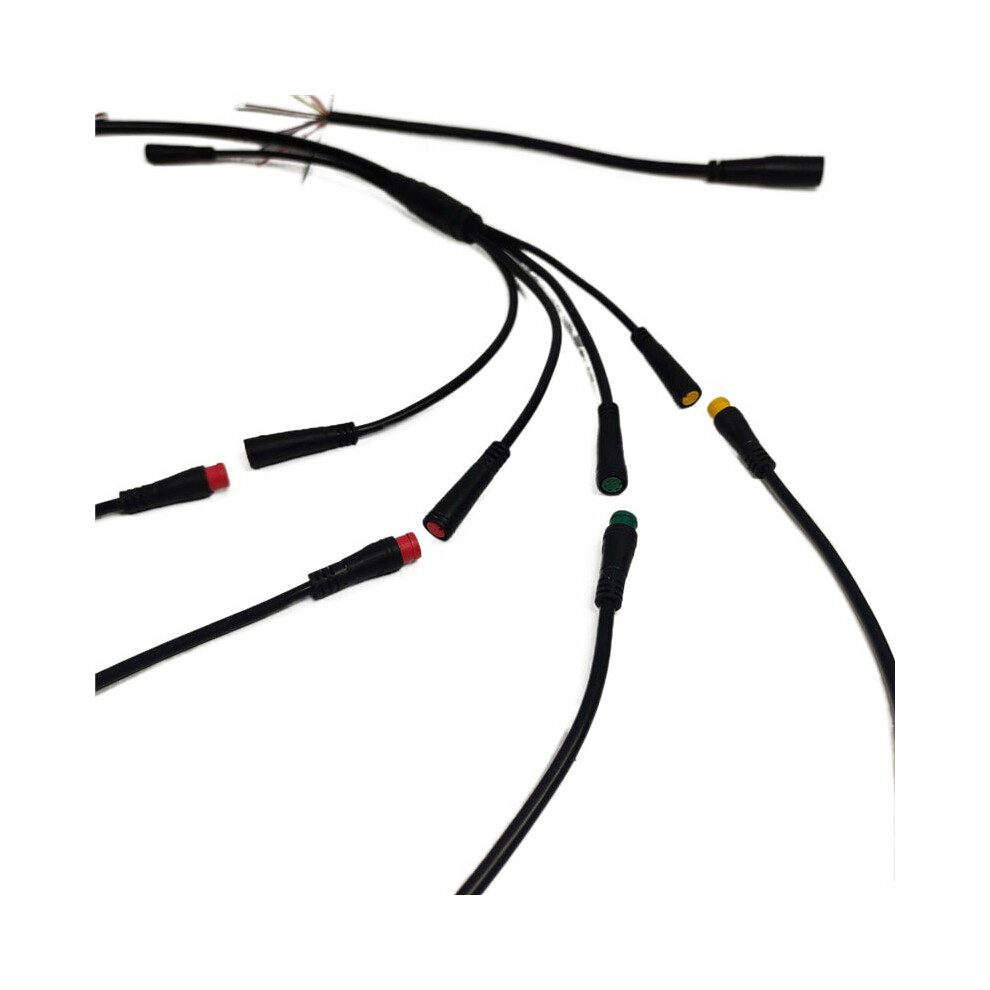

Headlights, display, throttle, brakes

Integrated cable plug:10pin
Headlight plug:3pin
Display plug:5pin
Throttle plug:3pin
Brake plug:2x2pin
Net weight:160g

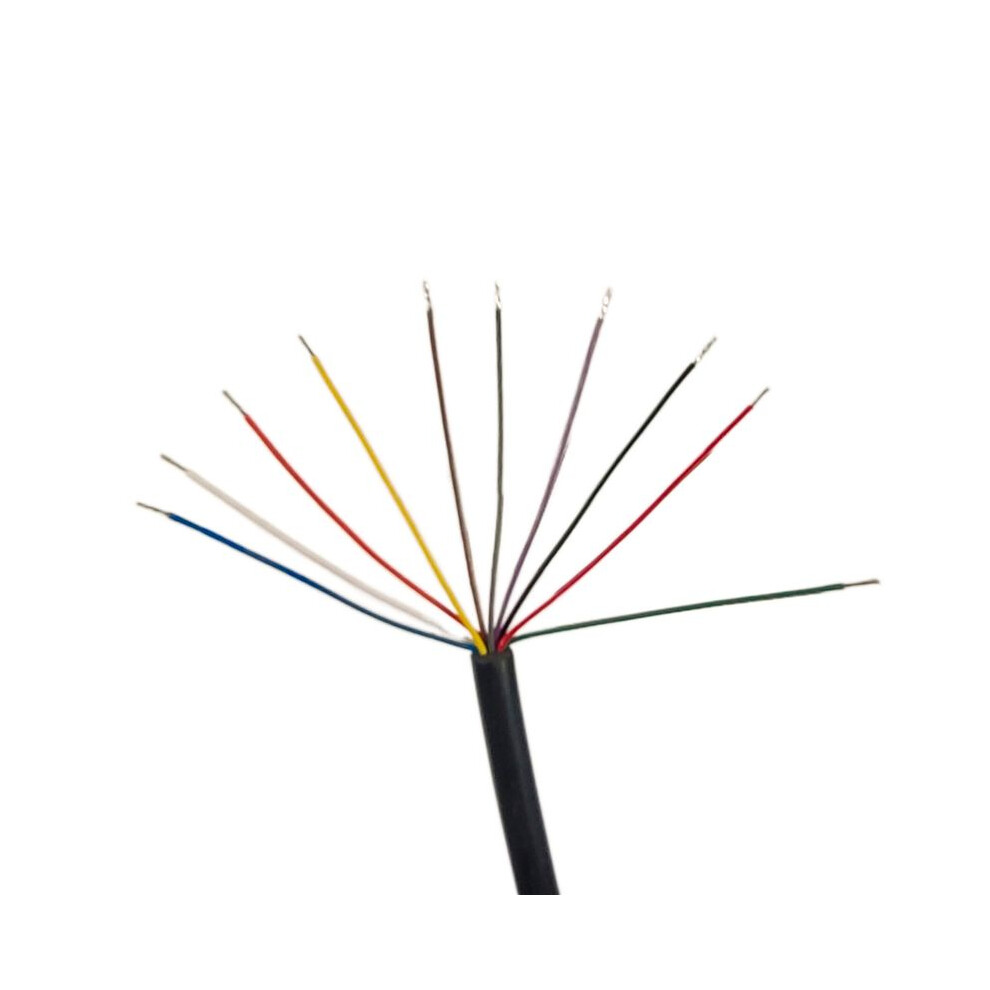

Main color function description:
Red:B+
Black:GND
Yellow:TX data
Green:RX data
:Electric door lock
White:Brake signal (LOW pressure LOW)
Brown:Headlight output +
:5V power supply
Gray:Throttle output
Orange:The default value is invalid
Valve color function description:
Red:5V+
Black:GND
White:Signal output
Display color function description:
Red:B+
Black:GND
Yellow:TX
Green:RX
:Electric door lock
Display special description:
Part of the display is using JULET standard sequence, so there is a JULET sequence reference in the graphic, please pay attention to adjustment when connecting!
Brake color description:
Orange/Red:GND
Gray:Brake signal
Colour:Black
Material:ABS

Package Contents:
1 x Motor Connector Cable kit
