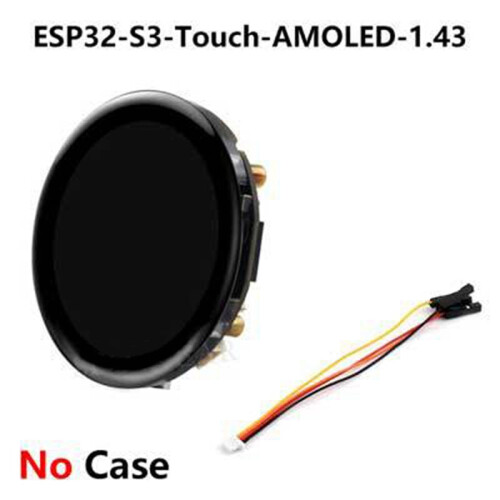

ESP32 S3 Development Board 1.43 Inch AMOLED Display Touch Screen with -Port/ QMI8658C 6-Axis Sensor for LVGL B

ESP32 S3 Development Board 1.43 Inch AMOLED Display Touch Screen with -Port/ QMI8658C 6-Axis Sensor for LVGL B Beskrivelse

Equipped with high-performance Xtensa 32-bit LX7 dual-core processor, the main frequency is to 240MHz

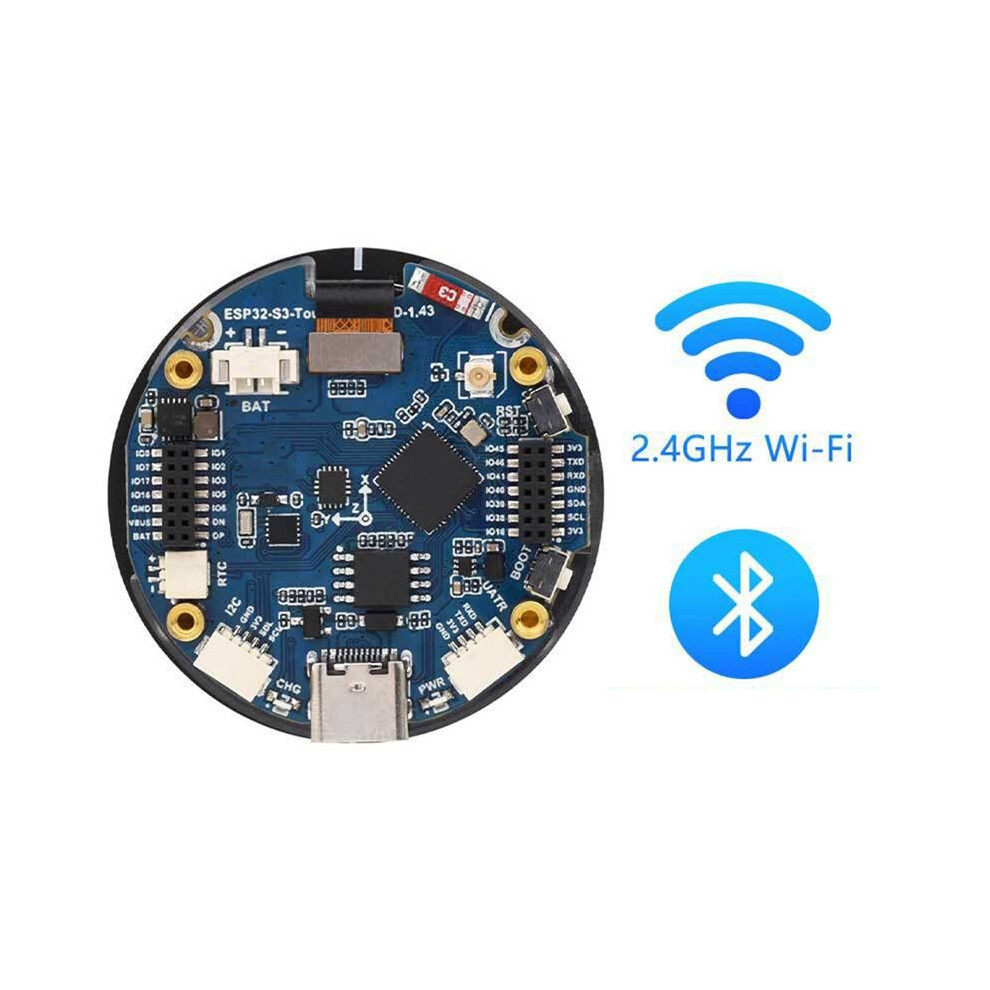

Supports 2.4GHz Wi-Fi and 5 (LE), onboard internal antenna, reserved solder joints, can be set as external antenna
Built-in 512KB and 384KB ROM, stacked 16MB Flash and 8MB PSRAM

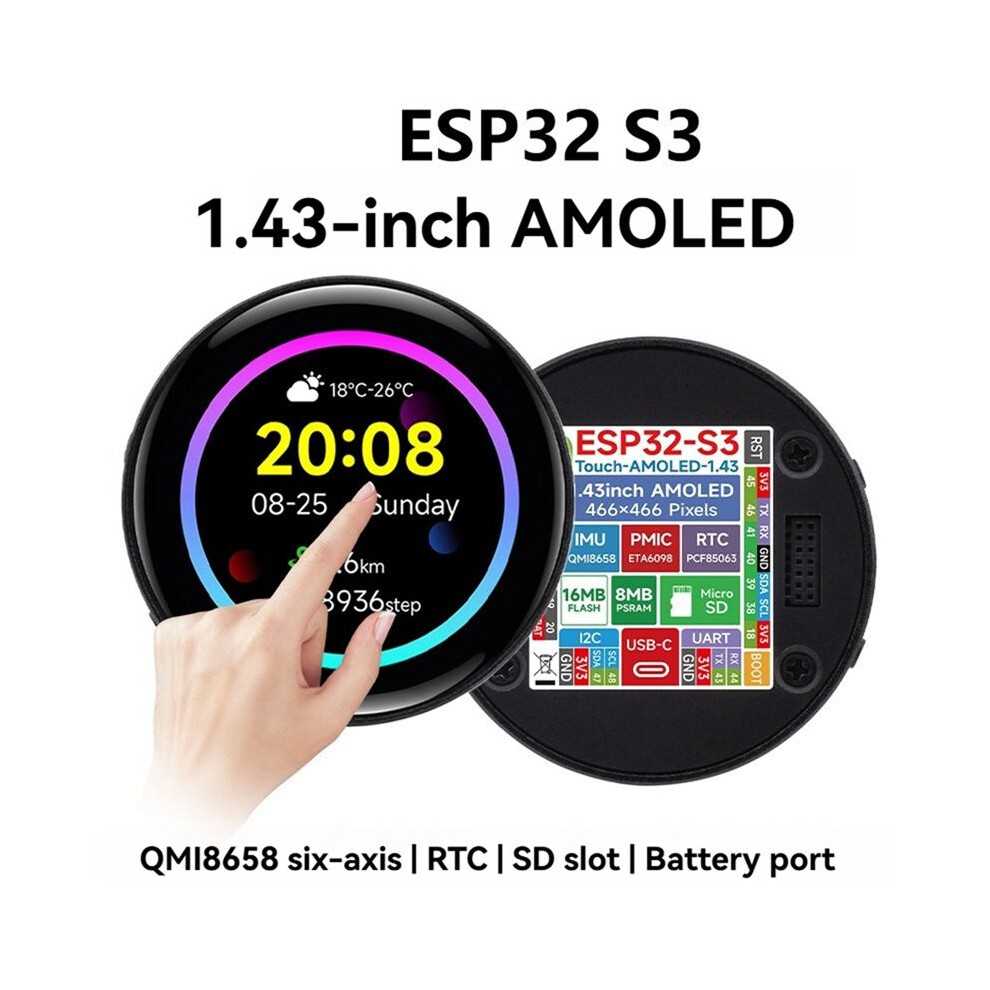

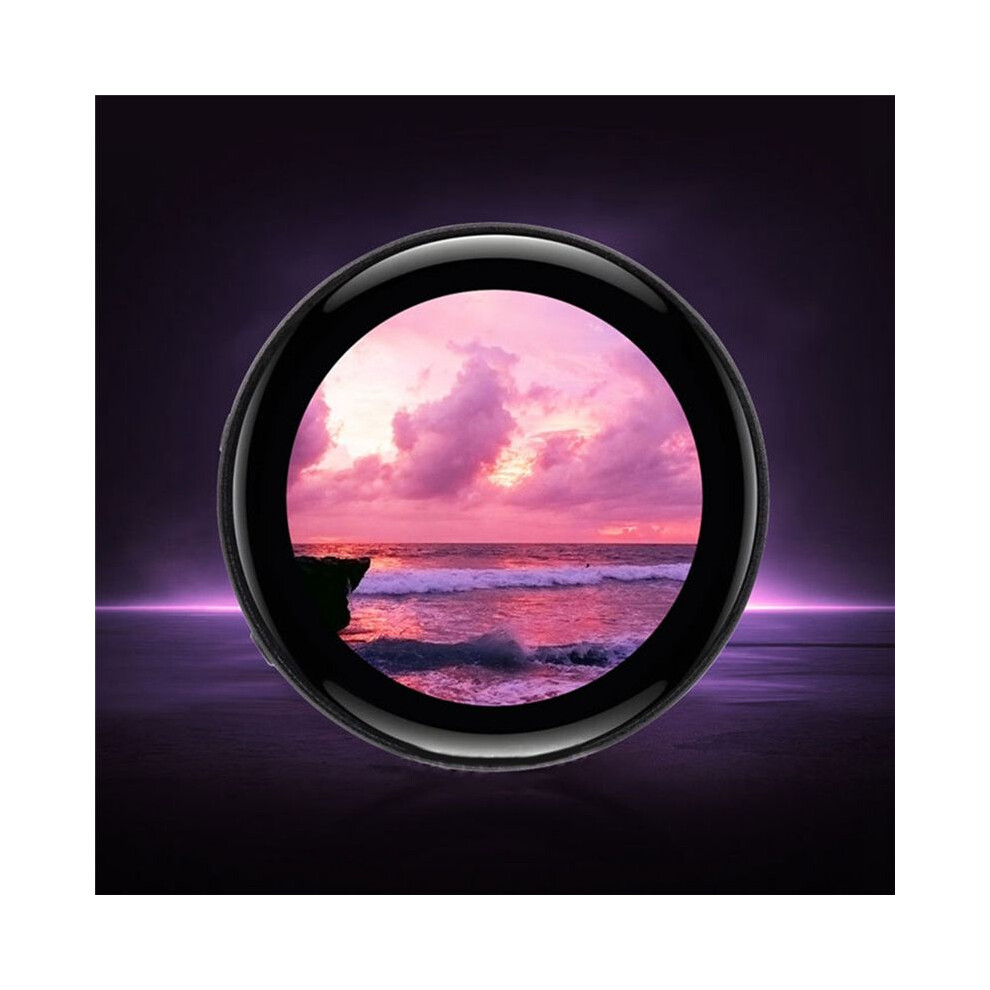

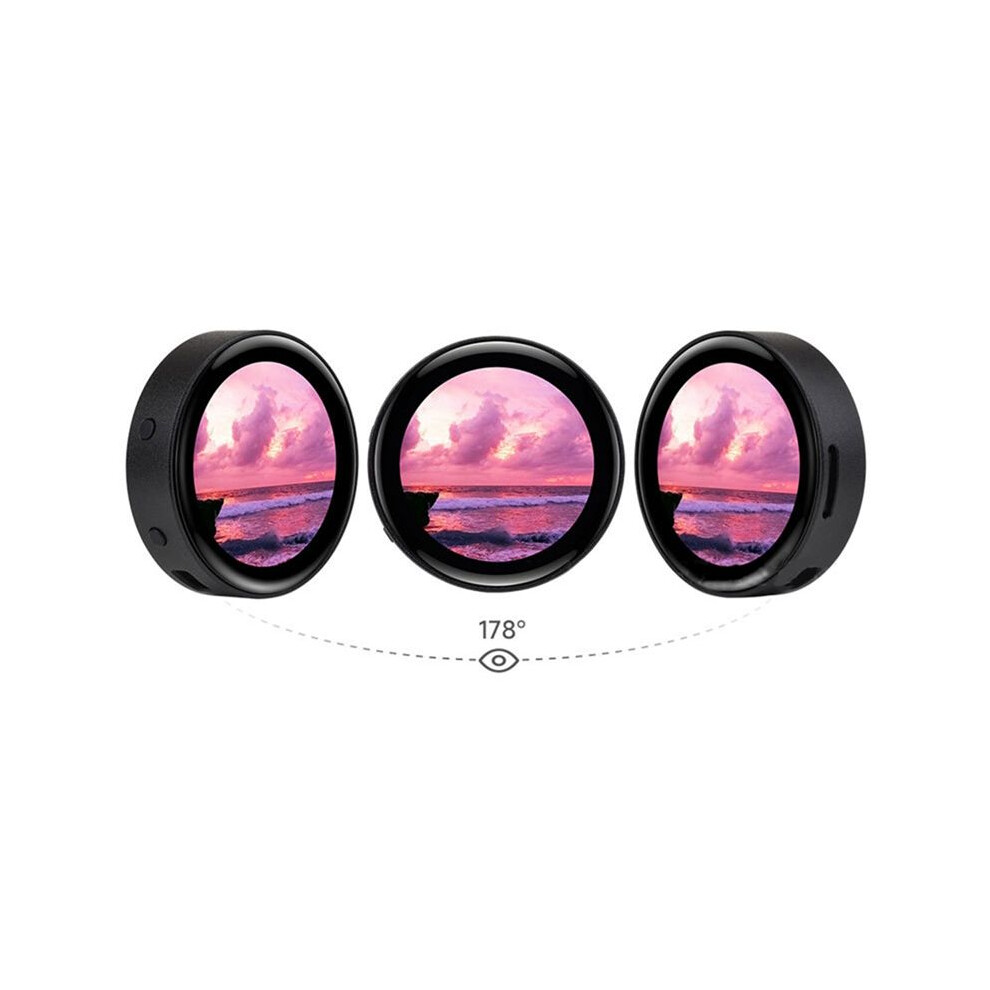

Onboard 1.43-inch AMOLED display, 466 x 466 resolution, 16.7M color
AMOLED screen display uses QSPI interface, touch uses I2C interface, capacitive touch, supports interrupt output

Onboard QMI8658 six-axis inertial measurement unit (3-axis acceleration, 3-axis gyroscope), can detect motion posture, step counting, etc.
Onboard PCF85063 RTC chip, reserved SH1.0 battery slot (supports charging), can easily realize RTC function requirements
Onboard RST, BOOT side buttons, BOOT Supports custom button functions, making development and use more flexible
Onboard 3.7V MX1.25 lithium battery charging and discharging interface
Onboard Micro- card slot, can be connected to an external Micro- card to store pictures or files
Onboard USB Type-C interface, can be used for power supply and download debugging, convenient for development and use
UART and I2C SH1.0 4PIN interface is introduced, and 2 x 14PIN 1.27mm spacing interface is reserved
Display panel: AMOLED
Display resolution: 466 x 466
Communication interface: QSPI
Touch: Supported
Display size: 1.43 inches
Display color: 16.7M
Contrast ratio: 60000:1
Driver IC: SH8601/C05300
Touch IC: FT3168
The product appearance and printed words may vary depending the batch, but this does not affect use.

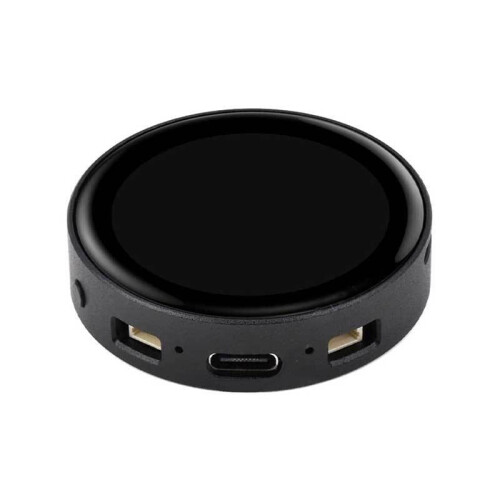

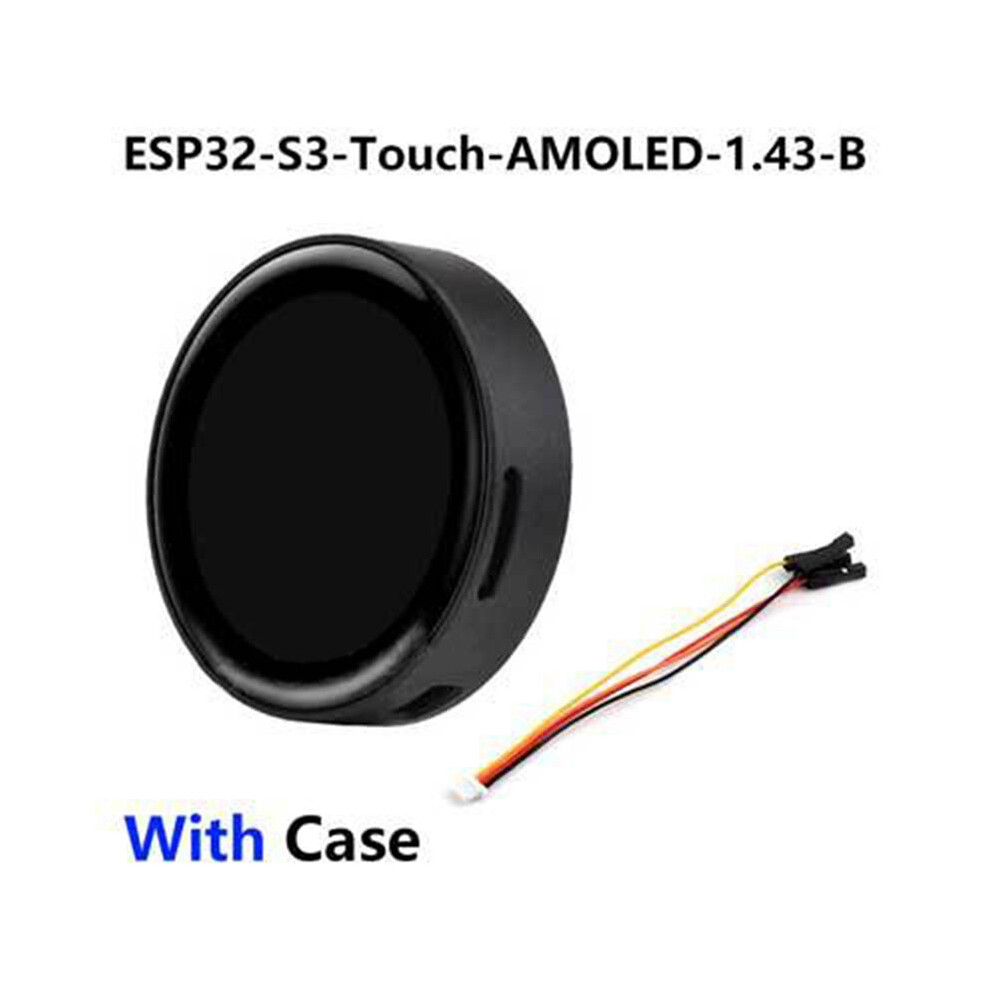

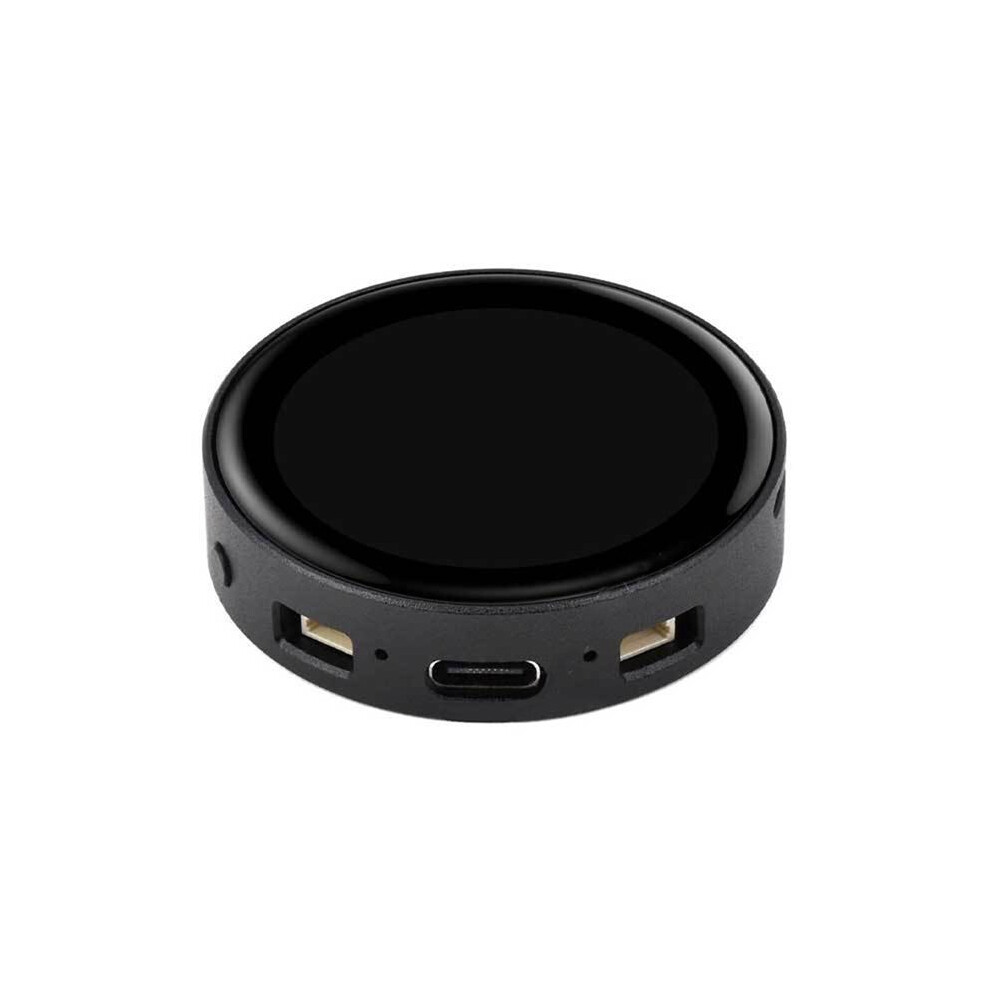

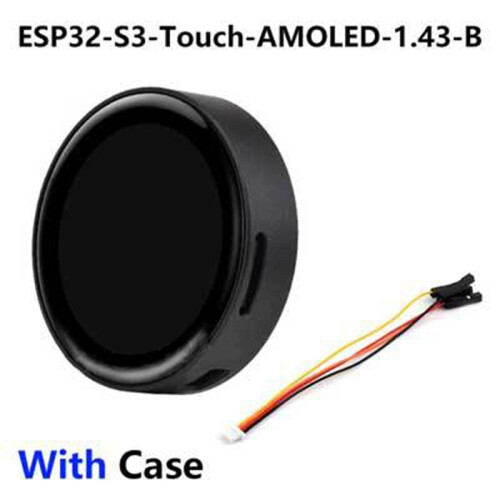

Specification:B:with shell
Colour:Black
Material:PCB+CNC

Package Contents:
1 * AMOLED Display Kit
