For Raspberry Pi 2 RP2350 1.8 Inch AMOLED Development Board Display 368x448 TouchScreen Programmable Watch QSPI A

For Raspberry Pi 2 RP2350 1.8 Inch AMOLED Development Board Display 368x448 TouchScreen Programmable Watch QSPI A Beskrivelse

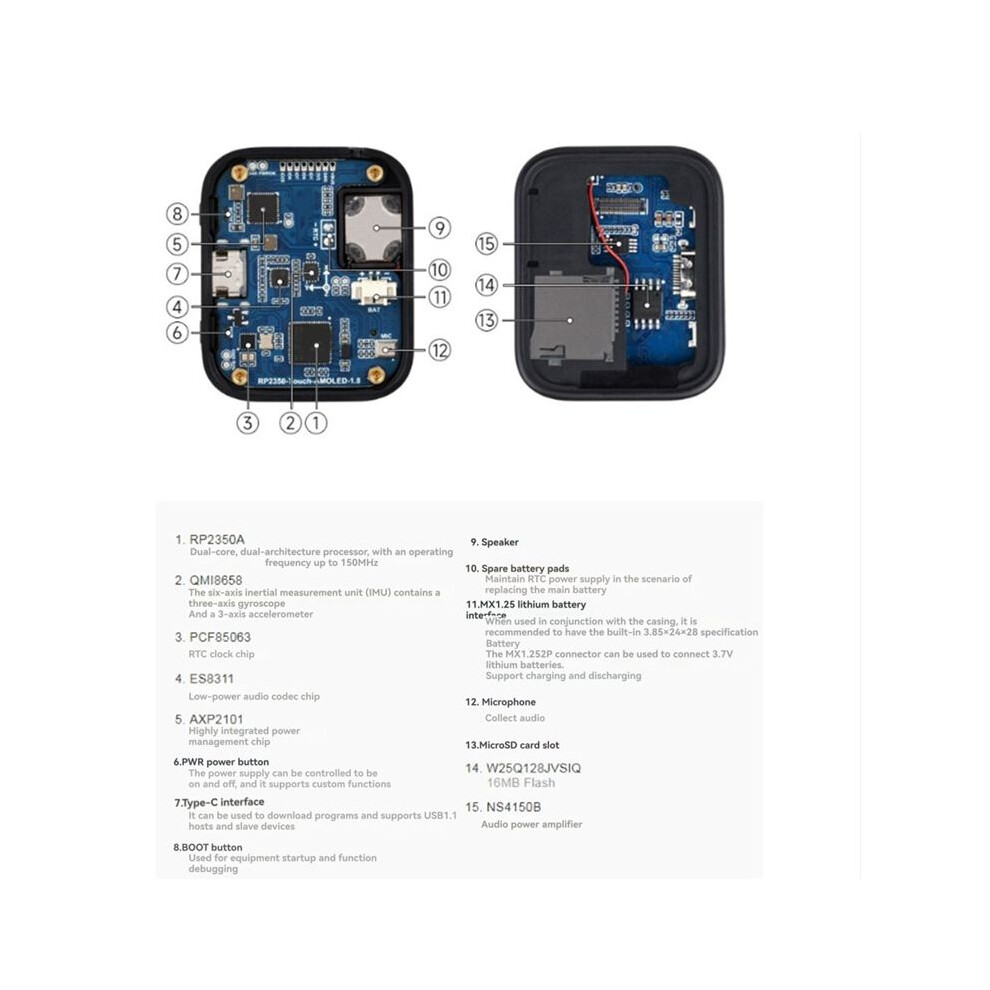

RP2350A microcontroller chip designed by for Raspberry Pi.
Unique dual-core, dual-architecture, equipped with dual-core ARM Cortex-M33 processor and dual-core Hazard3 RISC-V processor, clock running frequency to 150MHz, support users to flexibly between the two architectures.
Built-in 520KB and 16MB -chip Flash.
Using Type-C interface, no need to worry about whether to insert it forward or reverse.
Onboard 1.8-inch capacitive touch HD AMOLED screen, 368x448 resolution, 16.7M color, can clearly display color pictures.

Built-in SH8601 driver chip and FT3168 capacitive touch chip, using QSPI and I2C interface communication respectively
Onboard lithium battery charging and discharging interface, which is conducive to mobile scene use
Support USB1.1 host and slave device
Support low-power sleep and hibernation mode
Can be connected through USB Identify as mass storage for drag-and-drop program download
Bring out 5 multi-function GPIO pins
2 I2Cs, 1 UART, 1 12-bit ADC, and 5 controllable PWM channels
Precise -chip clock and timers
12 programmable I/O (PIO) state machines for custom peripheral support
Note: This development board is equipped with a lithium battery.
Due to different batches, there may be differences in product appearance, color, and printed text, which will not affect the use.
Color: As Shown
Material: ABS
Specifications: A: RP2350-Touch-AMOLED-1.8-EN [without battery version]

Package Contents:
1 x Display Development Board
