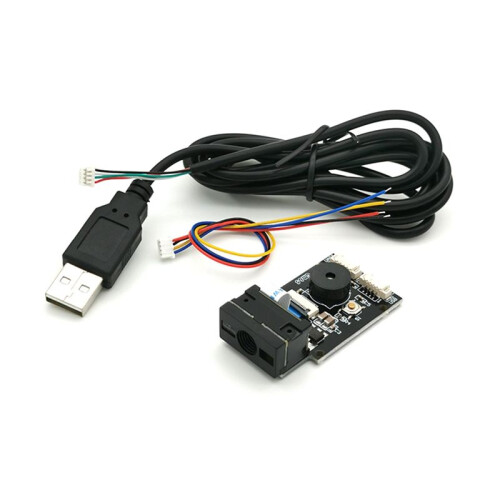

GM65 1D2D QR Code Image Barcode Identification Module Scanner Scanning Embedded Bar Code Reader Module with Cable

GM65 1D2D QR Code Image Barcode Identification Module Scanner Scanning Embedded Bar Code Reader Module with Cable Beskrivelse

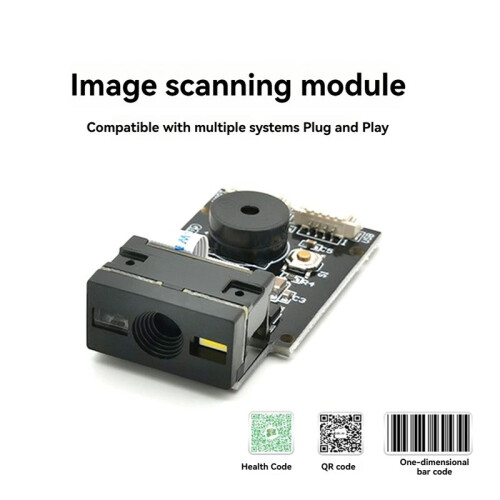

GM65 scanning device module has low power consumption, working current less than 150mA, integrated design and small size.

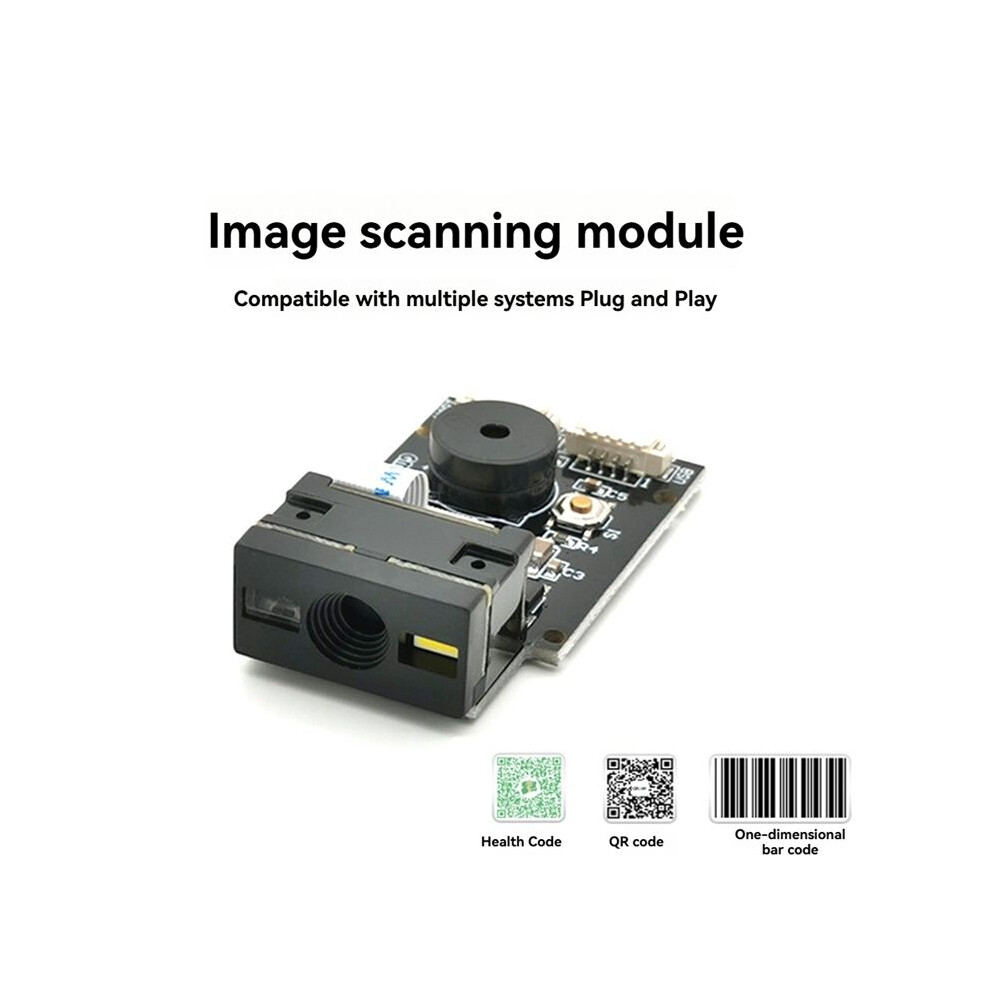

Support all common 1D barcodes and common 2D codes to directly identify the phone screen.
Please connect USB, find a barcode or QR code to scan (not the QR code in the manual), the computer? The place where you can input text will be displayed directly, such as WORD, chat window.

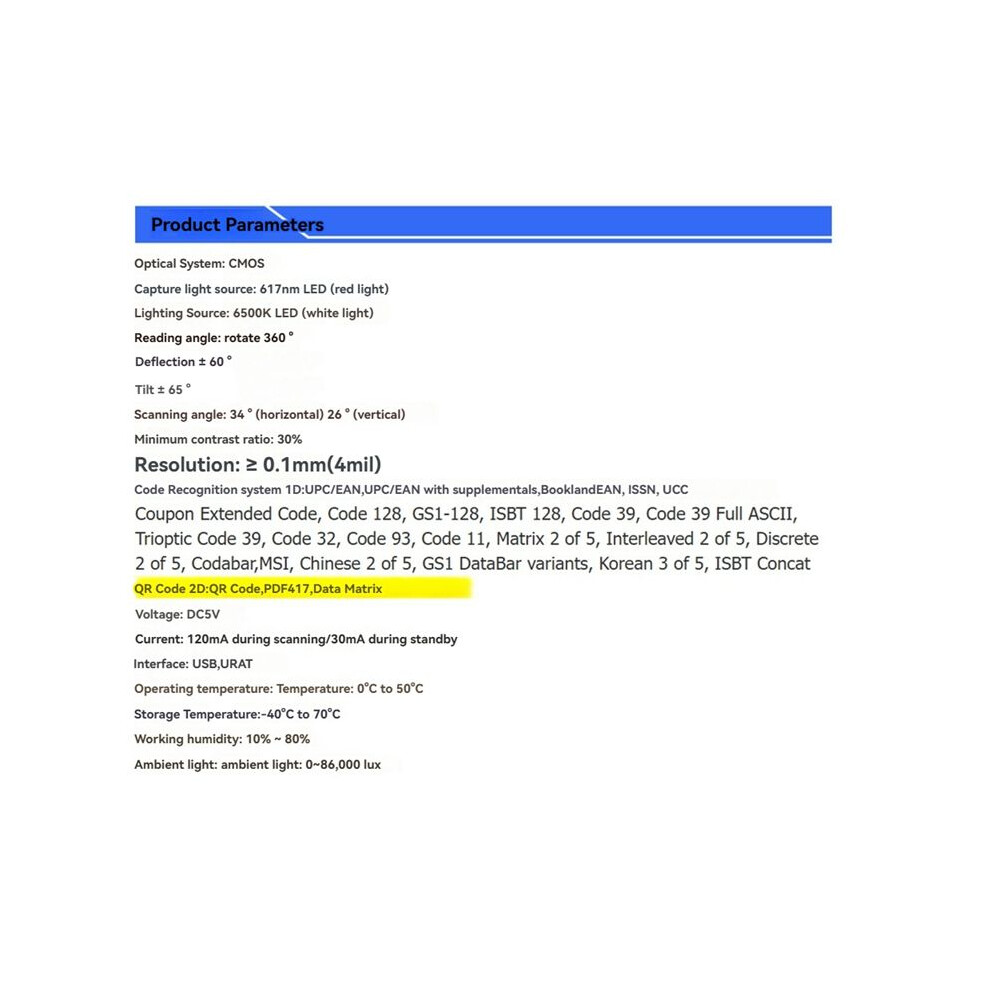

Read code system 1D: UPC/EAN, UPC/EAN with supplementals, BooklandEAN, ISSN, UCC Coupon Extended Code, Code 128, GS1-128, ISBT 128, Code 39, Code 39 Full ASCII, Trioptic Code 39, Code 32, Code 93, Code 11, Matrix 2 of 5, Interleaved 2 of 5, Discrete 2 of 5, Codabar, MSI, Chinese 2 of 5, GS1 DataBar variants, Korean 3 of 5, ISBT Concat.QR code 2D: QR Code, PDF417, Data Matrix

Hign-concerned Chemical:none
Model Number:GM65
Capture light source:617nm LED
Lighting source:6500K LED
Reading angle:Rotate 360 Deflection 60 Tilt 65

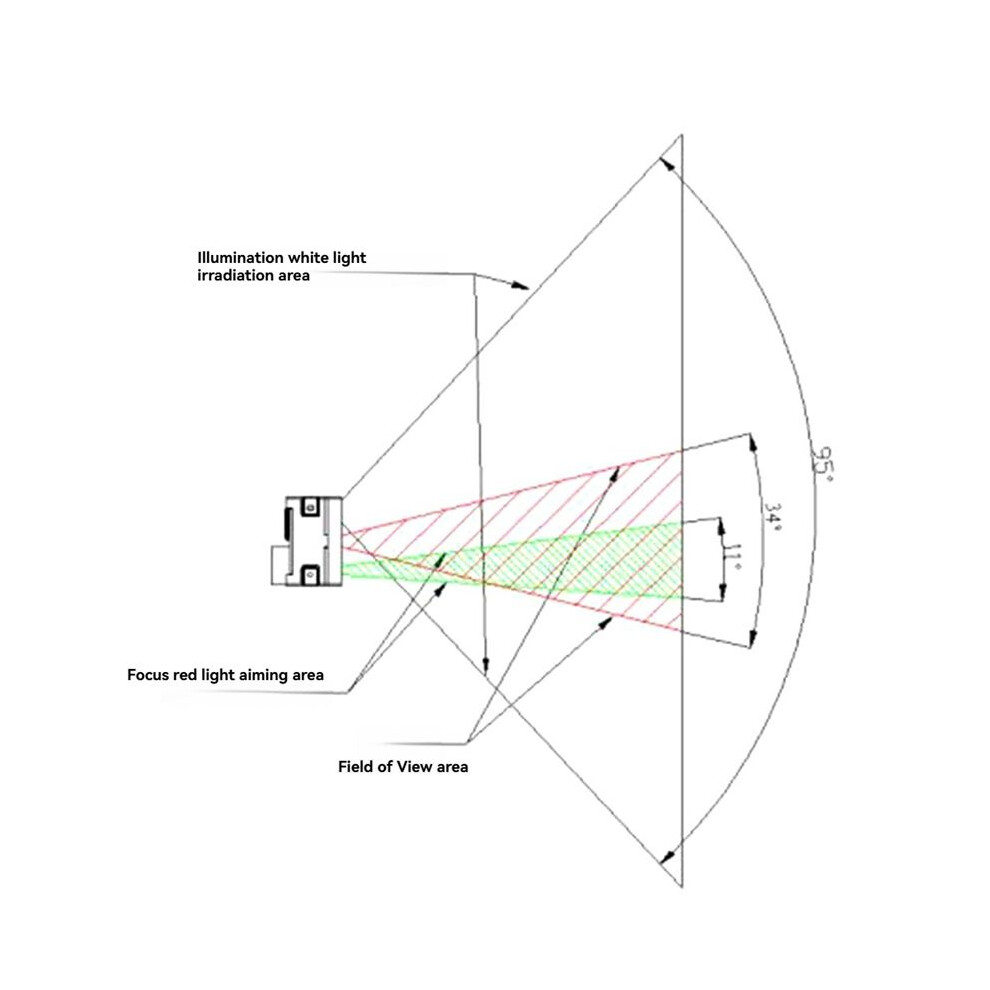

Scanning angle:34 (horizontal) 26 (vertical)
Minimum contrast:30%
Resolution:greater than equal 0. 1mm (4mil)
Voltage: 5V
Current: 120mA during scanning / 30mA during standby

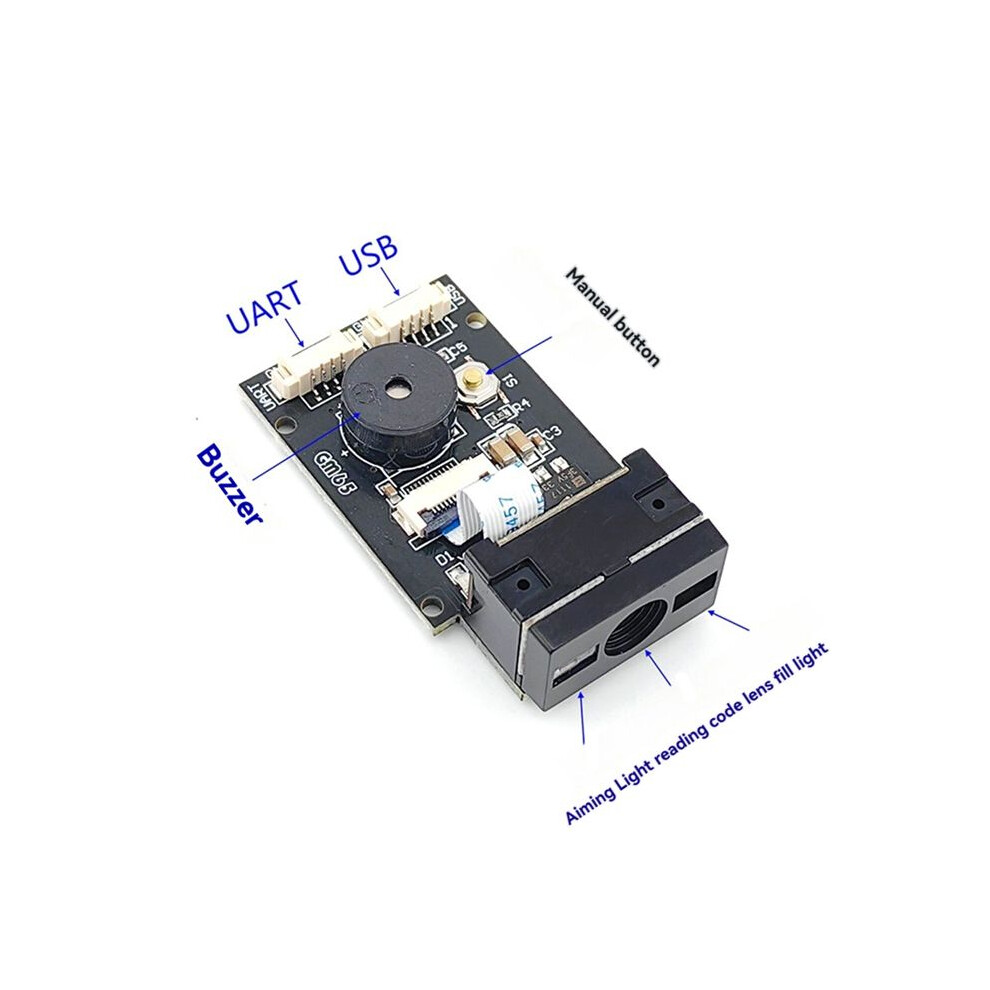

Interface: USB, URAT
Working temperature: Temperature: 0-50
Storage temperature: -40-70
Working humidity: 10% to 80%
Ambient light: Ambient light: 0-86,000 lux
Colour:As Shown
Material:PCB

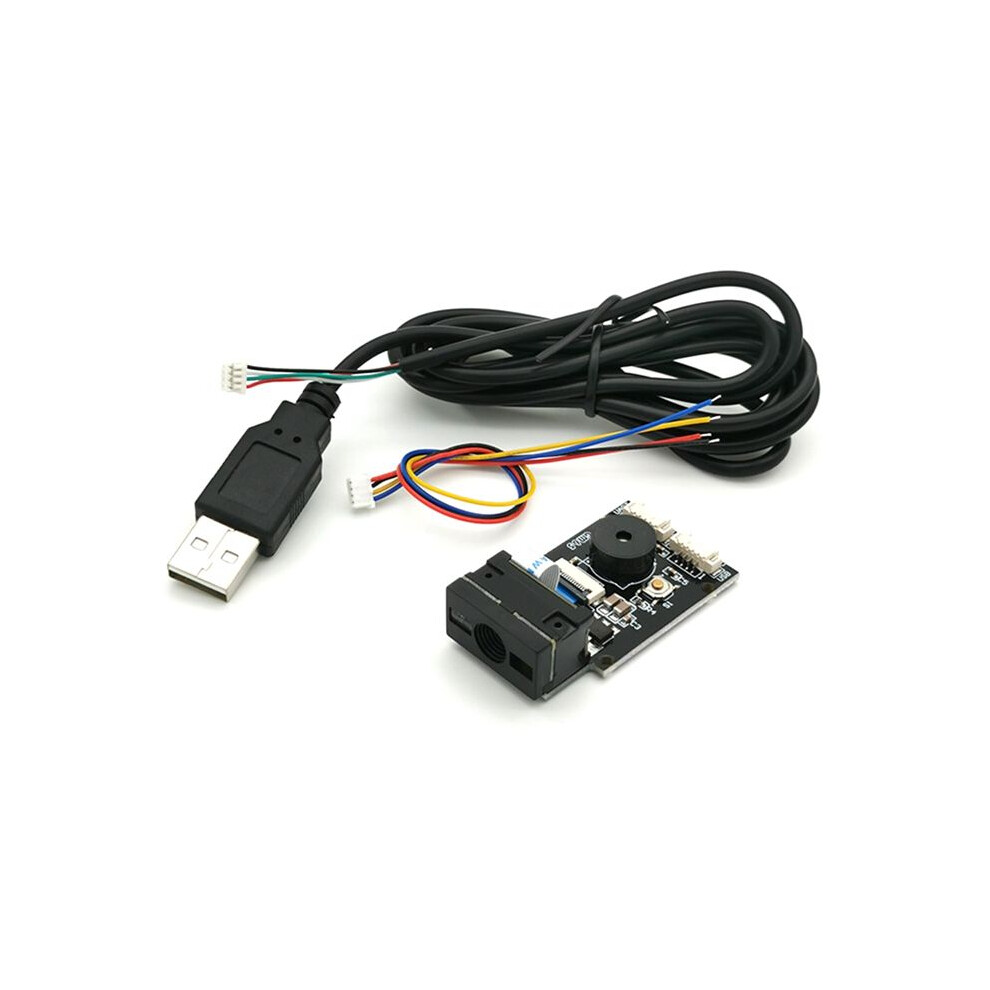

Package Contents:
1 * Module
1 * Cable
