H743-WING V3 Flight Controller 2-8S for ArduPilot RC FPV Airplane for Fixed Wing Drones

H743-WING V3 Flight Controller 2-8S for ArduPilot RC FPV Airplane for Fixed Wing Drones Beskrivelse

MCU: STM32H743VIT6, 480MHz, 1MB RAM, 2MB Flash
High-precision Current Sense (90A continuous, 220A )
Input voltage range: 8~36V (3~8S LiPo) w/TVS protection
Continuous current 2 Amps, 3A for BEC 5V output
Voltage adjustable, 5V Default, 6V or 7.2V via jumper for BEC Vx output

FC Specifications
ICM: 42688-P (SPI1) & ICM42688-P (SPI4)
Baro: Infineon DPS368 (I2C2)
OSD: AT7456E (SPI2)
: MicroSD card slot (SDIO)
USB/Beep Extender with Type-C(USB2.0)
Dual Camera Inputs
5V/9V(12V) for Camera/VTX power
Battery Voltage Sensor: 1K:10K (Scale 1100 in INAV, BATT_VOLT_MULT 11.0 in ArduPilot)
ADC VB2 voltage divider: 1K:20K
ADC AirSpeed voltage divider: 20K:20K
Static power 160mA@5V
FC Firmware
ArduPilot(ChiBiOS): MATEKH743
INAV: MATEKH743
PDB
Current Sensor: 220A, 3.3V ADC (Scale 150 in INAV, 66.7 A/V in ArduPilot)
Sense resistor: 90A continuous, 220A .
Designed for Flight controller, Receiver, OSD, Camera, Buzzer, 2812 LED_Strip, Buzzer, AirSpeed
Output 5.15 +/- 0.1V
Designed for Video Transmitter, Camera, Gimbal etc.
12V option with Jumper pad
Color:
Material: PCB

Package Contents:

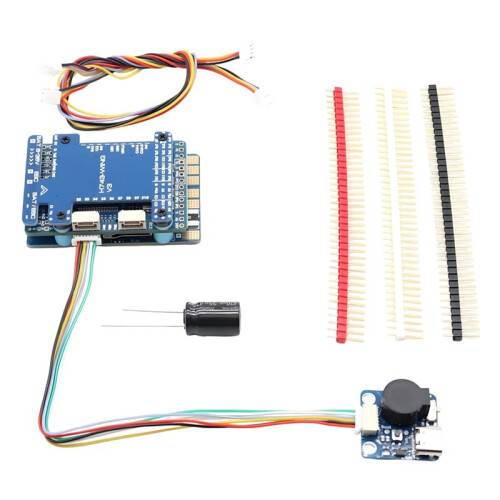

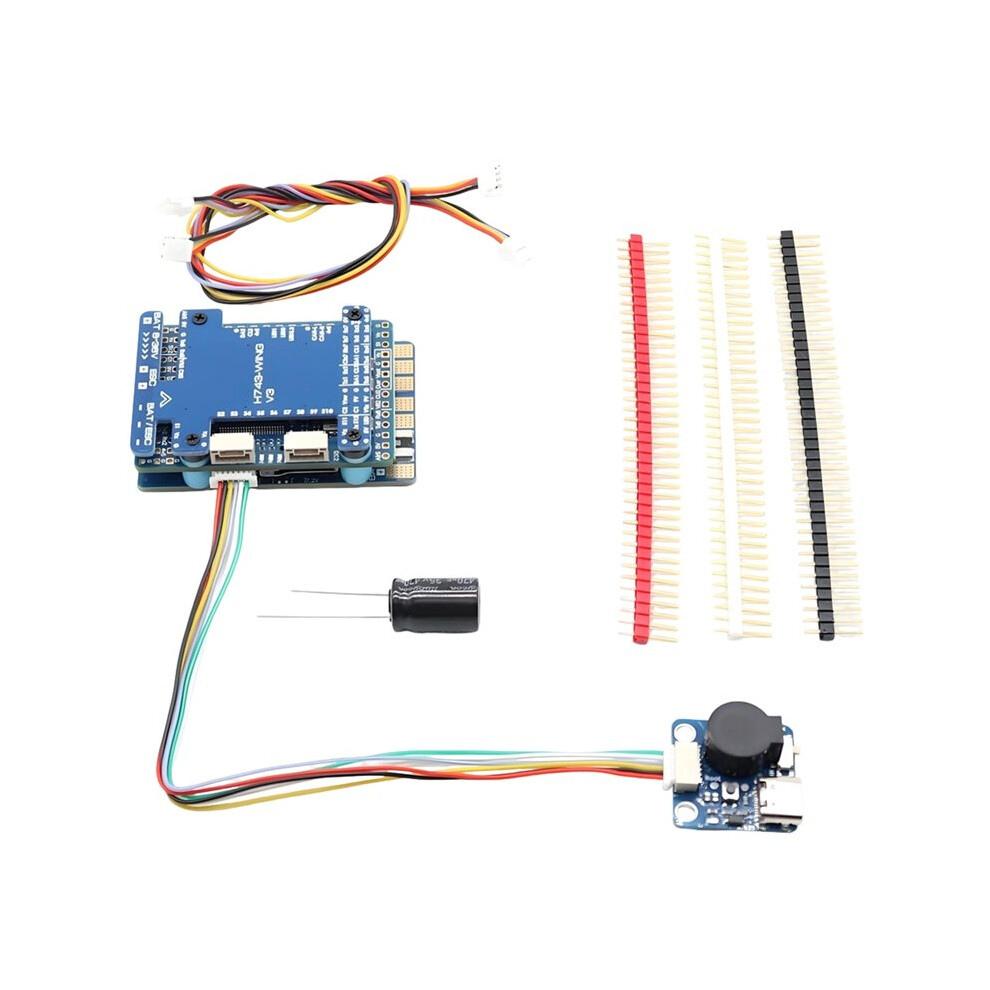

1*H743-WING V3 Flight Controller kit
