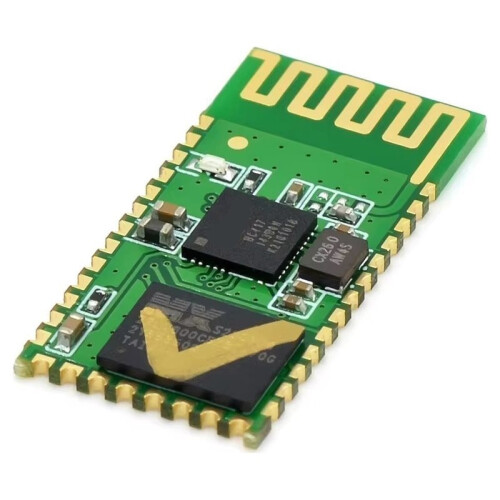

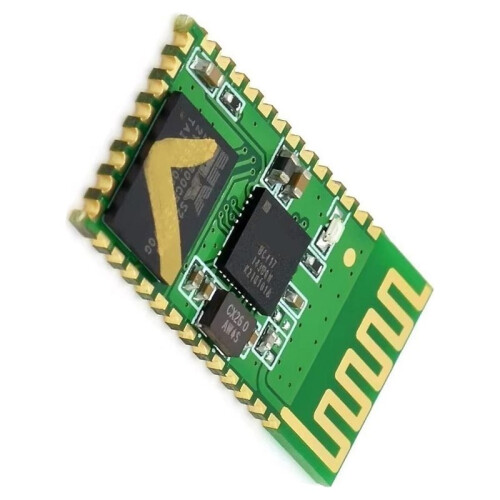

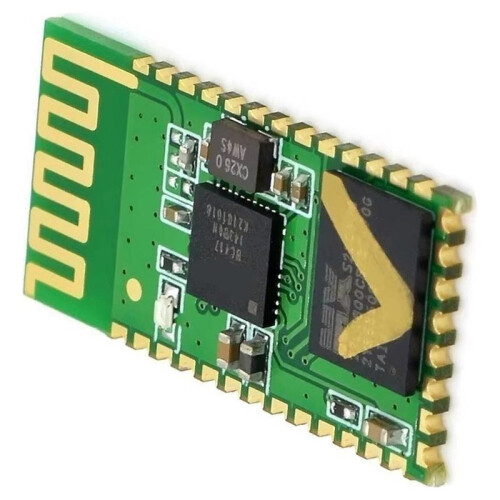

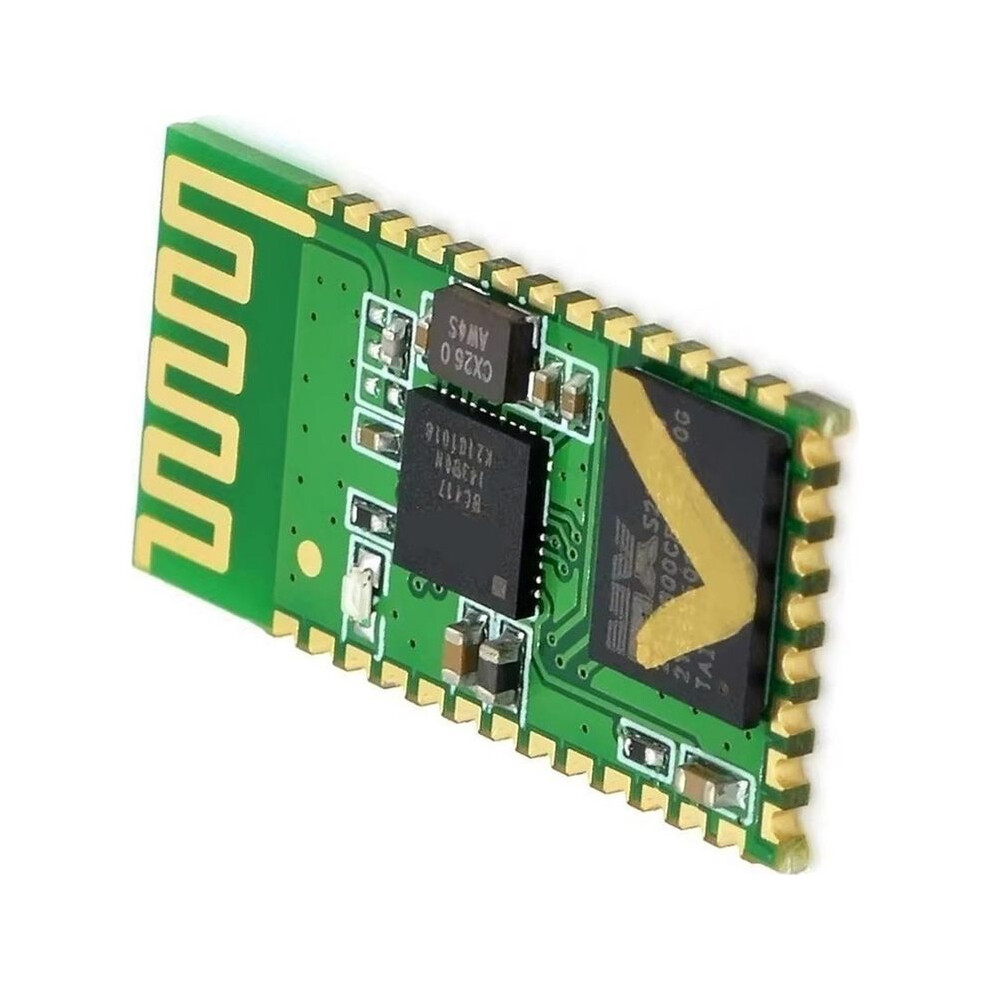

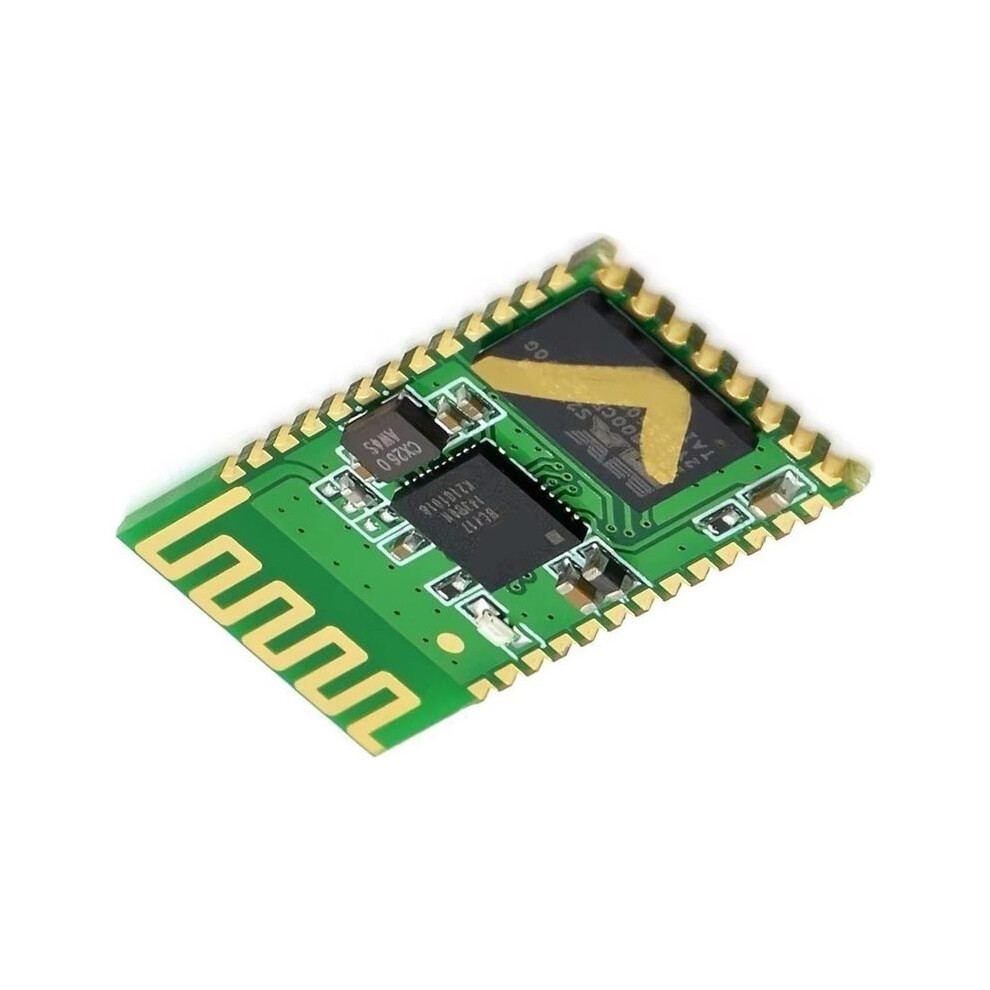

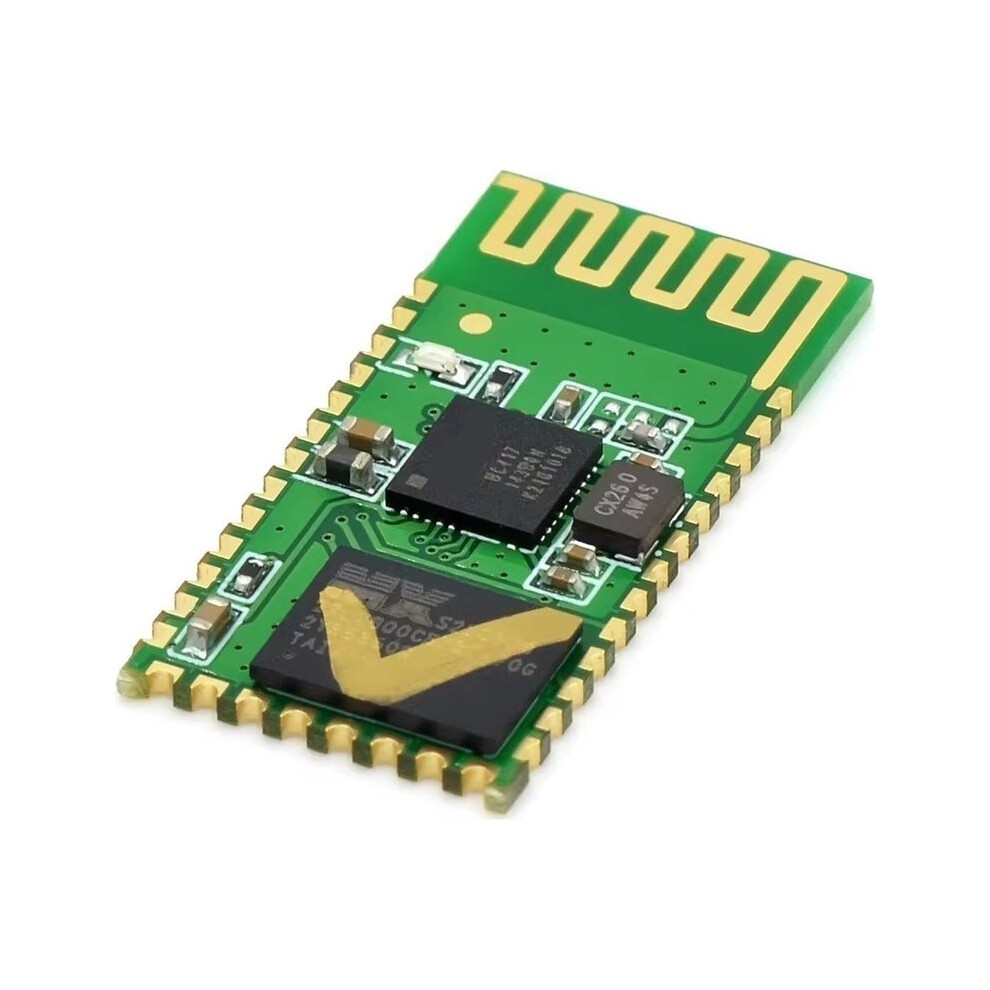

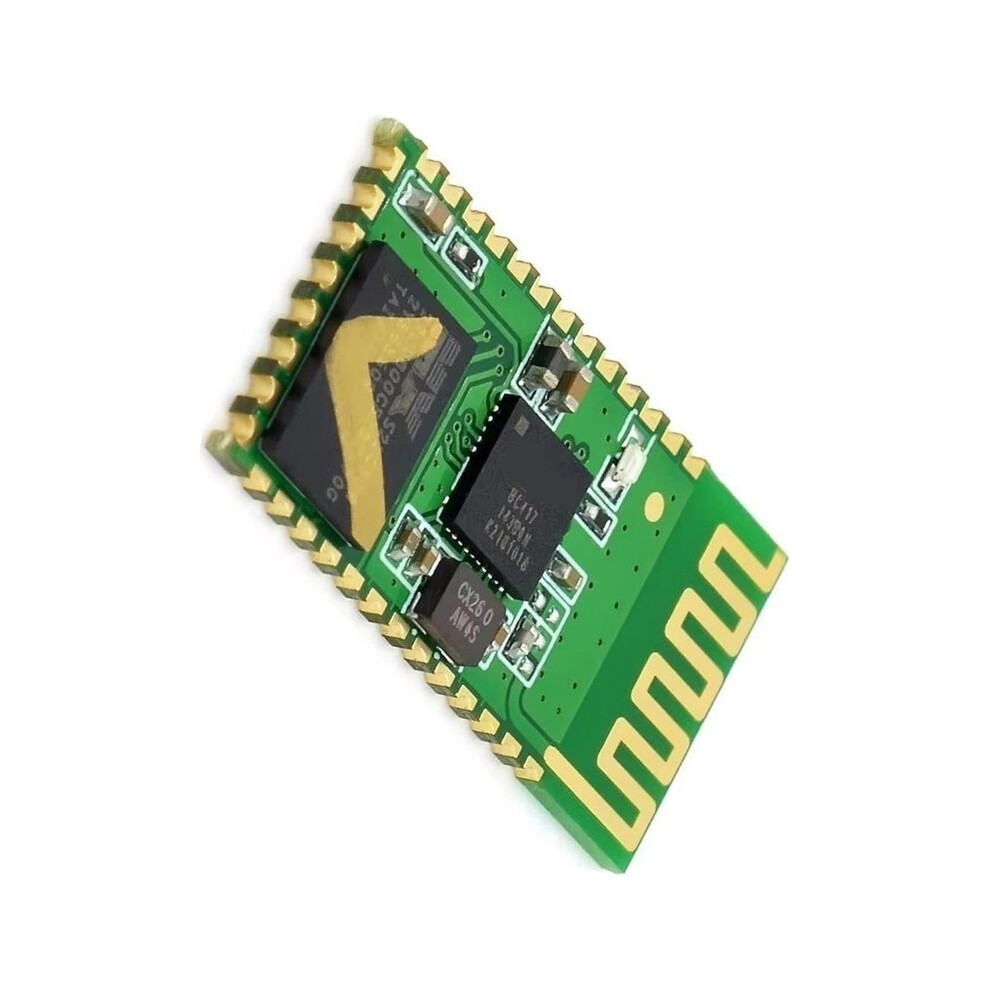

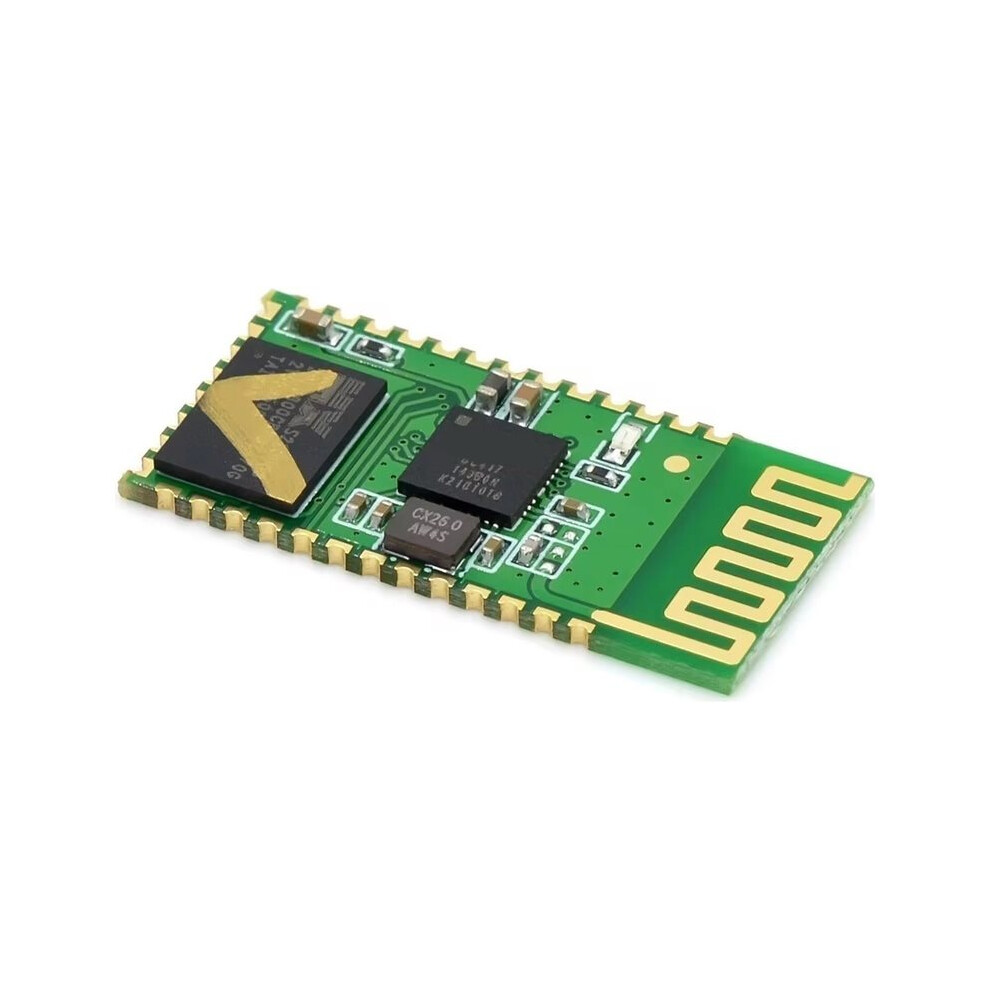

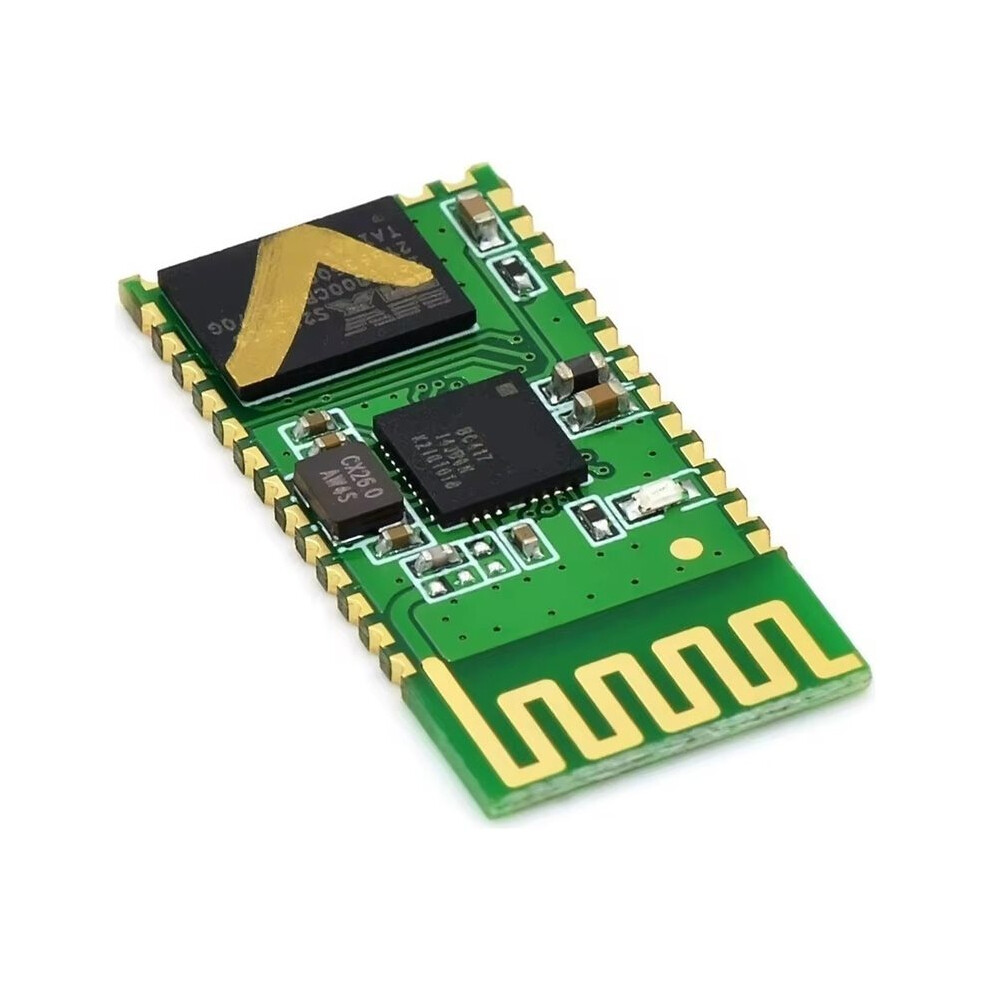

HC-05 to Serial Module HC 05 Serial Module Embedded Serial Communication Module

HC-05 to Serial Module HC 05 Serial Module Embedded Serial Communication Module Beskrivelse

The HC-05 is a serial module capable of operating in either master or slave mode; the mode can be switched via commands, and it supports a comprehensive set of commands. Power supply voltage: 3.3V. Current draw is approximately 2-8mA when unpaired and about 20mA when paired. Strictly avoid reverse polarity when connecting power!
Interface logic level: 3.3V. Can connect directly to various microcontrollers (51, AVR, , ARM, MSP430, etc.). Direct connection to 5V microcontrollers is also supported; no MAX232 is required, nor should a MAX232 be used.
The LED pin indicates the connection status: a pulsed output signifies no connection, while a high output indicates that is connected and the port is open.
Interface logic level: 3.3V. Can connect directly to various microcontrollers (51, AVR, , ARM, MSP430, etc.). Direct connection to 5V microcontrollers is also supported; no MAX232 is required, nor should a MAX232 be used.
This module is primarily designed for short-range wireless data transmission. It allows for easy connection to PC devices and enables data exchange between two modules. It eliminates the need for cumbersome cabling and serves as a direct replacement for serial cables.

Product Description
1. Uses a mainstream CSR chip; complies with the V2.0 protocol standard.
2. Serial port module operating voltage: 3.3V; typical range: 10 meters.
3. Default factory baud rate: 9600 (user-configurable).
4. Supports software configuration for Master/Slave modes.
5. Operating status indication: Outputs signals for connected and disconnected states, facilitating status monitoring by the MCU.
6. Operating current: Pairing (30-40mA); Paired but idle (2-8mA); Active communication (8mA).
7. Sleep current: No sleep mode.
8. Seamless con
