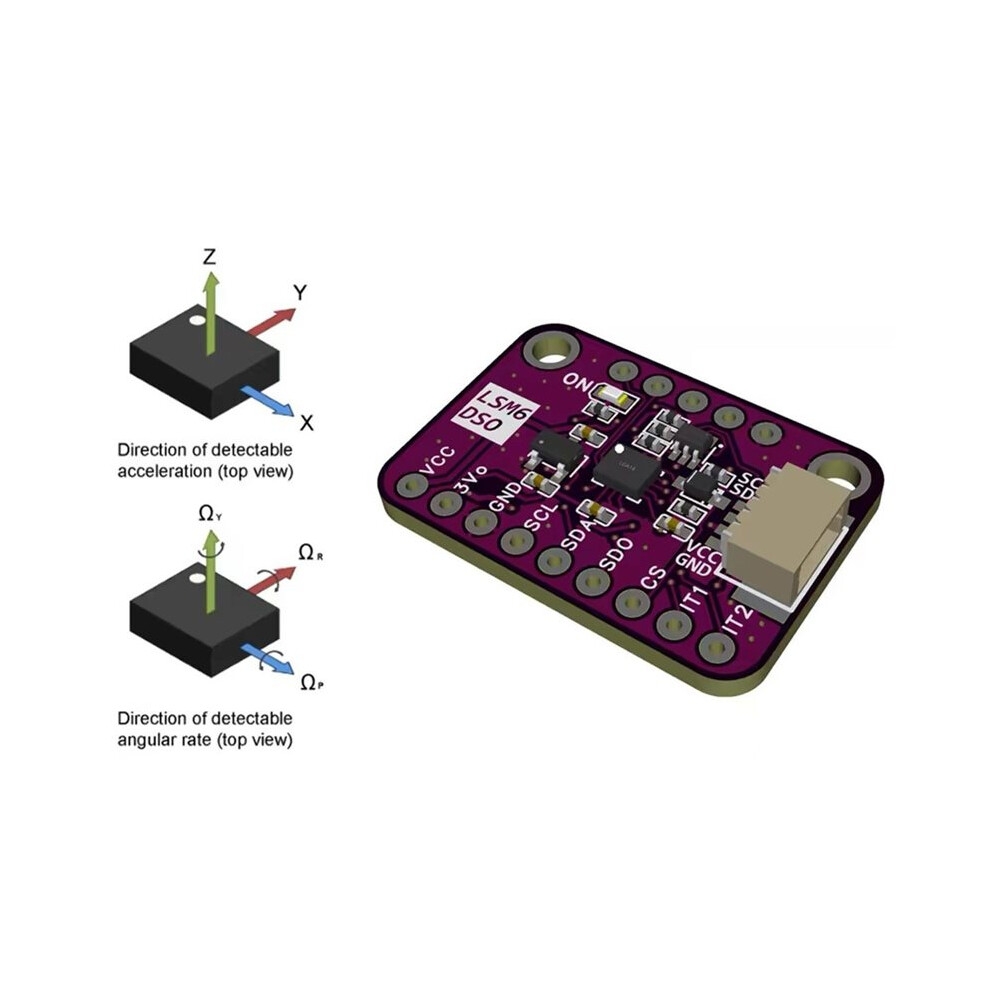

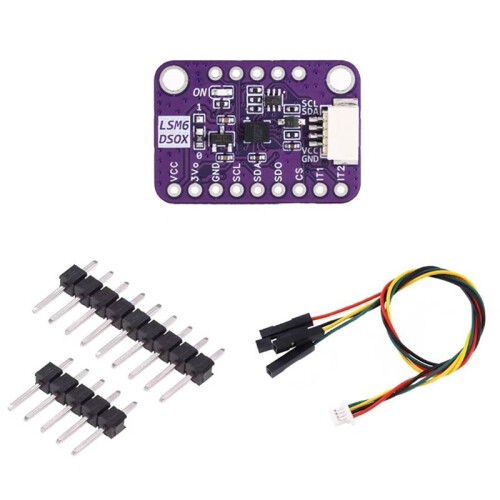

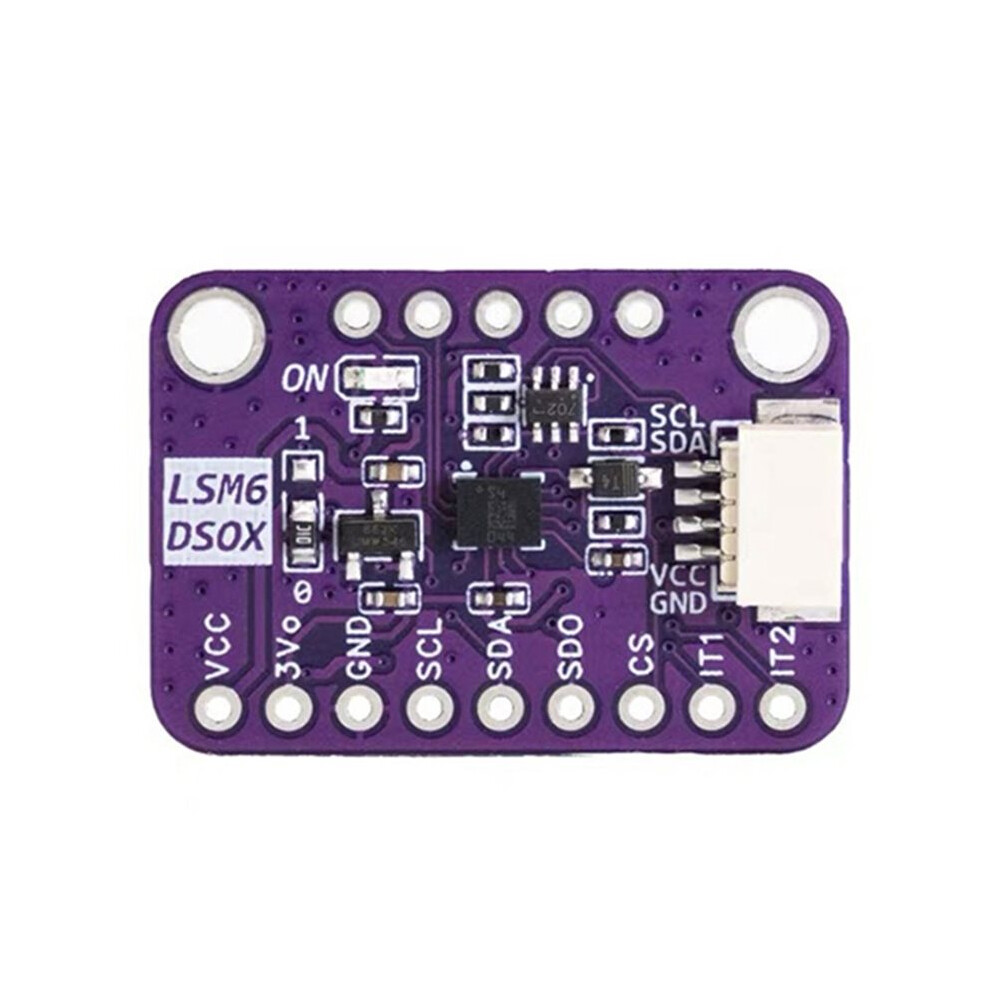

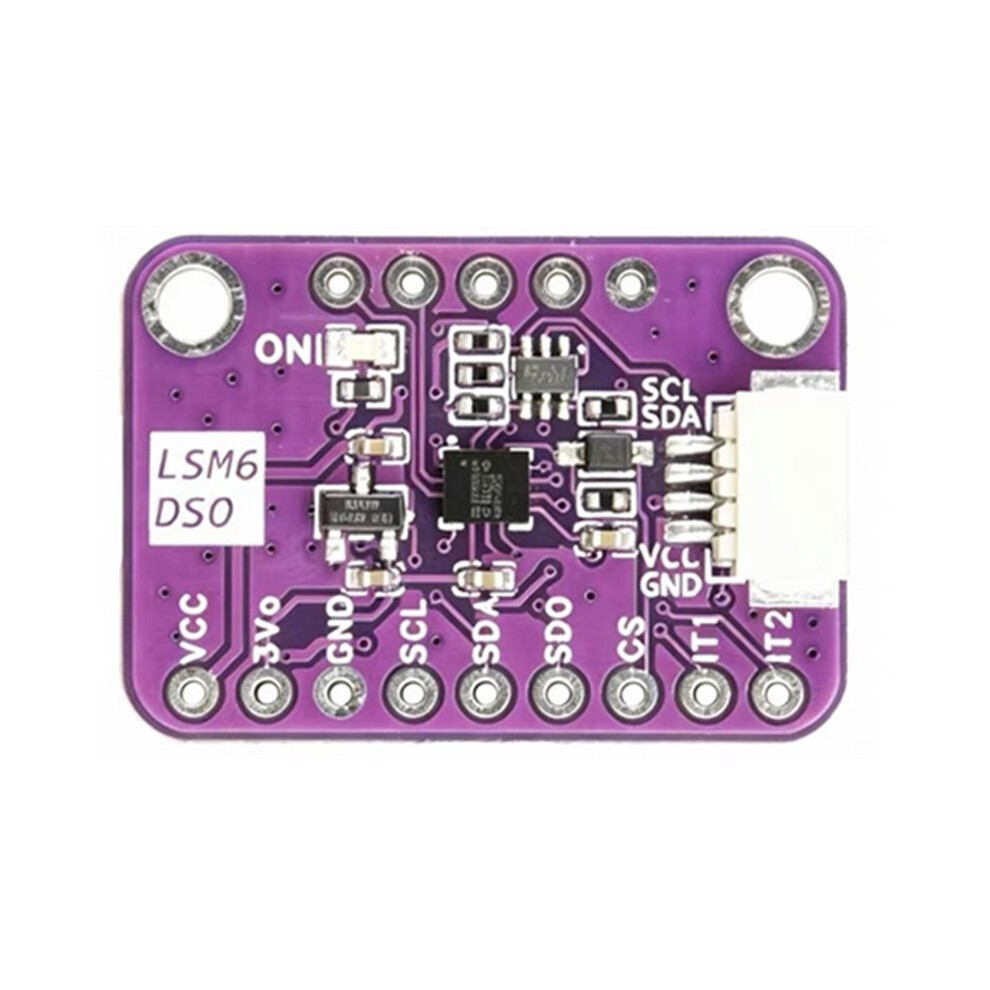

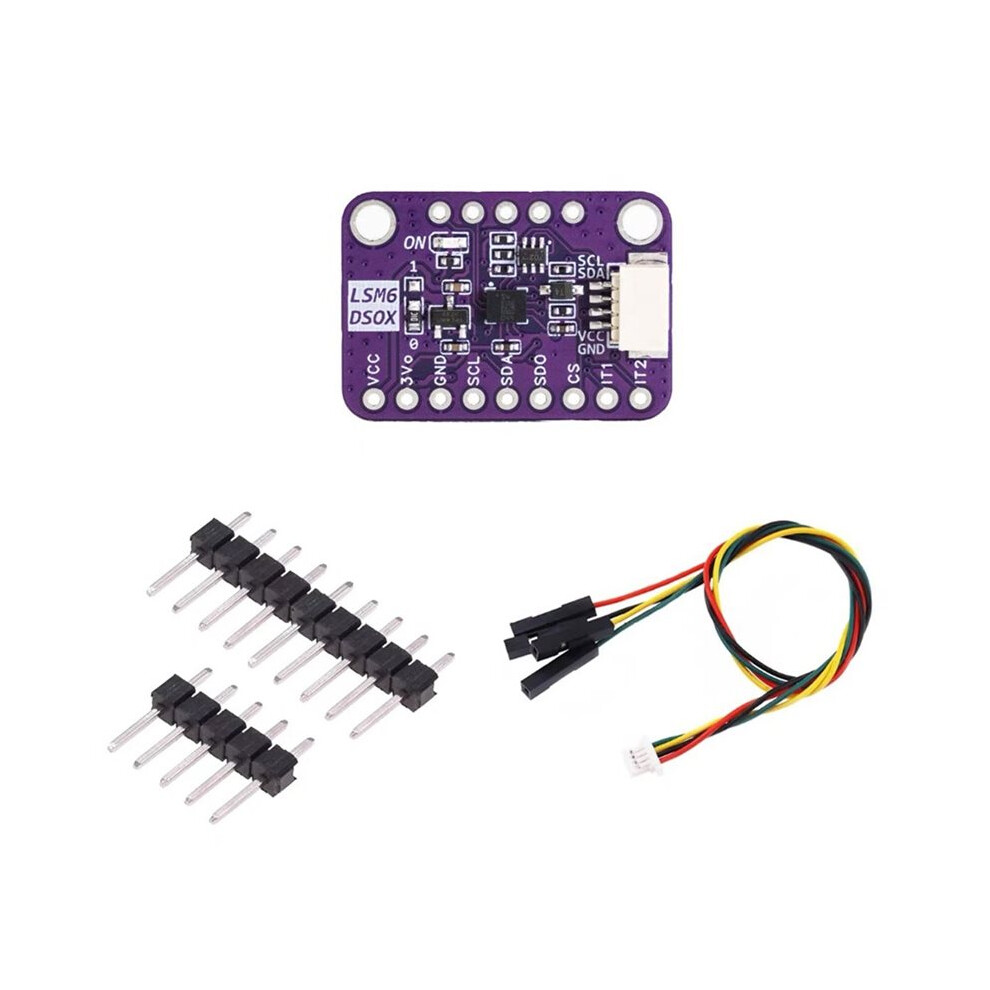

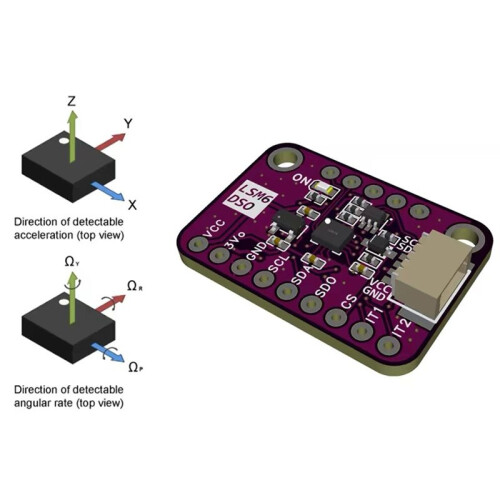

LSM6DSO Module 6-Axis Sensor with 3-Axis Accelerometer 3-Axis Gyroscope High-Performance Attitude Sensing LSM6DSOX

LSM6DSO Module 6-Axis Sensor with 3-Axis Accelerometer 3-Axis Gyroscope High-Performance Attitude Sensing LSM6DSOX Beskrivelse

Note: The LSM6DSO module and LSM6DSOX module are optional. Please confirm before ordering.


Features

Low Power: Only 0.55 mA in high-performance mode (LED excluded)

Wide Measurement Range:

Accelerometer: 2/4/8/16 g

Gyroscope: 125/250/500/1000/2000 dps

Large Buffer: 9 KB FIFO

Multiple Interfaces: SPI / I²C / MIPI I3C

Built-in Temperature Sensor

Motion Detection: Tilt, free-fall, wake-, 6D/4D orientation, tap/double-tap, step counting

Programmable Finite State Machine: Supports accelerometer, gyroscope, and external sensors

Specifications

Resolution: 16-bit digital output

Sensitivity (typical):

2 g: 0.061 /LSB

125 dps: 4.375 mdps/LSB

Noise Density:

Accelerometer: ~70 μg/Hz (2 g range)

Gyroscope: ~0.65 mdps/Hz (125/250 dps range)

Temperature Drift:
