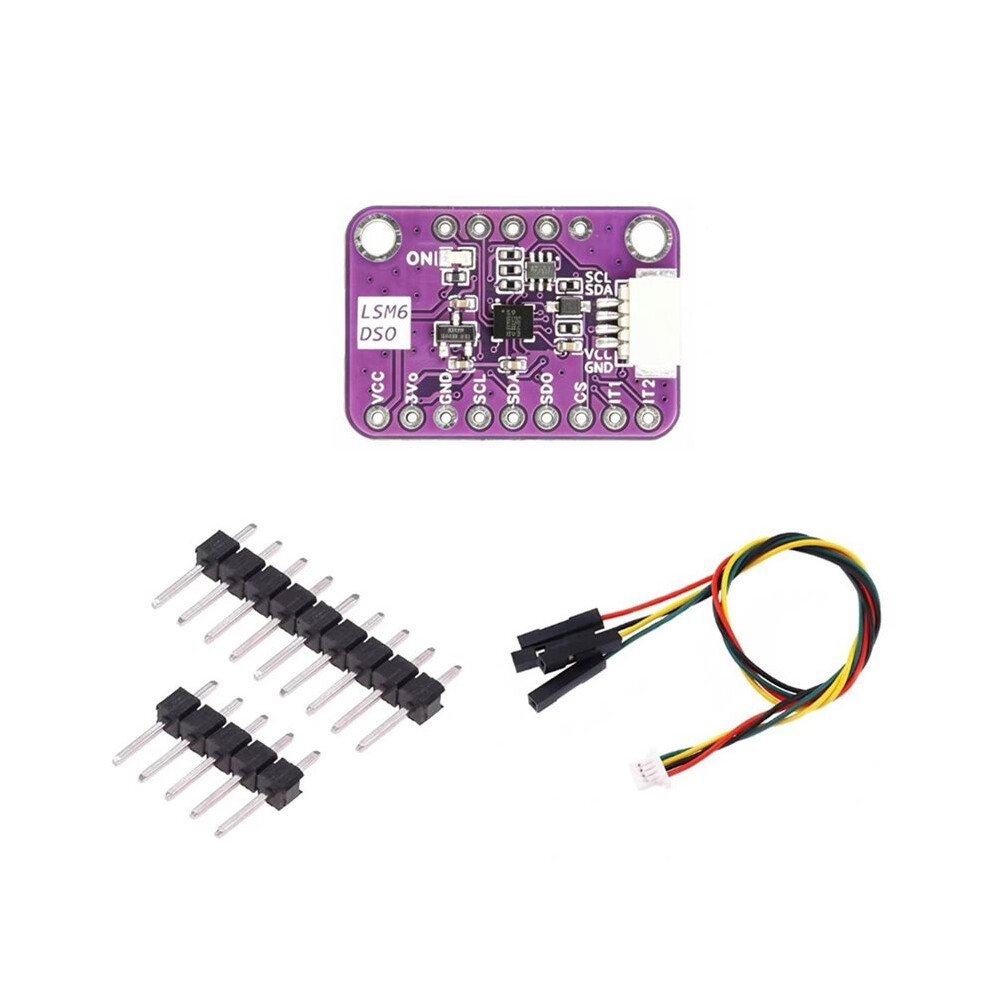

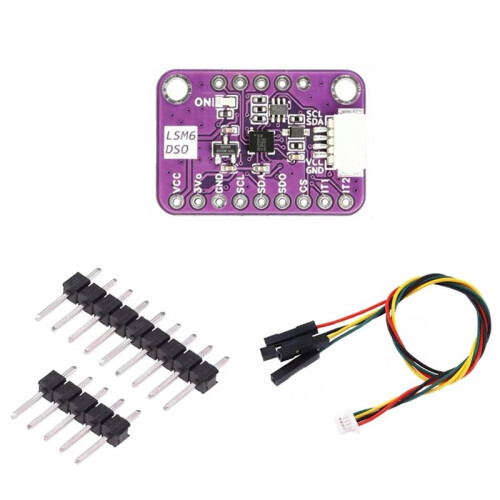

LSM6DSO Module 6-Axis Sensor with 3-Axis Accelerometer 3-Axis Gyroscope High-Performance Attitude Sensing LSM6DSO

LSM6DSO Module 6-Axis Sensor with 3-Axis Accelerometer 3-Axis Gyroscope High-Performance Attitude Sensing LSM6DSO Beskrivelse

Note: The LSM6DSO module and LSM6DSOX module are optional. Please confirm before ordering.

Features
Low Power: Only 0.55 mA in high-performance mode (LED excluded)
Wide Measurement Range:
Accelerometer: 2/4/8/16 g
Gyroscope: 125/250/500/1000/2000 dps
Large Buffer: 9 KB FIFO
Multiple Interfaces: SPI / I²C / MIPI I3C
Built-in Temperature Sensor
Motion Detection: Tilt, free-fall, wake-, 6D/4D orientation, tap/double-tap, step counting
Programmable Finite State Machine: Supports accelerometer, gyroscope, and external sensors
Specifications
Resolution: 16-bit digital output
Sensitivity (typical):
2 g: 0.061 /LSB
125 dps: 4.375 mdps/LSB
Noise Density:
Accelerometer: ~70 μg/Hz (2 g range)
Gyroscope: ~0.65 mdps/Hz (125/250 dps range)
Temperature Drift:
