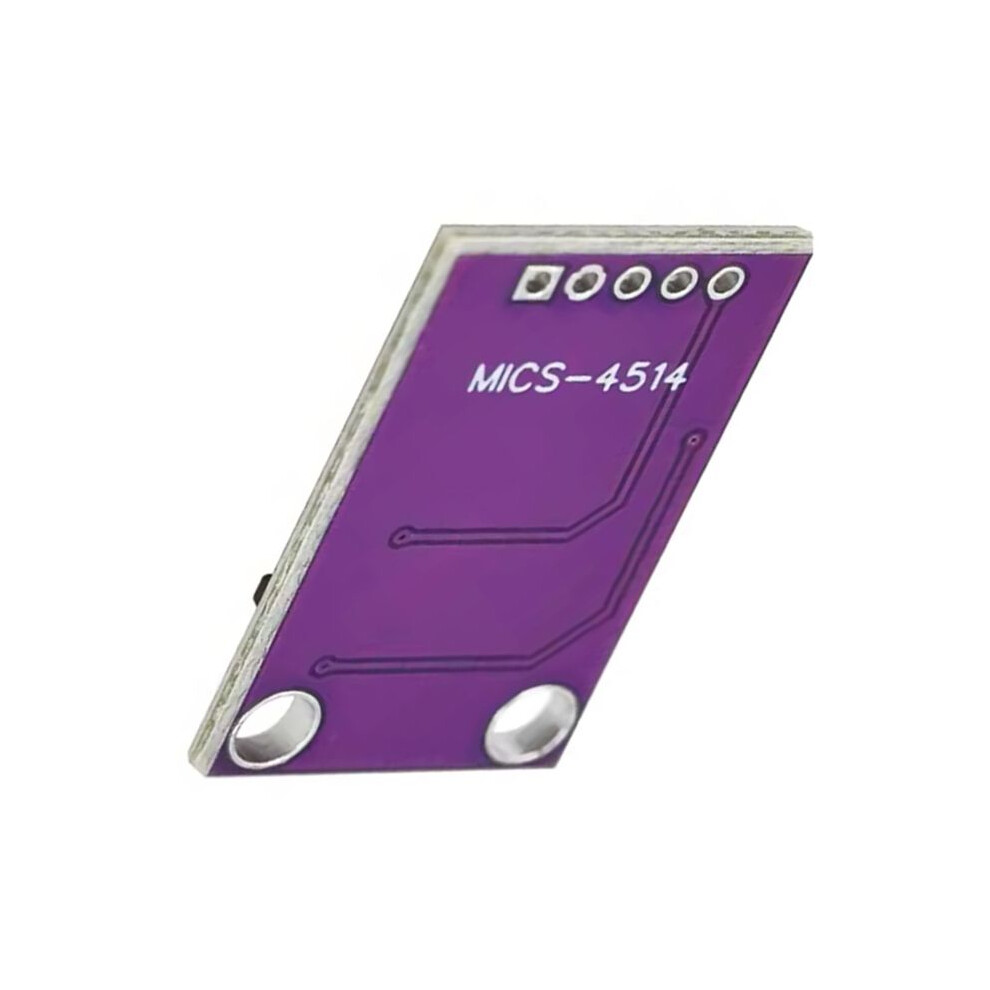

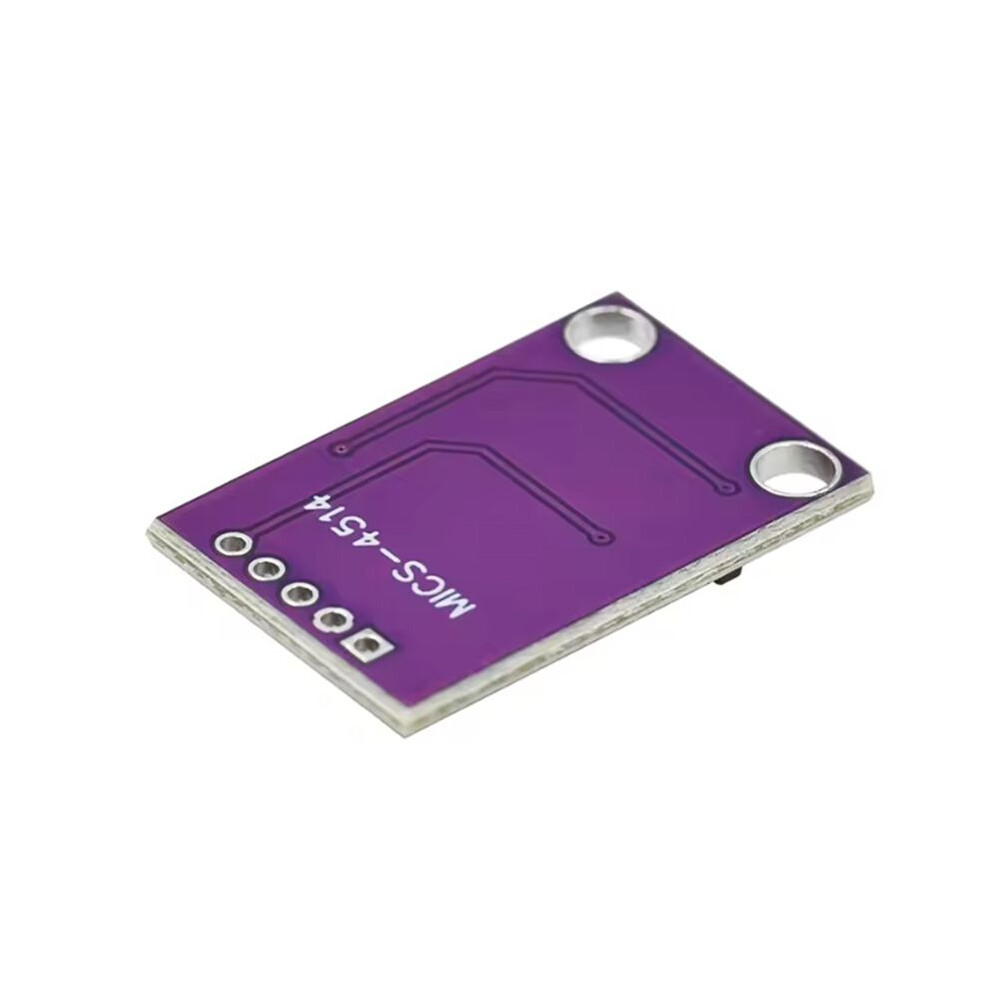

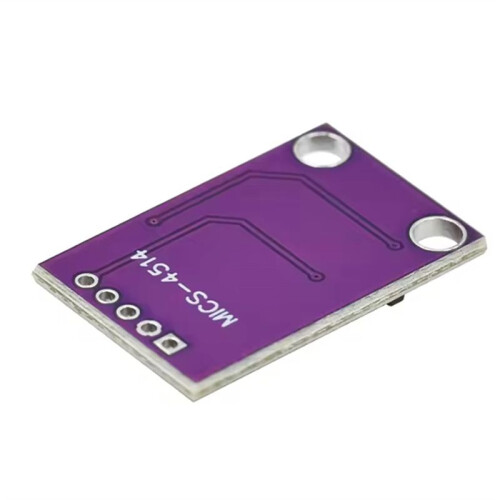

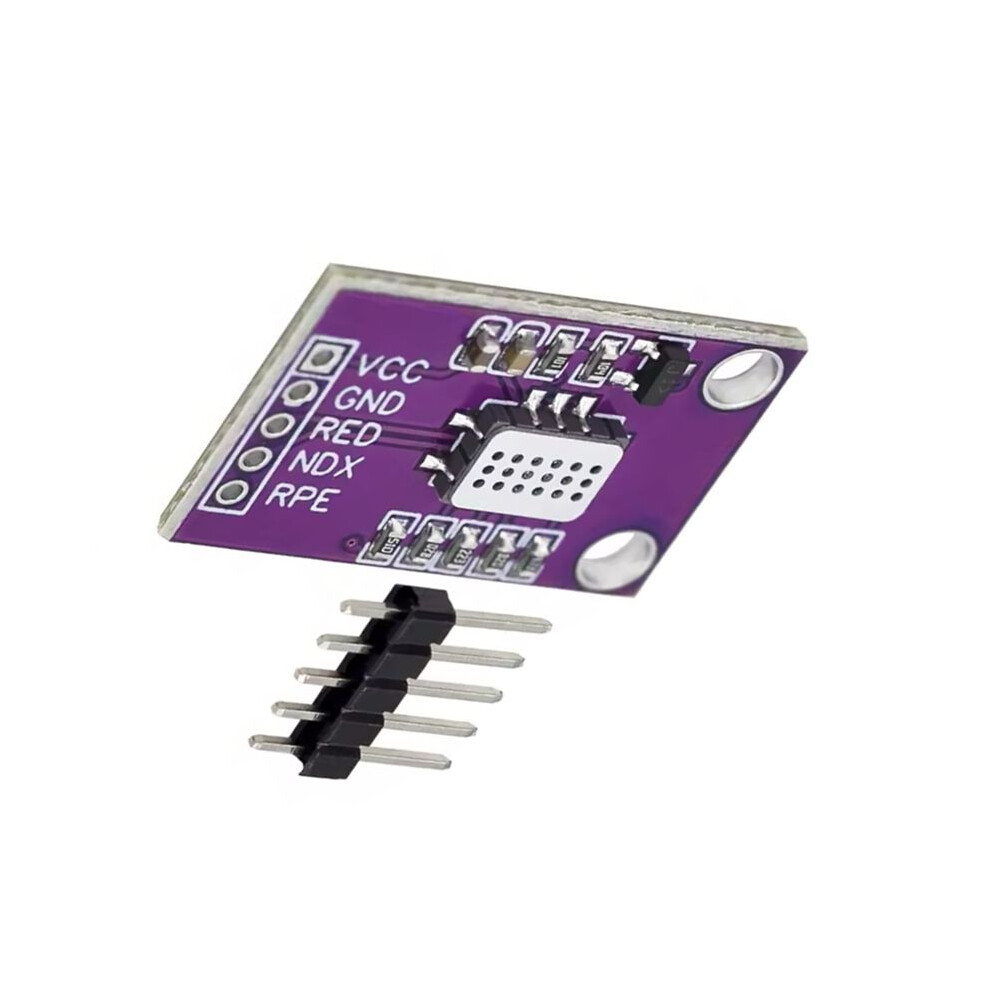

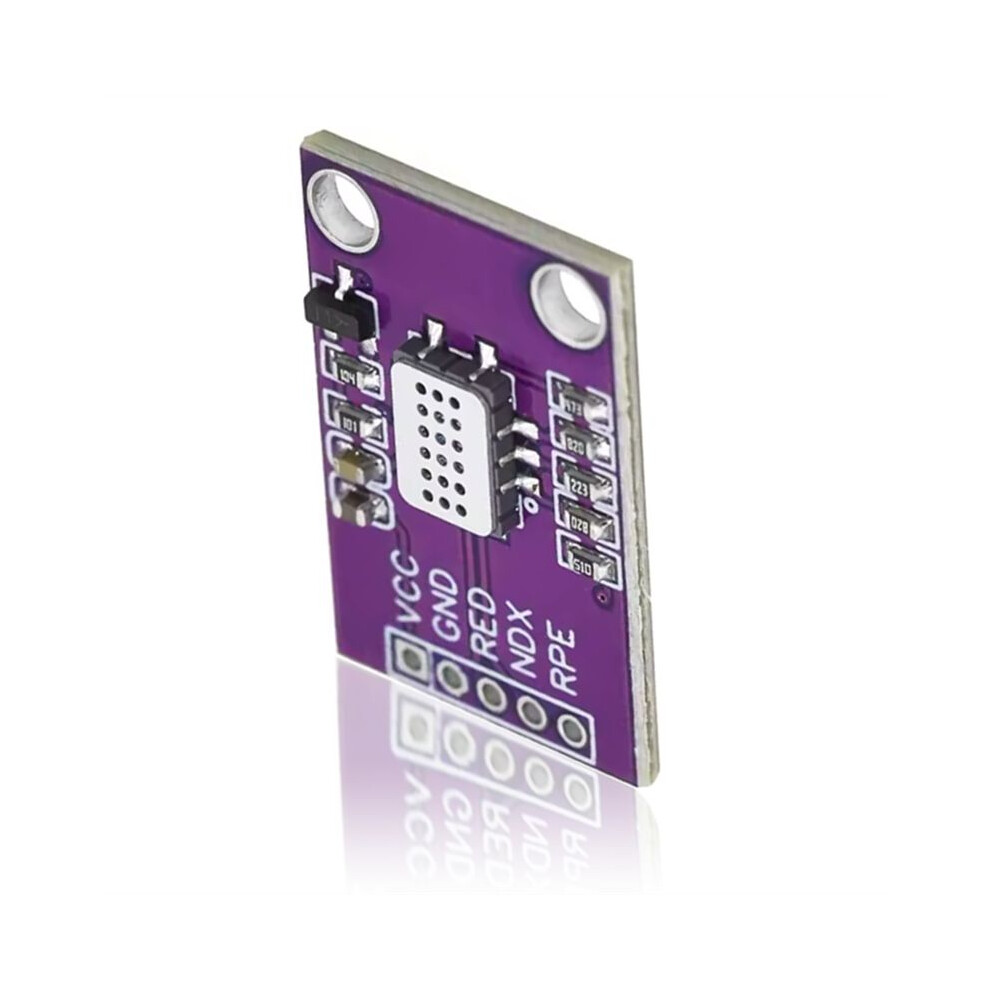

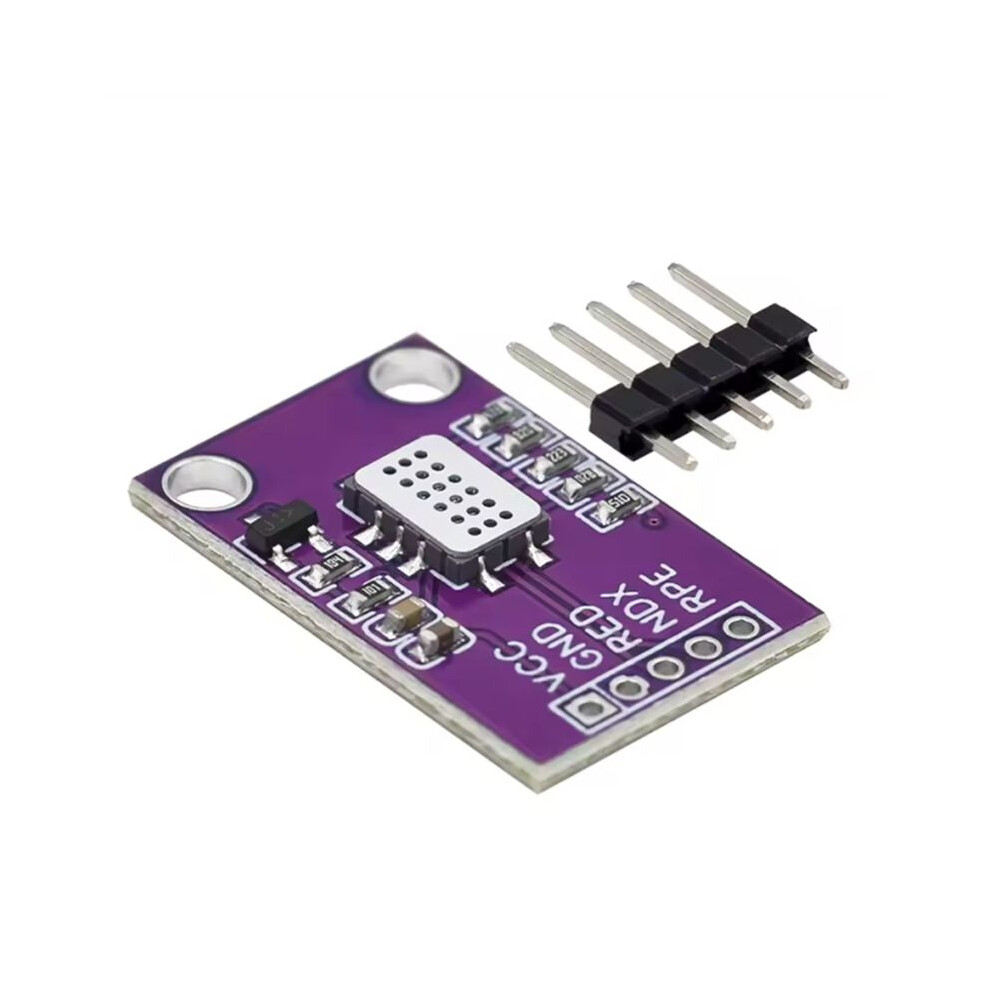

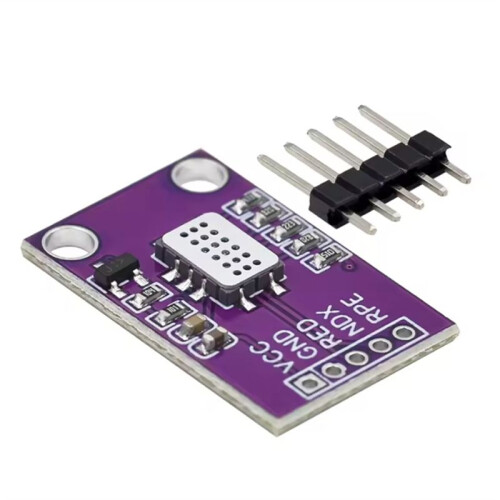

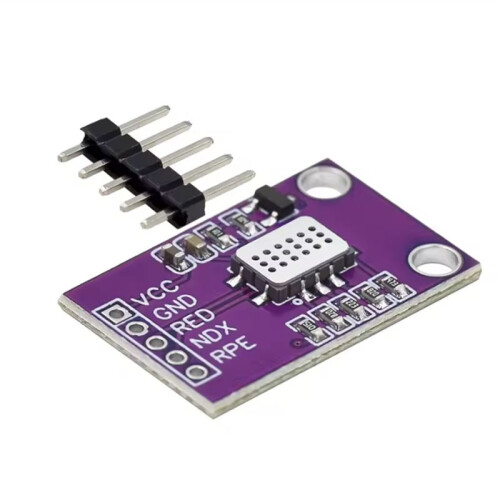

MICS-4514 Gas Sensor Module Co/No2/NH3/T4 Concentration Detection Board

MICS-4514 Gas Sensor Module Co/No2/NH3/T4 Concentration Detection Board Beskrivelse

The silicon gas sensor chip structure consists of a sensitive micromechanical diaphragm, an upper sensing layer and an embedded heating resistor. Three independent gas detection components are integrated. In harsh environment, automobile exhaust can detect industrial and agricultural exhaust.
Module power supply voltage: DC4.9V-5.1V
Operating environment temperature and humidity:-30C-85C 5-95% RH

Detectable gas range
Carbon monoxide CO 1-1000ppm
Nitrogen Dioxide NO2 0.05-10ppm
Ethanol C2H5OH 10-500ppm
Hydrogen H1 1-1000ppm
Ammonia nh3-500ppm
Methane CH4 Greater than 1000ppm
Propane C3H8 Greater than 1000ppm
Isobutane C4H10 Greater than 1000ppm
Color: As Shown
Material: ABS

Package Contents:
1 * Module
1 * Pin header

Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
