Motor Driver Expansion Board, Motor Driver Development Board, DIY Programming Experiment Accessories

Motor Driver Expansion Board, Motor Driver Development Board, DIY Programming Experiment Accessories Beskrivelse

Multi-channel Motor Output

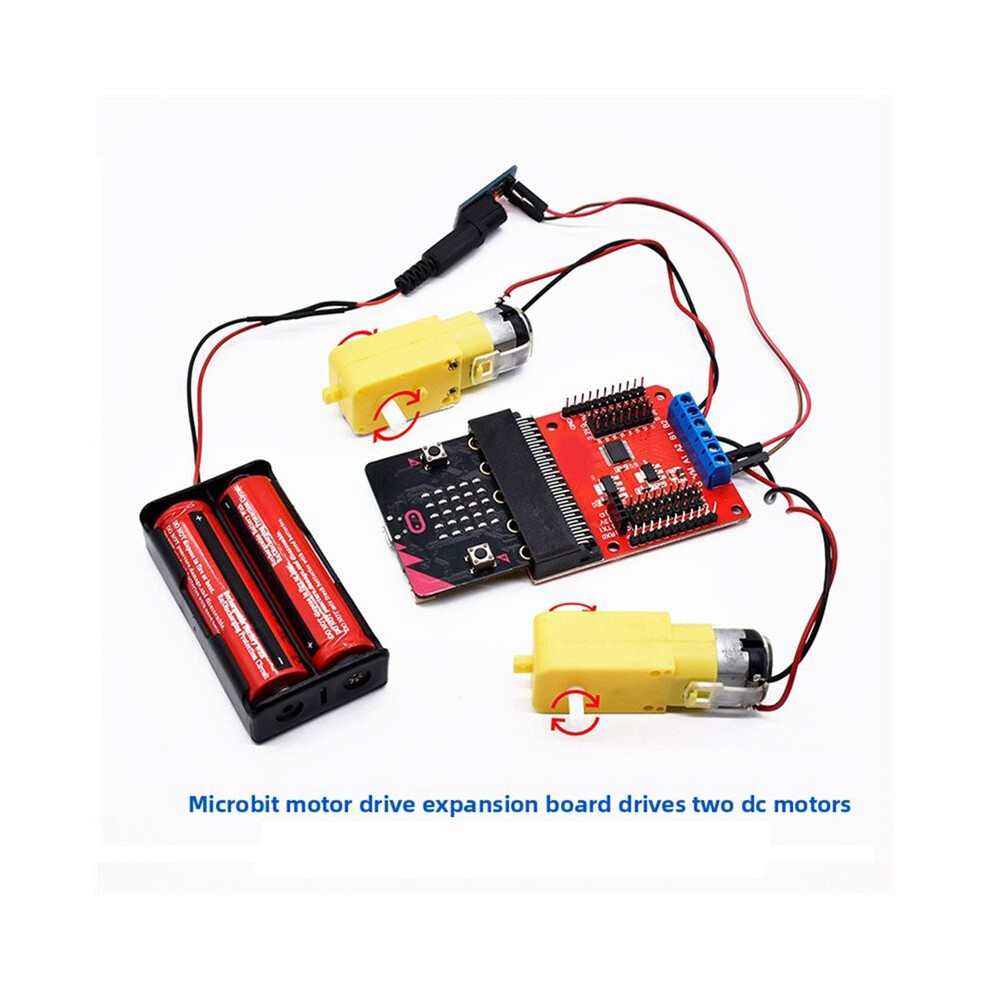

2 channels of motor output, supporting forward rotation, reverse rotation, braking, stop and other modes.

PWM frequency to 100 kHz max.

High-current Driving Capability
The TB6612FNG chip delivers a continuous output current of to 1.2A per channel, with a starting current of 2A/3.2A, meeting the requirements of most small vehicles and stepper motors.

Rich Interfaces
Micro:bit pins are extended via 3PIN (VCC/GND/Signal) interfaces.

A UART communication interface is also provided for easy connection of modules or other serial devices.

Regulated Power Supply
-board 3.3V and 5V voltage regulator chips supply power to the micro:bit, the expansion board itself, and other peripherals simultaneously.

Specification

Input Voltage

6-12V (recommended to match the rated voltage of the motor used)

Driving Current

Continuous operating current per channel 1.2A

Current

2A/3.2A for starting or short-term operation

Driver Chip

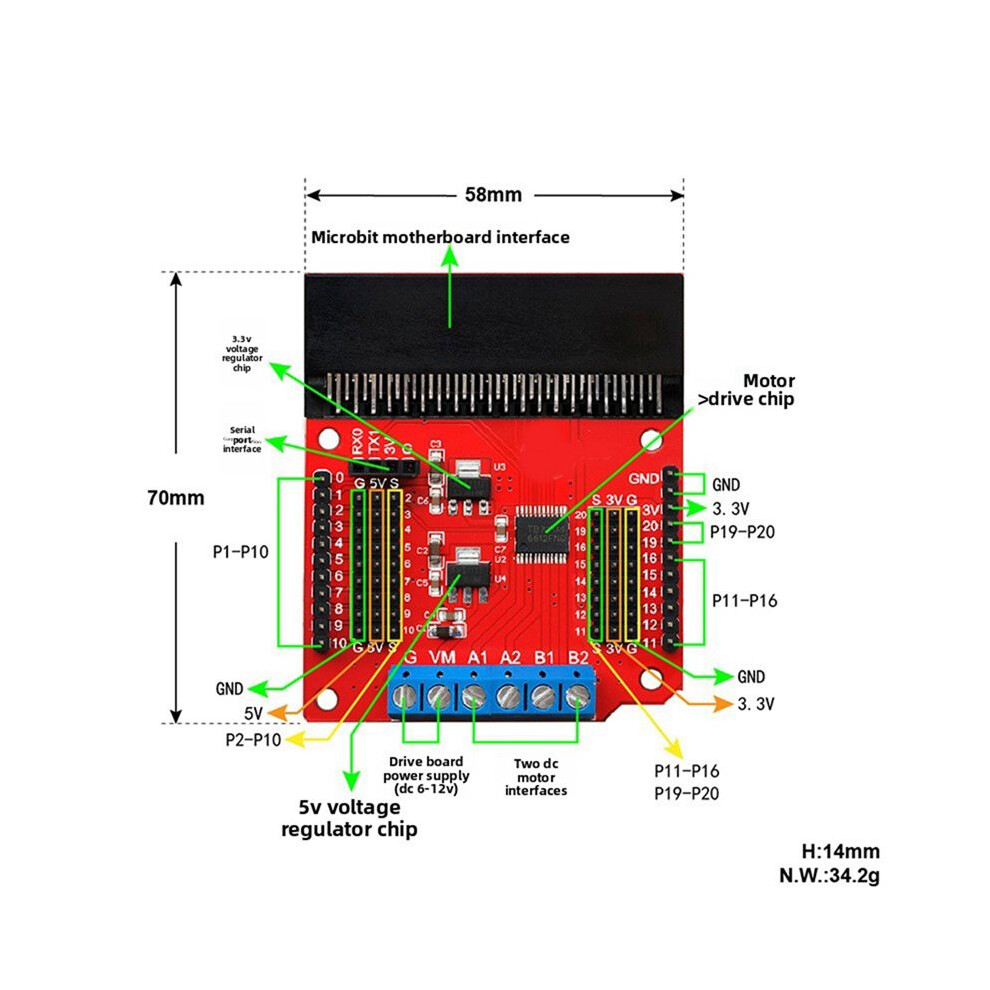

TB6612FNG (dual H-bridge driver)

Compatible Motherboards

BBC micro:bit (V1 / V2)

Interface Type

3PIN interface + motor terminals + UART extension + external power terminal

Operating Environment

10 ~ +50
Color: Red

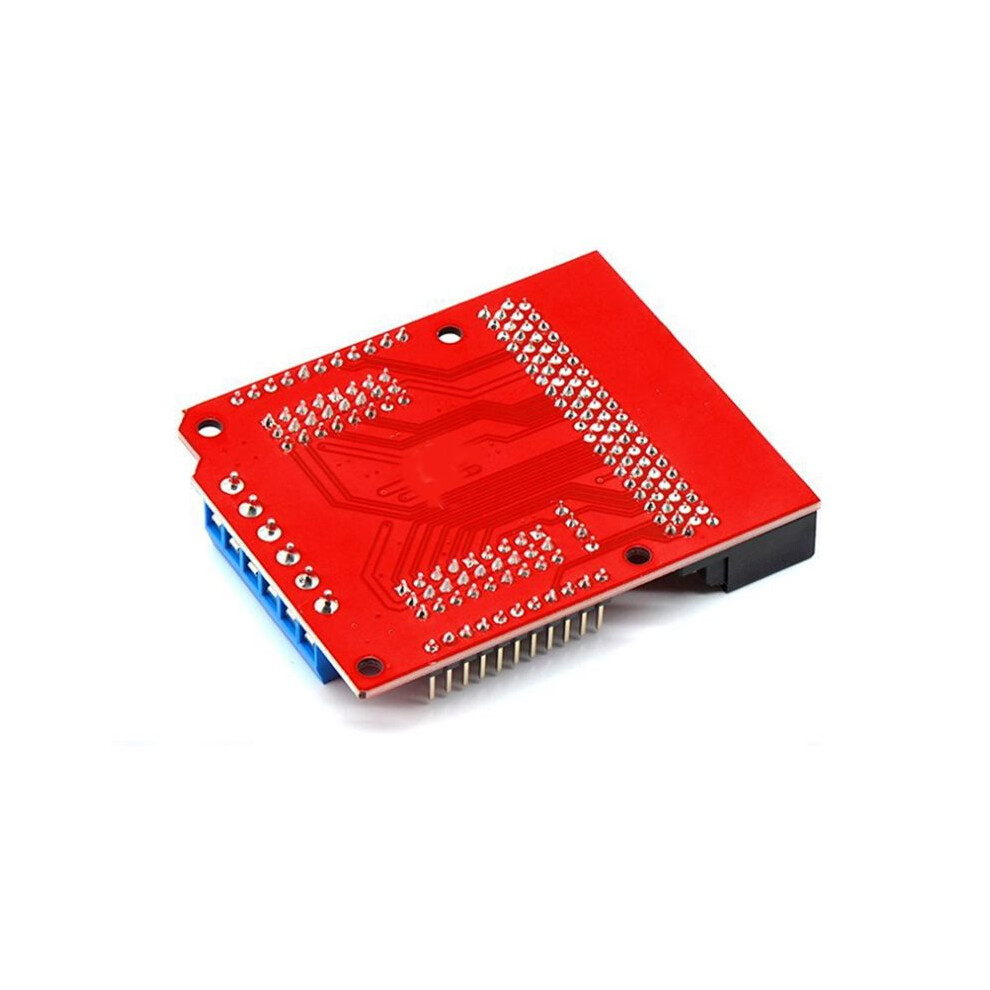

Material: PCB

Package Contents:
1*Module
