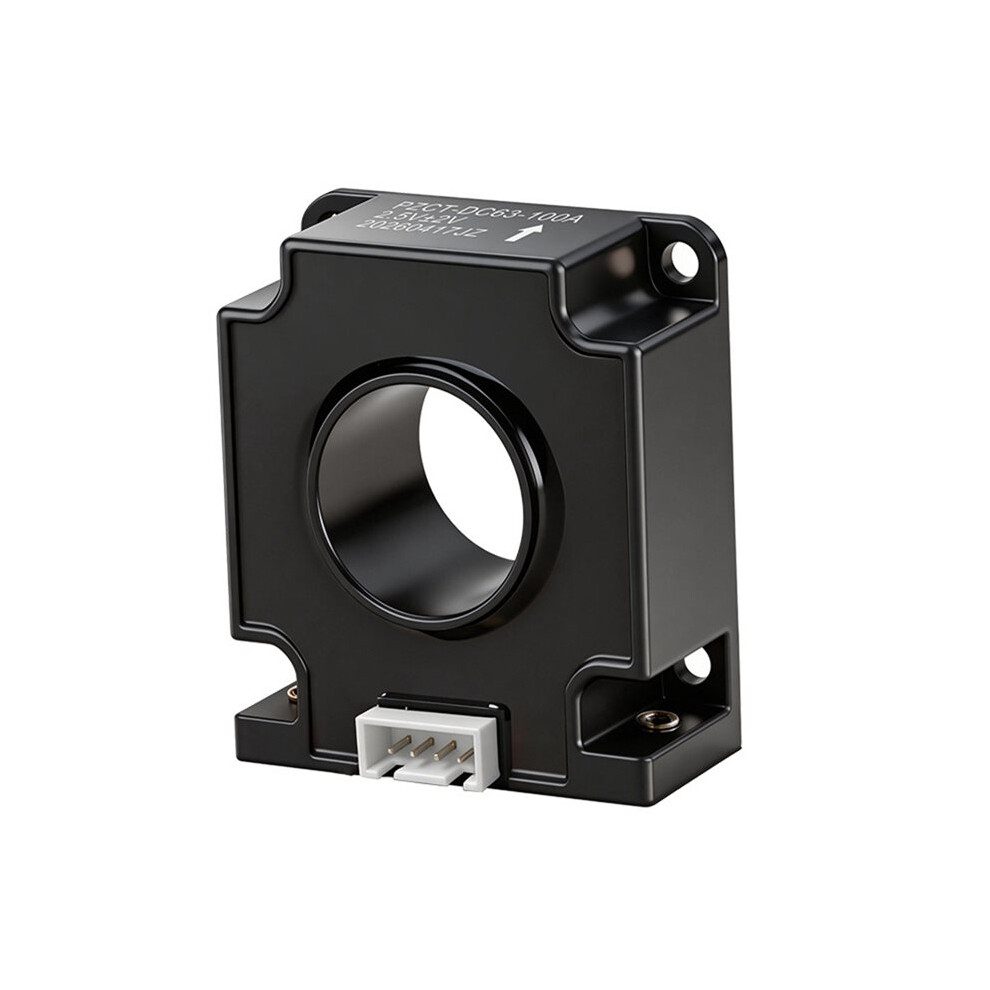

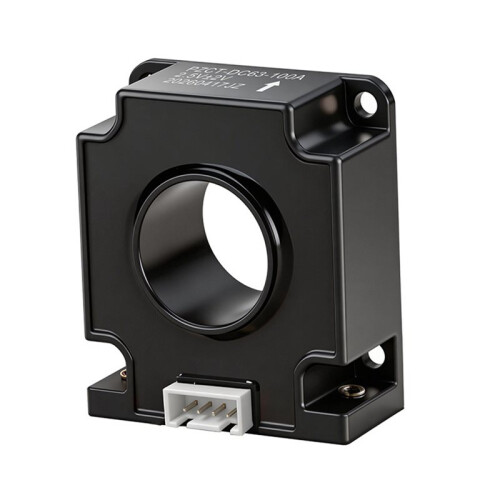

PZCT-DC63 Hall Effect Current Sensors Interference-Resistant Industrial-Grade Current Detection Module Converter 100A
På lager
Derfor vil du elske å handle hos OnBuy:
- Tjen Cashback på hvert kjøp – bruk det umiddelbart på din neste bestilling
- Gratis levering – på millioner av varer på hele nettstedet
- Kunder elsker oss – 128,000 anmeldelser med vurderingen “Utmerket”
Prisene for varer solgt av OnBuy inkluderer mva.
Rente- og gebyrfri delbetaling tilgjengelig
Se full produktbeskrivelse og detaljer
Levering: Standard (Gratis) | tir 21. - man 27. jul
Solgt av: PPEART
Returer: 30 dager
180 dagers betalingsbeskyttelse
Mest populære i Strømfordelingsenheter
Sammendrag
- Electrical Isolation: 3 kV (50 Hz, AC, 1 minute); robust 3 kV electrical isolation provides reliable electrical safety protection.
- Rated Output: A stable rated output of (2.5±2) * (Vcc/5) V ensures consistent performance across various applications.
- High Accuracy: High accuracy of ±1% FS ensures accurate readings during device operation.
- Bandwidth: DC to 30 kHz; the high bandwidth of DC to 30 kHz ensures precise current measurement across a wide frequency range.
- Wide operating temperature range: -40 to +105°C, suitable for various environments.
PZCT-DC63 Hall Effect Current Sensors Interference-Resistant Industrial-Grade Current Detection Module Converter 100A Beskrivelse
Electrical Isolation: 3 kV (50 Hz, AC, 1 minute); robust 3 kV electrical isolation provides reliable electrical safety protection.
Rated Output: A stable rated output of (2.52) * (Vcc/5) V ensures consistent performance across various applications.
High Accuracy: High accuracy of 1% FS ensures accurate readings during device operation.
Bandwidth: to 30 kHz; the high bandwidth of to 30 kHz ensures precise current measurement across a wide frequency range.
Wide operating temperature range: -40 to +105C, suitable for various environments.
Easy to install, compact, and space-saving.
No insertion loss and strong interference resistance.
Wide range of applications:AC variable speed drives, Static converters for motor drives, Battery supplied applications, Uninterruptible Power Supplies, SMPS, EV Auto, etc.
Mechanical characteristics:
General tolerance: 0.5 mm
Fixing hole size: Ф3 mmX4
fastening steel screw: M3
Recommended fastening torque: 1.5Nm (10%)
Connection of secondary: HX2510-4A
Remarks:
The false wiring may result in the damage of the sensor.
VouT is positive whenip flows in the direction of the arrows.
Dynamic performances (di/dt and response ) are best with a single bar completely filling the primary hole.
Temperature of the primary conductor should not exceed 100.
Color: Black
Material: plastic
Specification: 100A
Package Contents:
1 * Hall Effect Current Sensor
Detaljer
| OPC | PW7VKND |
|---|---|
| Koder | 6032923250914 (EAN) |
| Produkt- og sikkerhetsinformasjon |
Produktdata
| Height | 4.5cm |
|---|---|
| Width | 8cm |
| Length | 13cm |
| Weight | 0.09kg |
| Colour | Black |
| Size | 100A |
| Material | Plastic |
