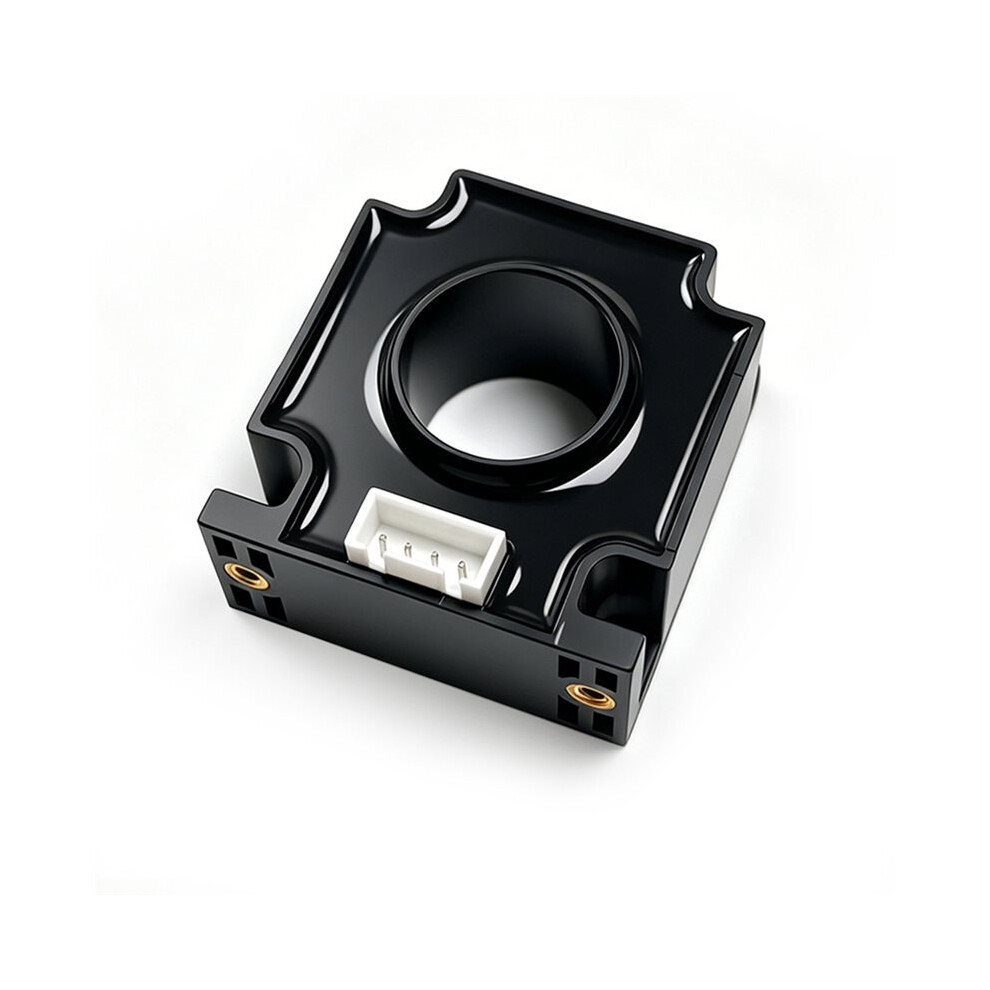

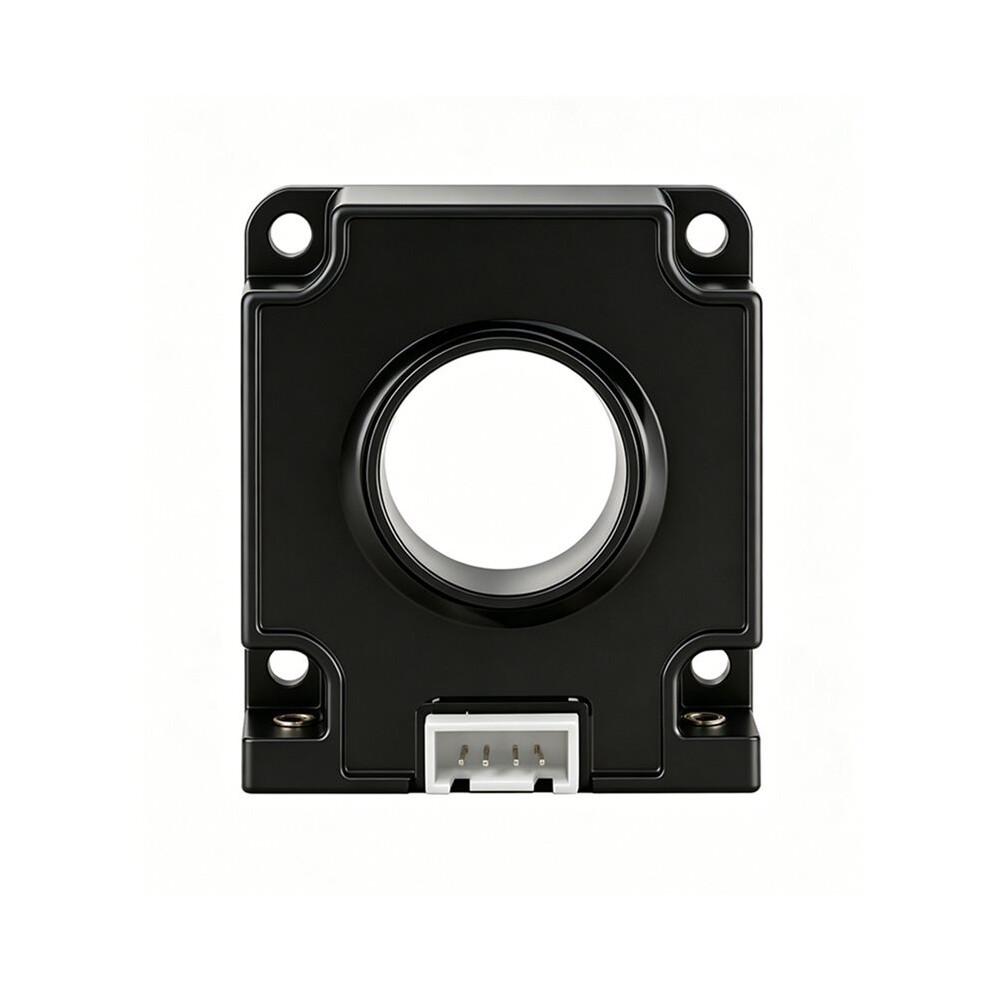

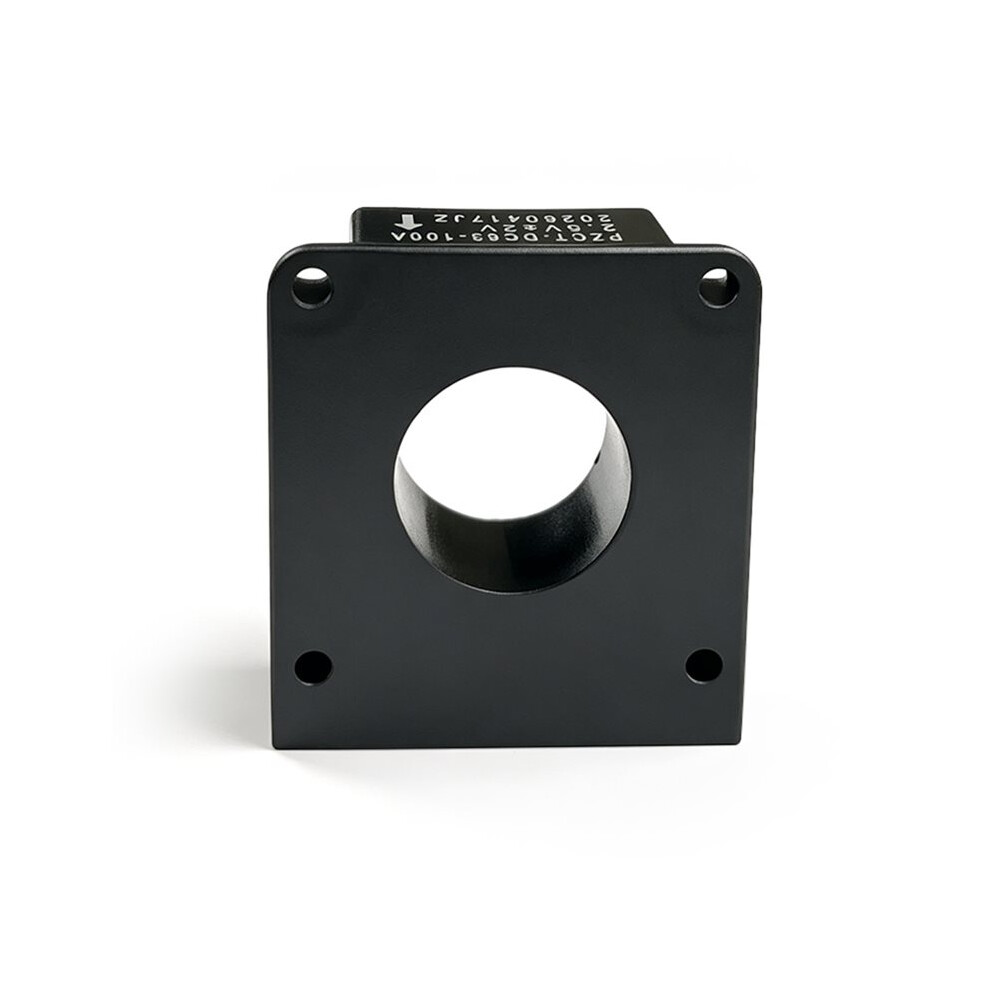

PZCT-DC63 Hall Effect Current Sensors Interference-Resistant Industrial-Grade Current Detection Module Converter 100A

PZCT-DC63 Hall Effect Current Sensors Interference-Resistant Industrial-Grade Current Detection Module Converter 100A Beskrivelse

Electrical Isolation: 3 kV (50 Hz, AC, 1 minute); robust 3 kV electrical isolation provides reliable electrical safety protection.
Rated Output: A stable rated output of (2.52) * (Vcc/5) V ensures consistent performance across various applications.
High Accuracy: High accuracy of 1% FS ensures accurate readings during device operation.
Bandwidth: to 30 kHz; the high bandwidth of to 30 kHz ensures precise current measurement across a wide frequency range.
Wide operating temperature range: -40 to +105C, suitable for various environments.

Easy to install, compact, and space-saving.
No insertion loss and strong interference resistance.
Wide range of applications:AC variable speed drives, Static converters for motor drives, Battery supplied applications, Uninterruptible Power Supplies, SMPS, EV Auto, etc.

Mechanical characteristics:
General tolerance: 0.5 mm
Fixing hole size: Ф3 mmX4
fastening steel screw: M3
Recommended fastening torque: 1.5Nm (10%)

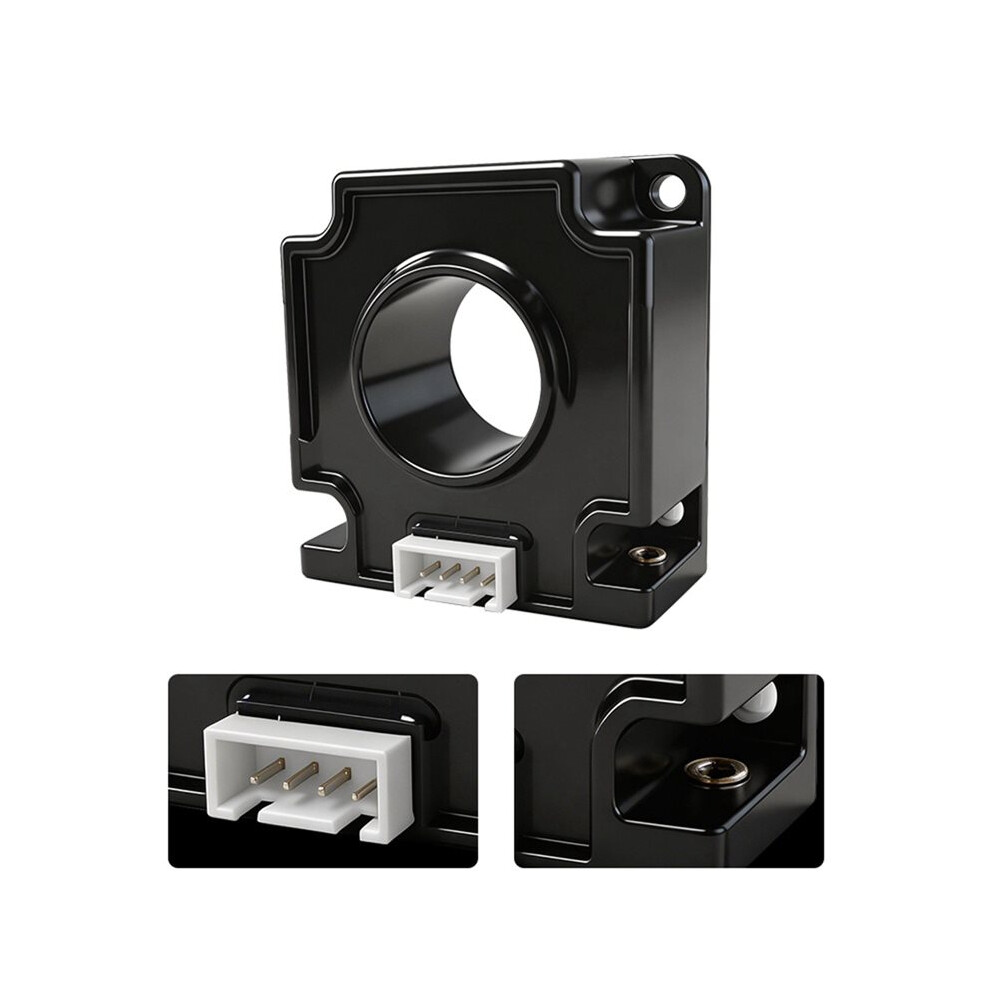

Connection of secondary: HX2510-4A

Remarks:
The false wiring may result in the damage of the sensor.
VouT is positive whenip flows in the direction of the arrows.
Dynamic performances (di/dt and response ) are best with a single bar completely filling the primary hole.
Temperature of the primary conductor should not exceed 100.
Color: Black
Material: plastic

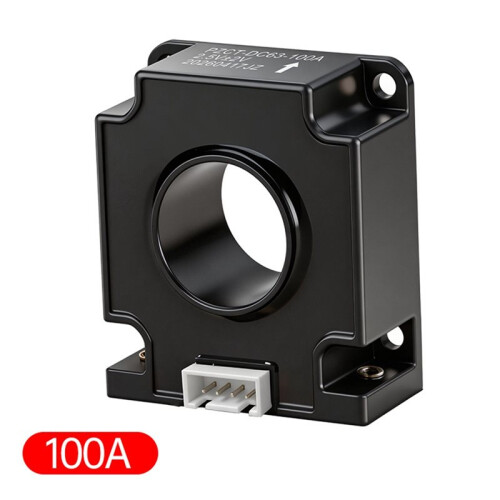

Specification: 100A

Package Contents:
1 * Hall Effect Current Sensor
