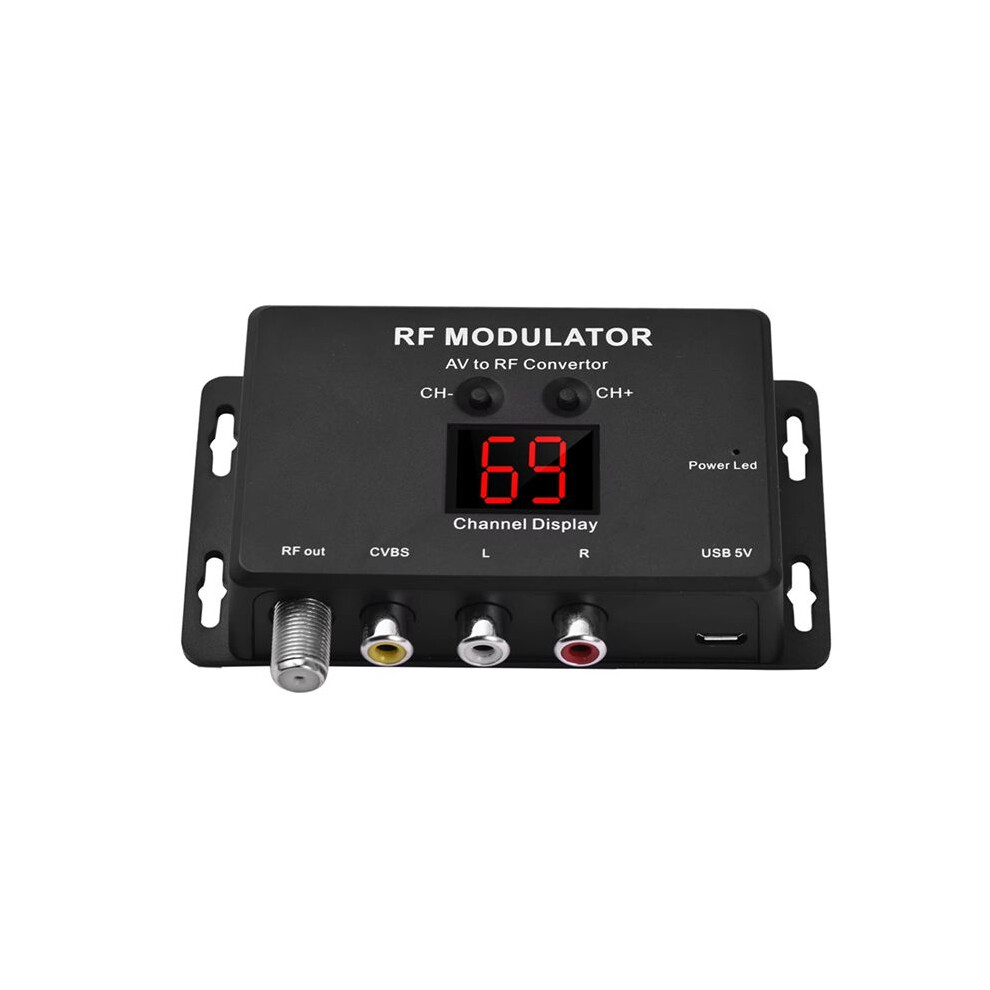

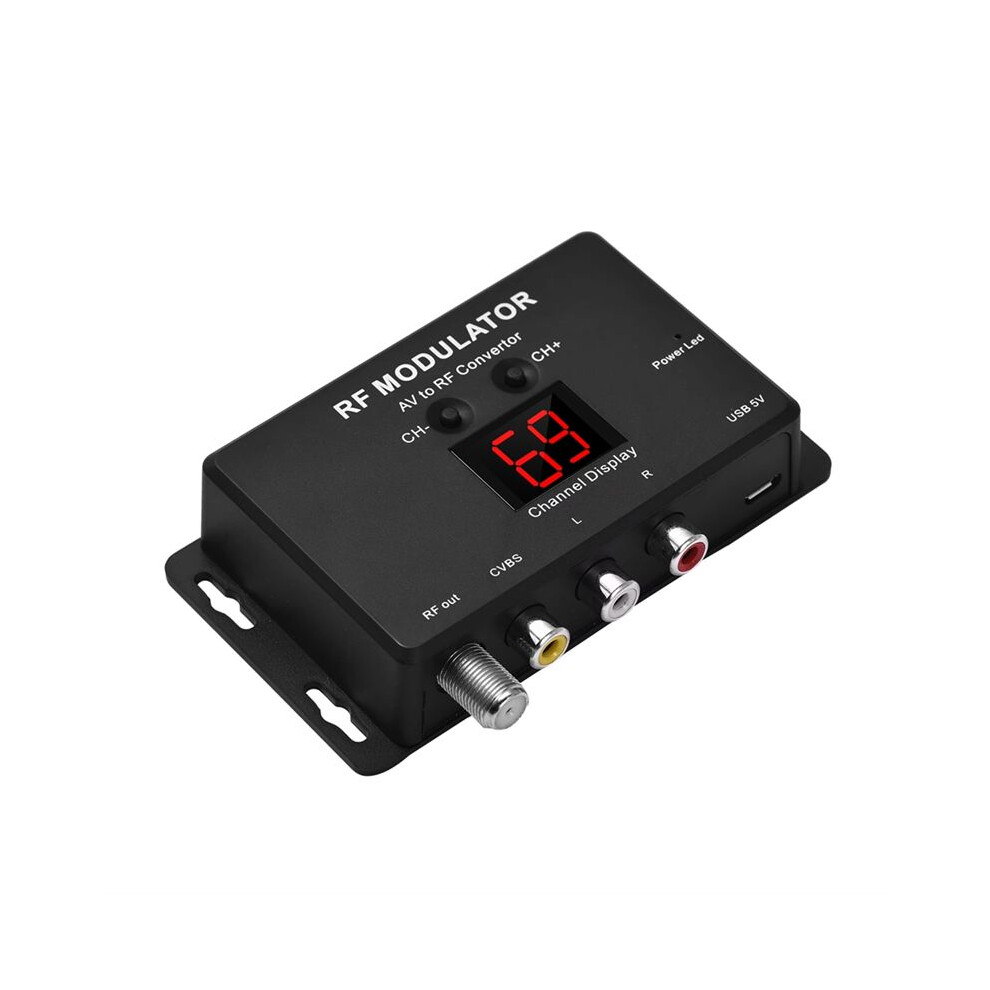

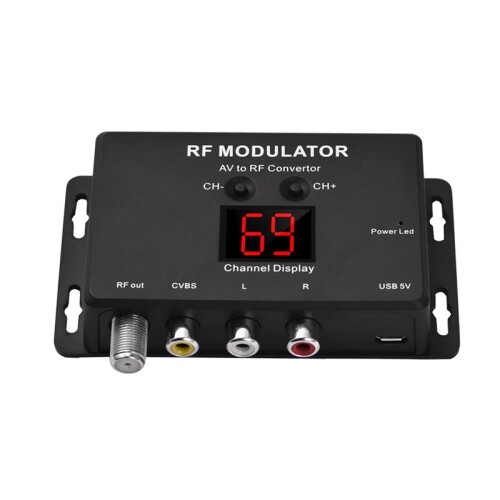

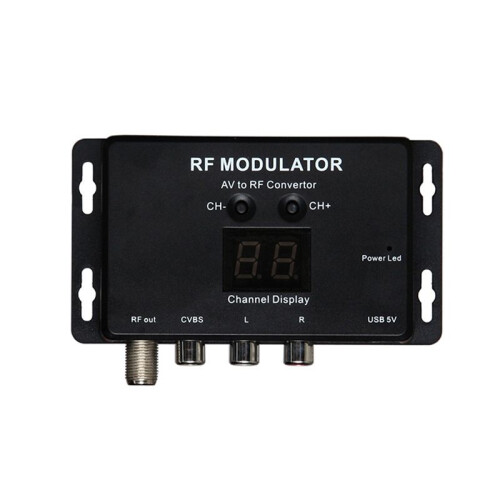

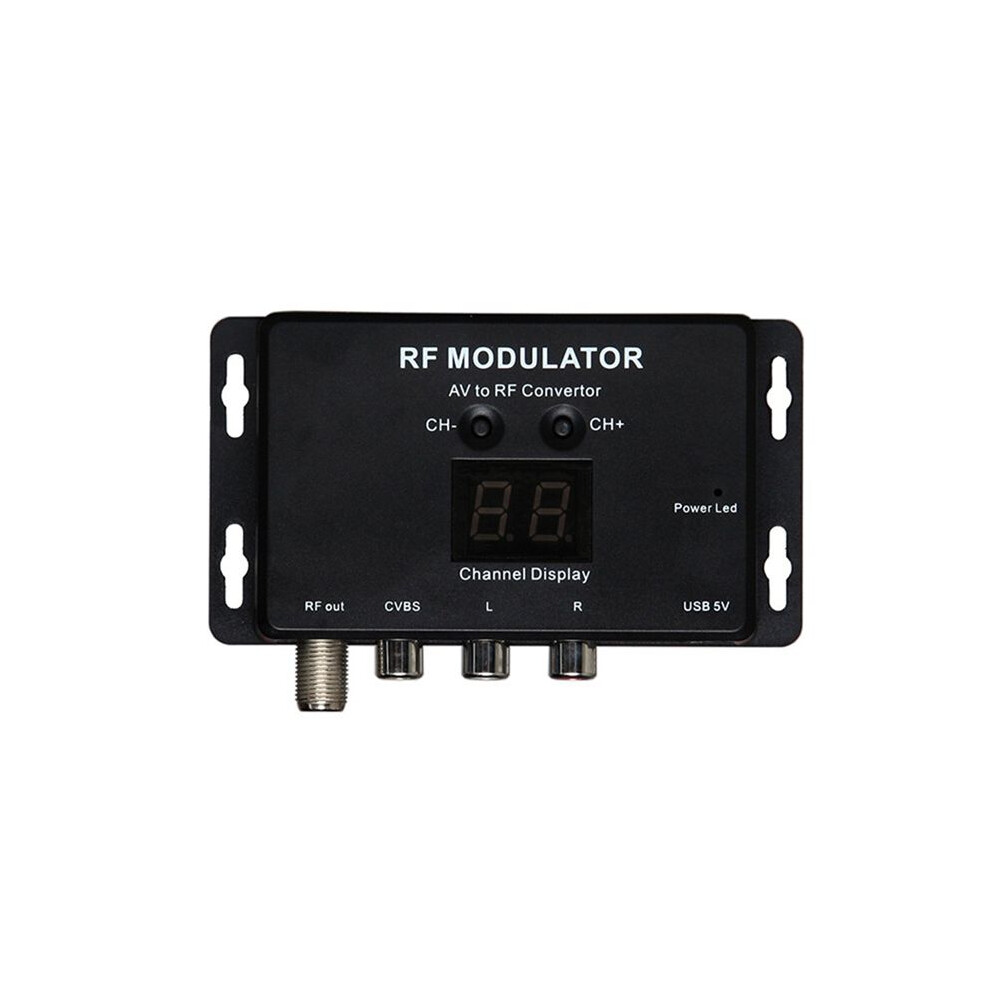

RM06 RF Modulator AV to RF Converter Digital Display

RM06 RF Modulator AV to RF Converter Digital Display Beskrivelse

Using existing RF circuit in general homes.
Sharing of STB, DVD with a few rooms.
Flexibility in setting TV format such as PAL/NTSC and Sound IF to accommodate users from all part of the world.
With the wide frequency range of 471.25MHz-885.25MHz, selectable transmitting frequency and correspondence frequency display and in built memory will minimize and avoid interference.
The use of broadcast standard PCB circuit designed enhanced stability and better picture quality further.

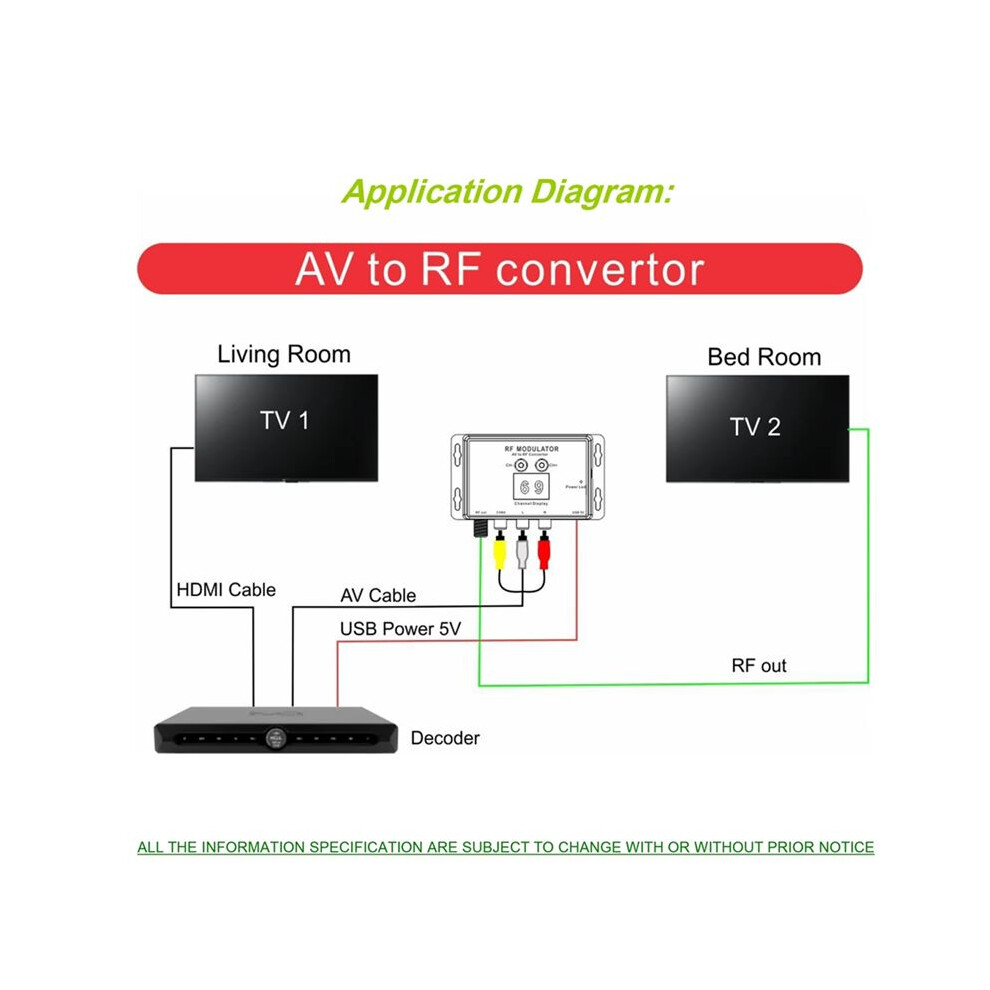

To modulate Audio/Video/signal to RF signal over coaxial. With this product, user in the room can share and remote control their Digital Set Top Box, DVR, DVD. AV Receiver which are placed in the living room. This is made possible by converting the A/V Signal from the A/V equipment to RF signal and send to various rooms over RF circuits.

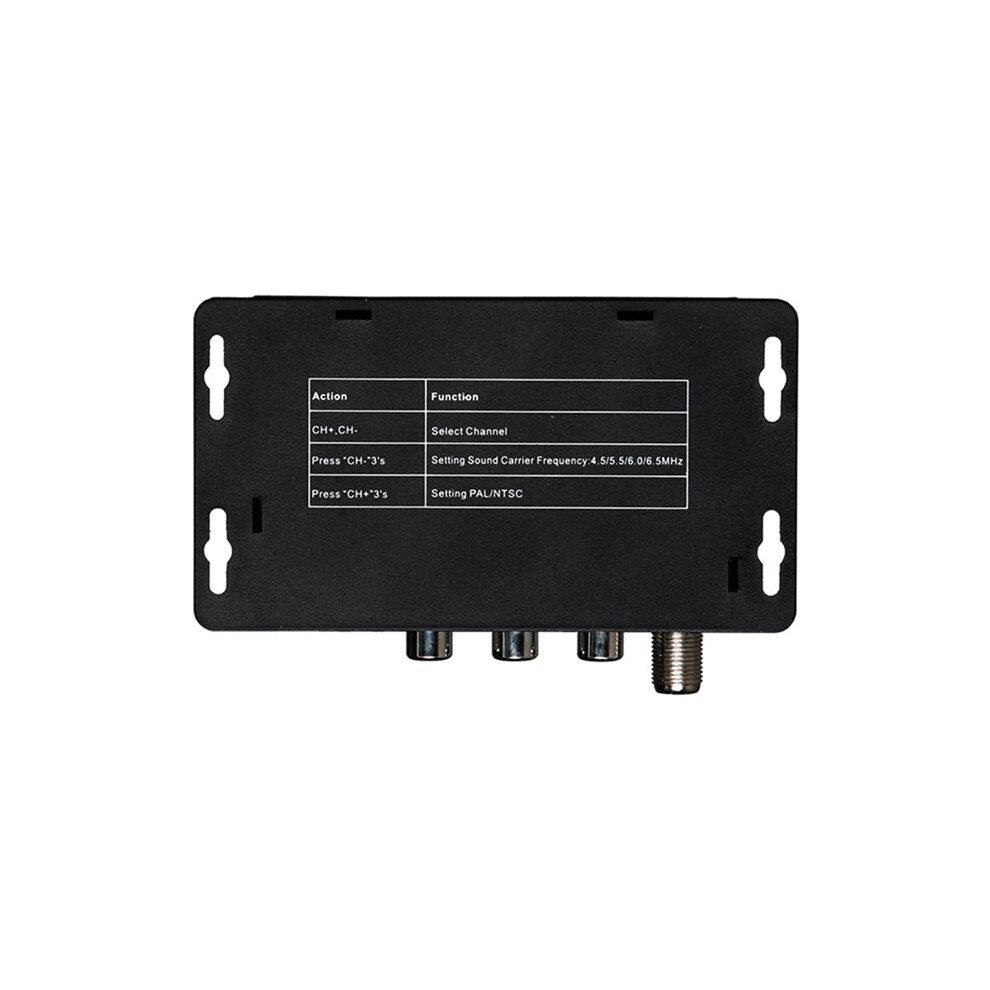

External setting for NTSC/PAL B/G,I,D/K,L.M/N TV formats for global use.
Compatible with set top boxes and other A/V sources.
UHF modulator - PAL/NTSC selectable.
Output channel selectable.
USB power supply.
RF Frequency Range:471.25MHz-885.25MHz
Channel Range: PAL:21-69; NTSC:14-83
Default Factory Setting: Channel 21 (471.25MHz).PAL
RF Output Impedance:75Ω unbalanced
Video Input Impedance:75Ω
TV Format: PAL/NTSC
Sound Carrier Frequency:4.5/5.5/6.0/6.5MHz
Power:USB 5VDC
Power Consumption:less than equal 1W
Item Size:104x68x24mm/4.09x2.68x0.94in
Item Weight:80g/2.85oz
Note:Different factory batches do not affect the use of the product.
Colour:Black
Material:Metal

Package Contents:
1 * Modulator
1 * Data Cable
