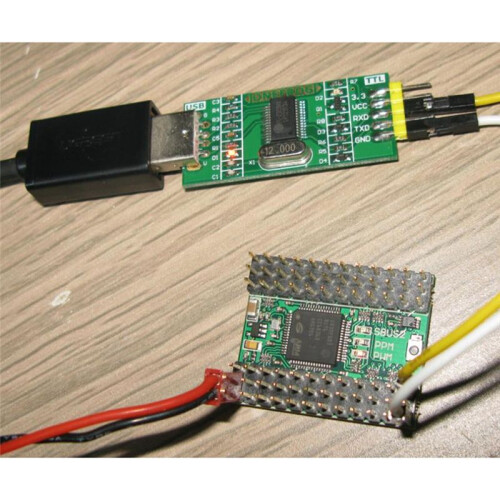

RMILEC V3 Version High Precision PWM/PPM/SBUS Multi-Function Portable Convenient Signal Converter

RMILEC V3 Version High Precision PWM/PPM/SBUS Multi-Function Portable Convenient Signal Converter Beskrivelse

Pwm Signal Is Converted Into Ppm Signal And Sbus Signal. Pwm Signal Analysis.Dual Ppm Signal Is Converted Into Pwm Signal And Sbus Signal. Two-Way Ppm Signal Analysis.Sbus Signal Is Converted Into Pwm Signal And Dual Ppm Signal. Sbus Signal Analysis.
Voltage: 3.3-12V Support Reverse Polarity Protection After The Conversion Speed Signal Is Collected, The Decoding Is Interrupted Immediately Without Waiting The Pin Header Is 2.95mm Vertical Pitch Receiver Dedicated Pin Header
Communication Function, The Use Of Automatic Detection Will Lead To Signal Misjudgment, So In Order To Ensure Reliability, This Product Uses The Method Of Button Setting To Select The Input Signal.
Skills Of Analyze：Simultaneous Analysis Of 20 Pwm Signals.Simultaneous Analysis Of 2 Ppm Signals, 4 To 20 Proportional Channelsx2, To 40 Proportional Channels.1 Channel Sbus Signal Analysis, Including 16ch Proportional Channel, 2ch Channel, Receiver Status

Accuracy: 250 Nanoseconds.
Mode Setting Method：
Because Some Control Boards Have Two-Way Communication Function, The Use Of Automatic Detection Will Lead To Signal Misjudgment, So In Order To Ensure Reliability, This Product Uses The Method Of Button Setting To Select The Input Signal.

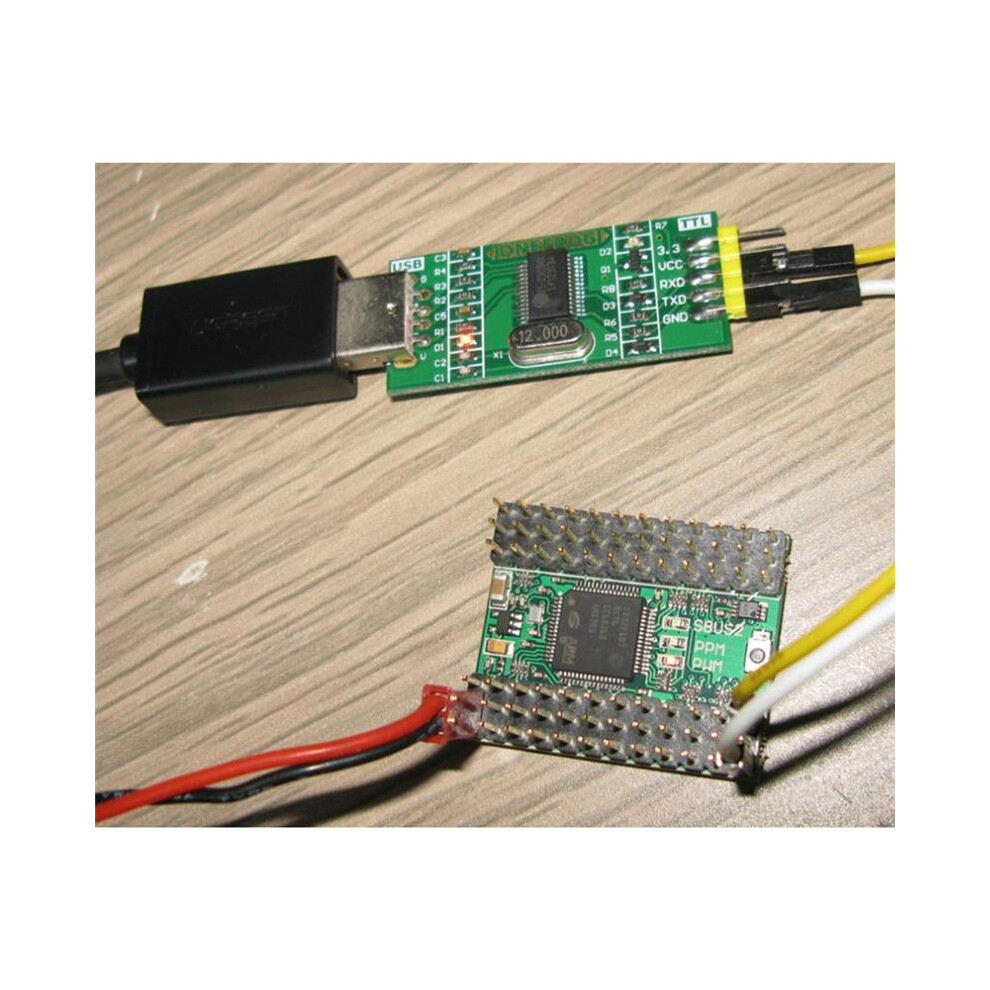

There Are Three Indicators The Front Of The Product, Representing Pwm Input Mode, Ppm Input Mode And Sbus Input Mode Respectively.
Press And Hold The Setting Button And Power The Conversion Board, The Three Indicator Lights Will Flash At The Same , Then Release The Button To Enter The Setting Mode.
Press The Button Once, The Function Mode Will Once, And The Corresponding Led Will Light . After Selecting The Required Input Signal, The Function Mode Can Be Saved After Power Off.

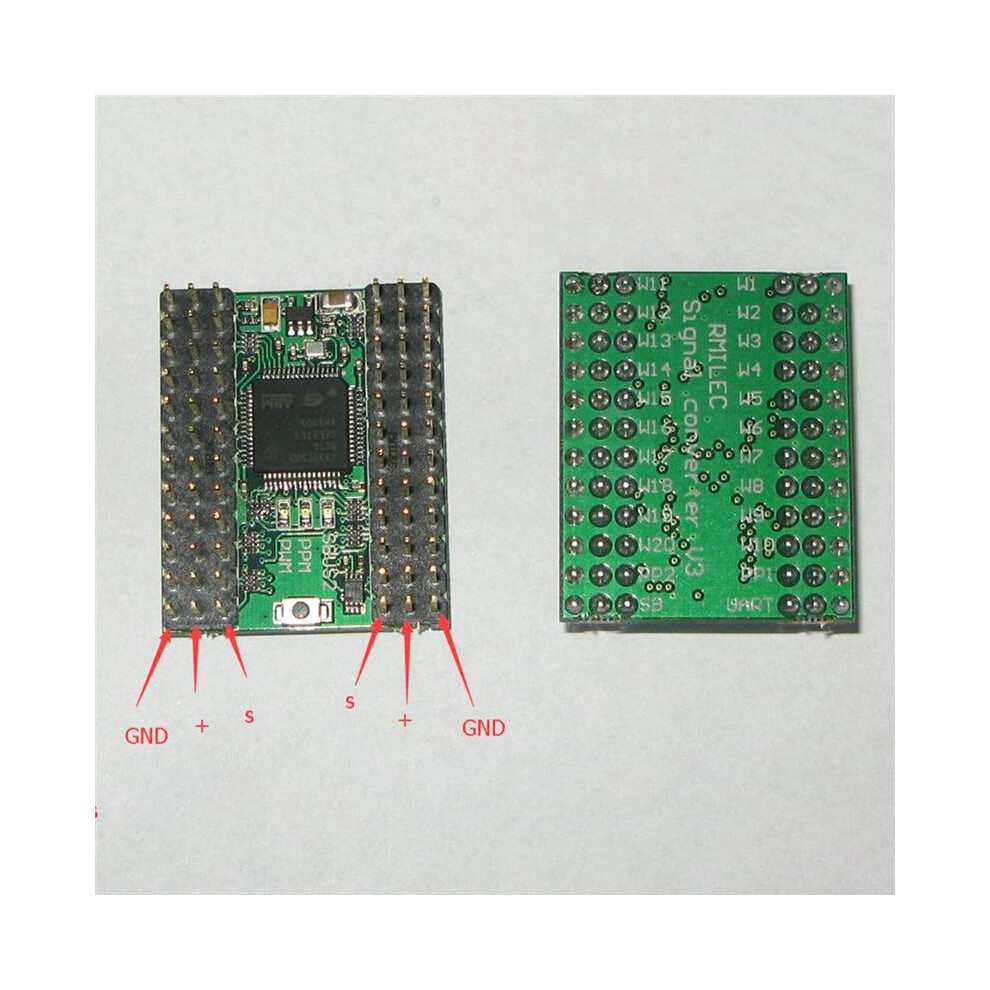

Interface:

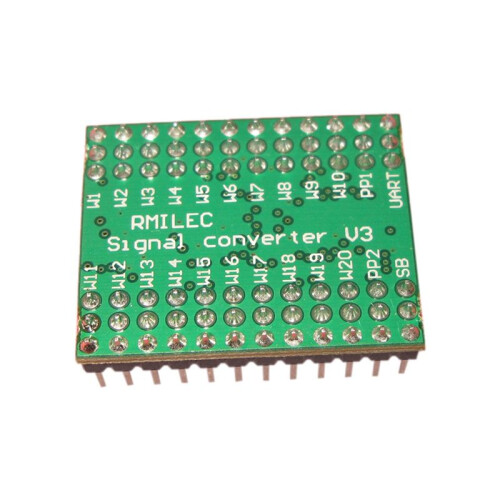

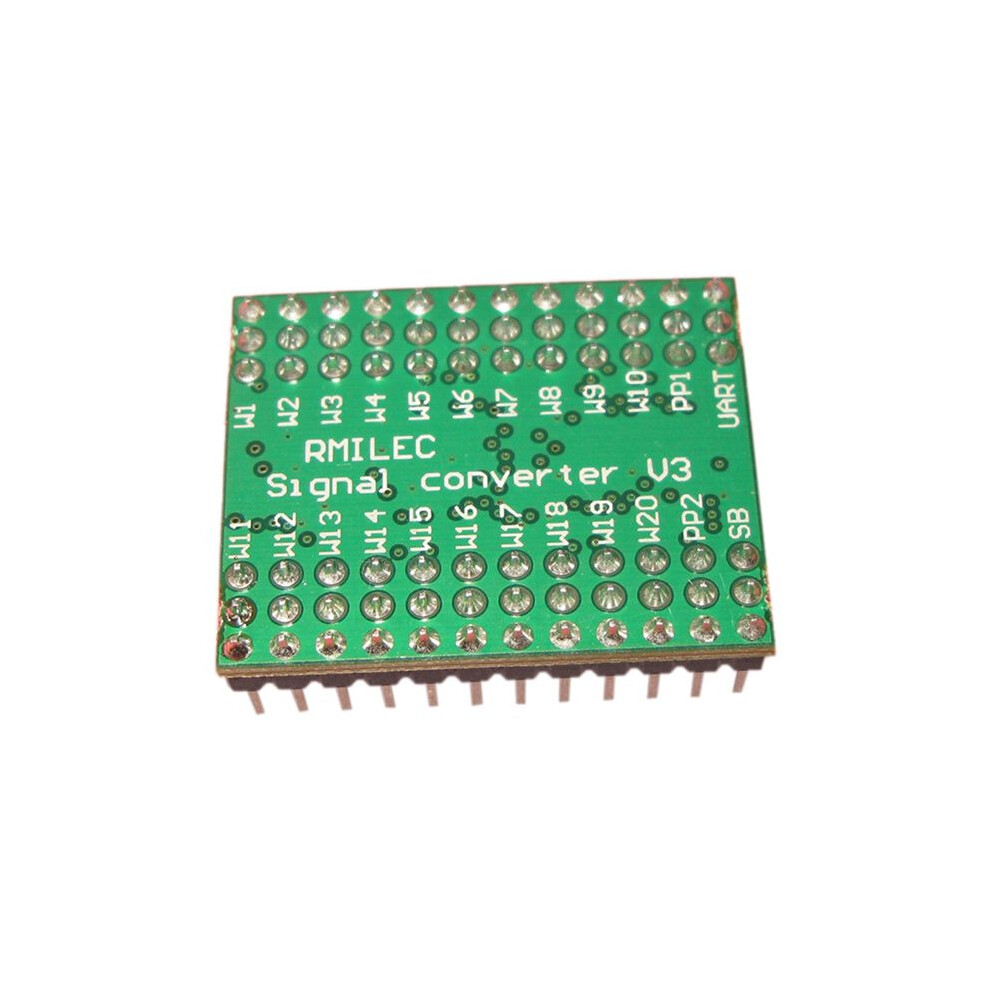

W1-W20 Pwm1 To Pwm20, Pulse Width Input And Output, Bidirectional Interface
Pp1-Pp2 Represents Ppm1 And Ppm2, Pulse Width
