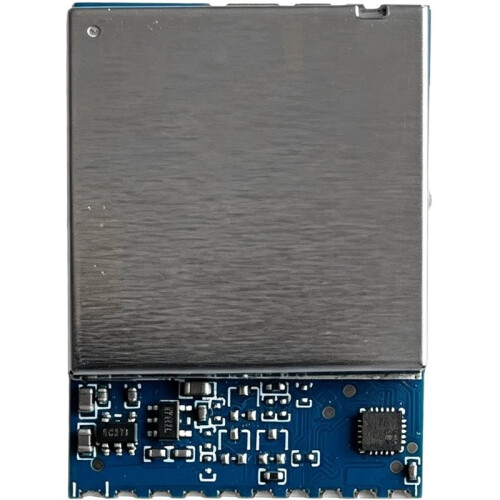

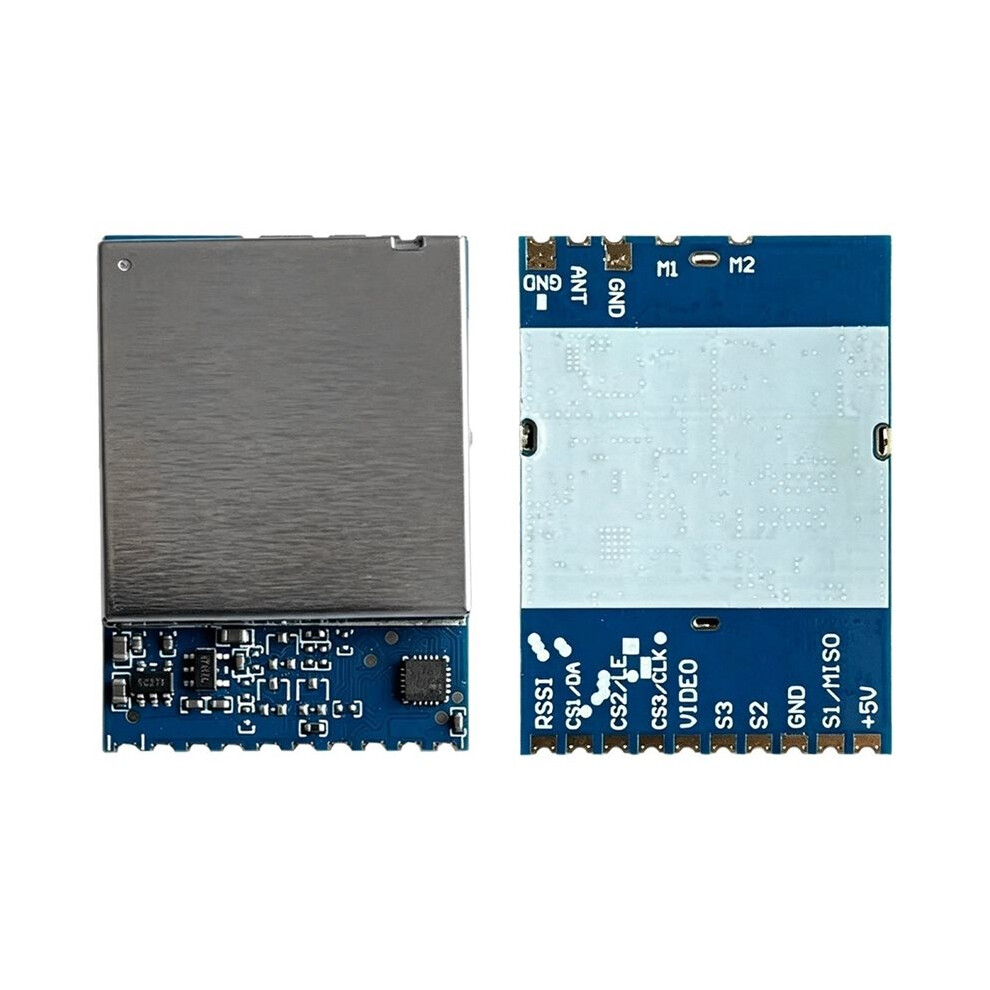

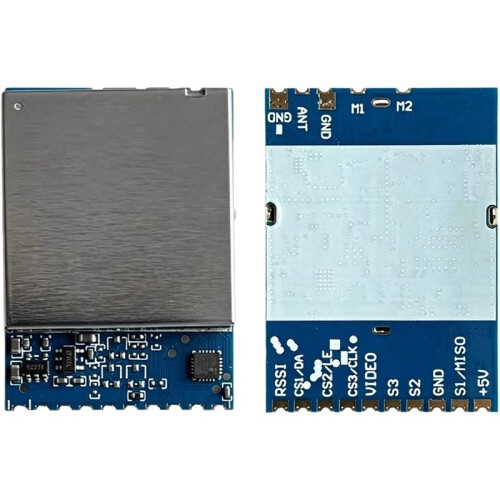

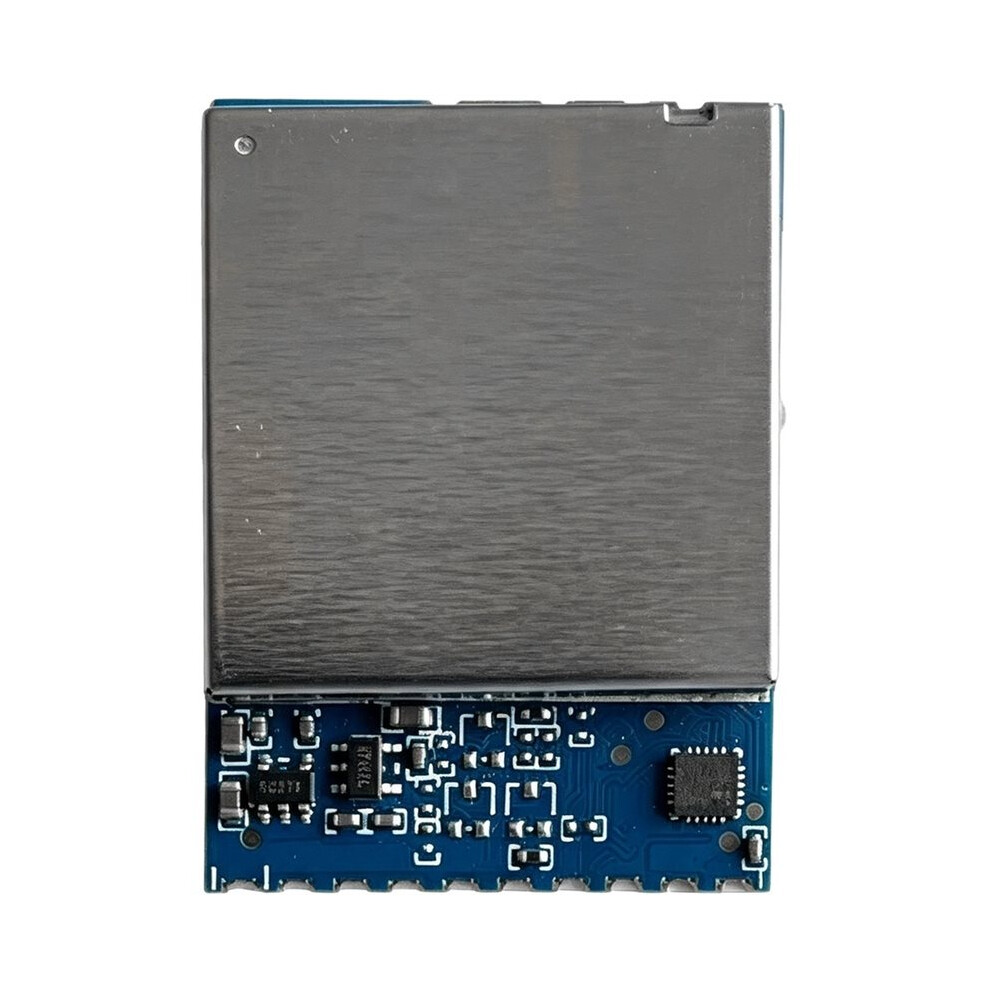

RX4500 SPI 3300-5110MHz Receiver Module 4.5G VRX FPV Wireless Video Receiver Module Analog Wireless Video Receive Module

RX4500 SPI 3300-5110MHz Receiver Module 4.5G VRX FPV Wireless Video Receiver Module Analog Wireless Video Receive Module Beskrivelse

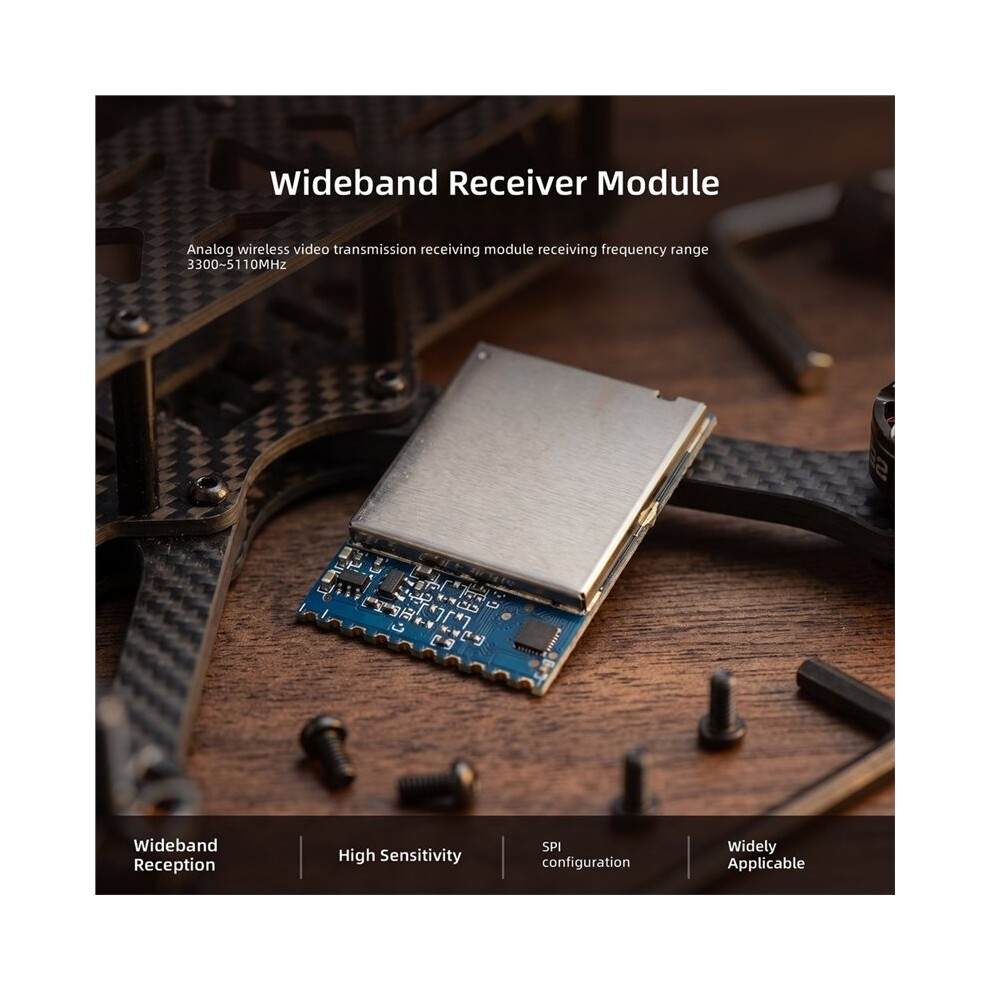

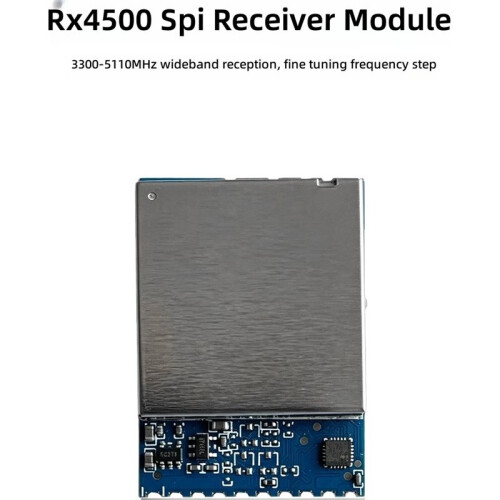

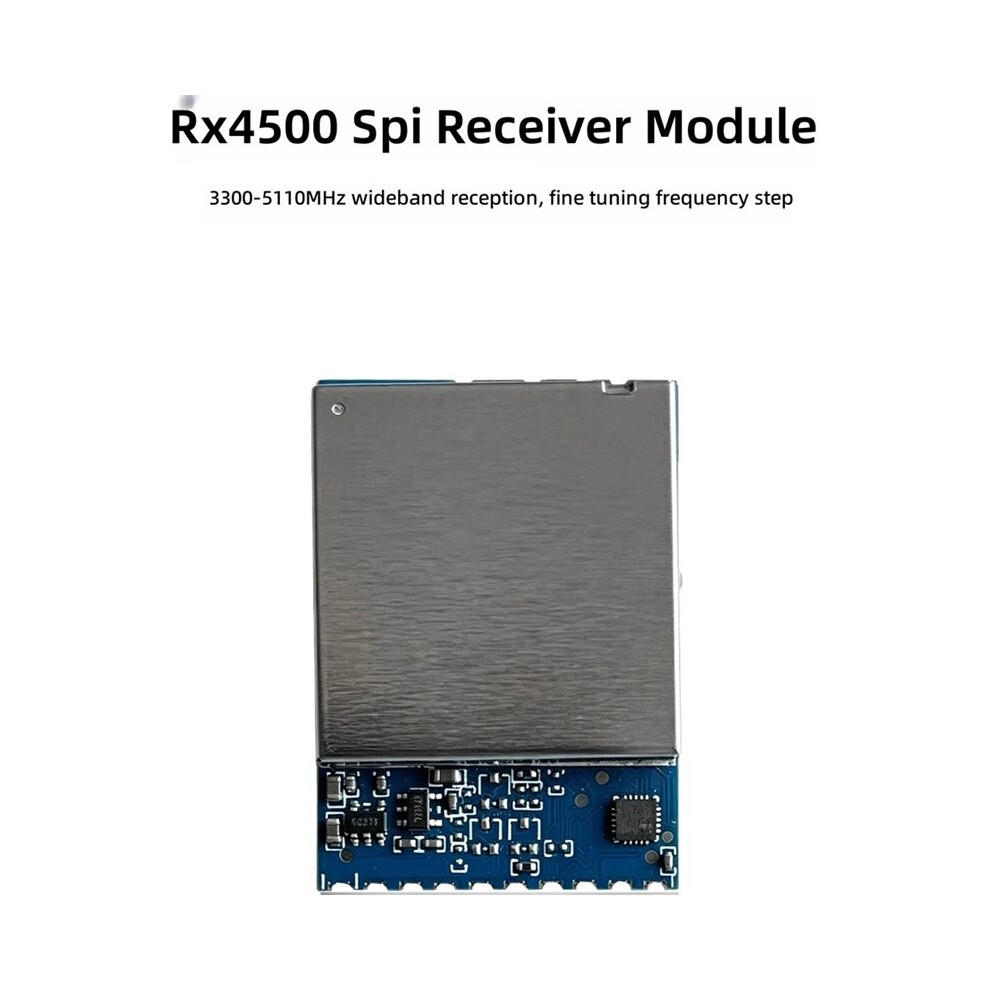

1. RX4500 SPI receiver module; features wide-band reception (3300-5110 MHz) and fine-step frequency tuning.
2. High reception sensitivity (-93 dBm) with FM/PLL demodulation; ensures stable signal reception and strong interference resistance.

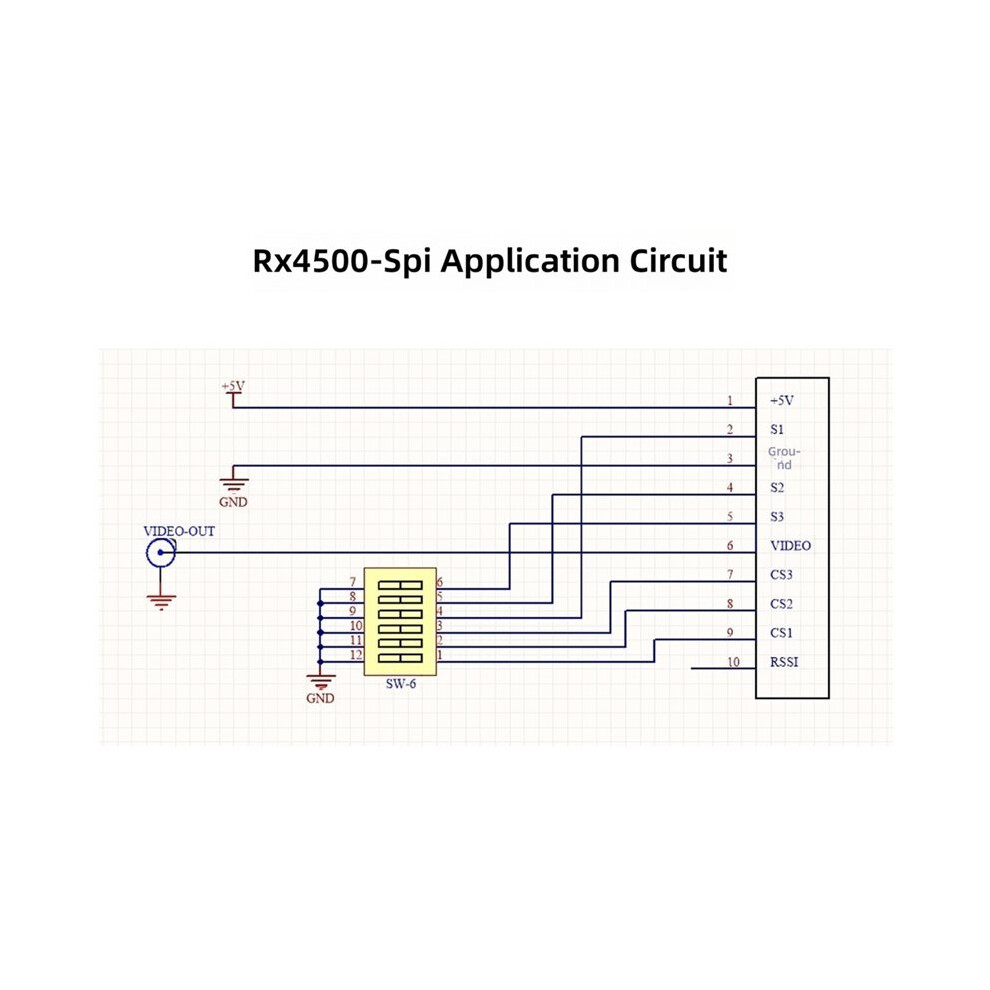

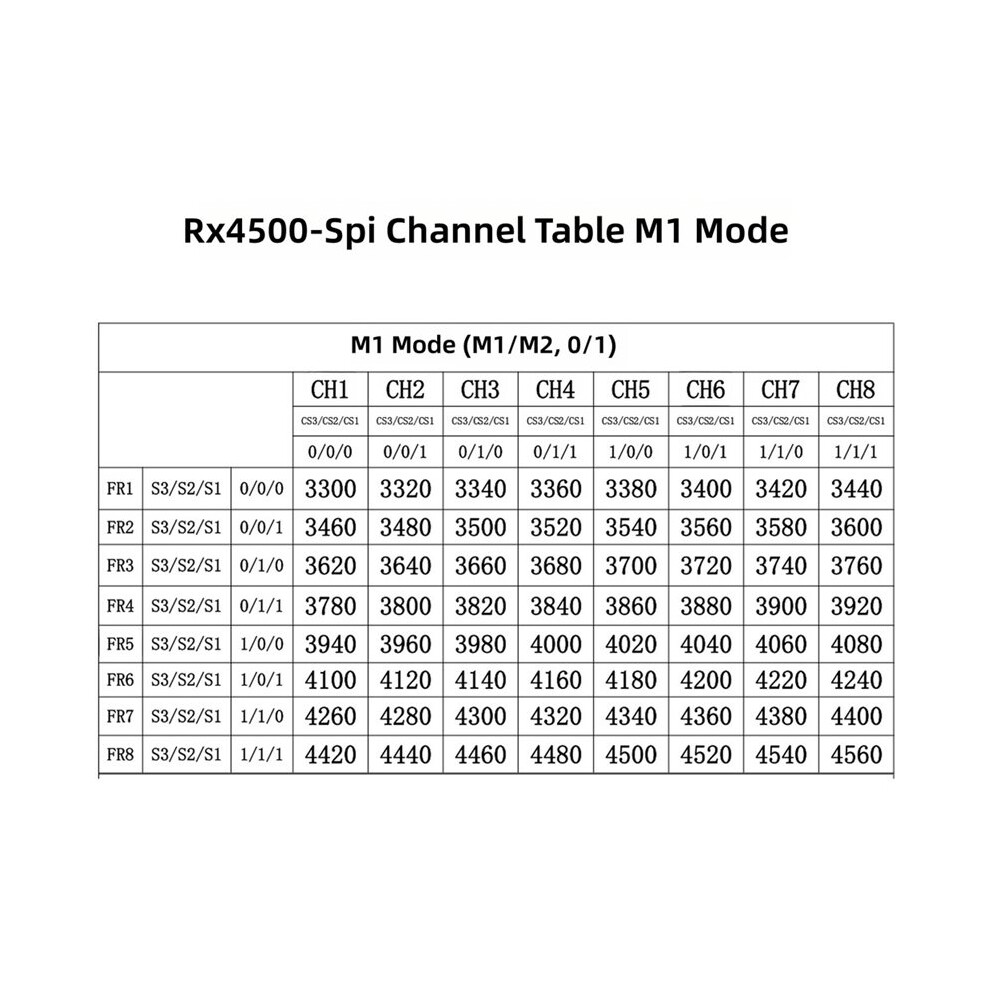

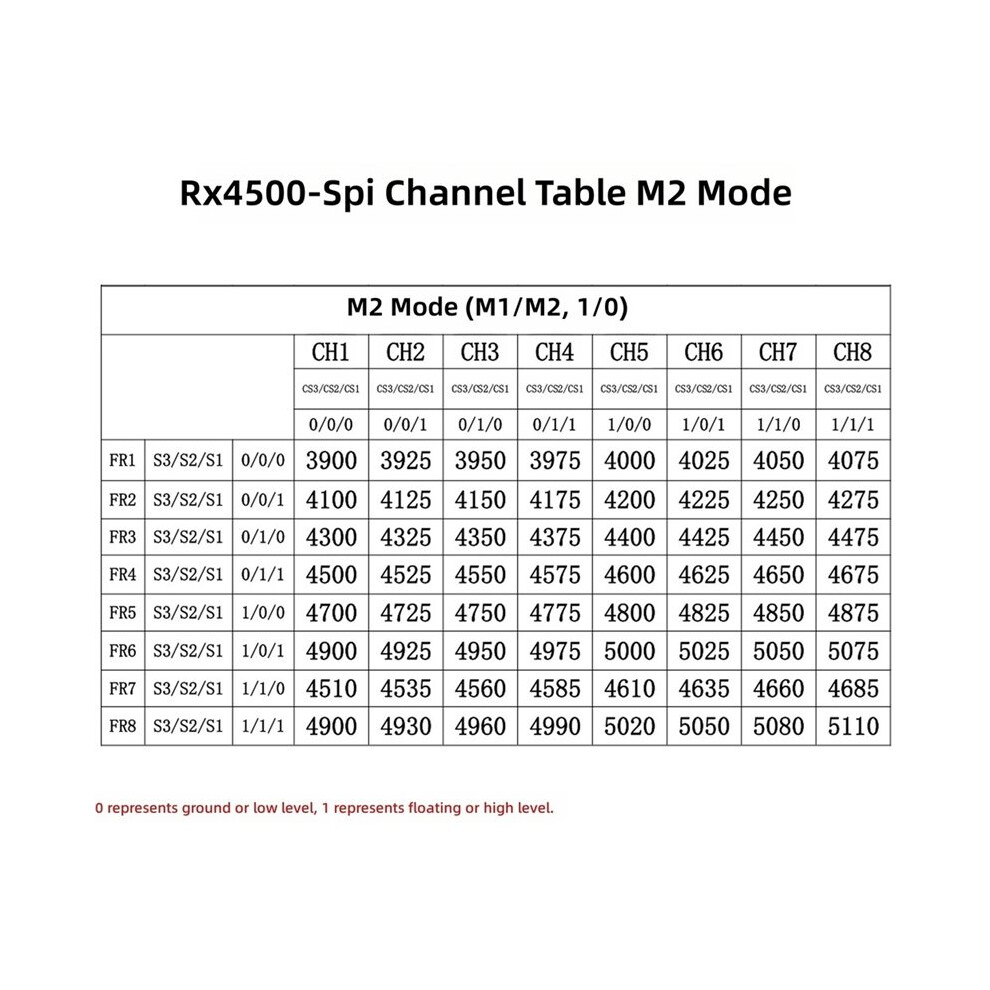

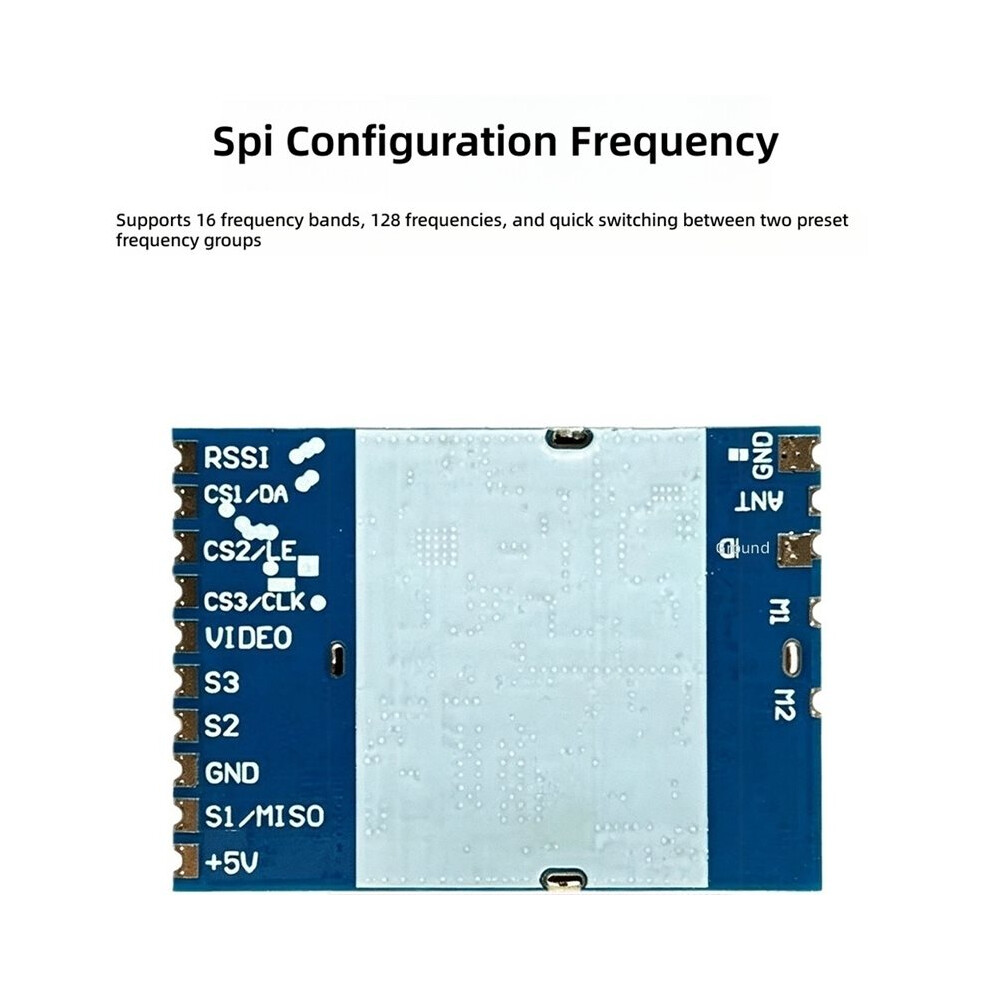

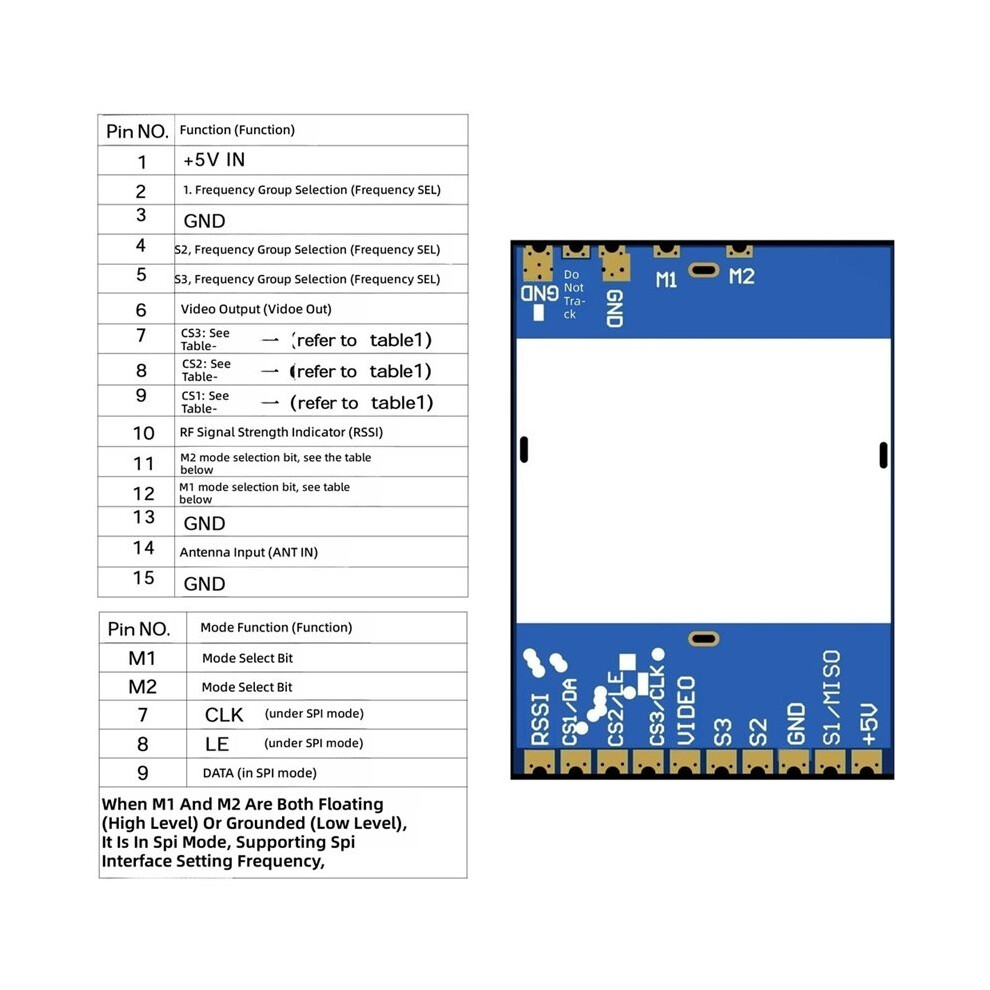

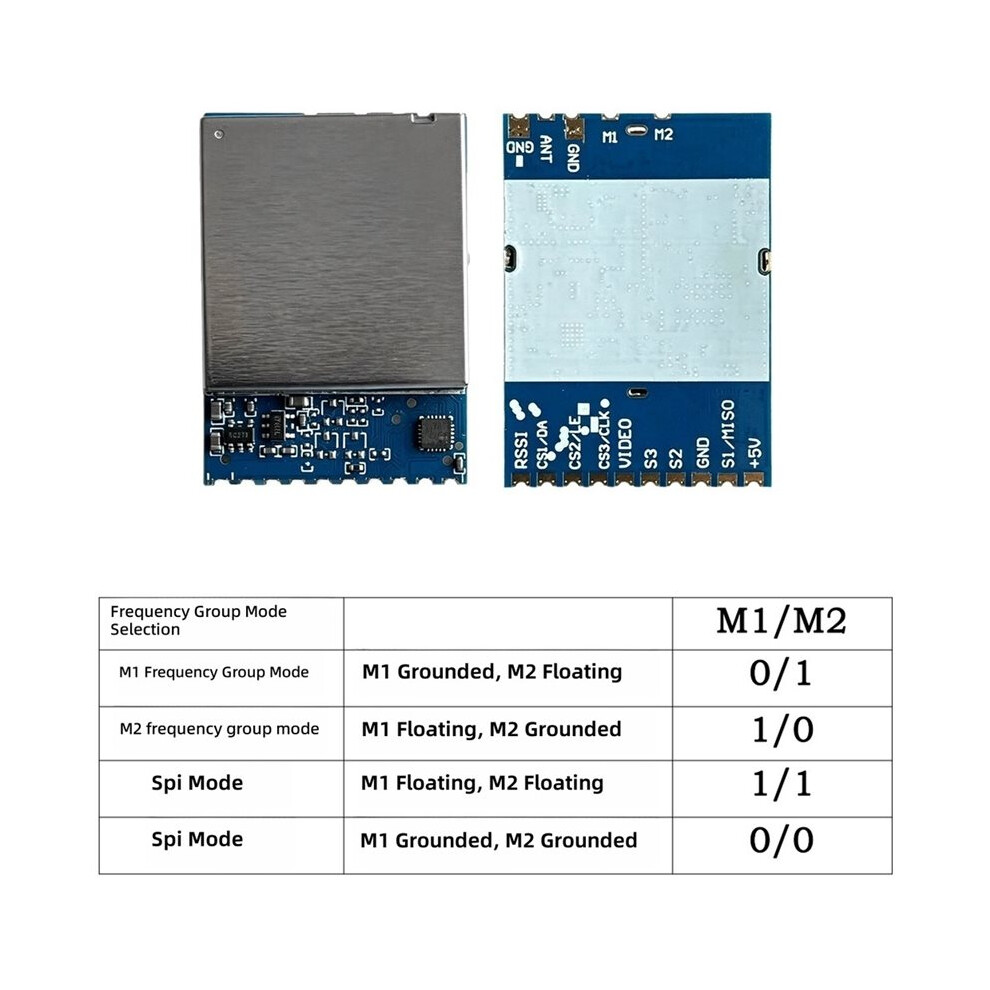

3. SPI-configurable frequency; supports 16 frequency bands and 128 channels, with quick switching between two preset frequency groups.
4. Standard analog video output (75Ω impedance); excellent video performance ensures high-quality image output.

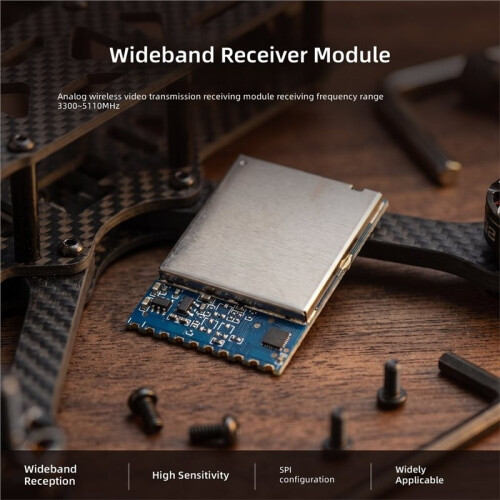

5. Suitable for FPV models, drones, RC cars, and similar equipment; enables analog wireless video transmission reception.

Specifications:
Characteristics
Power Supply: 5.0V
Current Consumption: (380 30) mA

Environmental Specifications
Operating Temperature: -10 to +65C
Storage Temperature: -30 to +85C
Operating Humidity: 85% RH

RF:
Receiving Frequency Range: 3300-5110 MHz
Input VSWR: 2:1
Demodulation System: FM/PLL
IF Frequency: 480 MHz
Antenna Input Impedance: 50Ω (Typ.)
LO Frequency Stability: 200 kHz
LO Frequency Precision: 200 kHz
LO Control: PLL
Input LO Leakage: -65 dBm
Receiving Sensitivity: -93 dBm 2
Input Level Range: -93 dBm to +5 dBm

Video Characteristics
Video Output Impedance: 75Ω (Typ.)
Video Output Level: 1 0.2 Vp-p (Typ.)
Video Polarity: Negative
Video Frequency Response: 5 dB (Max.), 50 Hz - 6 MHz
Differential Gain: 5% (Max.)
Differential Phase: 5 (Max.)
3dB IF Bandwidth: 16.5 MHz
S/N Ratio: 38 dB (Min.)
Color: & Silver
Material: PCB+Metal

Package Contents:
1 * RX4500 SPI Receiver Module
