TC1 1.8 Inch TFT LCD Display Multimeter Transistor Tester Diode Triode Capacitor Resistor Test Meter

TC1 1.8 Inch TFT LCD Display Multimeter Transistor Tester Diode Triode Capacitor Resistor Test Meter Beskrivelse

Features: Can be widely used to detect NPN and PNP transistors, capacitors, resistors, diodes, transistors, N-channel and P-channel MOSFETs, IGBTs, JFETs, thyristors, batteries, etc. Zener diodes can also be detected and have a functional self-calibration.
After the detection is completed, point the infrared remote control at the "IR" light, and then press the button the remote control. If the detector decodes successfully, the data code and infrared waveform will be displayed.

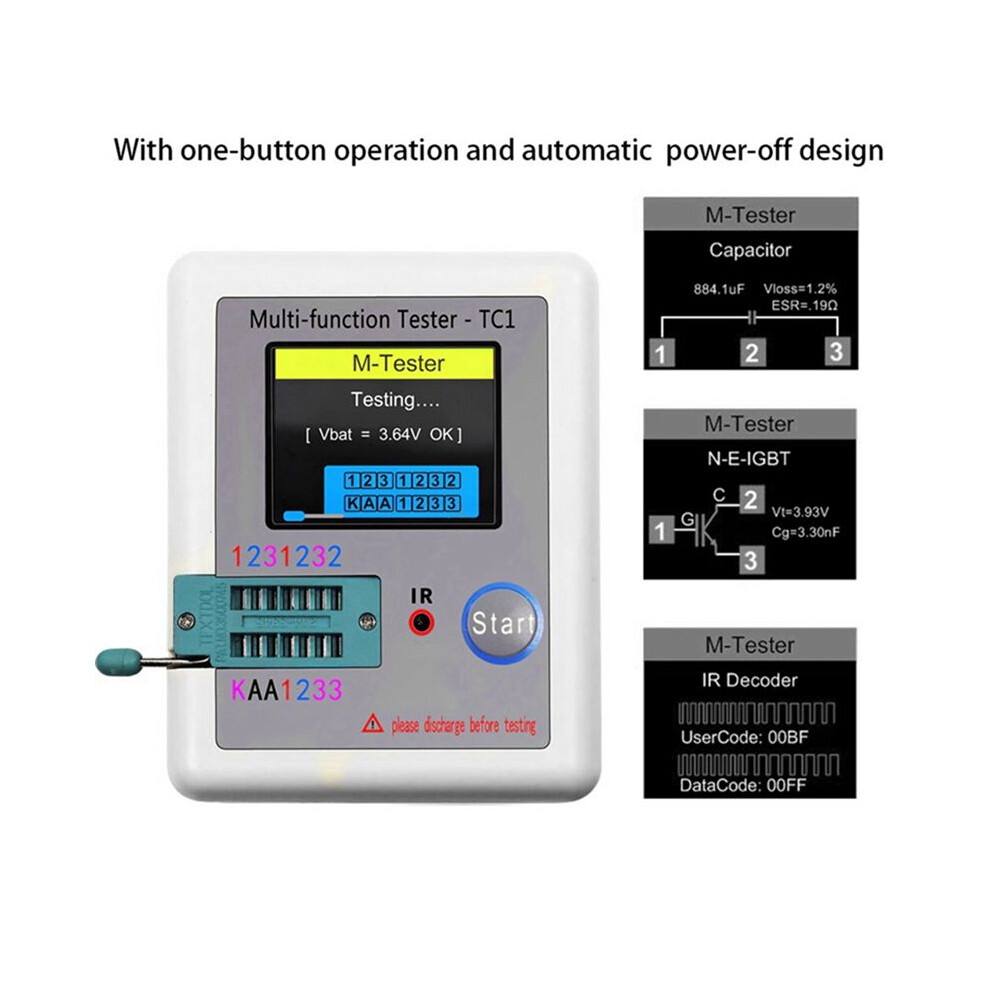

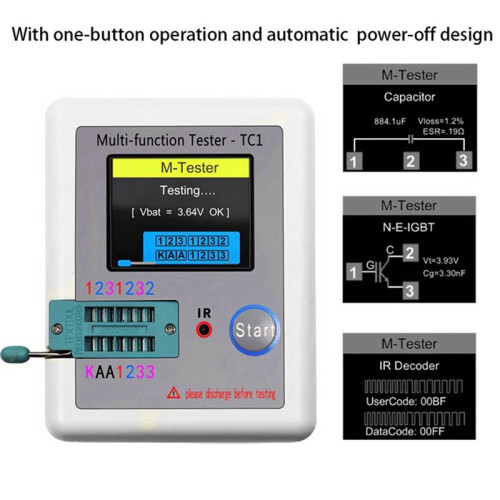

One-key operation, automatic detection and shutdown, you can also press the multi-function button to turn off the detector.

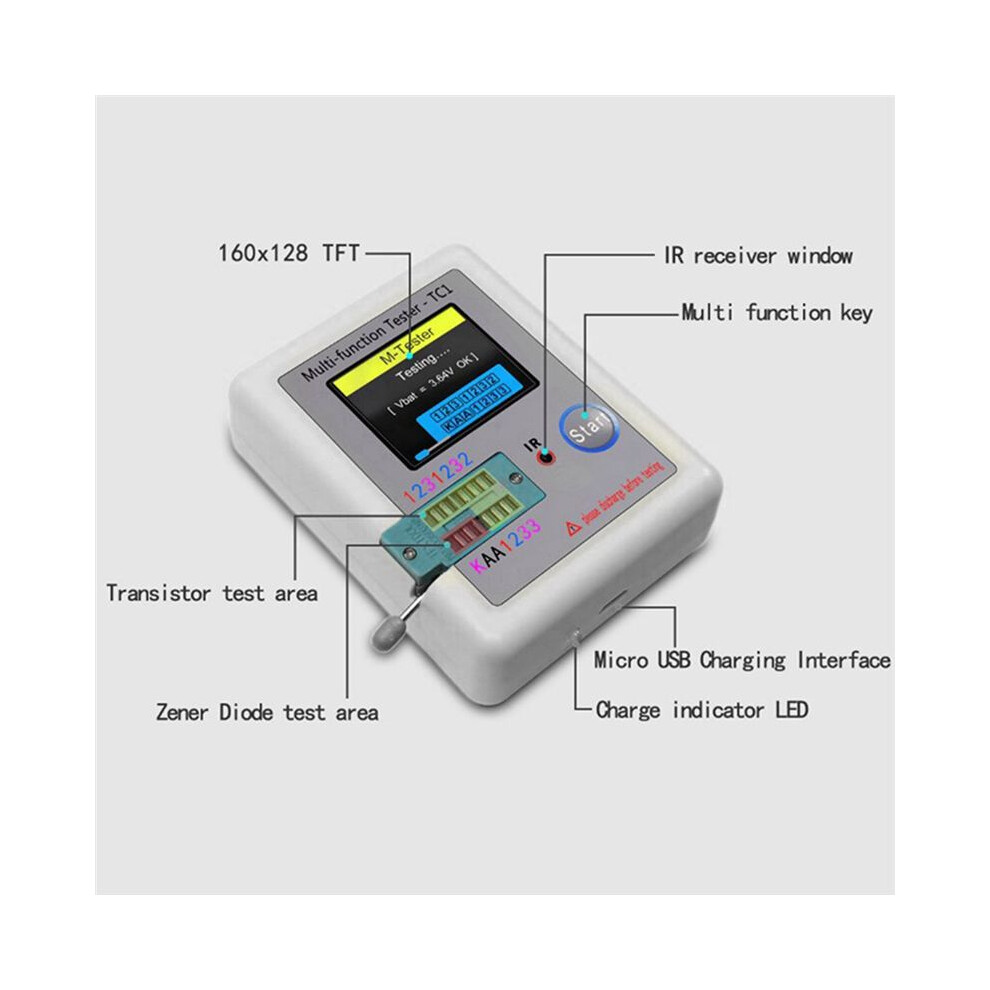

Place the pins of the components in the corresponding area, turn the small handle, the detector will automatically detect, and the final result will be clearly displayed the backlit TFT screen.
Instead of the usual black and white display, this detector will display the results in color.

Specification:
Power Mode: Rechargeable Lithium Battery
Display: 3.5 x 3cm TFT screen
Diode Range: Less than 4.5V
Zener diode: transistor detection area: 0.01-4.5V Zener diode detection area: 0.01-20V
Triac Range: IGT Less than 6mA
Capacitance: 25pF- 100mF
Resistance: 0.01-50MΩ
Inductance: 0.01mH-20H
Battery: 0.1-4.5V (with battery)
Product chip: High-performance mcu
Note: different batches, some accessories are random, don't accept the specified accessories, will not affect the use.
Material: plastic
colour: White

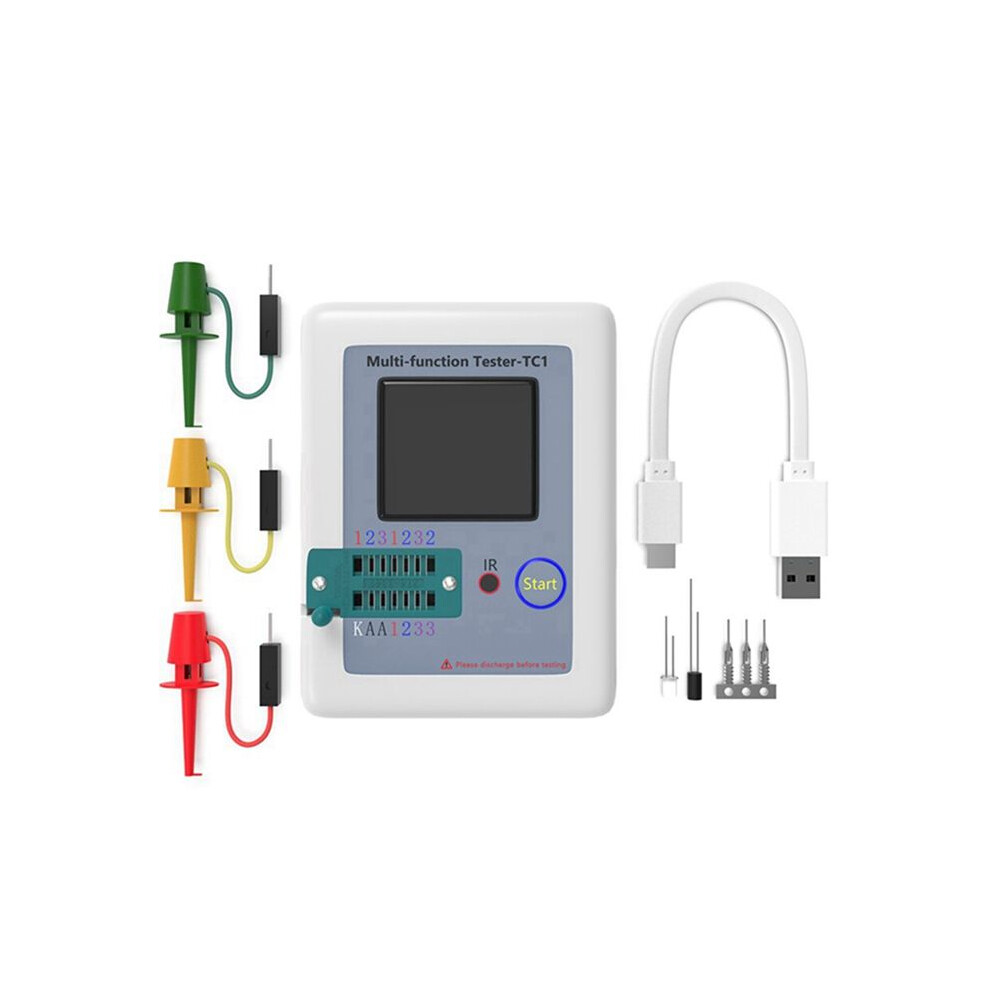

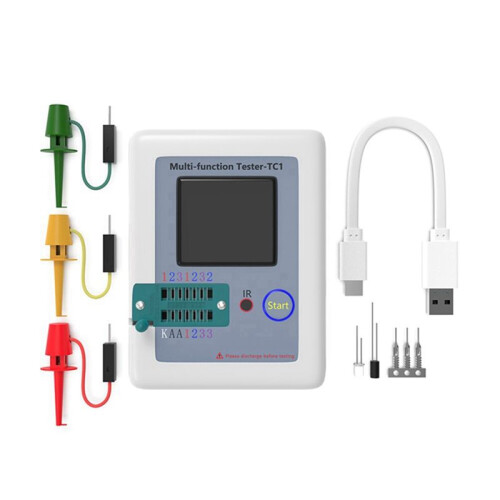

Package Contents:
1 x Multifunctional TFT Transistor Tester
1 x Electronic components set
1 x Cable
3 x Test hook
